www.PolkAudio.com /800.377.7655 (USA & Canada) /410.358.3600 (Worldwide) 1

Cutsheet for LC80FX &LC65FX

High Performance In-Wall/In-Ceiling Loudspeakers

Timber-matched to Polk Audio’s LCi-Series High Performance Loudspeakers, the LC65FXand LC80FXmake the ideal In-wall

and in-ceiling surround speakers respectively. LCFXsurround speakers have a switchable “Solid” and “Diffuse” imaging feature

to create the surround effect you desire. Paintable, powder-coated aluminum grilles and flanges enable these speakers to virtually

disappear in your room. Rust-resistant hardware and durable, moisture resistant materials ensure long-term reliability. Both LCFX

surround models install easily, and the LC65FX uses the LC65’s preconstruction bracket and performance enclosure.

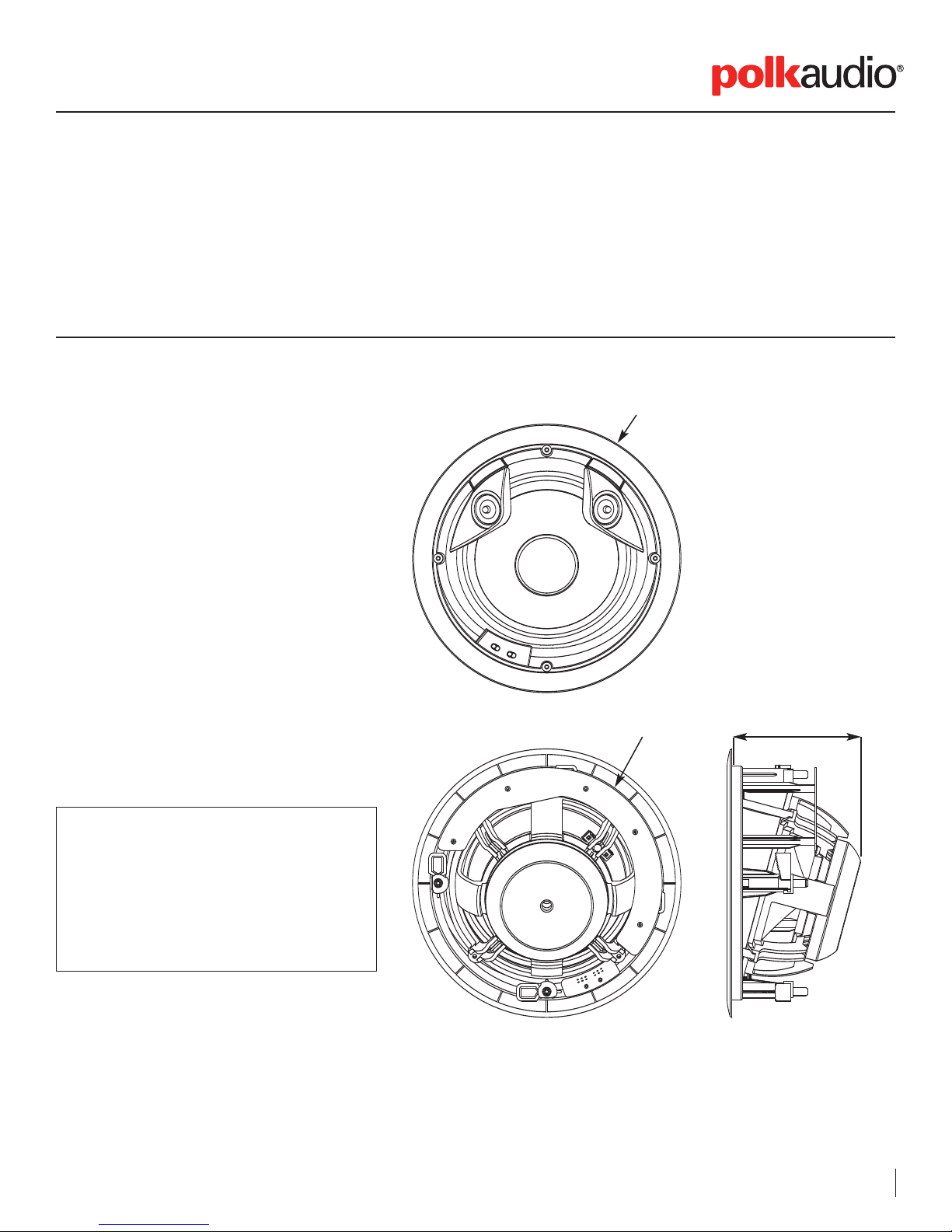

LC80FX Dimensions

Overall Diameter 10-11/16" (27.15cm)

Cutout Diameter 9-3/8" (24cm)

Overall Depth 5-5/16" (13.5cm)

Mounting Depth 4-5/8" (11.75cm)

with 1/2" of drywall

Available Finish: Paintable White

LC80FX

Hardware (included)

• Two LC80FX Speakers

• Two Speaker Mounting Templates

• Two Paint Masks

•One Grille (perforated)

• Logo Badge

• LC80FX Manual

• Registration Card

Important Note:

If anything is missing or damaged, or if your LC80FX

speakers fails to operate, notify Polk Audio Installer

Support Services immediately at 800-377-7655.

Hours: Mon.-Fri., 9am-5:30pm EST.Cutout

Diameter

9-3/8"

(24cm)

Mounting Depth

(Assumes 1/2" [12.7mm] drywall)

4-5/8" (11.75cm)

Overall

Diameter

10-11/16"

(27.15cm)

Overall Depth

5-5/16" (13.5cm)

2Polk Audio Custom Install Product: Model Number

LC65FX

Hardware (included)

• Two LC65FXSpeakers

• Two Speaker Mounting Templates

• Two Paint Masks

• One Grille (perforated)

• Logo Badge

• LC65FX Manual

• Registration Card

Important Note: If anything is missing or damaged,

or if your LC65FX speaker fails to operate, notify

Polk Audio Installer Support Services immediately

at 800-377-7655. Hours: Mon.-Fri., 9am-5:30pm EST.

LC65FX Dimensions

Overall Height 14-5/16" (36.4cm)

Overall Width 8-1/2" (21.59cm)

Cutout Height 12-3/4" (32.4cm)

Cutout Width 7-1/4" (18.41cm)

Overall Depth 3-3/4" (9.53cm)

Mounting Depth 3-1/4" (8.26cm)

with 1/2" of drywall

Available Finish: Paintable White

Cutout Width

7-1/4" (18.41cm)

Cutout

Height

12-3/4"

(32.4cm)

Mounting Depth

(Assumes 1/2"

[12.7mm] drywall)

3-1/4" (8.26cm)

Overall

Height

14-5/16"

(36.4cm)

Overall Width

8-1/2" (21.59cm)

WIRE RECOMMENDATIONS

Runs Gauge

Lengths up to 25' 18 or 16

Lengths greater than 25' 16 or 14

but less than 50'

Lengths greater than 50' 14 or 12

but less than 75'

Lengths greater than 75' 12

Overall Depth

3-3/4" (9.53cm)

www.PolkAudio.com /800.377.7655 (USA & Canada) /410.358.3600 (Worldwide) 3

SETTING RECOMMENDATIONS

LC65FX In-wall Surround Location

Surround speakers located close, straight to the sides

of your listening area, and approximately six feet off

the floor

Surround speakers located behind your listening area

and approximately six feet off the floor

LC80FX In-ceiling Surround Location

Surround speakers located straight to the sides of your

listening area.

Surround speakers located behind your listening area

Image Setting

Recommendation

Diffuse

Solid

Diffuse

Solid

SPEAKER PLACEMENT

Polk Audio LCFX Surround Loudspeakers give you nearly endless placement

options. But remember that where you place your surround speakers requires

some careful thought, as installation requires that you cut a hole in your wall

or ceiling

Left/Right Orientation: LCFXSurround Speakers have a left/right orientation,

and each speaker is clearly marked on its baffle for installation on either the

right or left. Right and left are defined from your listening area as you face

your system’s center channel.

Directing the Driver (LC80FX)

The fixed 15° angled driver in the LC80FXallows you to direct the midrange

towards your listening area when used for front stage (left-center-right). When

used as rear surrounds or as 6.1 or 7.1 back speakers, direct the driver towards

the listening area for a more direct sound field or toward a wall for a more

diffuse sound field

IMAGING

Solid/Diffuse Switch (LC65FX/LC80FX)

LCFXSurround Loudspeakers offer switchable “Solid” and “Diffuse” imaging

patterns to create the surround effect you desire.

A“Diffuse” image is defined as one which creates a “cloud” of sound; think

of the effect as ambient sounds which fill the environment all around you.

A“Solid” image is one which creates a more pin-point sound; sound is more

directional and localized. Ultimately you arethe best judge of what kind of

surround imaging you prefer.

The schematic drawing of the room represents an ideal placement for all

speakers in either a 6.1 or 7.1 speaker system.

ROOM ENVIRONMENT CONTROL

Wall Distance Switch

In-wall and in-ceiling loudspeakers excel when placed more than 2' (60cm) from

side walls. If position limitations demand that in-wall loudspeakers be installed

closer than 2'(60cm) from side walls, the proximity of the surface can result in

aresponse “bump” between 50 and 200Hz. This can cause in-wall speakers

to sound “boomy.” The Wall Distance Switch flattens response and tunes out

“boominess” without sacrificing deep bass response, for more lifelike sound.

If placement is closer than 2' to a wall: Engage the Wall Distance Switch

(“Wall Dist.”) to match the <2' setting. Recommended speaker distance from

side walls is 2 feet (60cm).

LC65FX

Surround Left Surround Right

Surround Back Right

Surround Back Left

Subwoofer

Center

Right

Left

LC80FX LC80FX

Surround Left Surround Right

Surround Back

Right

Subwoofer

Center

Right

Left

Surround Back

Left

4Polk Audio Custom Install Product: Model Number

SPECIFICATIONS

LC80FX

Product Weight: 4.0 lbs. (1.81kg)

PERFORMANCE

POWER HANDLING (WATTS/CHANNEL) 10-125W CONTINUOUS

IMPEDANCE (NOMINAL) 4 OHMS

FREQUENCY RESPONSE (OVERALL) 30HZ–27KHZ

EFFICIENCY (2.83V@1M) 88dB

SPEAKER WEIGHT 4.0 LBS (1.81KG)

DRIVER COMPLEMENT

MIDBASS 1-8" (20.32CM)

POLYPROPYLENE

DYNAMIC BALANCE™DRIVER

TWEETER 2-3/4" (1.91CM)

RING RADIATOR TWEETERS

CONNECTIONS

SPEAKER WIRE

MAXIMUM WIRE SIZE ACCOMMODATED 12 AWG

MINIMUM RECOMMENDED 18 AWG

INPUT CONNECTORS HEAVY-DUTY SPRING LOADED

PUSH TERMINALS

PERFORMANCE

POWER HANDLING (WATTS/CHANNEL) 10-125W CONTINUOUS

IMPEDANCE (NOMINAL) 4 OHMS

FREQUENCY RESPONSE (OVERALL) 30HZ–27KHZ

EFFICIENCY (2.83V@1M) 88dB

SPEAKER WEIGHT 4.35 LBS (1.97KG)

DRIVER COMPLEMENT

MIDBASS 1-6 1/2" (16.51CM)

AERATED POLYPROPYLENE

DYNAMIC BALANCE™DRIVER

TWEETER 2-3/4" (1.91CM)

RING RADIATOR TWEETERS

CONNECTIONS

SPEAKER WIRE

MAXIMUM WIRE SIZE ACCOMMODATED 12 AWG

MINIMUM RECOMMENDED 18 AWG

INPUT CONNECTORS HEAVY-DUTY SPRING LOADED

PUSH TERMINALS

SPECIFICATIONS

LC65FX

Product Weight: 4.35 lbs. (1.97kg)

Web Address:

For more information on the LC80FX,log onto

www.polkaudio.com/downloads/manuals/

home/LC80FX_manual.pdf

Web Address:

For more information on the LC65FX,log onto

www.polkaudio.com/downloads/manuals/

home/LC65FX_manual.pdf

If you have questions, please contact your Authorized

Polk Audio Dealer or Customer Service at 1-800-377-7655

Monday through Friday 9am-6pm EST.
