www.PolkAudio.com /800.377.7655 (USA & Canada) /410.358.3600 (Worldwide) 1
CSW100
Custom Install Subwoofer
The CSW100 subwoofer is a bandpass design with slot-load venting and has a 10 inch long-throw driver. The
CSW100 fits standard joist spacing and is designed specifically for floor and ceiling installation, or custom enclos-
ures that are at least nine inches (9”) deep. All sound comes from an opening approximately 13 inches long by 3
inches wide. There is an access panel on the back of the subwoofer should the driver have to be removed for service.
Hardware (included)
• 1 Subwoofer
• 4 Mounting Brackets
• 16 - 3/4" Particle Board Panhead Screws
•16 Washers
•3 Isolation Pads
• 1 Registration Card
• 1 Owner’s Manual (also available online)
• Plastic molded grille
• 6 Rubber Buttons (to cover grille screw holes)
Protective Cover
A 1/2" thick protective cover of MDF covers the
CSW100 grille opening. This protective cover
(3 - 1/4" x 13") is also the template you will use to
cut the grille opening. Affixed to the MDF cover
is the following label:
If you choose to use another grille, use one
that doesn’t resonate and caulk it.
Isolation
Pads
Mounting
Brackets
and Screws
Wood Joist
Wood Joist
Top View
of CSW100
Subwoofer
in floor
Available Finishes: Black
THIS DOCUMENT APPLIES TO CSW100, CSW200, AND SWA500 PRODUCTS
All the bass
comes out
of here!
26 1/4"
(66.7 cm)
26 1/4"
(66.7 cm)
9"
(22.9 cm)
2Polk Audio Custom Install Product: CSW100
Dimensions
Installed Weight: 33 lbs.
5/8"
(1.6 cm)
13"
(33.0 cm)
3"
(7.62 cm)
13"
(33.02 cm)
Access panel
www.PolkAudio.com /800.377.7655 (USA & Canada) /410.358.3600 (Worldwide) 3
PERFORMANCE
DRIVER COMPLEMENT SINGLE LONG-THROW KLIPPEL-ANALYZED 10-INCH DRIVER
POWER HANDLING (WATTS) 250 CONTINUOUS
OVERALL FREQUENCY RESPONSE 27HZ-140HZ
LOWER -3DB LIMIT 33HZ
UPPER -3DB LIMIT 120HZ
NOMINAL IMPEDANCE 8 OHMS

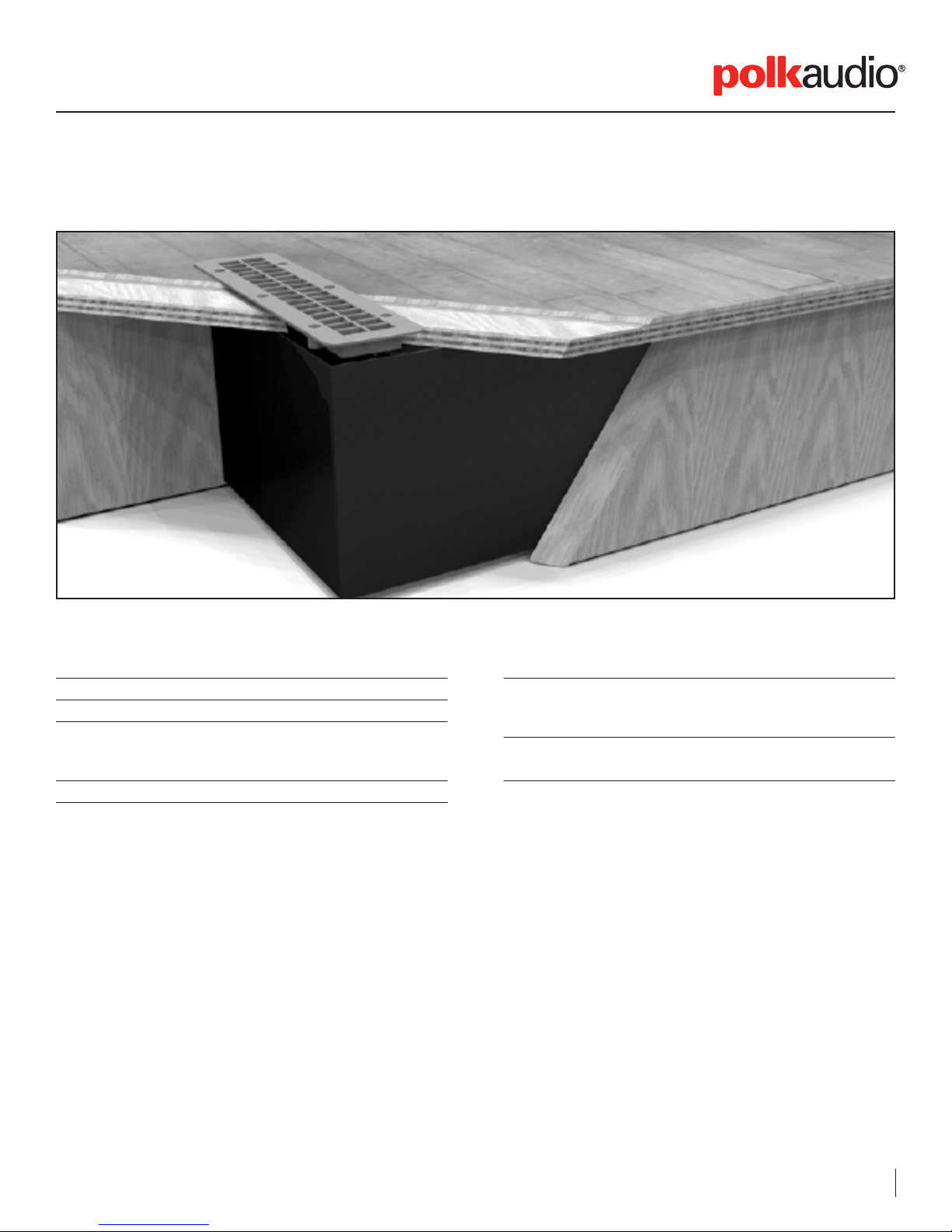

CSW100 shown with Polk Audio 2" x 12" grille.
CONNECTIONS
SPEAKER WIRE
MAXIMUM WIRE SIZE ACCOMMODATED 12 AWG
MINIMUM RECOMMENDED 18 AWG
INPUT CONNECTORS HEAVY-DUTY SPRING LOADED
PUSH TERMINALS
Recommended Configuration
Use dedicated SWA500 amplifier to achieve optimal performance as recommended by Polk Audio (see note on SPEX Cards under SWA500).
Factory Support
For product support, contact our service department at 1-800-377-7655 9am to 6pm EST, Monday-Friday,
For more information on the CSW100 and specific installation procedures, log onto
http://www.polkaudio.com/downloads/manuals/home/CSW100_200_Manual.pdf
Specifications
4Polk Audio Custom Install Product: CSW200
CSW200
High Performance Custom Install Subwoofer
The CSW200 is a built-in subwoofer designed specifically for floor and ceiling installation or custom enclosures that
are at least nine inches (9") deep. This subwoofer fits standard joist spacing.
Hardware (included)
• 1 Subwoofer
• 4 Mounting Brackets
• 16 - 3/4" Particle Board Panhead Screws
• 16 Washers
• 3 Isolation Pads
• 1 Registration Card
• 1 Owner’s Manual (also available online)
Grille (not included)
The CSW200 does not include a grille. We recommend
using a 12" x 12" grille, though you may use a variety of
grilles with the CSW200 (10" x 10"or 8" x 14" for example).
To prevent spurious noises, use a grille that doesn’t
resonate and caulk it. To install the CSW200, follow the
procedure that applies to your job.
Protective Cover/Installation
A 1/2" plate of MDF covers the CSW200 woofer to protect
it and the cabinet during shipping and installation. Affixed
to the MDF cover, you will see the following label:
Isolation
Pads
Mounting
Brackets
and Screws
Mounting
Brackets
and Screws
Wood Joist
Wood Joist

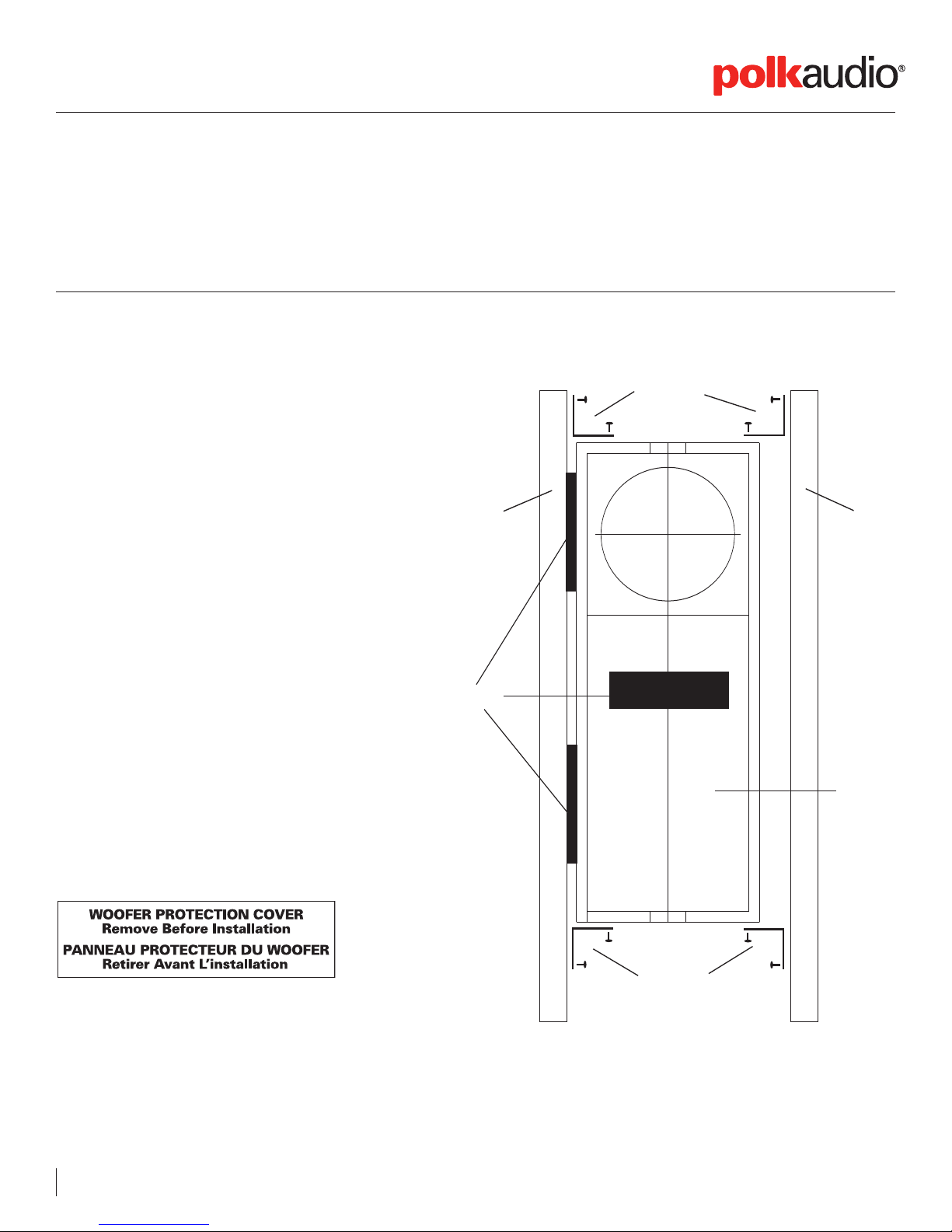

Top View
of CSW200
Subwoofer
in floor
Available Finishes: Black
www.PolkAudio.com /800.377.7655 (USA & Canada) /410.358.3600 (Worldwide) 5
A
34.10
866.1[]
6.50
165.1[]
6.50
165.1[]
13"
(33.0 cm)
6 1/2"
(16.5 cm)
34 1/8"
(86.7 cm)
6 1/2"
(16.5 cm)
34 1/8"
(86.7 cm)
9" (22.9 cm)
Dimensions
Installed Weight: 48 lbs.
6Polk Audio Custom Install Product: CSW200
Recommended Configuration
Use dedicated SWA500 amplifier to achieve optimal performance as recommended by Polk Audio (see note on SPEX Cards under SWA500).
Factory Support
For product support, contact our service department at 1-800-377-7655 9am to 6pm EST, Monday-Friday,
For more information on the CSW200 and specific installation procedures, log onto
http://www.polkaudio.com/downloads/manuals/home/CSW100_200_Manual.pdf
CSW200 shown with aftermarket 12" x 12" floor grate.
PERFORMANCE
DRIVER COMPLEMENT SINGLE LONG-THROW KLIPPEL-ANALYZED 10-INCH DRIVER
POWER HANDLING (WATTS) 250 CONTINUOUS
OVERALL FREQUENCY RESPONSE 22HZ-140HZ
LOWER -3DB LIMIT 28HZ
UPPER -3DB LIMIT 120HZ
NORMAL IMPEDANCE 8 OHMS
CONNECTIONS
SPEAKER WIRE
MAXIMUM WIRE SIZE ACCOMMODATED 12 AWG
MINIMUM RECOMMENDED 18 AWG
INPUT CONNECTORS HEAVY-DUTY SPRING LOADED PUSH
TERMINALS, ONE PAIR PER SIDE
IMPORTANT NOTE: The CSW200 is equipped with two sets of binding posts for
installing convenience. Use either set to hook up the subwoofer to the ampli-
fier. Do not use both sets. Always use one set.
Specifications
www.PolkAudio.com /800.377.7655 (USA & Canada) /410.358.3600 (Worldwide) 7
SWA500
High Performance Subwoofer Amplifier
Hybrid Class D amplifier, producing 250W Continuous Power into 8 Ohms and 500W Continuous Power into 4 Ohms.
Dimensions
Chassis
3 1/2" H x 17" W x 12 5/8" D (8.89 cm H x 43.18 cm W x 32.07 cm D)
17”
43.18cm
3 1/2”
8.89cm
WEIGHT
INSTALLED WEIGHT 9.8 LBS. (4.5 KG.)
SHIPPING WEIGHT 17 LBS. (7.7 KG.)
PERFORMANCE
POWER CONTINUOUS 250W INTO 8 OHMS
500W INTO 4 OHMS
POWER PEAK 800W
BANDWIDTH 15HZ - 250HZ
DISTORTION 0.01%
CROSSOVER FREQ RANGE 40HZ - 120HZ
CROSSOVER SLOPE 24dB/OCT
POWER REQUIREMENTS 120V 60HZ AC, 6.3 AMPS
AVAILABLE IN 220V? YES
PROTECTION CIRCUITRY
The SWA500 amplifier offers dynamic power control, thermal protection,
short circuit, fuse and over-current protection.
ACCESSORIES
SPEX Cards, which configure EQ, Crossover and Power Control circuitry to
each Polk subwoofer.
Rack ears
CONNECTIONS
SPEAKER WIRE
MAXIMUM WIRE SIZE ACCOMMODATED 12 AWG
MINIMUM RECOMMENDED 18 AWG
SPEAKER OUT/SPEAKER IN 5-WAY BINDING POSTS
LINE IN/OUTPUTS LFE, LINE IN L/R, LINE OUT L/R
POWER CONNECTIONS 8 FOOT DETACHABLE IEC POWER CORD
4”
10.16cm
(with
feet)
8Polk Audio Custom Install Product: SWA500
Recommended Configuration
SPEX Card: The SPEX Card configures the EQ, Crossover and Power Control
circuitry to match each Polk Subwoofer. The SWA500 Amplifier comes with
SPEX Card(s), one each for the specific Polk In-wall Subwoofer to be installed.
NOTE: One of the SPEX Cards must be installed in the SWA500 Amplifier
for the amplifier to function.
1. Locate the SPEX Card that corresponds to the Polk subwoofer model to
which the SWA500 Amplifier will be connected.
2. Remove the two (2) thumb screws from the rear of the amplifier.
3. Remove the label covering the SPEX Card slot.
4. Connect the ribbon connector coming from the SPEX Card opening to its mating
connector on the SPEX Card.
5. Insert the SPEX Card into the opening and screw the retaining plate onto the back panel.
Factory Support
For product support, contact our service department at 1-800-377-7655 9am to 6pm EST, Monday-Friday,
For more information on the SWA500 and specific installation procedures, log onto http://www.polkau-
dio.com/downloads/manuals/home/SWA500_Manual.pdf
17”
43.18 cm
3 1/2”
8.89 cm
Dimensions (continued)
4”
10.16 cm
