Portech MT-350 Mobile Trunk Bedienungsanleitung

MT-350 Mobile Trunk

Operation Manual

PORTech Communications Inc.

www.discountcomms.co.uk

§ IN EX §

1. Preface ...................................................................................1

2. Function Interpretation ...........................................................1

3. Parts Names...........................................................................2

4. imension rawing ................................................................2

5. emonstration on ouble Sides of Equipment ......................3

6. Install Line Connections .........................................................4

7. Set the Allow-to- ial Code .....................................................5

8. Code Conversion Setting .......................................................5

9. Cancel Code-Conversion .......................................................5

10. Set Parameter ......................................................................6

(1)Set GSM dial-out code amount ...........................................6

(2)Polarity reversing function ...................................................6

(3) efinition of TMF reversing signal ....................................6

(4)Limit of communicating time................................................6

(5)GSM function of dialing out the prompt voice......................7

(6)When not connecting to Telephone Office line, GSM will

provide the forced dial-out function..........................................7

(7)Set up GSM extra dialing local code ...................................7

(8)Sound volume modulation...................................................8

(9)Restore default setting ........................................................8

(10)Set up extra dialing local-code to PSTN............................8

(11)GSM simulated echo-bell-sound function..........................8

(12)GSM isn’t ready, call will be forced to dial out from PSTN 9

(13)Supervisor Password Setting ............................................9

(14)Input for PIN Code Request ............................................10

11.Setting of Specific Call-Transfer..........................................10

(1)PSTN TO GSM..................................................................10

(2)GSM TO PSTN..................................................................10

(3)GSM free transfer setup ....................................................11

12. Short Code Setting .............................................................12

13. Call-Transfer Restriction Setting ........................................13

14. Echo Cancel Function ........................................................14

15. Q&A ....................................................................................14

16 Specification ........................................................................16

MT-350 Operation Manual 1

1. Preface

Congratulations! You have selected the remarkable product “MT-350 Mobile

Trunk” by your sharp and intellectual judgment. ”MT-350” will provide you the best wire

and wireless communication services. Before using this product, you have to read over

this Operation Manual, letting this product serve you with its full functions, to satisfy

your ideal desire and enjoy yourself in the wire and wireless communication applied in

daily lives. The “MT-350” product is under our delicate design, which has fulfilled the

ideal way of communications expressed on the slogan of “making wireless to wire”

versus “making wire to wireless”. It can save your communication expense and bring

you an unpredictable effort using this product.

2. Function Interpretation

(1) Conversion of wire & wireless communication

We can use MT-350 Mobile Trunk to apply conventional telephone set replacing

cell phone to perform sending and receiving phone calls.

(2) Auto-select economic route

From various settings, MT-350 will determine the calls connected through local

PSTN Line or GSM on accordance of call numbers dialed therein, which can save

phone-call fee as a favorable benefit.

(3) Through the connection towards local PSTN line, the phone calls will proceed with

code-transfer dialing process. For example, when you dial “002”, MT-350 will

transfer it to “006” and transmit the calls through the other fixed communication

network systems.

(4) Vocal volume modulating system

In order to cooperate with different application environment, the Wizard is capable

to modulate the vocal voice of phone.

(5)MVPN Function

Provide MVPN routing according to the prefix of MVPN number for GSM carrier.

MT-350 Operation Manual 2

3. Parts Names

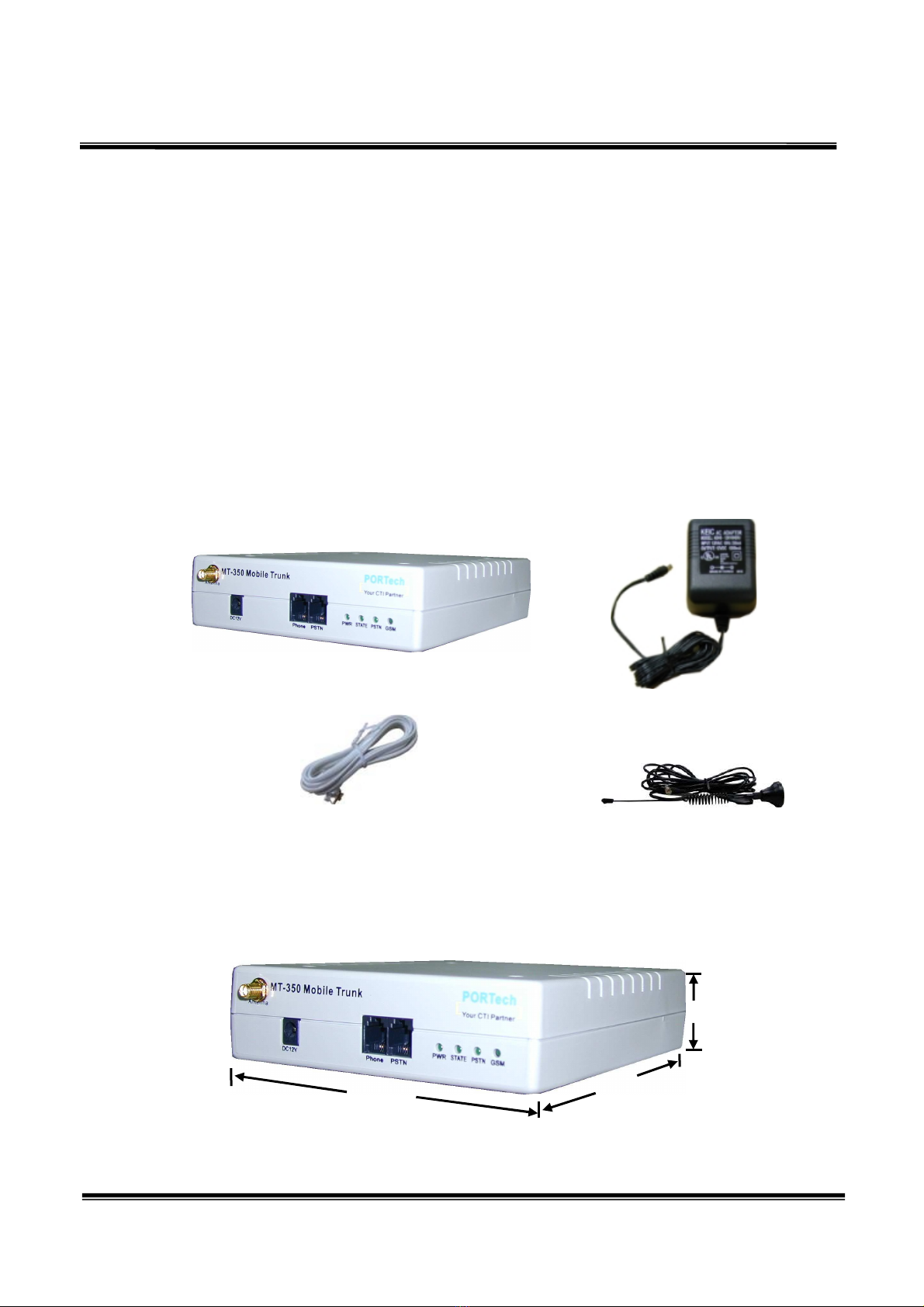

After opening the package, please check whether all parts attached to MT-350

Wizard are provided in the package. If there is any missing, please query the sales

agent promptly to supplement for the insufficient parts. The parts on the list are

specified below:

(1) ”MT-350” primary machine

(2) Transformer AC- C (110V AC – 12V C) or (220V AC – 12V C)

(3) Phone connecting box

(4) Antenna

(5) This Operation Manual

4. Dimension Drawing

(1)

(2)

(4)

(3)

4.0cm

14.5cm

17.0

MT-350 Operation Manual 3

5. Demonstration on Double Sides of quipment

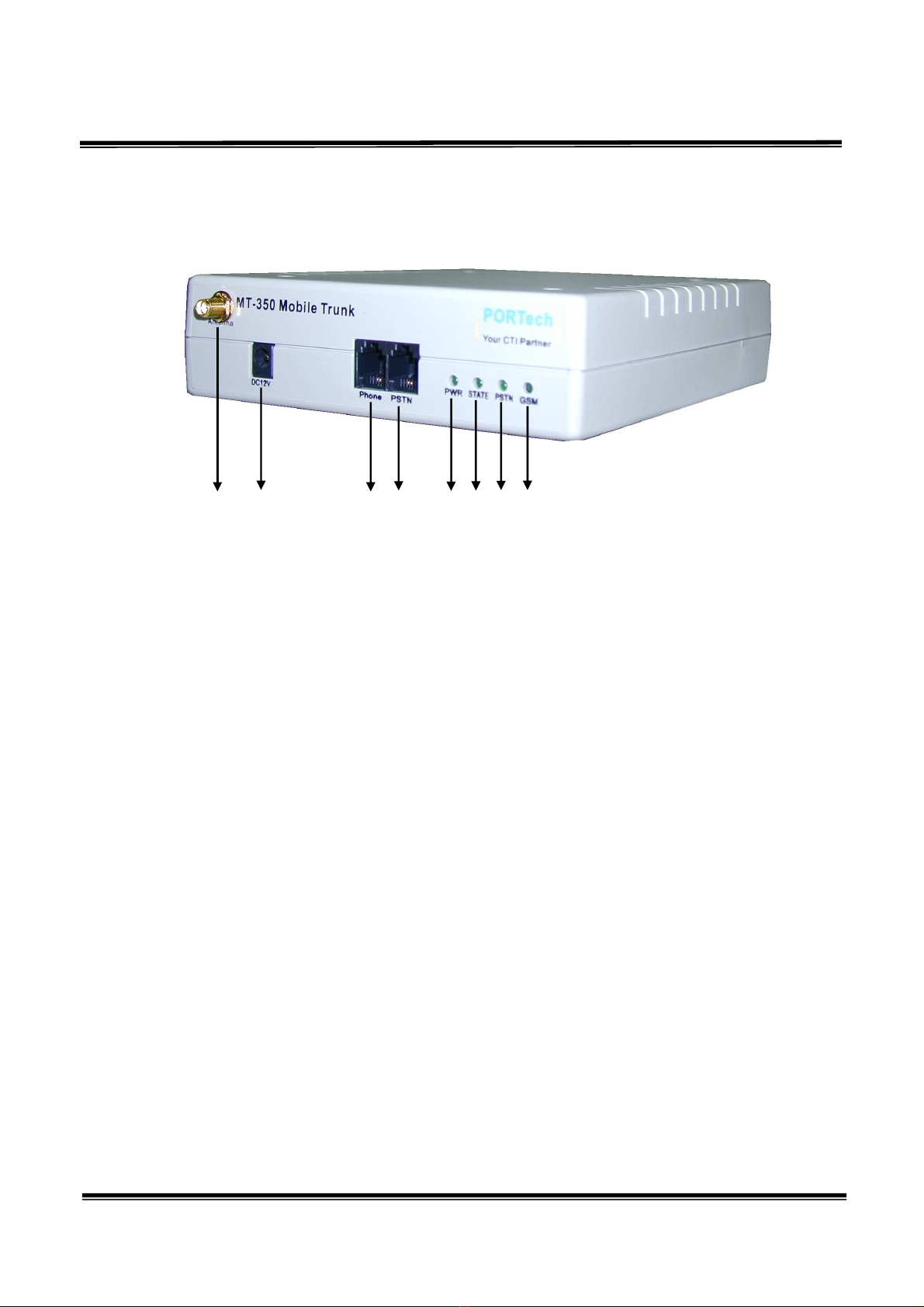

(1)Connecting seat of externally connected antenna.

(2) C 12V: power input.

(3)PHONE: Telephone/switchboard connector; with standard RJ-11 USA type plug,

connected to the Telephone Office loop of phone set or switchboard.

(4)PSTN phone jack : Central office line interface, standard RJ11 phone jack.

(5)PWR LE (Power Indicator)

(6)STATE LE : Slow flashing during the initialization stage, light up when the phone

set is picked up. Fast flashing during the GSM line in use. Flash timing indicates the

RSSI(received signal strength indicator), 5 times per second for the strongest

receiving, 1 time per second for the poorest receiving.

(7)PSTN LE : Flashing during the PSTN line in use.

(8)GSM LE : Fast flashing when the GSM channel is available, otherwise, slow

flashing.

** Insert the SIM card from the back (take off the slide first)

(1) (2) (3) (4) (5)(6)(7) (8)

MT-350 Operation Manual 4

6. Install Line Connections

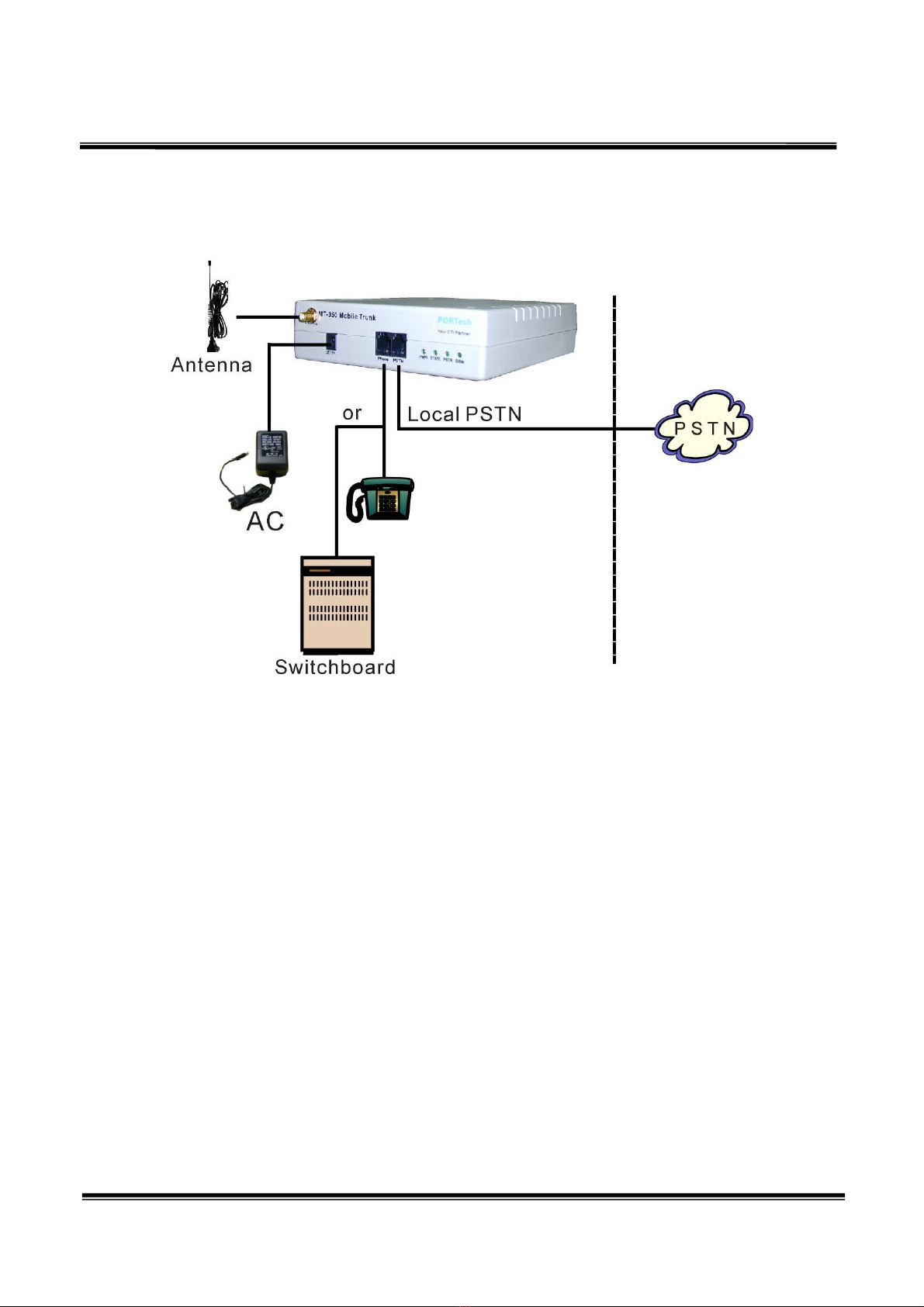

Wiring iagram

(1)Take apart your local PSTN connecting line from the phone or switchboard, and

connect it to the LINE connecting slut of MT-350. If you use MT-350 to send and

receive calls only, then you don’t need to connect the local PSTN line.

(2)Connect PHONE connecting slut to the inlet side (Telephone Office) of phone or

switchboard.

(3)Put in transformer power. The C end connects to C 12V of MT-350, and then the

PW lamp on the front side of MT-350 should light up.

(4)MT-350 will proceed with system detection after booting. Please connect the Line

and Phone correctly before energizing it. If problem is found during the system

operation, please take power source off first and process wiring task next.

MT-350 Operation Manual 5

7. Set the Allow-to-Dial Code

(1)Hold the phone and dial numbers following the order illustrated below:

***#nnnn#: n means the code that allows sending calls out from GSM. Hang up the

phone and the setting is thus completed. When the coding number is altered, follow

the above steps to set up again.

when nnnn is set to ※

※※

※＊＊

＊＊＊＊

＊＊, it will close the calls-sending function from GSM.

Format: ***# [waiting for confirming voice] (turn setting function on)

nnnn# [waiting for echo voice in responding]

Where nnnn means the allow-to-dial code, which as ***#0937, #0948# are on

behave of 0937- and 0948-; the code is dialed out from GSM.

efault setting =0, all call number starting with code “0” means allow-to-dial code.

8. Code Conversion Setting

Format: ###* [Waiting for confirming voice] (turn setting function on)

aaaa# [Waiting for echo voice in responding]

bbbb# [Waiting for echo voice in responding]

Where aaaa means original code, bbbb means converted code; the ###*002#006#

means converting head codes 002- to 006- automatically.

We have defined this code dialing mechanism outputting through Telephone Office

line system of PSTN. If we want to output through GSM, we can set the first code to

“*”, such as ###*002#*006#, which means that MT-350 will auto-convert head

codes 002- to 006- and dial out through GSM.

9. Cancel Code-Conversion

Format: ###* [Waiting for confirming voice] (turn setting function on)

**# [Waiting for echo voice in responding]

is to cancel code conversion function.

MT-350 Operation Manual 6

10. Set Parameter

(1)Set GSM dial-out code amount

Format: *#** [Waiting for confirming voice]

71aabb#

aa means dial-out code amount, bb have to be inputted in exactly identical to aa.

xample: *#**711010#, which means setting dial-out codes amount = 10. If correct, the

MT-350 then will beep up once in response. If not correct, the MT-350 will

beep up four times consecutively instead.

efault setting =10

(2)Polarity reversing function

Format: *#** [Waiting for confirming voice]

510101# is to turn the reversing function off,

510202# is to turn it on (default).

efault setting = 02

(3) efinition of TMF reversing signal

Format: *#** [Waiting for confirming voice]

52aabb#

In some regions or systems, TMF reversing signals vary and can be defined by

this function:

aa= 11 (* TONE), 12(# TONE), 13(A TONE), 14(B TONE), 15(C TONE),

00( TONE)

bb needs conforming to aa.

efault setting = 15 (C TONE)

(4)Limit of communicating time

Format: *#** [Waiting for confirming voice]

61aabb#

aa means the communicating time in the unit of min. ( 00-99), and will show alerting

sound 30 sec ahead of hang-up. bb should be identical to aa by input. If setting to “00”, it

then means unrestricted.

xample: *#**610505#, which means that system will send out alert sound at the
