POS-X Xr210 Ethernet Interface Install Guide

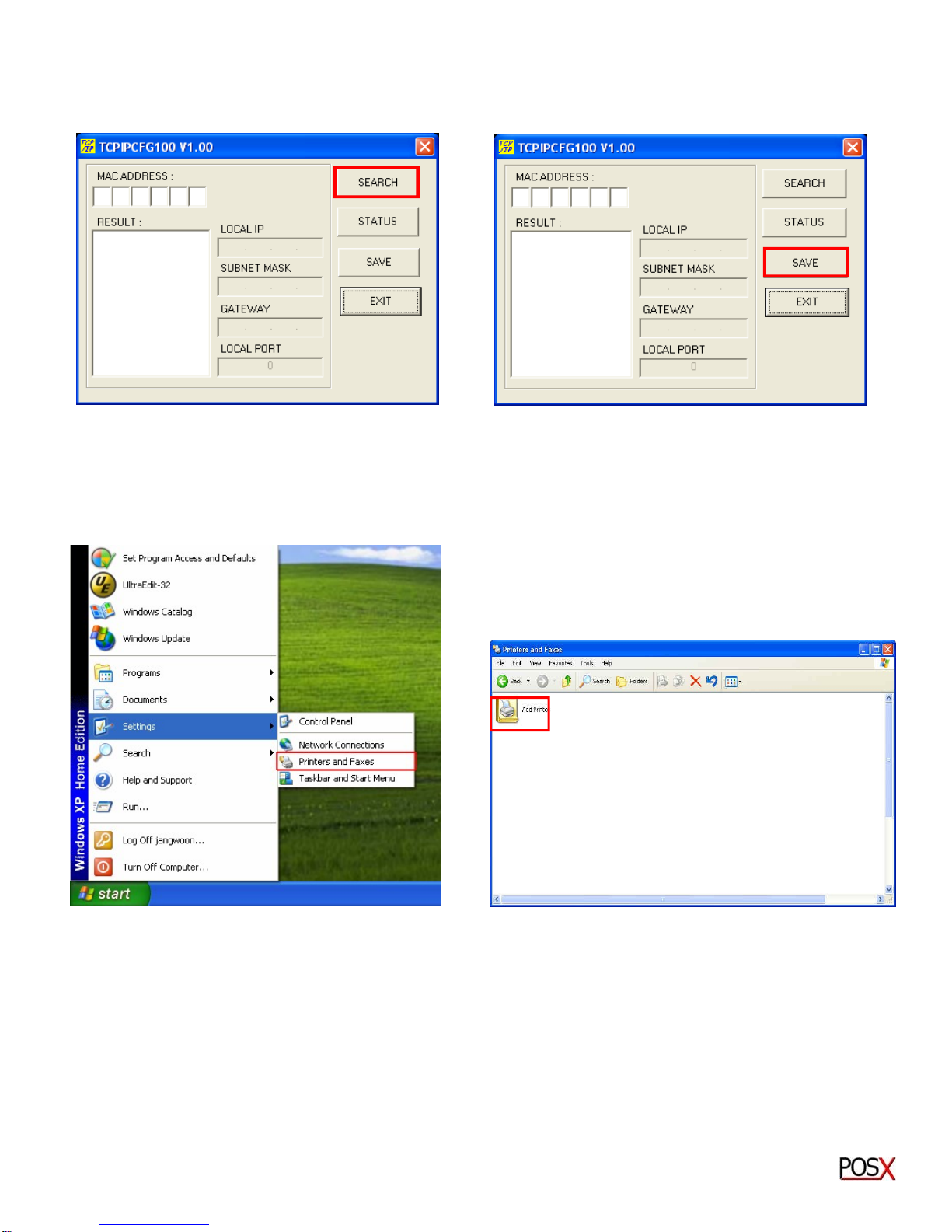

Start the TCPIPCFG program from the desktop short-
cut. Make sure that your printer is hooked up to your
network (this can be done with a direct connection to
the PC using a crossover cable or through a regular
network connection) and click on the search button.
This will search for any printers on your network.
Once the program is done searching it will list all of the
found printers. You will then be able to edit the LOCAL
IP ADDRESS, SUBNET MASK, and GATEWAY to
match your network requirements. Once you have
made these changes click on the SAVE button this will
save your settings to the printer.
Click PRINTERS AND FAXES option. This can be
found under SETTINGS it can also be found under
CONTROL PANEL
Click on the ADD PRINTER button.
1 2
4
3
Click on the NEXT button Select the LOCAL PRINTER ATTACHED TO THE
COMPUTER option then click on NEXT
Click CREATE A NEW PORT and select the
STANDARD TCP/IP PORT. Click on the NEXT button.
Fill in the IP address you assigned to your printer.
It will automatically fill in the PORT NAME. Then
click NEXT
Select CUSTOM and click the NEXT button.
7 8
109
65

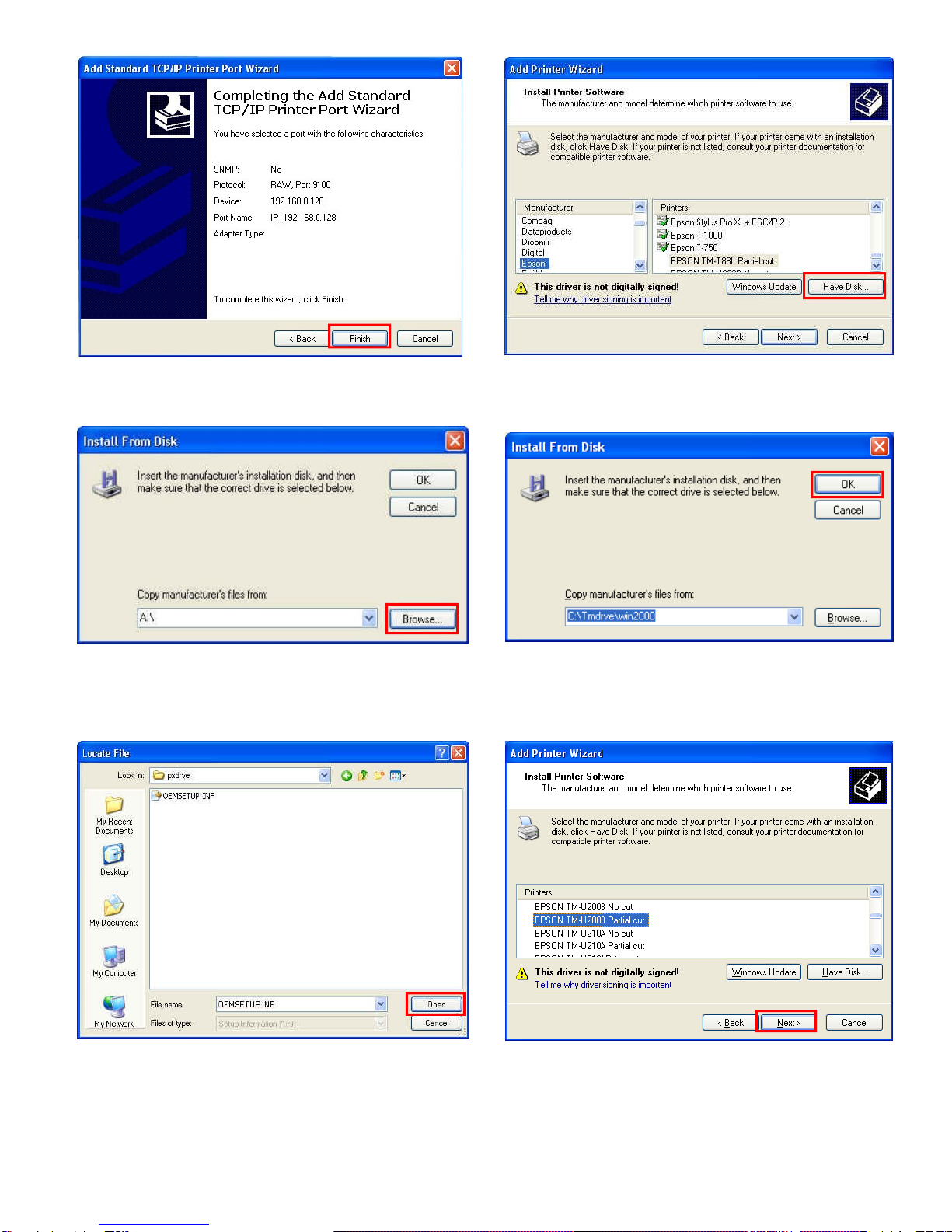

Click on the HAVE DISK button.
12
Click the BROWSE button.
13 Browse to the appropriate location and click the OK
button. (If you are not sure where your drivers are
refer to driver installation documentation.)
14
Select OEMSETUP.INF and click the
OPEN button.
15 Select the EPSON TM-U200B PARTIAL CUT driver
and click the NEXT button.
16
Click the Finish button.
11

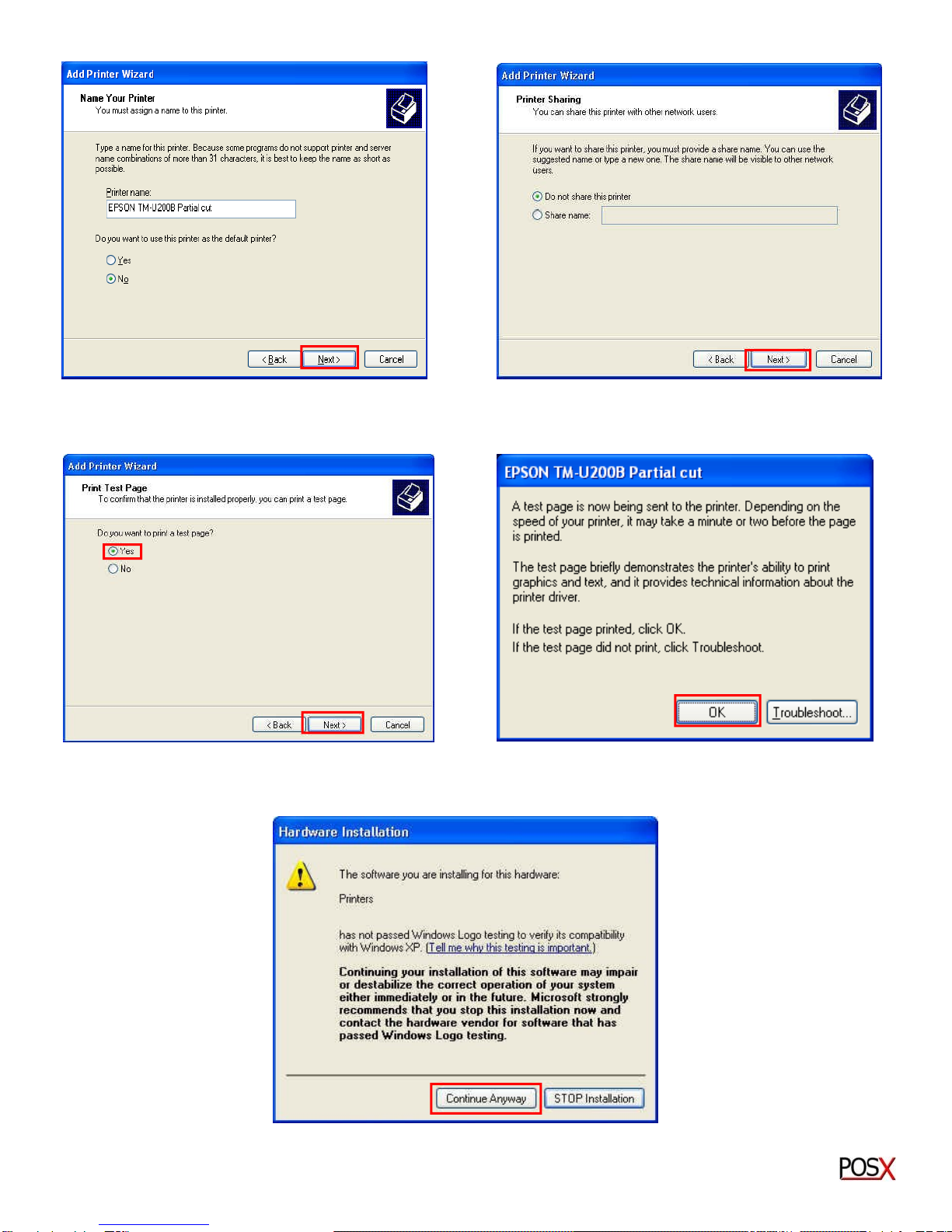

Select if you want this to be the default printer or
not (this is user preference) and click the NEXT
button.
Select if you want to share the printer or not (once again
user preference) then click the NEXT button.
* If Applicable
Select YES for printing a test page and click on the
NEXT button. Click the OK button.
Click on the CONTINUE ANYWAY button. A
test page should now print.
21
18
19
17
20
