POSIFLEX LM-6807U Bedienungsanleitung

LM-6807U LM-6810U

Package Contents

Rear-Mount USB POS Monitor with Bracket (x 1)

ψ3-10L Self-Tapping Screw (x 4)

USB Cable (x 1)

User Manual (x 1)

Product Features



USB interface monitor for system without secondary display

interface



7” TFT LCD panel for LM-6807U and 10” one for LM-6810U



LCD resolution up to 800 x 480 for LM-6807U and 1024 x

768 for LM-6810U



Rear-mount for PS-3000 series terminal

LM-6807U/6810U

Rear-Mount USB POS Monitor

User

Manual

19600990010 Ver. Original

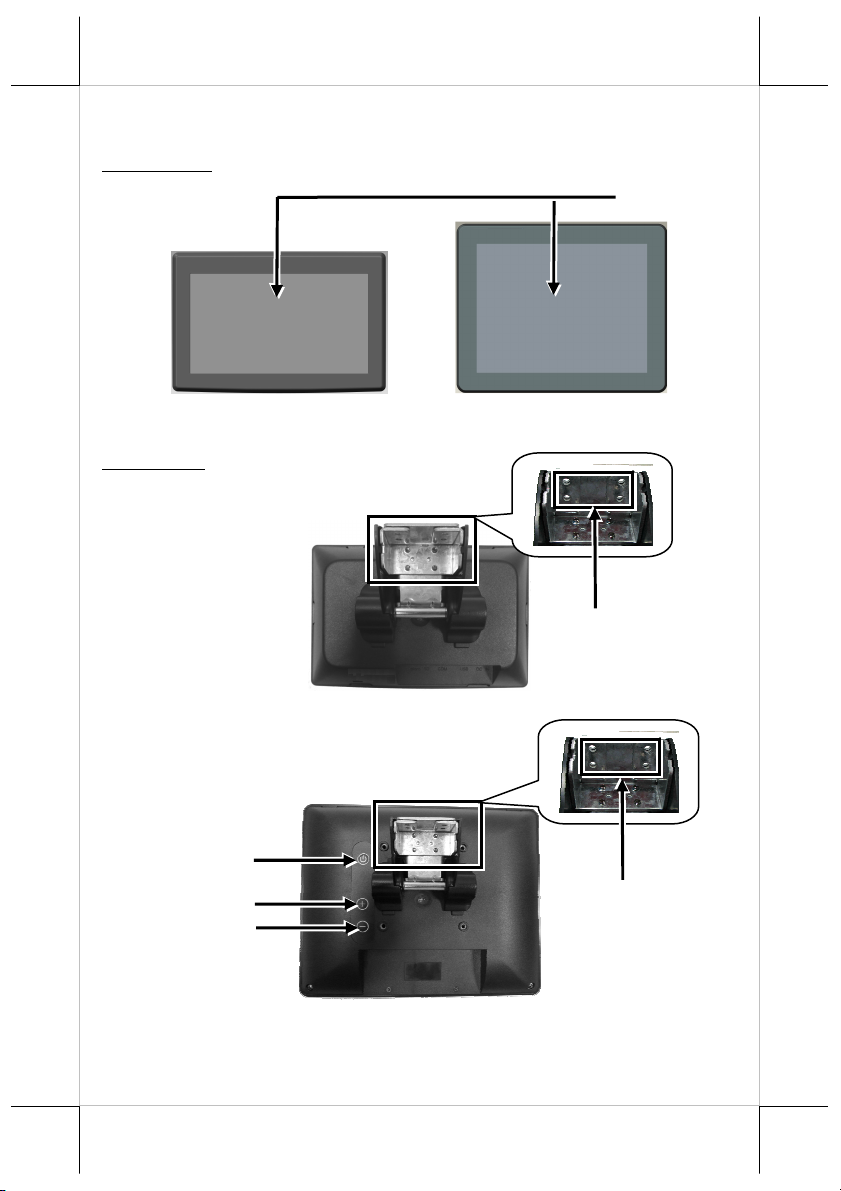

Views of the LM-6807U/6810U

Front View

LM-6807U LM-6810U

Rear View

LM-6807U

LM-6810U

LCD

Screw Holes

Power Button

Brightness-Up Button

Brightness-Down Button

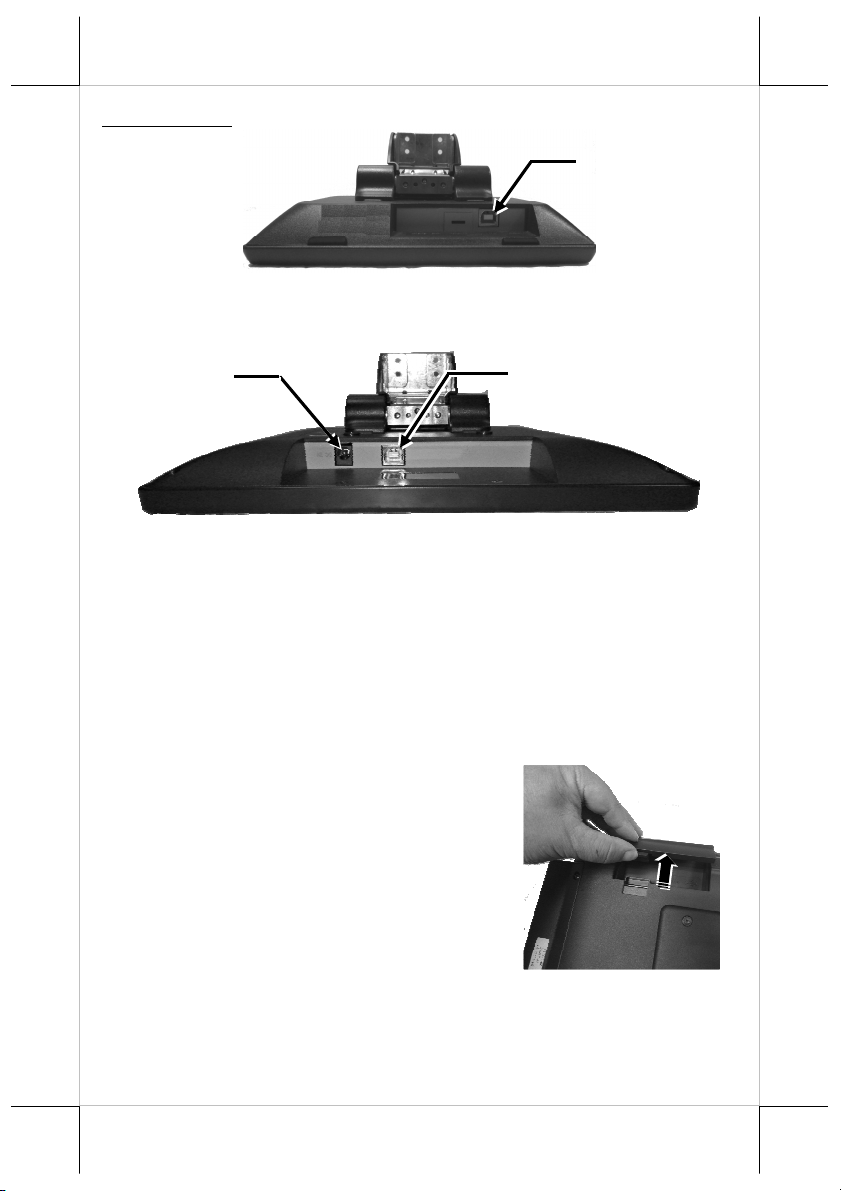

Bottom View

LM-6807U

LM-6810U

Mounting the USB POS Monitor onto a POS Terminal

During Installation of the LM-6807U or LM-6810U USB POS

monitor, do NOT power ON your POS terminal. To mount the

monitor onto your PS-3000 series POS terminal, please apply 4

screws that are packed together with the USB POS monitor.

Before mounting the monitor, carefully read the following step-

by-step instruction on the display installation.

1. Remove the rear I/O cover of your

PS-3000 series POS terminal.

USB Port

DC-IN Power Jack USB Port

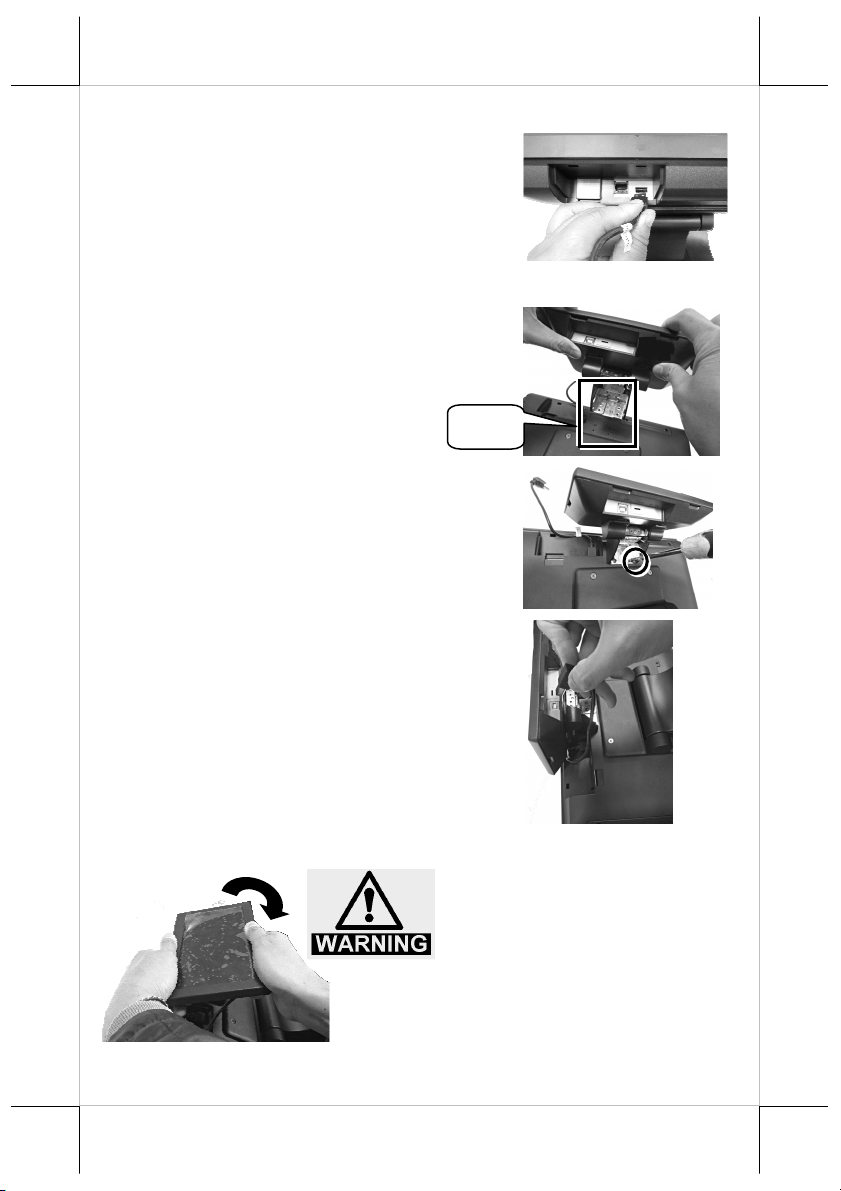

2. Take the monitor out of the LM-

6807U/6810U package box. Here,

LM-6807U is taken for example of

installation. Align the A type

connector of a USB cable with the

USB port of your ternminal.

3. Align the four screw holes formed on

the bracket of the monitor with the

four screws holes formed on the rear

side of the POS terminal.

4. Turn the four screws to the right to

tighten them.

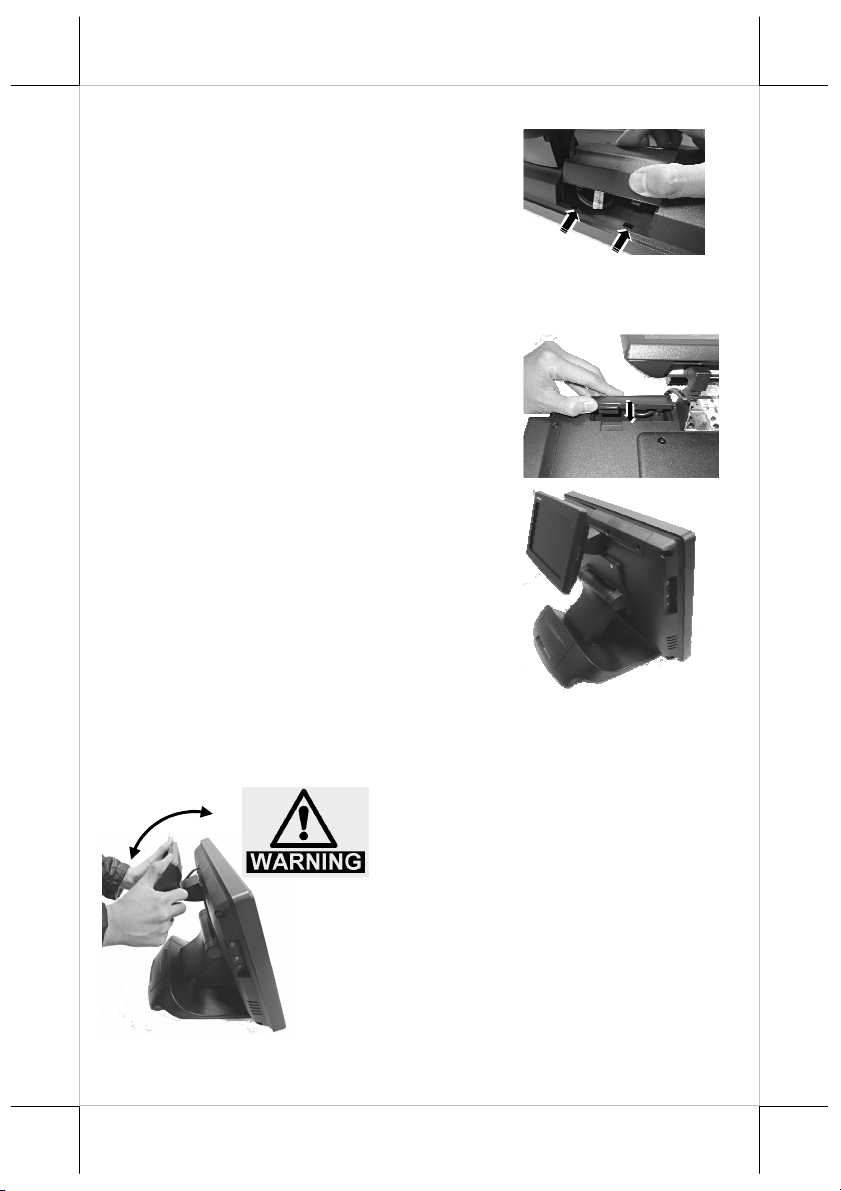

5. Connect the B type connector of USB

cable to the USB port of the POS

monitor.

6. Tilt the POS monitor to a degree for next steps of installation

Align

Do NOT press the displaying

area of panel!

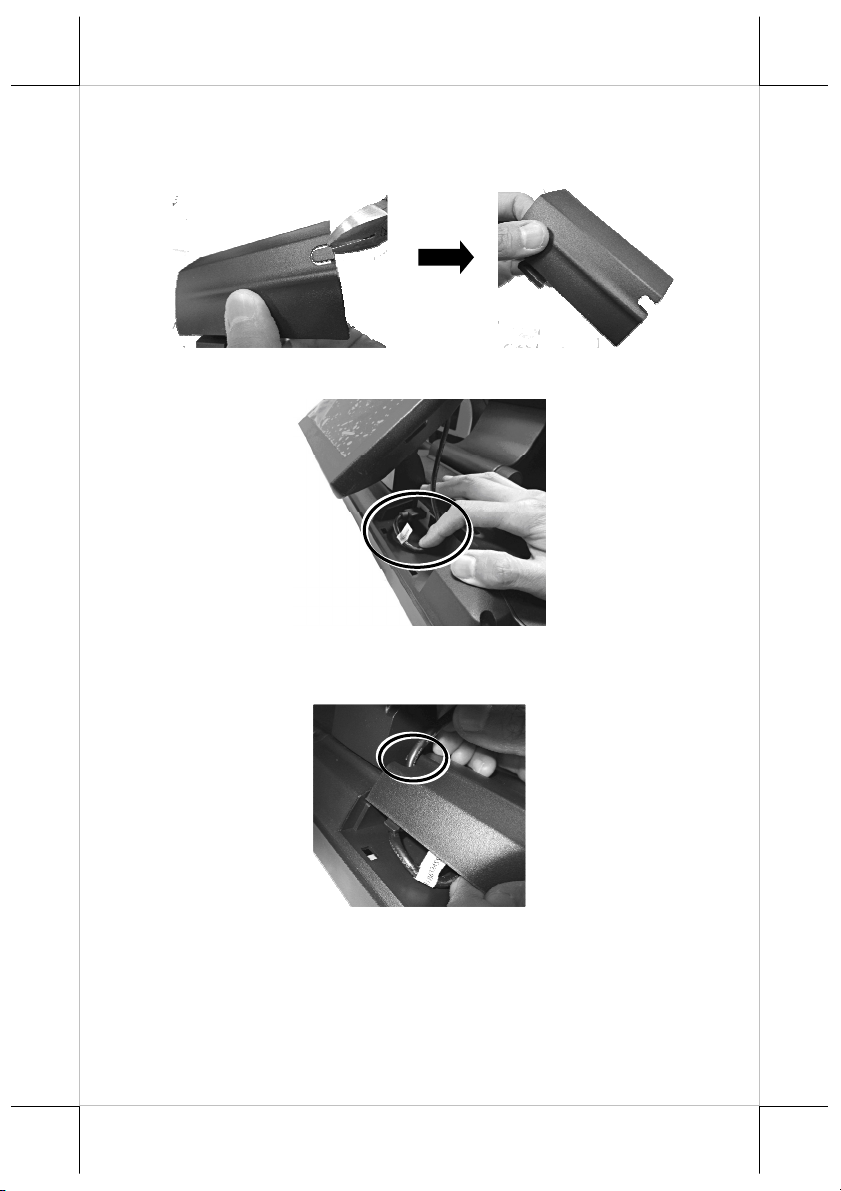

7. By using a diagonal cutting nipper, cut the cable-exit shield

off the rear I/O cover you removed from the POS terminal at

step 1.

8. Arrange the USB cable.

9. To arrange the USB cable of the display, make the cable go

through the cable exit of the rear I/O cover.

10. Align the two wedge tabs of the rear

I/O cover with the two wedged

portion of the rear plate of the

terminal, and then make the two

wedge tabs wedge respectively into

the two wedged portion of the rear

plate of the terminal.

11. Lever down the hook of the cover to

cover the rear I/O interface.

12. Determine that the USB POS monitor

is well mounted onto the POS

terminal.

13. For an optimal viewing angle, you can adjust the USB POS

monitor up and down around the directions A and B at the

angle of tilt from 0° to 45°.

Do NOT press the displaying area of panel!

Installing the USB Driver for LM-6807U/6810U

Refer to the following step-by-step instruction for the driver

installation.

1. Connect the USB POS monitor to your POS terminal by using

a USB cable.

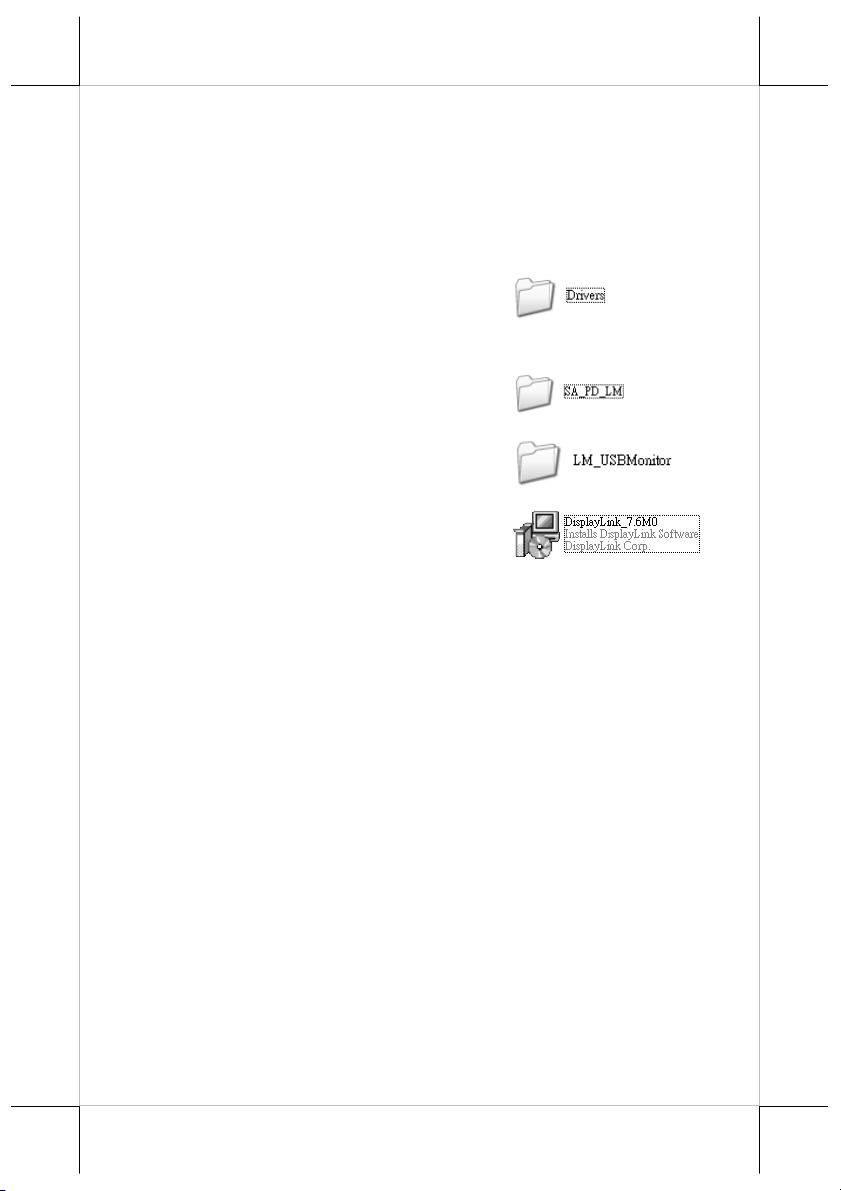

2. Locate the “Drivers” folder in the

Local Disk (C:) of your POS

terminal, and double click it.

3. You will find the “SA_PD_LM”

folder and double click it.

4. Then double click the

“LM_USBMonitor” folder.

5. Double click the execution file

named DisplayLink_7.6M0 to start

step-by-step installation.

Specifications

LM-6807U LM-6810U

LCD Panel 7" TFT LCD 10" TFT LCD

Resolution 800 (H) x 480 (V) 1024 (H) x 768 (V)

Active Area 154.08 (H) x 85.92 (V) 196.61 (H) x 147.46 (V)

Pixel Pitch 0.1926 (H) x 0.1790 (V) 0.192 (H) x 0.192 (V)

Pixel

Arrangement RGB Vertical Stripe LVDS

Viewing

Angle

60/70/70/70 degree

(U/D/L/R)

70/70/70/60 degree

(U/D/L/R)

Contrast Ratio

500 : 1

Response

Time

25 ms (Raising) / 25 ms

(Falling)

20 ms (Raising) / 20 ms

(Falling)

Brightness 250 cd/m2 270 cd/m2

Display

Interface USB

Power Supply

port

Powered from standard

USB port or 12VDC-IN

power jack

Dimensions 124 mm (H) x 188 mm (W)

x 80 mm (D)

195 mm (H) x 245 mm (W)

x 79 mm (D)

Environmental

Operation temperature: 0ºC ~ +50ºC

Operating humidity: 20% to 85%, non-condensing

Storage temperature: -10ºC ~ +70ºC

Storage humidity: 5% to 90%, non-condensing
