Poulan Pro PR5524ES Bedienungsanleitung

OWNER'S MANUAL

MODEL NUMBER:

PR5524ES

SNOW THROWER

Always Wear Eye Protection During Operation

IMPORTANT MANUAL Do Not Throw Away

WARNING:

Read the Owner's Manual and

follow all Warnings and Safety

Instructions. Failure to do so

can result in serious injury.

415136 Rev 2 09.20.07 TH

Printed in the U.S.A.

REPAIR PARTS SNOW THROWER - - MODEL NO. PR5524ES (96192001601)

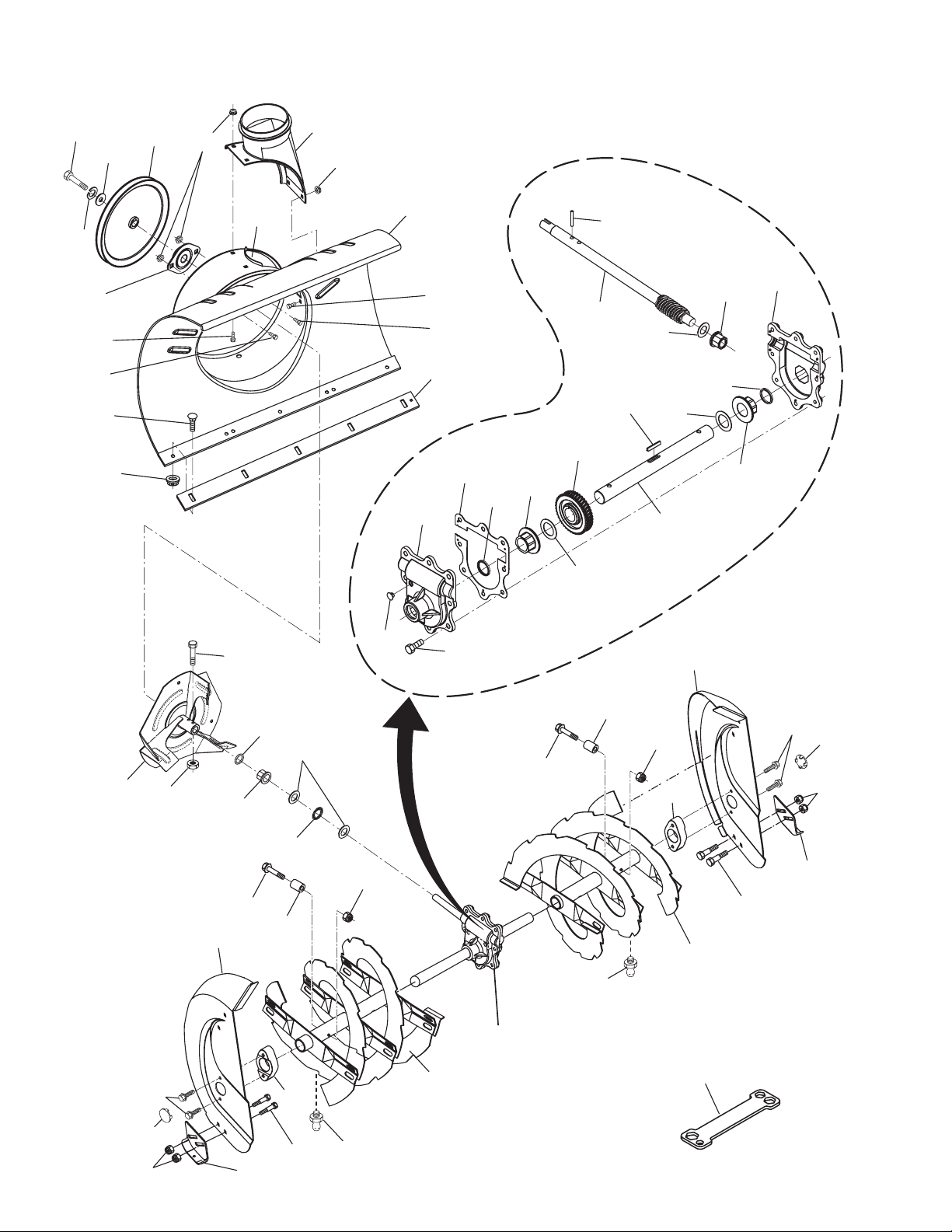

AUGER HOUSING / IMPELLER ASSEMBLY

36 37

43 43

40 39

22 25

18 58

07 AIG plug_r1

REPAIR PARTS SNOW THROWER - - MODEL NO. PR5524ES (96192001601)

AUGER HOUSING / IMPELLER ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

4 191079 Pulley, Impeller

5 188909 Bearing Assembly, Flange

6 155377 Nut, Hex Flange 5/16-18

7 180355 Bolt, Flat Head, Carriage 5/16-18 x 5/8

8 72270505 Bolt, Carriage 5/16-18 x 5/8

9 163183 Bolt, Hex Head

10 404928X428 Housing, Auger

11 404931X479 Bar, Scraper

12 178675X008 Bracket, Corner Discharge

13 175322 Base, Discharge Chute

14 10040500 Washer, Lock 5/16

15 19111507 Washer, Flat

16 74940516 Screw, Hex Head 5/16-18 x 3/4

17 405637 Grease Fitting

18 179582 Screw, Hex Head 5/16 x 1

19 73800400 Nut, Hex Lock 1/4-20

20 155377 Nut, Hex Lock 5/16-18

22 178777X479 Skid Plate, RH

25 72270506 Bolt, Carriage 5/16-18 x 3/4

26 174658 Bearing, Auger

27 174697 Washer, Thrust, 1"

28 198636 Bolt, Shear

29 174762X479 Skid Plate, LH

30 405986X479 Auger Assembly, RH

31 405985X479 Auger Assembly, LH

32 407768 O-Ring

33 407769 Bushing, Flange 3/4

34 174681 Washer, Thrust 3/4

35 174684 Bearing, Thrust 3/4

36 407757 Shaft, Impeller

37 174683 Washer, Thrust 5/8

38 407758 Bushing, Flange 5/8

39 407767 Screw, Hex Head 5/16-18 x 3/4

40 407760 Plug, Case

41 407761 Housing, Gearbox, RH

42 407770 Seal, Oil

43 407762 Bushing, Flange, 1"

44 189282 Key, Square 1/4 x 1/4 x 7/8

45 407763 Gear, Worm

46 407764 Shaft, Auger

47 407765 Housing, Gearbox, LH

48 175321X479 Impeller Assembly

49 74780426 Screw, Hex Head 1/4-20 x 1-5/8

50 407766 Gasket, Gearbox

51 7836M Pin, Roll 3/16 x 1-1/8

55 198638 Spacer

56 180684 Multi-Wrench

57 196710 Gearbox Assembly

58 411939 Plug Bearing Hole HSG

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

REPAIR PARTS SNOW THROWER - - MODEL NO. PR5524ES (96192001601)

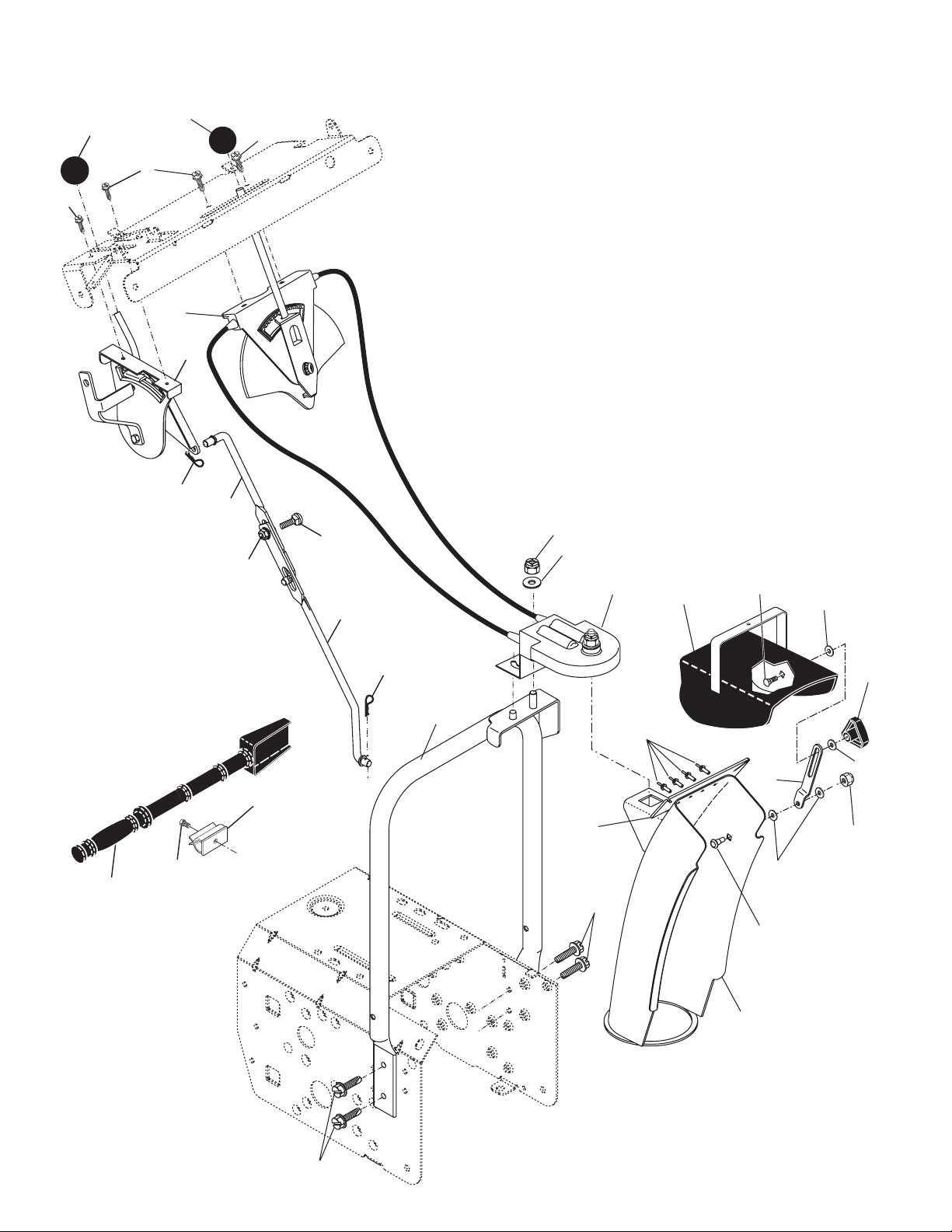

CONTROL PANEL / DISCHARGE CHUTE

16 14

31 34

07_Chute-knob_2

REPAIR PARTS SNOW THROWER - - MODEL NO. PR5524ES (96192001601)

CONTROL PANEL / DISCHARGE CHUTE

KEY PART

NO. NO. DESCRIPTION

1 414280 Knob, Lever

2 17501010 Screw #10-24 x 5/8

3 179096X428 Strap, Slotted

4 73800600 Nut, Lock 3/8-16

5 19131316 Washer, Flat 3/8

6 404974 Control Assembly, Chute Rotater

7 405784X479 Support, Pivot

8 150078 Screw, Hex Head 5/16-18 x 3/4

9 189713X428 Knob, Deflector

10 185600 Bolt, Shoulder

12 191730 Nut, Lock 1/4-20

13 72270505 Bolt, Carriage 5/16-18 x 5/8

14 179246 Washer, Nylon

15 404770X428 Chute Assembly

16 178633X428 Deflector Assembly

17 179145 Seal, Deflector

18 128415 Rivet, Blind

19 414281 Knob, Speed Control Lever

20 72270506 Bolt, Carriage 5/16-18 x 3/4

21 155415 Washer, Flat

25 155377 Nut, Lock 5/16-18

26 198474 Lever Assembly, Speed Control

27 169675 Retainer, Hairpin

28 180445 Rod, Upper, Speed Control

29 187716 Rod, Lower, Speed Control

30 405400 Clamp, Clean-Out Tool

31 192199 Tool, Clean-Out

34 194189 Screw Hi-Lo 13-16 x 5/8

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

REPAIR PARTS SNOW THROWER - - MODEL NO. PR5524ES (96192001601)

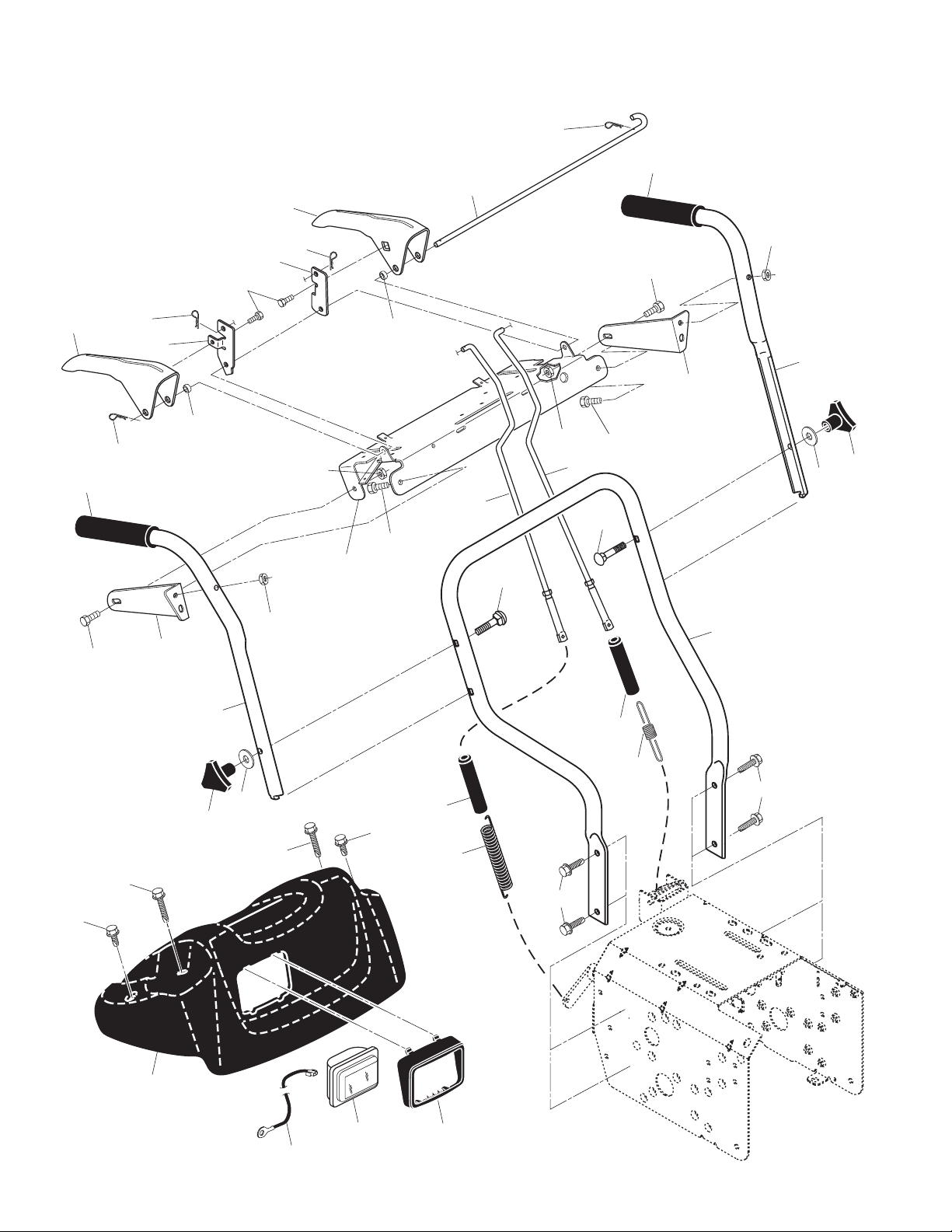

HANDLES





















































 































REPAIR PARTS SNOW THROWER - - MODEL NO. PR5524ES (96192001601)

HANDLES

KEY PART

NO. NO. DESCRIPTION

1 412682X479 Lever, Auger Control, RH

2 412681X479 Lever, Traction Drive Control, LH

5 169675 Retainer, Hairpin

6 17060408 Screw, Hex Head 1/4-20 x 1/2

7 412677 Bail, Interlock

8 196333X008 Arm, Impeller Rod

9 412679X008 Arm, Traction Rod

10 412683X479 Panel, Control

11 74780524 Screw, Hex Head 5/16-18 x 1-1/2

12 74780512 Screw, Hex Head 5/16-18

13 414517X479 Handle Tube, LH

14 414516X479 Handle Tube, RH

15 751153 Nut, Lock 5/16-18

16 19131316 Washer, Flat 3/8

17 178899 Knob, Handle

18 180480 Rod, Auger Control

19 405740 Rod, Traction Control

22 72120618 Bolt, Carriage 3/8-16 x 2-1/4

23 401940X479 Handle Tube, Lower

24 180447 Sleeve, Spring

25 180926 Spring, Traction Drive

26 178669 Spring, Auger Control

27 17000616 Screw, Hex Head 3/8-16 x 1

28 412680 Spacer

30 183346 Console, Panel

31 175262 Screw, Hex Head, Tapping #10-24 x 1-1/4

32 184471 Screw, Hex Head, Tapping #10-24 x 1/2

38 180927 Headlight Flood (Includes Bulb)

- - 183784 Bulb, Headlight, Flood

39 178668 Bezel Headlight

40 178770 Harness, Headlight (Flood)

47 196943 Mounting Bracket, Control Panel, RH

48 196944 Mounting Bracket, Control Panel, LH

49 199513 Grip, Handle

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

REPAIR PARTS SNOW THROWER - - MODEL NO. PR5524ES (96192001601)

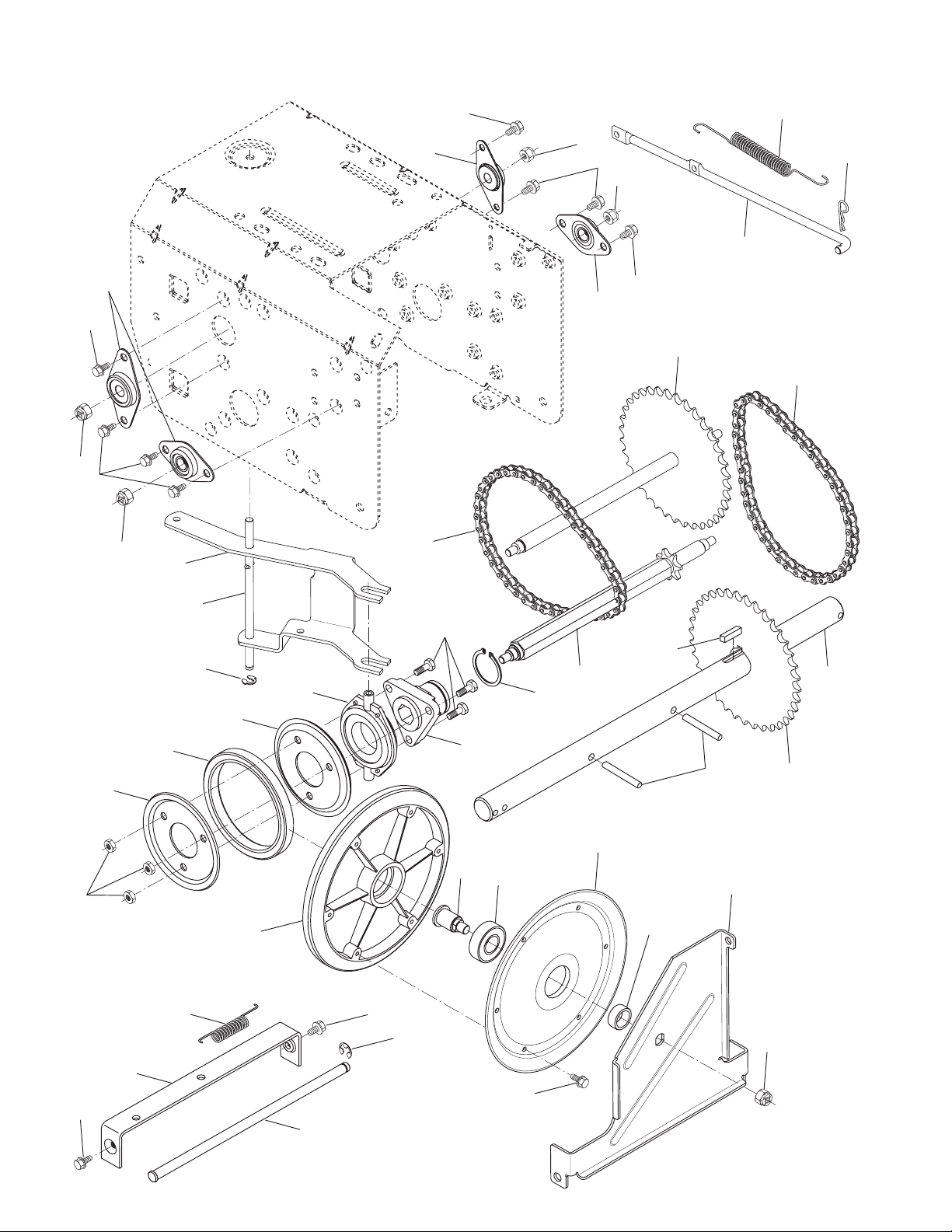

DRIVE

REPAIR PARTS SNOW THROWER - - MODEL NO. PR5524ES (96192001601)

DRIVE

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

1 401619 Chain, Drive

2 751153 Nut, Lock 5/16-18

3 402882 Clip, Retainer

4 17490508 Bolt, Hex Head 5/16-18 x 1/2

5 408981 Bearing, Flange

6 12000007 E-Ring, Retainer

9 402855 Sprocket & Shaft Assembly

11 402568 Rod, Clutch

12 402187 Shaft, Hex

13 402310 Pivot Rod, Shifter

14 401732 Yoke, Shifter

15 175344 Trunnion Bearing Assembly

17 178613 Hub, Rubber Wheel

18 198176X479 Plate, Rubber Wheel

19 74760514 Screw, Hex Head 5/16-18 x 7/8

20 179831 Ring, Rubber Wheel

21 73930500 Nut, Lock 5/16-18

22 169675 Retainer, Hairpin

23 180135 Spring, Bias

24 402691 Sprocket, Axle Shaft

25 402652 Pivot Rod, Swing Plate

26 401820 Plate, Drive

27 179352 Axle Shaft Assembly

28 402504 Shaft, Friction Pulley

29 401984X479 Bracket, Shifter, Speed

31 17541008 Screw, Cap Head

32 189282 Key, Square

33 198791 Bearing, Ball

34 402394 Plate, Swing

35 402511 Spacer, Bearing

36 402393 Pulley, Friction

37 132010 Nut, Lock 3/8-16

41 12000012 Ring, Retaining

43 402878 Spring, Return

44 9465MI Pin, Roll

REPAIR PARTS SNOW THROWER - - MODEL NO. PR5524ES (96192001601)

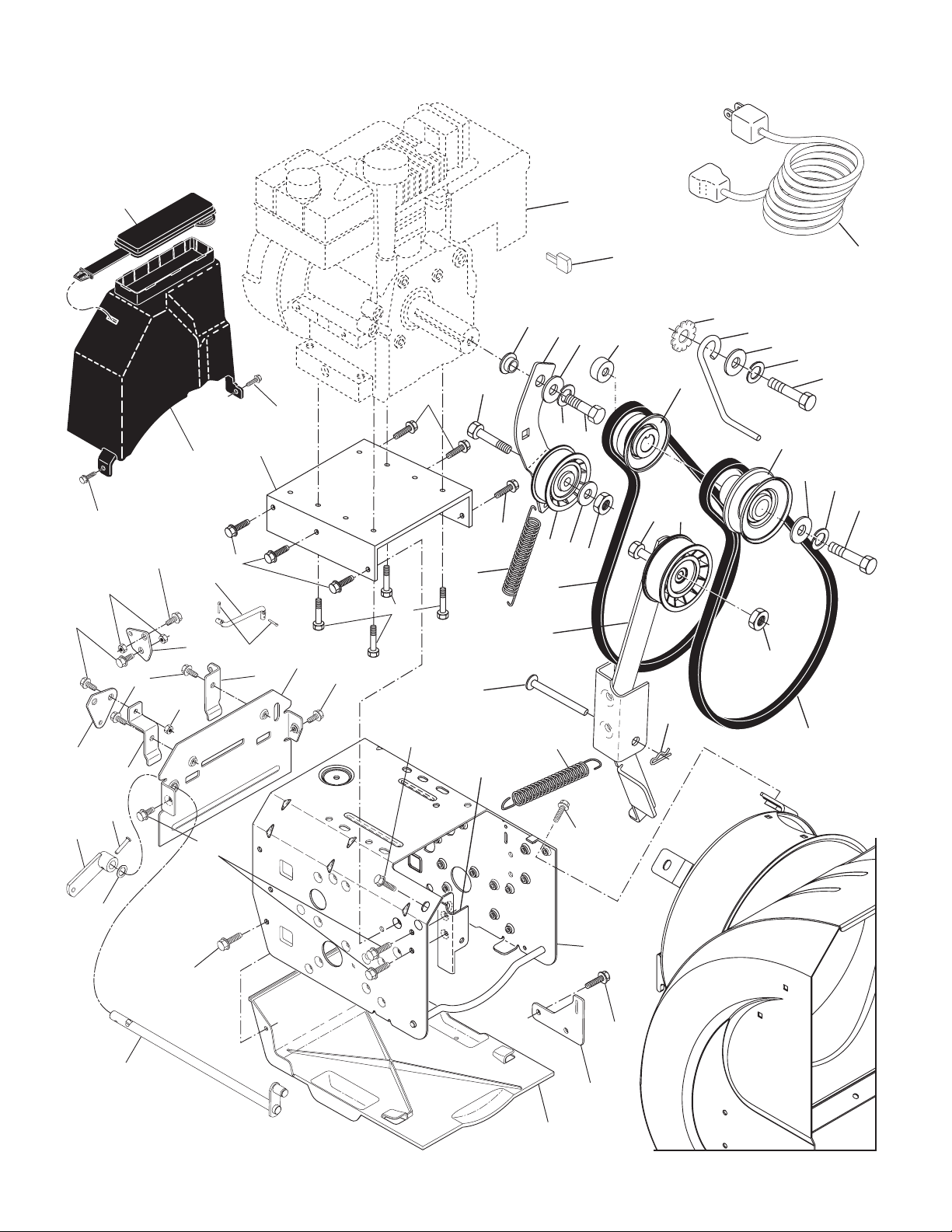

CHASSIS / ENGINE / PULLEYS

19 17

10 21

642
