Power Fist 8689945 Bedienungsanleitung

V4.0 8689945

Please read and understand all instructions before use. Retain this manual for

future reference.

User Manual

500 lb Pneumatic Bolt-On

Swivel Trailer Jack

8689945 500 lb Pneumatic Bolt-On Swivel Trailer Jack V4.0

2 For technical questions call 1-800-665-8685

SPECIFICATIONS

Type Bolt-On Swivel

Max. Load Capacity 500 lb

Ratio 8:1

Height Range 16-1/4 to 26-1/4 in.

Handle Top Wind

Wheel 10 in. Pneumatic Wheel

Construction Steel

Finish Zinc Plated

INTRODUCTION

The 500 lb Pneumatic Bolt-on Swivel Trailer Jack attaches to the trailer tongue

of a boat, power sport or equipment trailer. The swivel trailer jack allow the user

to move, level and hitch the trailer with ease. It swivels to a horizontal position

during transportation.

SAFETY

WARNING! Read and understand all instructions before using this tool. The

operator must follow basic precautions to reduce the risk of personal injury

and/or damage to the equipment.

Keep this manual for safety warnings, precautions, operating or inspection and

maintenance instructions.

HAZARD DEFINITIONS

Please familiarize yourself with the hazard notices found in this manual. A notice

is an alert that there is a possibility of property damage, injury or death if certain

instructions are not followed.

500 lb Pneumatic Bolt-On

Swivel Trailer Jack

V4.0 500 lb Pneumatic Bolt-On Swivel Trailer Jack 8689945

Visit www.princessauto.com for more information 3

DANGER! This notice indicates an immediate and specific hazard that will

result in severe personal injury or death if the proper precautions

are not taken.

WARNING! This notice indicates a specific hazard or unsafe practice that

could result in severe personal injury or death if the proper

precautions are not taken.

CAUTION! This notice indicates a potentially hazardous situation that may result

in minor or moderate injury if proper practices are not taken.

NOTICE! This notice indicates that a specific hazard or unsafe practice will

result in equipment or property damage, but not personal injury.

WORK AREA

1. Operate in a safe work environment. Keep your work area clean, well-lit

and free of distractions.

2. Keep anyone not wearing the appropriate safety equipment away from the

work area.

3. Store unused tools properly in a safe and dry location to prevent rust or

damage. Lock tools away and keep out of the reach of children.

PERSONAL SAFETY

WARNING! Wear personal protective equipment approved by the Canadian

Standards Association (CSA) or American National Standards Institute (ANSI).

PERSONAL PROTECTIVE EQUIPMENT

1. Always wear impact safety goggles that provide front and side protection

for the eyes. Eye protection equipment should comply with CSA Z94.3-07

or ANSI Z87.1 standards based on the type of work performed.

2. Wear gloves that provide protection based on the work materials or to

reduce the effects of tool vibration.

3. Non-skid footwear is recommended to maintain footing and balance in the

work environment.

8689945 500 lb Pneumatic Bolt-On Swivel Trailer Jack V4.0

4 For technical questions call 1-800-665-8685

PERSONAL PRECAUTIONS

Control the tool, personal movement and the work environment to avoid

personal injury or damage to tool.

1. Do not operate any tool when tired or under the influence of drugs, alcohol

or medications.

2. Avoid wearing clothes or jewelry that can become entangled with the

moving parts of a tool. Keep long hair covered or bound.

3. Do not overreach when operating a tool. Proper footing and balance

enables better control in unexpected situations.

SPECIFIC SAFETY PRECAUTIONS

WARNING! DO NOT let comfort or familiarity with product (gained from

repeated use) replace strict adherence to the tool safety rules. If you use

this tool unsafely or incorrectly, you can suffer serious personal injury.

1. Use the correct tool for the job. This tool was designed for a specific

function. Do not modify or alter this tool or use it for an unintended purpose.

2. Never exceed the rated load capacity of 500 lb (see Specifications).

3. Never loosen, adjust or disassemble the spring plate or press plates while

the trailer jack is supporting any weight.

4. Verify that the spring plate and press plates are securely attached to the

trailer’s tongue and that all bolts and nuts are tight and in good condition,

before each use.

5. Avoid placing any part of your body from beneath the trailer tongue while

hitching, unhitching or moving the trailer.

6. Maintain control of the trailer while moving or maneuvering.

UNPACKING

WARNING! Do not operate the tool if any part is missing. Replace the

missing part before operating. Failure to do so could result in a malfunction

and personal injury.

Remove the parts and accessories from the packaging and inspect for damage.

Make sure that all items in the parts list are included.

V4.0 500 lb Pneumatic Bolt-On Swivel Trailer Jack 8689945

Visit www.princessauto.com for more information 5

Contents:

• Manual Crank Handle • 10 in. Pneumatic Wheel

• Mounting Plates, 2 pc • Hardware (4 sets of bolts & nuts)

ASSEMBLY & INSTALLATION

Numbered references in parenthesis (#1) refer to the included Parts List.

The trailer jack requires no assembly, but care must be taken to properly mount

the trailer jack to the trailer. The heights listed are measured from ground to

center of the mounting point.

1. Determine the location where to mount the swivel trailer jack. The jack

swivels 180º and can be mounted on either side.

2. Chock the trailer wheels so trailer cannot move forwards or backwards.

3. Support the trailer tongue so it is level with the ground.

4. Position the trailer jack’s swivel plate (#14) against the trailer tongue. Push

bolts through the top and bottom bolt holes on the right side.

5. Slide a mounting plate over both bolt ends on the right side. The flat side is

against the trailer tongue. Loosely secure each bolt with a nut.

6. Repeat with a mounting plate on the left side.

7. Adjust the jack’s position if necessary. The swivel plate should be square with

the trailer tongue. Ensure there is enough to room to turn the handle (#12).

8. Tighten each nut evenly to secure the trailer jack in place.

9. Test the jack to ensure the inner tube (#5) extends and retracts smoothly,

then that it swivels and locks into the horizontal position.

OPERATION

1. Pull the pull clamp (#20) to unlock the wheel from the horizontal position.

2. Twist the swivel trailer jack until it is vertical.

3. Release the pull clamp. Move the jack back and forth until the clamp clicks

into place. This will lock the swivel trailer jack into position.

4. Turn the handle (#12) clockwise to extend the inner tube (#5) until the

wheel rests on the ground.

5. Turn the handle counterclockwise to retract the inner tube.

8689945 500 lb Pneumatic Bolt-On Swivel Trailer Jack V4.0

6 For technical questions call 1-800-665-8685

CARE & MAINTENANCE

1. Maintain the tool with care. A tool in good condition is efficient, easier to

control and will have fewer problems.

2. Inspect the tool components periodically. Repair or replace damaged or

worn components. Only use identical replacement parts when servicing.

3. Keep the tool handles clean, dry and free from oil/grease at all times.

4. Maintain the tool’s labels and name plates. These carry important information.

If unreadable or missing, contact Princess Auto Ltd. for replacements.

WARNING! Only qualified service personnel should repair the tool. An

improperly repaired tool may present a hazard to the user and/or others.

LUBRICATION

Inspect and lubricate the tool when required. Apply grease to the inner tube

when extended and then retract to grease the outer tube (#7).

TROUBLESHOOTING

Visit a Princess Auto Ltd. location for a solution if the tool does not function

properly or parts are missing. If unable to do so, have a qualified technician

service the tool.

V4.0 500 lb Pneumatic Bolt-On Swivel Trailer Jack 8689945

Visit www.princessauto.com for more information 7

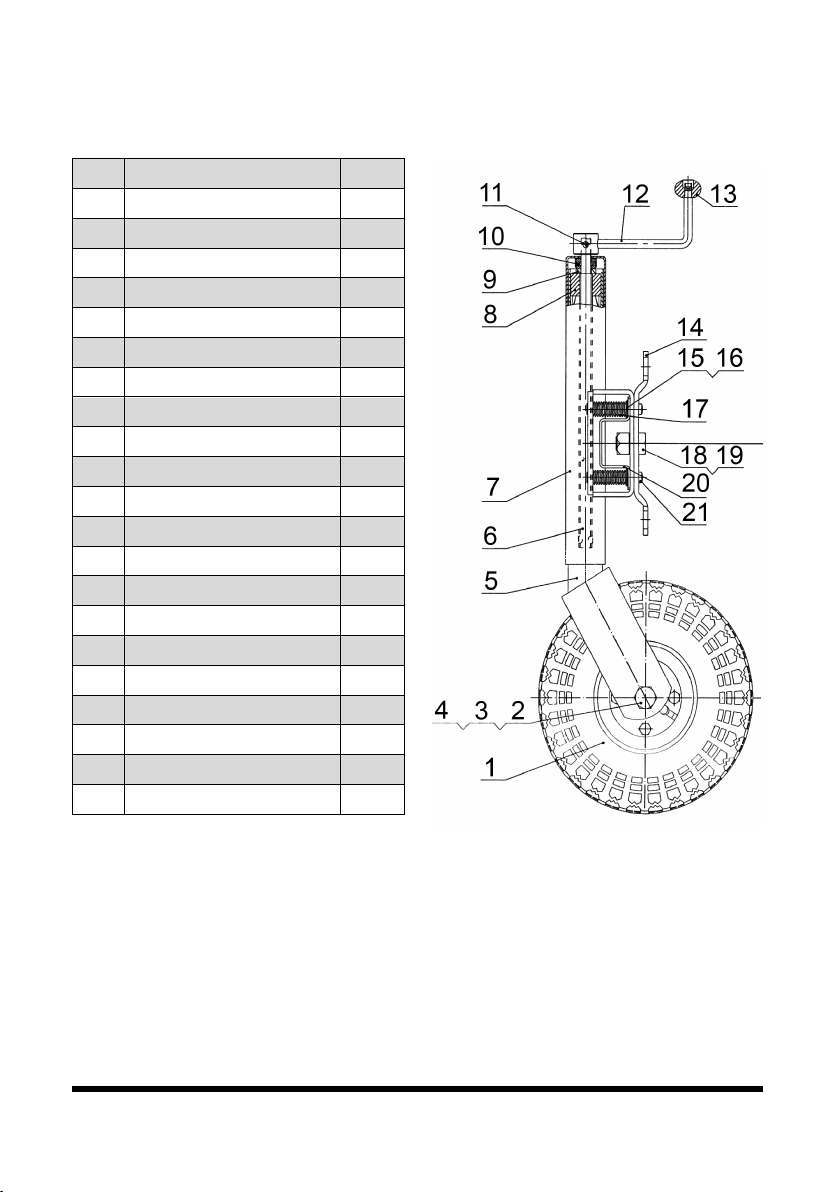

PARTS BREAKDOWN

# DESCRIPTION QTY

1 10 in. Wheel 1

2 Nut M16 2

Hexagon bolt M16*140

4 Washer 2

5 Inner Tube 1

6 Screw Shaft 1

7 Outer Tube 1

8 Nut 1

9 Bearing Block 1

10 Bearing Assembly 1

11 Rivet 1

Handle

13 Fastening Screw 1

14 Swing Plate 1

15 Split Washer 2

16 Washer 2

17 Spring 2

18 Screw 1

19 Lock nut 1

20 Pull Clamp 1

21 Opening Pin 2

8689945 500 lb Pneumatic Bolt-On Swivel Trailer Jack V4.0

8 For technical questions call 1-800-665-8685

V 4,0 8689945

Vous devez lire et comprendre toutes les instructions avant d'utiliser l'appareil.

Conservez ce manuel afin de pouvoir le consulter plus tard.

Manuel d'utilisateur

Cric de remorque pivotant

boulonné, 500 lb

8689945 Cric de remorque pivotant boulonné, 500 lb V 4,0

2 En cas de questions techniques, appelez le 1-800-665-8685

SPÉCIFICATIONS

Type Pivotant boulonné

Capacité de charge max. 500 lb

Rapport 8 : 1

Plage de hauteur 16 1/4 à 26 1/4 po

Poignée Bobine supérieure

Roue Roue pneumatique de 10 po

Construction Acier

Finition Galvanisé

INTRODUCTION

Le cric de remorque pivotant avec fixation à boulon pneumatique d’une capacité

de 500 lb se fixe au triangle d’attelage de la remorque d’un bateau, d’un véhicule

sport ou d’un équipement. Le cric de remorque pivotant permet à l’utilisateur de

déplacer, de mettre au niveau et d’atteler la remorque en toute facilité. Il pivote

en position horizontale pendant le transport.

SÉCURITÉ

AVERTISSEMENT ! Veuillez lire et comprendre toutes les instructions avant

d'utiliser cet outil. L'utilisateur doit respecter les précautions de base

lorsqu'il utilise cet outil afin de réduire le risque de blessure ou de

dommage à l'équipement.

Conservez ce manuel qui contient les avertissements de sécurité, les

précautions, les instructions de fonctionnement ou d'inspection et d'entretien.

Cric de remorque pivotant

boulonné, 500 lb
