PowerAcoustik HD-14KIT Bedienungsanleitung

Owner’s Manual

HD-14KIT

WATERPROOF

FACEPLAT E

IPx5 4-Channel

Amplifier

Safety Definitions

Safety First

Pre-Riding

Check list 3

Care and cleaning 3

Screen 3

Appearance 3

Accessories 4

Installation 5

Trouble Shooting 20

Warranty 23

FCC Notes 22

Specication 21

Headunit Control 12

Operation

Main menu 13

Setting 13

Apple CarPlay/Android Auto 15

Radio operation 16

USB operation 17

Bluetooth Music 17

Bluetooth Phone 18

Contents

Statements in this manual preceded by following

words are of special signiﬁcance:

WARNING

Note

Pay attention while riding, keeping your eyes and

clear mind on the road. Some features are locked out

to prevent distraction, limited in capability while the

Motorcycle is in motion. Even a part is available, do

not allow it to distract you from operating your

Motorcycle safely.

For safety, program the system when stopped.

Perform system setup and get familiar with the

controls and features of the infotainment system

before operating the Motorcycle on the road.

This system cannot warn about the safety of an area,

bad road conditions, and availability of emergency

services.

Use this radio only in locations where it is safe to do.

Do not select a volume level that blocks out

trac noise or interrupts the concentration

necessary for the safe operation of the Motor-

cycle. Distractions or a volume level that

blocks our trac noise could cause loss of

control resulting in death or severe injury.

Set volume levels and other controls on

audio and electronic devices before riding.

Distractions can lead to loss of control,

resulting in death or serious injury.

WARNING indicates a potentially hazardous

situation which, if not avoided, could result

in death or serious injury.

Pre-RIDING

CARE AND CLEANING

Check list

Appearance

Front

Side

Back

Screen :

Conﬁgure the system with your personal

preferences before riding to use features and

minimize distractions while on the road

entirely.

1. Set brightness, background.

2. Conﬁgure presets.

3. Adjust audio settings like EQ, volume, fade,

balance etc. before ridding.

4. Pair, connect and set up phone features

through Bluetooth.

5. Connect USB devices for Apple CarPlay® or

Android Auto®.

6. Selectstation or media

Use only HD-14KIT recommended products

and methods to keep the radio, speakers, and

other audio system components clean and in

good condition.

Do not use any abrasives, polishes, or rubbing

compoundsto clean the screen or other

components. Do not use any ammonia-based

cleaners on the net.

The use of other products or methods may

cause damage to components.

Do not use any chemical cleaners or

chemical-containing wipes or cloths.

These can cause damage to the screen

surface.

Gently clean the display glasssurface with a

clean, dry microﬁber cloth. Before cleaning, it

is suggested to remove any visible dust, dirt,

sand particles with a gentle compressed

airstream.

HD-14KIT

Harness Included!

Installation Trim Ring: Installation Bracket(Left/Right):

Installation Bracket

Screws TM5*6 (8pcs):

Installation Trim Ring

Screws TA4*10 (4pcs) :

External Microphone:

Manual:

48 Pin to Motorcycle Connector to Headunit(ISO A+B)

Accessories

Owner’s Manual

HD-14KIT

WATERPROOF

FACEPLATE

IPx5

Installation

REMOVAL OF ORIGINAL HEAD UNIT

Street Glide

To prevent accidental vehicle start-up, which could cause death or serious injury, remove main

fuse before proceeding.

4. Remove upper support bracket. Removal of the

upper support bracket requires removing 11 screws:

4.1) remove four 5/32 allen screws

attaching the bracket to each speaker

enclosure (1)

4.2) remove two T25 screws attaching the

bracket to the inner fairing adjacent to

the gauge cluster (2)

4.3) remove four T25 screws attaching the

bracket to the head unit chassis (3)

4.4) remove one T25 crew attaching the

bracket to the media compartment (4)

1. Remove three outer fairing bolts using a T27 Torx screw

driver. The three outer fairing bolts are located below the

windshield. Remove the windshield, store it and the screws

removed in a safe place for re-installation later.

TIP: Reinstalling the center screw after removing the

windshield will prevent the outer fairing from falling during

the next step. A few turned by hand will be sucient.

2. Remove four inner fairing bolts using a T27 Torx screw driver. The four inner fairing bolts are locate

adjacent to each turn indicator mounting bracket and below/adjacent to each speaker. Store these

screws in a safe place for re-installation later.

3. While straddling the front wheel fender, grasp the outer fairing, remove the center outer fairing

bolt from the previous step, then gently pull the fairing apart from the bike. With the fairing slightly

pulled away from the bike, disconnect wire harness for the headlamp and any other accessories. Lay

the fairing on a protected ﬂat surface to prevent damage.

Installation

5. Disconnect electrical connections to the head unit.

1234 5

5.1) Remove the main wire harness connector (1). To remove the main wire harness, depress the latch lock

with a small ﬂathead screwdriver and swivel the latch aside. Pull the wire harness connector to remove

from the socket.

5.2) Remove the USB cable connector (2). To remove the USB cable connector, depress the locking tab

with a small ﬂathead screwdriver. While depressing the locking tab, pull the USB cable to release it from

the socket.

5.3) Remove the radio antenna cable connector (3). To remove the radio antenna cable connector,

depress the locking tab wiht a small ﬂathead screwdriver. While depressing the locking tab, pull the

antenna cable to release it from the socket.

5.4) Remove the GPS antenna cable connector (4). To remove the GPS antenna cable connector, depress

the locking tab wiht a small ﬂathead screwdriver. While depressing the locking tab, pull the antenna

cable to release it from the socket.

6. Remove four head unit mounting screws using a 3/16” hex driver. Two screws are located at each

side of the headunit chassis. Store these screws in a safe place for re-installation later. Pull the headunit

assembly up and forward to remove.

5.5) Remove SiriusXM antenna cable connector, if equipped (5). To remove the Sirius XM antenna cable

connector, depress the locking tab with a small ﬂathead screwdriver. While depressing the locking tab,

pull the Sirius XM antenna cable to release if from the socket.

Installation

REMOVAL OF ORIGINAL HEAD UNIT

Road Glide

To prevent accidental vehicle start-up, which could cause death or serious injury, remove

main fuse before proceeding.

1. Detach each turn signal / indicator light by

removing the adjacent allen socket screw,

using a 3/16” allen head driver. Store these

screws in a safe place for re-installation later.

2. Remove four inner fairing bolts using a T25 Torx

driver. Two inner fairing bolts are located below each

glove box, adjacent to each wind deﬂector. Store

these screws in a safe place for installation later.

3. Remove four windshield bolts using a 1/8”

allen driver or Philips screw driver and remove

the windshield. Also remove factory vent by

pulling straight up on the vent. The vent comes

snapped in place. Store the screws in a safe

place for installation later.

4. After removing the vent, locate and unplug the 3-pin

wire harness for the left and right side turn signal

indicator. These harness’ are adjacent to each side of

the head unit.

5. Remove an additional inner fairing bolt with a T27 Torx or 5/32”

allen driver, one behind each speaker grill. Remove the speaker

grill by wedging a plastic/nylon pry tool between the inner fairing

and grill edge, popping it outward. Once these bolts are removed,

the outer fairing will be detached from the inner fairing. Store

these screws in a safe place for installation later.

6. While straddling the front wheel fender, grasp the outer

fairing. Gently pull the fairing apart from the bike. With the

fairing slightly pulled away from the bike, disconnect wire

harness for the headlamp or any other accessories. Lay the

fairing on a protected ﬂat surface to prevent damage.

7. Remove two upper support bracket screws using a 3/16”

allen driver. Store the bracket and screws in a safe place for

re-installation later.

Installation

8.1) Remove the main wire harness connector (1). To remove the main wire harness,depress the latch

locking tab wiht a small ﬂathead screwdriver. While depressing the locking tab, pull the USB cable to

release it from socket.

8.2) Remove the USB cable connector (2). To remove the USB cable connector, depress the locking tab

wiht a small ﬂathead screwdriver. While depressing the locking tab, pull the USB cable to release it from

socket.

8.3) Remove the radio antenna cable connector (3). To remove the radio antenna cable connector,

depress the locking tab wiht a small ﬂathead screwdriver. While depressing the locking tab, pull the

antenna cable to release it from the socket.

8.4) Remove the GPS antenna cable connector (4). To remove the GPS antenna cable connector, depress

the locking tab wiht a small ﬂathead screwdriver. While depressing the locking tab, pull the antenna cable

to release it from the socket.

9. Remove four head unit mounting screws using a 3/16” hex driver. Two screws are located at each

side of the headunit chassis. Store these screws in a safe place for re-installation later. Pull the headunit

assembly up and forward to remove.

8.5) Remove SiriusXM antenna cable connector, if equipped (5). To remove the Sirius XM antenna cable

connector, depress the locking tab with a small ﬂathead screwdriver. While depressing the locking tab,

pull the Sirius XM antenna cable to release if from the socket.

8. Disconnect electrical connections to the head unit.

1234 5

Installation

1. Install trim ring and left /right bracket into the location of the HD-14KIT head unit.

Note: Please use the screws in package.

Install trim ring use TA 4X10mm screws.

Install bracket use TM 5x6mm screws.

Trim Ring

Left /Right Bracket

2. Install HD-14KIT into the location of the OEM head

unit. Secure the chassis to the OEM mounting

location with the four bolts removed during the last

step of REMOVAL OF ORIGINAL HEAD UNIT section

using a 3/16” allen driver.

3. Connect the USB and radio antenna cables disconnected during removal of the OEM headunit to the matching

sockets on the back of HD-14KIT. If either are diﬃculet to connect, verify the oriention of the connector(s) is

correct. If any aftermarket audio ampliﬁers will be used in the audio system, take a moment to connect the RCA

cables to the corresponding audio outputs. Although not required, if the Bluetooth calling microphone will be

used, secure it to the desired installation location, then route its cable to the corresponding input on the back of

HD-14KIT.

INSTALLATION OF HD-14KIT HEAD UNIT

To prevent accidental vehicle start-up, which could cause death or serious injury,

remove main fuse before proceeding.

USB Connector (USB Storage

/Apple CarPlay/Android Auto)

OEM Radio Antenna Connector

3. 5mm Connection for Included

Bluetooth Calling Microphone

RCA Low-Level Subwoofer Channel Output

For Optional Subwoofer Amplier (RCA not incl.)

RCA Low-Level Front Channel Output

for Optional Speaker Amplier (RCA not incl.)

RCA Low-Level Rear Channel Output

for Optional Speaker Amplier (RCA not incl.)

Installation

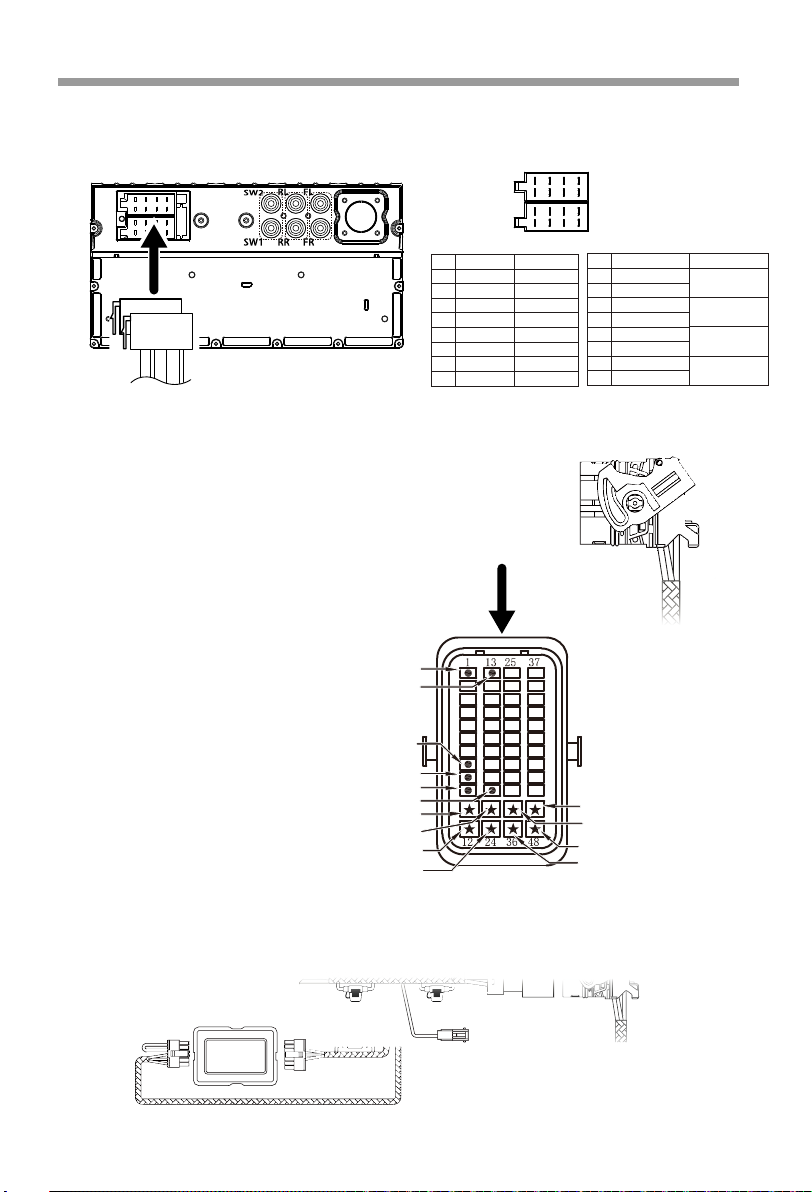

4. Insert and lock the male ISO head unit wire harness connector to the female socket of the included wire harness

for HD-14KIT. Then, insert and lock the male connector of the HD-14KIT wire harness into the corresponding

female socket on the back of HD-14KIT.

5. If an alternative handlebar integration module other than Scosche is available, skip this step and proceed to step

6. If included, connect the Scosche handlebar integration module to the corresponding 12-pin and 14-pin

connectors on the wire harness of HD-14KIT.

2 4 6 8

1 3 5 7

2 4 6 8

1 3 5 7

Color

Yellow

Black/White

SWC-GND

Gray/White

SWC2

Green/White

SWC1

Battery +

Blue

ANT

Orange

Illumination

Red

ACC

Black

Ground

Function B

Color

Purple(+)

Purple/Black(-)

Gray(+)

Gray/Black(-)

White(+)

White/Black(-)

Green(+)

Fuse: Max.15 Ampere

Voltage: 12V DC; Negative Ground

Green/Black(-)

Rear Right

Front Right

Front Left

Rear Left

Function

ISO Connector

HD-14KIT wire harness OEM wire harness

SCOSCHE

Gray/Black (FR-)

Gray (FR+)

White/Black (FL-)

Purple/Black (RR-)

Purple/White (CAN-)

Green/White (CAN+)

Green/Black (RL-)

Purple(RR+)

Green(RL+)

White(FL+)

Black (Ground)

Yellow (Black)

Inhaltsverzeichnis

Andere PowerAcoustik Auto-Videosystem Handbücher

PowerAcoustik

PowerAcoustik PTID-5300T Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-7350N Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-7350NRBT Bedienungsanleitung

PowerAcoustik

PowerAcoustik HD-7 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-7001NT Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5300 Bedienungsanleitung

PowerAcoustik

PowerAcoustik H-8BK Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5800 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PD-344 Bedienungsanleitung

PowerAcoustik

PowerAcoustik CP-650 Bedienungsanleitung

PowerAcoustik

PowerAcoustik 11.2 TFT-LCD PMD-112CMX Bedienungsanleitung

PowerAcoustik

PowerAcoustik CPAA-70D10M Bedienungsanleitung

PowerAcoustik

PowerAcoustik PT-850CM Bedienungsanleitung

PowerAcoustik

PowerAcoustik PML-43HB Bedienungsanleitung

PowerAcoustik

PowerAcoustik PT-706CM Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-7002NR Bedienungsanleitung

PowerAcoustik

PowerAcoustik PT-717HR Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-4004 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PT-770HGM Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-7001N Bedienungsanleitung

PowerAcoustik

PowerAcoustik PT-501MHN Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5850N Bedienungsanleitung

PowerAcoustik

PowerAcoustik PMD-121CMX Bedienungsanleitung

PowerAcoustik

PowerAcoustik PT-713HRS Bedienungsanleitung

Beliebte Auto-Videosystem Handbücher anderer Marken

Stinger

Stinger HEIGH10 RB10RAM13B Bedienungsanleitung

Eonon

Eonon E1057 Bedienungsanleitung

Milion

Milion D2223 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8153 Bedienungsanleitung

Voxx Electronics

Voxx Electronics HR8MA1 Bedienungsanleitung

Axxera

Axxera AV604Bi Bedienungsanleitung

Clarion

Clarion NX706E Bedienungsanleitung

Pyle view

Pyle view PLDN74BTi Bedienungsanleitung

Clarion

Clarion NX602 Bedienungsanleitung

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Benutzerhandbuch

Lanzar

Lanzar SVDVD5 Bedienungsanleitung

Kia

Kia MTXM100YPPE Bedienungsanleitung

Eonon

Eonon E1060 Bedienungsanleitung

Macrom

Macrom M-AN900 Bedienungsanleitung

Hyundai

Hyundai BAPE-L3000N Bedienungsanleitung

r.LiNK

r.LiNK RL2-UCON8-SM Bedienungsanleitung

Blaupunkt

Blaupunkt DVP 01C Bedienungsanleitung

DP Audio Video

DP Audio Video dbd807nav Bedienungsanleitung
