PowerSPRAY 500007 Bedienungsanleitung





Manual PN 500049 - Rev.4



™™



           



 



              









234

Drawing

Number(s)

Descrip�on

Replacement

Part Number

1 3CH PUMP, 2.2GPM SMARTFLO, DEMAND 3222-421F

2 SPRAYER TANK PUMP COVER 100017

3 WIRE HARNESS 120" W/ SWITCH, 15 AMP FUSE AND BATT CLAMPS 100035

4 INTAKE FILTER, 3/8" BARB 100015

PREMIUM MOLDED TANK 25 GAL TANK ONLY

Includes Polypropelyne Tank and Brass Inserts

100038

5,2,9,10,13

PREMIUM MOLDED TANK 25 GAL ASSEMBLY - Premium Tank and Inserts (5)

Tank Tray Lid (2), Drain Cap (9), Tank Lid Assembly (10), Wand Clips (13)

500040

7 MANIFOLD SUB ASSY REPLACEMENT, TOP PORT 500047

8 13" JET SPRAYER GUN with 3/8" BARB CONNECTOR 100058

9 DRAIN CAP SUB ASSY 100074

10 TANK LID SUB ASSY, 6" RECESS THREADED 100073

11 2" PRESSURE GAUGE 100 PSI 1/4" NPT 100012

12 REPLACEMENT HOSE, 25 FEET, 3/8" 100056-C

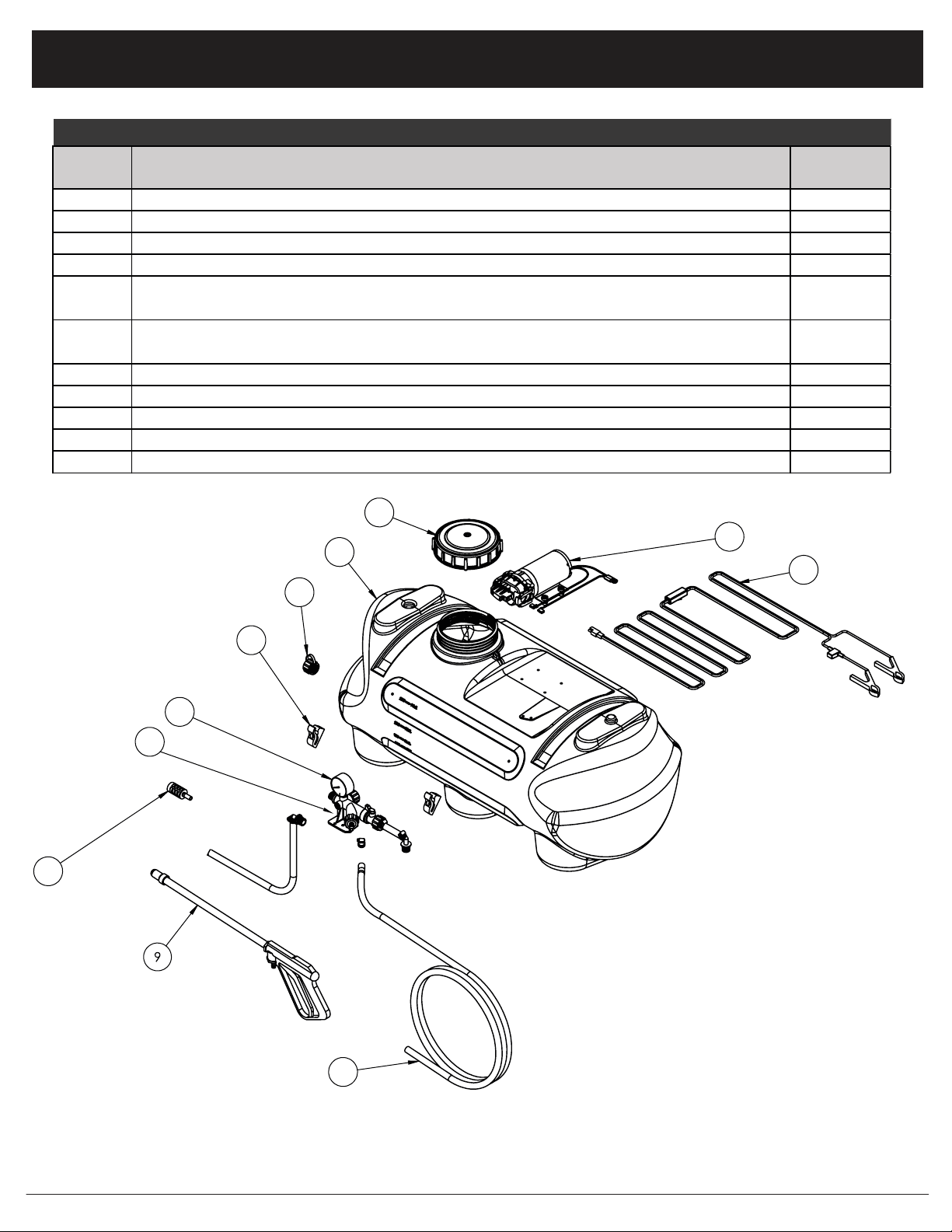

25 GALLON PREMIUM PRO1 SPOT SPRAYER - MODEL #500010



910

Drawing

Number(s)

Descrip�on

Replacement

Part Number

1 3CH PUMP, 2.0GPM EXTREME DUTY, DEMAND 3220ED-401E

2 SPRAYER TANK PUMP COVER 100017

3 WIRE HARNESS 120" W/ SWITCH, 15 AMP FUSE AND BATT CLAMPS 100035

4 INTAKE FILTER, 3/8" BARB 100015

PREMIUM MOLDED TANK 25 GAL TANK ONLY

Includes Polypropelyne Tank and Brass Inserts

100038

5,2,9,10

PREMIUM MOLDED TANK 25 GAL ASSEMBLY

Includes Premium Tank and Inserts (5), Tank Tray Lid (2), Drain Cap (9), Tank Lid Assembly (10)

500040

7 MANIFOLD SUB ASSY REPLACEMENT, TOP PORT 500047

8 24" PRO PISTOL GRIP GUN, 3/8 CONNECTOR 100013

9 DRAIN CAP SUB ASSY 100074

10 TANK LID SUB ASSY, 6" RECESS THREADED 100073

11 2" PRESSURE GAUGE 100 PSI 1/4" NPT 100012

12 REPLACEMENT HOSE, 25 FEET, 3/8" 100056-C

25 GALLON PREMIUM PRO SPOT SPRAYER - MODEL #500007







Drawing

Number(s)

Descrip�on Replacement

Part Number

1 3CH PUMP, 2.2GPM FLEX, DEMAND 7822FS-201

2 WIRE HARNESS 120" W/ SWITCH, 15 AMP FUSE AND BATT CLAMPS 100035

3 TANK LID 6" STD W/ SPRING VENT 100008

4 INTAKE FILTER 3/8" BARB 100015

MOLDED TANK 25 GAL STD - TANK ONLY

Includes Polypropelyne Tank and Brass Inserts

100037

5,3,11,12

MOLDED TANK 25 GAL STD - REPLACEMENT

Includes Premium Tank and Inserts (5), Drain Cap (11), Tank Lid Assembly (3), Wand Clips (12)

500041

7 MANIFOLD SUB ASSY REPLACEMENT, TOP PORT 500047

8 2" PRESSURE GAUGE 100 PSI 1/4" NPT 100012

9 30" SPRAY WAND with 3/8" HOSE BARB CONNECTION 100044

10 REPLACEMENT HOSE, 15 FEET, 3/8" 100056-D

11 DRAIN CAP SUB ASSY 100074

DELUXE SPOT SPRAYER 25GAL STANDARD TANK - MODEL #500019







Drawing

Number(s)

Descrip�on

Replacement

Part Number

1 3CH PUMP, 2.0GPM EXTREME DUTY, DEMAND 3220ED-401E

2 WIRE HARNESS 120" W/ SWITCH, 15 AMP FUSE AND BATT CLAMPS 100035

3 TANK LID 6" STD W/ SPRING VENT 100008

4 INTAKE FILTER 3/8" BARB 100015

MOLDED TANK 25 GAL STD - TANK ONLY

Includes Polypropelyne Tank and Brass Inserts

100037

5,3,11,12

MOLDED TANK 25 GAL STD - REPLACEMENT

Includes Premium Tank and Inserts (5), Drain Cap (11), Tank Lid Assembly (3), Wand Clips (12)

500041

7 MANIFOLD SUB ASSY REPLACEMENT, TOP PORT 500047

8 2" PRESSURE GAUGE 100 PSI 1/4" NPT 100012

9 24" PRO PISTOL GRIP GUN, 3/8 CONNECTOR 100013

10 REPLACEMENT HOSE, 25 FEET, 3/8" 100056-C

11 DRAIN CAP SUB ASSY 100074

25 GALLON PRO SPOT SPRAYER - MODEL #500022







Drawing

Number(s)

Descrip�on

Replacement

Part Number

1 3CH PUMP, 2.2GPM FLEX, DEMAND 7822FS-201

2 WIRE HARNESS 120" W/ SWITCH, 15 AMP FUSE AND BATT CLAMPS 100035

3 TANK LID 6" STD W/ SPRING VENT 100008

4 INTAKE FILTER 3/8" BARB 100015

MOLDED TANK 15 GAL STD - TANK ONLY

Includes Polypropelyne Tank and Brass Inserts

100016

5,3,11,12

MOLDED TANK 15 GAL STD - TANK ONLY

Includes Premium Tank and Inserts (5), Drain Cap (11), Tank Lid Assembly (3), Wand Clips (12)

500042

7 MANIFOLD SUB ASSY REPLACEMENT, TOP PORT 500047

8 2" PRESSURE GAUGE 100 PSI 1/4" NPT 100012

9 30" SPRAY WAND with 3/8" HOSE BARB CONNECTION 100044

10 REPLACEMENT HOSE, 15 FEET, 3/8" 100056-D

11 DRAIN CAP SUB ASSY 100074

15 GALLON DELUXE SPOT SPRAYER - MODEL #500031







Drawing

Number(s)

Descrip�on

Replacement

Part Number

1 3CH PUMP, 2.0GPM EXTREME DUTY, DEMAND 3220ED-401E

2 WIRE HARNESS 120" W/ SWITCH, 15 AMP FUSE AND BATT CLAMPS 100035

3 TANK LID 6" STD W/ SPRING VENT 100008

4 INTAKE FILTER 3/8" BARB 100015

MOLDED TANK 15 GAL STD - REPLACEMENT

Includes Polypropelyne Tank and Brass Inserts 100016

5,3,11,12

MOLDED TANK 15 GAL STD - TANK ONLY

Includes Premium Tank and Inserts (5), Drain Cap (11), Tank Lid Assembly (3), Wand Clips (12)

500042

7 MANIFOLD SUB ASSY REPLACEMENT, TOP PORT 500047

8 2" PRESSURE GAUGE 100 PSI 1/4" NPT 100012

9 24" PRO PISTOL GRIP GUN, 3/8 CONNECTOR 100013

10 REPLACEMENT HOSE, 25 FEET, 3/8" 100056-C

11 DRAIN CAP SUB ASSY 100074

15 GALLON PRO SPOT SPRAYER - MODEL #500034



















Drawing

Number(s)

Descrip�on

Replacement

Part Number

1 PUMP, 1 GPM, DEMAND, 40 PSI 2200-201

2 WIRE HARNESS 120" W/ SWITCH, BATT CLAMPS 100035

3 TANK LID 6" STD W/ SPRING VENT 100008

4 INTAKE FILTER 3/8" BARB 100015

MOLDED TANK 15 GAL STD - REPLACEMENT

Includes Polypropelyne Tank and Brass Inserts

100016

5,3,7

MOLDED TANK 15 GAL STD - TANK ONLY

Includes Tank and Inserts (5), Drain Cap (7), Tank Lid Assembly (3), Wand Clips

500042

7 DRAIN CAP SUB ASSY 100074

8 30" SPRAY WAND with 3/8" HOSE BARB CONNECTION 100044

9 REPLACEMENT HOSE, 15 FEET, 3/8" 100056-D

15 GALLON ECO PRO SPOT SPRAYER - MODEL #500045



Teﬂon Tape or other

adequate thread sealant





Drawing

Number(s)

Descrip�on

Replacement

Part Number

1 PUMP, 1 GPM, DEMAND, 40 PSI 2200-201

2 WIRE HARNESS 120" W/ SWITCH, BATT CLAMPS 100035

3 TANK LID 6" STD W/ SPRING VENT 100008

4 INTAKE FILTER 3/8" BARB 100015

MOLDED TANK 25 GAL STD - REPLACEMENT

Includes Polypropelyne Tank and Brass Inserts

100037

5,3,7

MOLDED TANK 25 GAL STD - TANK ONLY

Includes Tank and Inserts (5), Drain Cap (7), Tank Lid Assembly (3), Wand Clips

500041

7 DRAIN CAP SUB ASSY 100074

8 30" SPRAY WAND with 3/8" HOSE BARB CONNECTION 100044

9 REPLACEMENT HOSE, 15 FEET, 3/8" 100056-D

25 GALLON ECO SPOT SPRAYER - MODEL #500046



(Please note PowerSPRAY ECO Sprayers will not have a manifold and this step can be skipped.)



Your new sprayer manifold will be fully assembled EXCEPT for the

pressure gauge. To install the gauge use the thread sealant provided

and wrap it around the gauge threading. Next, screw gauge into

manifold top port as shown in diagram. Please note, over-tightening

can cause damage to the manifold. If your Pressure Gauge does not

face the desired direction, a few extra wraps of thread sealant will help

re-position the gauge



Connect your pump to the wiring harness using

the two pinned electrical connectors.

Next, attach the red battery clamp to the

positive (+) battery terminal and then the black

battery clamp to the negative (-) battery

terminal.



Before beginning operation, use a screwdriver to ensure

all hose clamps have a water tight seal.



Please ensure intake ﬁlter is functional and cleaned often.

Running without a ﬁlter can cause debris or sediment to

get into the system and cause obstruction.

A clogged ﬁlter will impact pump priming and system

performance. To clean ﬁlter, back ﬂush with water or

compressed air.




