PP3DP UP! Bedienungsanleitung
Personal Portable 3D Printer
UP!
User Manual
www.PP3DP.com
UP! 3D Printer User Manual 1
Legal Notice
The information in this document is subject to change without notice.
PP3DP.COM MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS
MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. PP3DP.com shall not be liable for errors contained herein or for incidental
or consequential damages in connection with the furnishing, performance, or use of
this Material. Changes or modifications to the system not expressly approved by
PP3DP.com, the party responsible for compliance, could void the user’s authority for
use. This document is protected by copyright. All rights reserved. Its use, disclosure,
and possession are restricted by an agreement with PP3DP.com per software copyright.
No part of this document may be photocopied, reproduced or translated into another
language without the prior written consent of PP3DP.com.
© Copyright 2010 PP3DP.com All rights reserved.
1.Introduction
UP! 3D Printer User Manual 2
1.INTRODUCTION...........................................................................................................................3
1.1HOWTOUSETHISMANUAL....................................................................................................................3
1.2PRECAUTIONS.....................................................................................................................................3
1.2.1Safety.......................................................................................................................................3
1.2.2Protection................................................................................................................................4
2.OVERVIEW...................................................................................................................................5
2.1APPEARANCE......................................................................................................................................5
2.2 SPECIFICATIONS...............................................................................................................................8
2.2.1PrinterPhysicalCharacteristics................................................................................................8
2.2.2Specifications...........................................................................................................................8
2.2.3Environmentalspecifications...................................................................................................8
3.OPERATION.................................................................................................................................9
3.1 PREPARATION..................................................................................................................................9
3.1.1Installingtheprinter................................................................................................................9
3.1.2Installingthesoftware...........................................................................................................17
3.1.3Installingdrivers....................................................................................................................17
3.2 USING THE BASIC FUNCTIONS........................................................................................................19
3.2.1Starttheprogram..................................................................................................................19
3.2.2Loadinga3Dmodel...............................................................................................................19
3.2.3ViewOptions.........................................................................................................................21
3.2.4Modeltransformations..........................................................................................................22
3.2.5Placingmodelsontothebuildplatform................................................................................24
3.3 GETTING READY TO PRINT............................................................................................................25
3.3.1InitializingthePrinter............................................................................................................25
3.3.2CalibratingtheNozzleHeight................................................................................................26
3.3.3Levelingtheprintplatform....................................................................................................28
3.3.4OtherMaintenanceOptions..................................................................................................29
3.3.5PreparingthePlatform..........................................................................................................31
3.3.6PrintSetupOptions................................................................................................................34
4.PRINTING..................................................................................................................................39
5.MODELREMOVAL......................................................................................................................41
REMOVINGSUPPORTMATERI AL.................................................................................................................42
6.MAINTENANCE..........................................................................................................................44
CHANGINGTHEMATERIAL.........................................................................................................................44
VERTICALCALIBRATION.............................................................................................................................44
CLEANINGTHENOZZLE..............................................................................................................................46
REMOVING/CHANGINGTHENOZZLE..........................................................................................................47
CLEANINGTHEPLATFORM.........................................................................................................................47
LUBRICATIONOFBEARINGS........................................................................................................................48
SPAREPARTS...........................................................................................................................................48
7.0.TIPS&TRICKS.........................................................................................................................49
8.TROUBLESHOOTING...................................................................................................................51
SOLUTIONFOR"USB.DLLNOTFOUND"PROBLEM..........................................................................................51
1.Introduction
UP! 3D Printer User Manual 3
1. Introduction
1.1Howtousethismanual
This User Manual is divided into four sections which cover the Introduction,
Overview, Operation, and Troubleshooting. Please study this manual carefully before
installation, and use the printer according to these instructions. Keep this manual
handy and refer to it when necessary.
1.2Precautions
Please read this section carefully before using the printer.
1.2.1 Safety
The printer can only be used with the power adapters supplied by this company,
or the product may be damaged, with a risk of fire.
To avoid burning, or model deformation, do not touch the model, nozzle, or the
platform by hand, or any other part of the body, while the printer is working or
immediately after it has finished printing.
Protective glasses should always be worn when removing support material,
especially PLA.
The brown sections of the currently supplied gloves melt at around 200 degrees,
therefore please do not hold the extruder block with the gloves.
There is a slight smell from ABS when it is being extruded. The smell is, however,
not too unpleasant. A well ventilated room is recommended by most people to be
safe, however when printing keep the printer away from any draughts as this can
affect the warping of ABS prints. When ABS is burnt is releases toxic fumes.
The following classifications are used in this manual.
CAUTION: Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
WARNING: Indicates a potentially hazardous situation which, if not
avoided, may result in serious injury.
1.Introduction
UP! 3D Printer User Manual 4
Gloves: When performing certain maintenance procedures, the machine
may be hot and gloves are required to avoid burns.
Safety Glasses: Wear safety glasses to avoid injury to your eyes.
1.2.2 Protection
The printer must not be exposed to water or rain, or damage may occur.
Do not shut down the UP! System or pull out the USB cable when loading a
digital model, or the model data may be lost.
When using the “Extrude” function, keep at least 50mm between the nozzle and
the platform. If too close, the nozzle may get blocked.
The printer is designed to work properly at an ambient temperature of between
15°C and 30°C and humidity of between 20% and 50%; Operating outside these
limits may result in low quality models.
2. Overview
UP! 3D Printer User Manual 5
2. Overview
The UP! Printer is designed with ultimate portability and simplicity in mind. The
system and software allow you to print great models with only a few keystrokes, even
if you have never used a 3D printer before. The system uses a nozzle to deposit
molten plastic, so printed parts are strong and durable. Congratulations on purchasing
an UP! Printer.
2.1Appearance
Figure 1. Front view of printer
① Pedestal ②Platform
③Nozzle ④ Extruder
⑤ Filament tube ⑥ Filament supplier
⑦ABS plastic ⑧Material spool
⑨Material spool holder
①
②
③
④
⑥
⑤
⑧
⑦
⑨
2. Overview
UP! 3D Printer User Manual 6

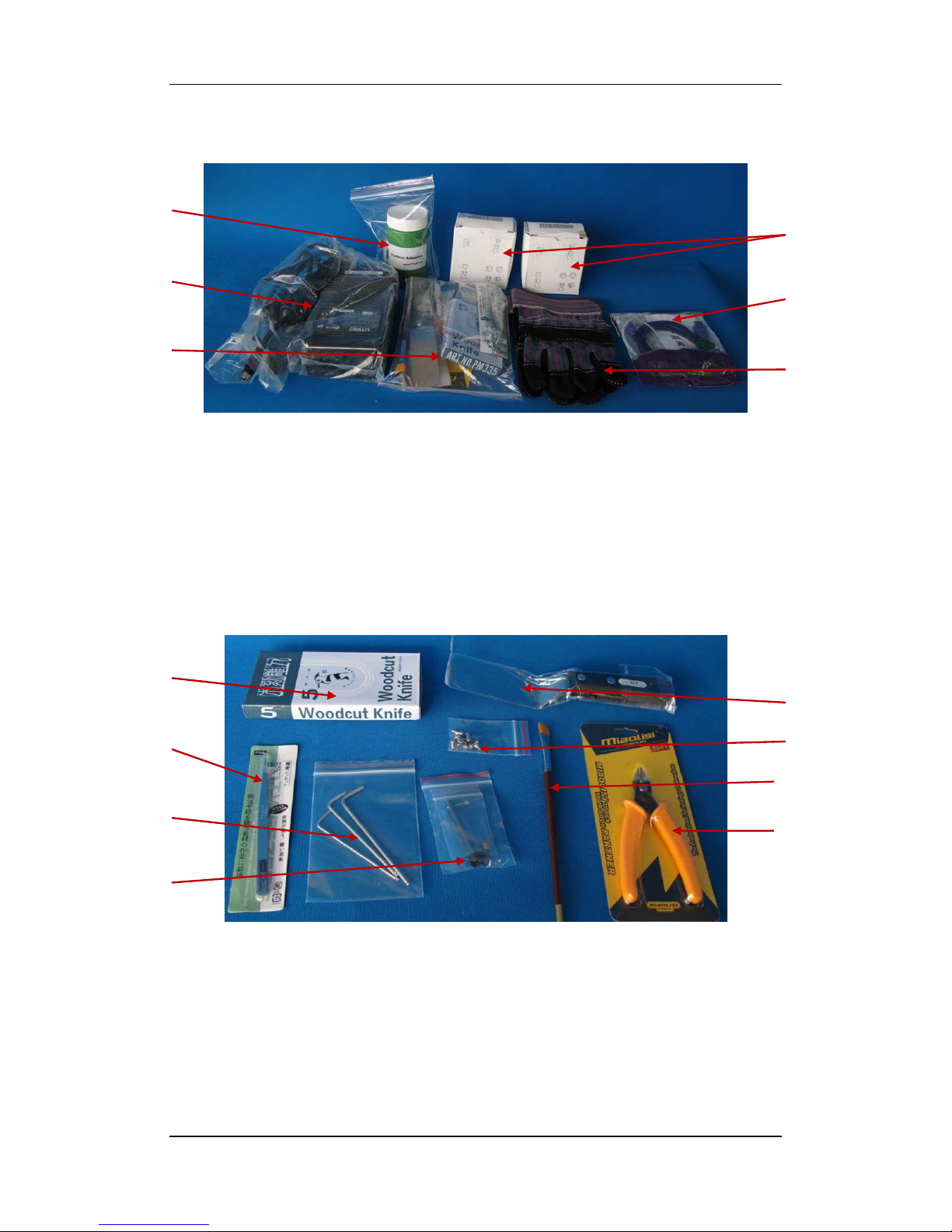

Figure 2. Kit contents
①Platform adhesives ②Power adapter (20 V)
③Toolset ④Power adapter (5 V)
⑤USB cable & Filament tube ⑥ Gloves
Figure 3. Tool set
①Woodcut knife ②Tweezers
③Hexagon wrench ④Nozzle wrench & Nozzle
⑤Shovel ⑥ Screws
⑦Brush ⑧Pliers
①
②
③
④
⑤
⑥
①
②
③
④
⑤
⑥
⑦
⑧
2. Overview
UP! 3D Printer User Manual 7
Figure 4. Axis
①Extruder axis
②Z axis
③Platform axis
①
②
③
2. Overview
UP! 3D Printer User Manual 8
2.2 Specifications
2.2.1 Printer Physical Characteristics
Printing Material ABS or PLA Plastic
Material Color White
Layer Thickness 0.20 – 0.40 or 0.25－0.35 mm,
depending on model
Print Speed 10－100 cm3/h
Print Size 140×140×135mm
Printer Weight 5 KG (11 lb)
Printer Size 245 × 260 × 350 mm
2.2.2 Specifications
Power Requirements 100-240 VAC, 50-60 Hz, 200W
Model Support Auto-generated Support
Input Format STL
Workstation compatibility Windows XP/Vista/Win7
2.2.3 Environmental specifications
Ambient temperature 15°C～30°C
Relative humidity 20%～50%
3.Operation
UP! 3D Printer User Manual 9
3. Operation
3.1 Preparation
3.1.1 Installing the printer
Open the box and take out the printer and accessories.
Assemble the parts contained in the box as follows:
1. Unscrew the M4 screw from the extruder, and fix the extruder onto the holder.
Please make sure the extruder is parallel with the Extruder axis. (Tool set includes the
M4 screw and Allen key)
