P+S Technik pro35 Image Converter MKII Bedienungsanleitung
Image Converter
Art. Nr. # 22327 Version 0803
Before operating this product, please read the instruction carefully and save this manual for future use.
User Manual
for PRO35 2/3" and PRO35 1/2" Cameras
Model MKII
ENGLISH
3
E
Manufacturer Information:
The manufacturer of this product is
P+S Technik GmbH
Siemensstraße 12
85521 Ottobrunn/Munich
Germany.
Please find worldwide authorised representation and dealer on our homepage
http://www.pstechnik.de or send an e-mail to info@pstechnik.de
asking for the contact details.
Concerning any service and warranty requests, please contact your distributor
or P+S Technik GmbH directly.
4
Safety instructions:
Temperature range:
The Image Converter has been tested for a temperature range from 0°C to +50°C.
For field reports regarding more extreme temperatures please contact P+S Technik
Maintenance / Special Tools:
Do not touch glass components with sharp objects.For cleaning do only use special
lens cleaning supplies. Refer all servicing to qualified service personnel.
Storage:
Please store the Image Converter in a dry and dust free place.
Disposal:
Please dispose broken components and devices correctly.
5
E
Contents:
1. PRO35 Image Converter: ………………………………………………………… 7
1.1 Delivery content ……………………………………………………………………… 7
1.2 Accessories and spare parts ………………………………………………………… 8
1.3 General overview ……………………………………………………………………… 14
2. Setup: ………………………………………………………………………………… 15
2.1 Mounting the Image Converter ……………………………………………………… 15
2.2 Power supply & cabling ……………………………………………………………… 16
2.3 Operating elements of the Image Converter ………………………………………… 17
2.3.1 Start/Stop……………………………………………………………………………… 17
2.3.2 Back focus Adjustment ……………………………………………………………… 18
2.3.3 Target Speed ………………………………………………………………………… 22
2.3.4 Second iris diaphragm ………………………………………………………………… 25
2.4 Adjusting the camera ………………………………………………………………… 27
2.4.1 Shading/Lens Files …………………………………………………………………… 27
3. Tips and General Instructions ………………………………………………… 31
4. Maintenance ………………………………………………………………………… 33
5. Technical Data ……………………………………………………………………… 35
6. FAQ’s…………………………………………………………………………………… 37
7. List of Suitable Lenses for PRO35 …………………………………………… 47
8. Addresses and Contacts ………………………………………………………… 49
6
7
E
PRO35 Image Converter
1
1.1 Delivery Content:
APRO35 Image Converter
Lens Mount: PL Mount (for other Mounts see accessories)
Camera-Mount: 2/3" B4 Mount, 1/3" Bayonet Mount
Lens caps front and back
B15mm Lightweight Support Bridge with
2x 15mm rods 75mm
2x 15mm rods 240mm
C Power cable to lens connector
DAltogether in a wooden box for safe transport
(it is offered an aluminium box as an optimal accessory
The lightweight support bridge for mounting onto the camera
or the quick-lock plate has to be acquired separately.
+++ SEE ALSO LENS SETS FROM P+S TECHNIK http://www.pstechnik.de +++
A
D
C
B
8
1.2 Accessories and Spare Parts:
Art. No. Description
19004 PRO35 PL-Mount Image Converter for 2/3"
B4-Mount camera incl. light weight support (#19186),
power supply cable for lens connector
14000 PRO35 PL-Mount Image Converter for 1/2"
CCD cameras incl. light weight support (#19186),
power supply cable for lens connector
Lens Mounts for PRO35
20737 BNC-R Mount for PRO35
19940 Panavision Mount for PRO35
Professional F Mount for PRO35 (#23504)
19942 Nikon Mount for PRO35
20468 Canon EF-Mount for PRO35
22652 Canon FD-Mount for PRO35
20902 Contax Mount for PRO35
Support accessories by P+S TECHNIK
19376 PRO35 support bridge for 19mm to 19mm rods
19710 PRO35 support bridge for 19mm to 15mm rods
19715 PRO35 support bridge for 15mm to 15mm rods
16251 Pair of rods for bridge plate, 19mm, L=440mm, steel
19545 Pair of rods for bridge plate, 19mm, L=440mm, carbon fiber
18688 Pair of rods for bridge plate, 19mm, L=240mm, steel
19544 Pair of rods for bridge plate, 19mm, L=240mm, carbon fiber
9
E
PRO35 Image Converter
1
Support systems for use with the PRO35 Image Converter
There are four possible solutions, explained in the following:
1. 15mm light weight support (by default delivered with the PRO35)
– for use with normal (prime) lenses
– for attachment of 15mm light weight accessories
2. 15mm light weigth support (ARRI based)
3. 19mm heavy duty support – Chrosziel based
– for use with heavy lenses (i.e. zoom lenses)
– for attachment of 19mm movie accessories
4. 19mm heavy duty support – ARRI based
– for use with heavy lenses (i. e. zoom lenses)
– for attachment of 19mm accessories
Support bridges to adapt from 19mm ligth weigth support to 15mm heavy duty support are
available as well:
Cables and general accessories
22612 PRO35 power supply cable for “Lens” connector
(Hirose 12-pin/ Fischer 7-pin, angled connector) (with twist protection MK II)
19142 PRO35 power supply cable Anton Bauer 2-pin (with twist protection MKII)
19143 PRO35 power supply cable Digibeta Hirose 4-pin (with twist protection MKII)
19144 PRO35 power supply cable XLR 4-pin (with twist protection MKII)
19187 PRO35 power supply cable XLR 5-pin (with twist protection MKII)
19188 PRO35 power supply cable “open end” (with twist protection MKII)
20449 RS switch ON/OFF (to use with MINI35 and PRO35)
21067 RS switch holder complete (incl. RS switch holder, Cmotion fastener,
RS extension cable 0,8m)
21065 RS extension cable, 0,8m
19710 PRO35 support bridge for 19mm to 15mm rods
19715 PRO35 support bridge for 15mm to 15mm rods
10
1. 15mm Light-weight Support for the PRO35
The 15mm support bridge and rods are included in the delivery. A holder for the 15mm rods
is required on the camera side. This holder is offered by both Chrosziel and ARRI and can be
purchased directly from P+S Technik.
By default the PRO35 Image Converter is delivered with a 15mm light weight support sy-
stem, including a support bridge (3) and four 15mm rods (4). It stabilizes the PRO35 setup
and 15mm accessories can be attached.
IMPORTANT: In order to connect the light weight support to your video camera you need a
holder plate for 15mm rods on camera side, which is prepared for light weight support con-
nection. This holder is possible to purchase directly from P+S Technik.
+++ All products can be ordered by P+S Technik in Munich or through our local dealers +++
Art. No. Description
Holder Plate from ARRI or Chrosziel.
The ARRI light weight support for video cameras is based on the LWS-4.
Light weight supports for Sony, Ikegami, JVC, Hitachi, Philips, Thomson availa-
ble.
Quicklock plate (has to be compatible to your base plate)
Support bridge (comes with the PRO35) (#19004)
Four 15mm rods (come with the PRO35):
75mm (two times) for the support of the Image converter and 240mm (two times)
for additional movie accessories (#19004)
19004 PRO35 Image Converter
11
E
PRO35 Image Converter
1

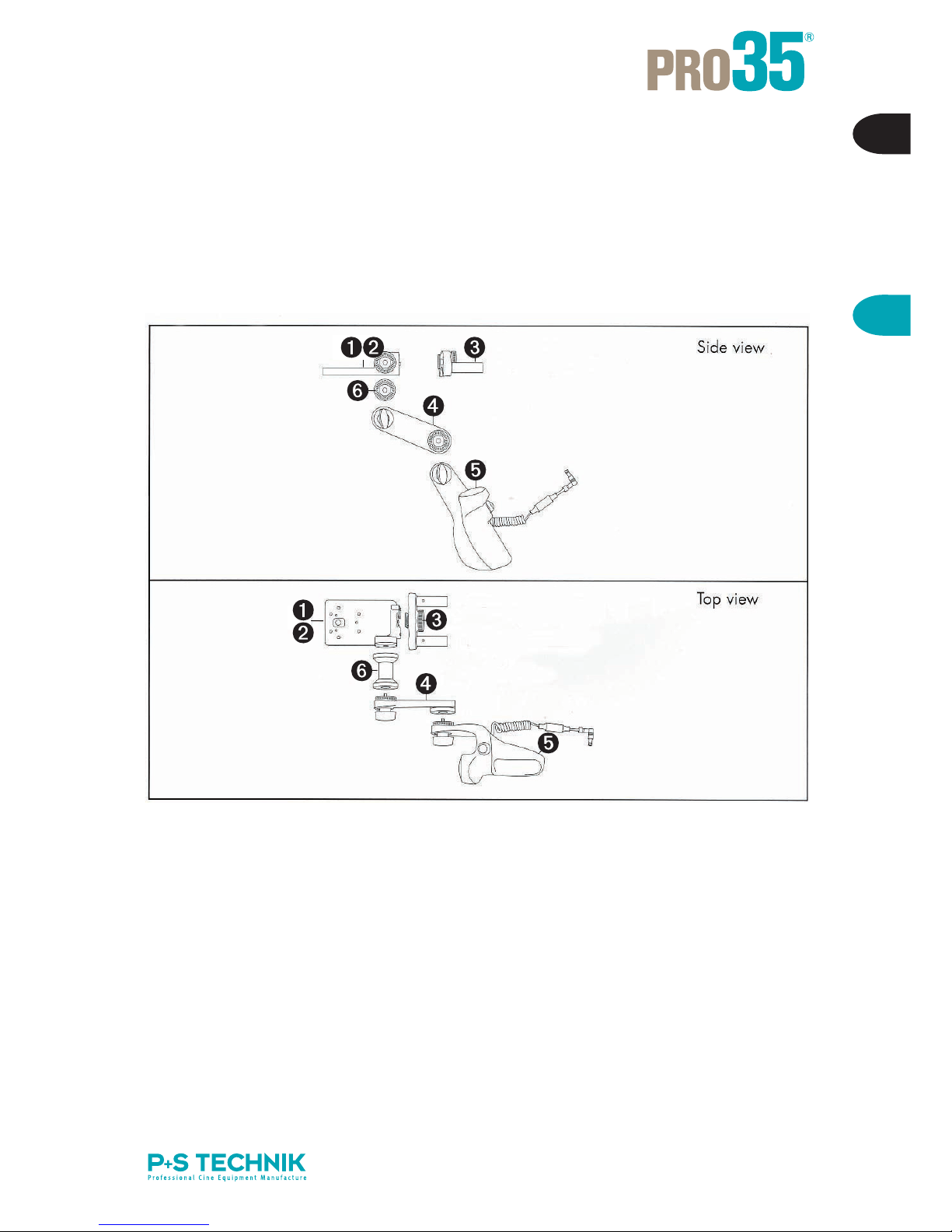

2. Light Weight Support for the PRO35 Image Converter ( ARRI based )
The following accessories are based on the ARRI LWS-4 and ARRI light-weight adapter
plates for the SONY, PANASONIC and Thomson cameras and allows you to fit additional
accessories, such as follow focus, mattebox....
based on the LWS 15mm support. A special support bridge for the PRO35Digital is inclu-
ded in the delivery of the Image Converter:
Art. No.
19548
19547
21958
19590
16167
19591
Description
Sony Ligth Weigth Adapter SLB-2
Panasonic Ligth Weigth Adapter PLB-2
Ligth Weigth Support LWS-4; compete with 15mm rods
(97mm and 170mm long)
Hand Grip Extension
Hand Grip with ON/OFF Switch
Hand Grip Extension
A
B
C
D
E
F
