Premax PM-LED32-B Bedienungsanleitung
Operating Instruction
Please read these instructions before operating
your set and retain them for future reference.
Model:
RWPXZX-E001
PM-LED32-B
PRECAUTIONS
1.Read these instructions.
2.Keep these instructions.
3.Heed all warnings.
4.Follow all instructions.
5.This apparatus with CLASS II construction
6.The ventilation should not be impeded by covering the ventilation openings with items,
such as newspapers, table-cloths, curtains, etc.
7.No naked flame source, such as lighted candles, should be placed on the apparatus.
8.The apparatus shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the apparatus.
9.The batteries of remote controller shall not be exposed to excessive heat such as
sunshine, fire or the like.
10.The plug or appliance coupler is used as the disconnect device, it shall remain readily
operable.
11.To prevent the spread of fire, keep candles or other open flames away from this
product.
12.Clean only with dry cloth.
13.Do not install this apparatus in windtight places such as the wall-unit. Donot block any
ventilation openings.
14.Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
15.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A groundingtype plug has two blades
and a third grounding prong. The wide blade or the third prong are provided for your
safety. If the provided plug does notfit into your outlet, consult an electrician for replace-
ment of the obsolete outlet.
16.Only use attachments/accessories specified by the manufacturer.
17.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
18.Unplug this apparatus during lightning storms or when unused for long periods of time.
19.Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen intothe apparatus, the apparatus has been
exposed to rain or moisture, doesnot operate normally, or has been dropped.
20.The each USB terminal should be loaded with 0.5 A under normal operation;
21.Minimum distances around the apparatus for sufficient ventilation;
22.The use of apparatus in tropical and/or moderate climates.
23.Put the TV in the environment of moderate temperature,not to lay aside the Air
Conditioner outlet or stove to avoid damage.
24.Use both hands when carrying TV, make TV suffer stable outside force.
Note:If the manual is inconsistent with the product,please refer to the actual product.
WARNING
Never place a television set in an unstable location. A television set may fall,causing
serious personal injury or death. Many injuries,particularly to children,can be
avoided by taking simple precautions such as:
If your existing television set is being retained and relocated,the same
considerations as above should be applied.
Using cabinets or stands recommended by the manufacturer of the television set.
Only using furniture that can safely support the television set.
Ensuring the television set is not overhanging the edge of the supporting
furniture.
Not placing the television set on tall furniture (for example, cupboards or book-
cases)without anchoring both the furniture and the television set to a suitable
support.
Not placing the televisions set on cloth or other materials that may be located
between the television set and supporting furniture.
Educating children about the dangers of climbing on furniture to reach the
Television set or its controls.
IMPORTANT INFORMATION
If a television is not positioned in a sufficiently stable location,it can be potentially
hazardous due to falling.Many injuries,particularly to children, can be avoided by
taking simple precautions such as:
Using cabinets or stands recommended by the manufacturer of the television.
Only using furniture that can safely support the television.
Ensuring the television is not overhanging the edge of the supporting furniture.
Not placing the television on tall furniture (for example, cupboards or Bookcas-
es)without anchoring both the furniture and the television to a Suitable Support.
Not standing the televisions on cloth or other materials placed between the
television and supporting furniture.
Educating children about the dangers of climbing on furniture to reach the
television or its controls.
CAUTION
Attention:
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
Used batteries should not be thrown into the garbage can, please leave them at
an appropriate depot.
CAUTION
Where the MAINS plug or an appliance coupler is used as the disconnect
device, the disconnect device shall remain readily operable.
CAUTION
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock, do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
Be sure not to display motionless picture on the LED TV for more than 2 hours,
because it would cause picture remnants to appear, which is called "screen
burns". To avoid such picture remnants, please decrease the "contrast" and
"brightness" of the display when displaying motionless picture.
While watching TV program in 4:3 size mode for a long time, there would be
traces on the edge of the screen's left, right and center parts because of
different transmition of the light on the screen.Similar impact on the screen will
occur when playing DVD or connecting games control. Products destroyed by
these reasons can't be guaranteed for maintenance.
It might cause picture remnants to display electronic games and motionless.
picture of PC more than a period of time.To avoid such effect, please decrease
the "contrast" and "brightness" when displaying motionless picture.
Motionless picture might cause permanent destruction to the display.
Place the TV on a firm and flat surface, leaving a space of at lease 10cm around
the set and 30cm from the top of the set to the wall or cabinet. Ensure the TV is
positioned close to the wall to avoid it falling when pushed.
When you turning the TV set,do not hold the top side of the TV set, you should
hold the bottom side.
When you lifting the TV set,do not use one hand to handle it, you should lift the
TV set by two hands
10cm 30cm 10cm 10cm
1
CONTENTS
1. Connection and Preparation of TV...........................................................................
1.1 Accessories .......................................................................................................
1.2 Installation of Stand ...........................................................................................
1.3 Keys and Interfaces ...........................................................................................
1.4 Remote Control ..................................................................................................
1.5 Installation of Batteries ......................................................................................
2. Basic Operation .......................................................................................................
2.1 Built-in Battery Switch ........................................................................................
2.2 DC OUT interface ..............................................................................................
2.3 Setting Standby Mode .......................................................................................
2.4 Source Input ......................................................................................................
2.5 Main Menu Operation ........................................................................................
2.6 Media Menu .......................................................................................................
3. Technical Specifications ..........................................................................................
4. Supported Signal Modes..........................................................................................
5. Simple Troubleshooting ...........................................................................................
2
2
2
3
4
5
5
5
6
6
7
7
13
18
19
20
2
1.Connection and Preparation of TV
1.1 Accessories
1.2 Installation of Stand
1
2
3
User Manual
Remote Control
Battery(UM-4/R03P/AAA)
Wall Mount Kit (Pre-assembled)(Optional)
(For the physical structure, please refer to the real object)
Place the TV with the front panel facing downwards on a soft cloth or on the
soft pads on a desk.
Insert the stand into the bottom socket of the TV.
Insert the screws into the sockets and tighten them.
3
1.3 Keys and Interfaces
The design and specification takes actual
products as the standard
or or
11
1. Remote sensor window
2. Power indicator
3. Speaker
4. Menu key
5. Program “+” key
6. Program “-” key
7. Volume “+” key
8. Volume “-” key
9. Source key
10. Standby key
11. Power plug input
12. BATTERY ON/OFF
13. DC output
14. HDMI1
15. HDMI2
16.PC(VGA) input
17.PC AUDIO input
18.RF input
19.YPbPr input
20.AV input
21.USB1/USB2
22.EARPHONE output
12 13 14 16 17
21
2019
15
DC OUT
12V 1.5A HDMI1 HDMI2 PC(VGA) PC AUDIO RF IN
22
BATTERY
ON/OFF
YPb Pr
YPbPr IN
VIDEO RL
AV IN USB2
USB1
5V 500mA EARPHONE
18
4
1. 4 Remote Control
STANDBY: Press to enter or exit Standby mode.
SOURCE: Press to select the signal source.
RED: Press to access the red item or page.
BLUE: Press to access the blue item or page.
GREEN: Press to access the green item or page.
YELLOW: Press to access the yellow item or page.
CH LIST: Channel list.
S.MODE: Press to select the sound mode.
FAV.LIST: Press to view the favorite channel list.
FREEZE: Press to freeze the picture.
P.MODE: Press to select the picture mode.
ZOOM: Press to zoom in or out of the current
picture(this function may not work on some pictures
and videos).
A-B: Press to setup the repeat play segment.
REPEAT: Press to repeat single random, shuffle or
folder.
FB: Press to rewind.
NEXT: Next.
FF: Press to fast forward.
PREV.: Previous.
MENU: Press to enter or exit the menu.
EXIT: Press to exit the menu or selection.
Key: The menu item selection.
ENTER: Press to confirm or enter.
: Press once to pause, press again to playback.
: Press to stop the playback and return to file list.
MUTE: Press to mute sound.
VOL+: Press to increase the volume.
VOL-: Press to decrease the volume.
CH : Press to select the next channel.
CH : Press to select the previous channel.
FAV+: Press to add a channel to the favorite list.
0~9: Press the keys to select a channel.
DISPLAY: Press to display the information of the
current video and audio.
RECALL: Press to return to the previous channel.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
MENU EXIT
SOURCE
5
1.5 Installation of Batteries
Design and specifications may differ somewhat from your remote,
in which case the actual product prevails.

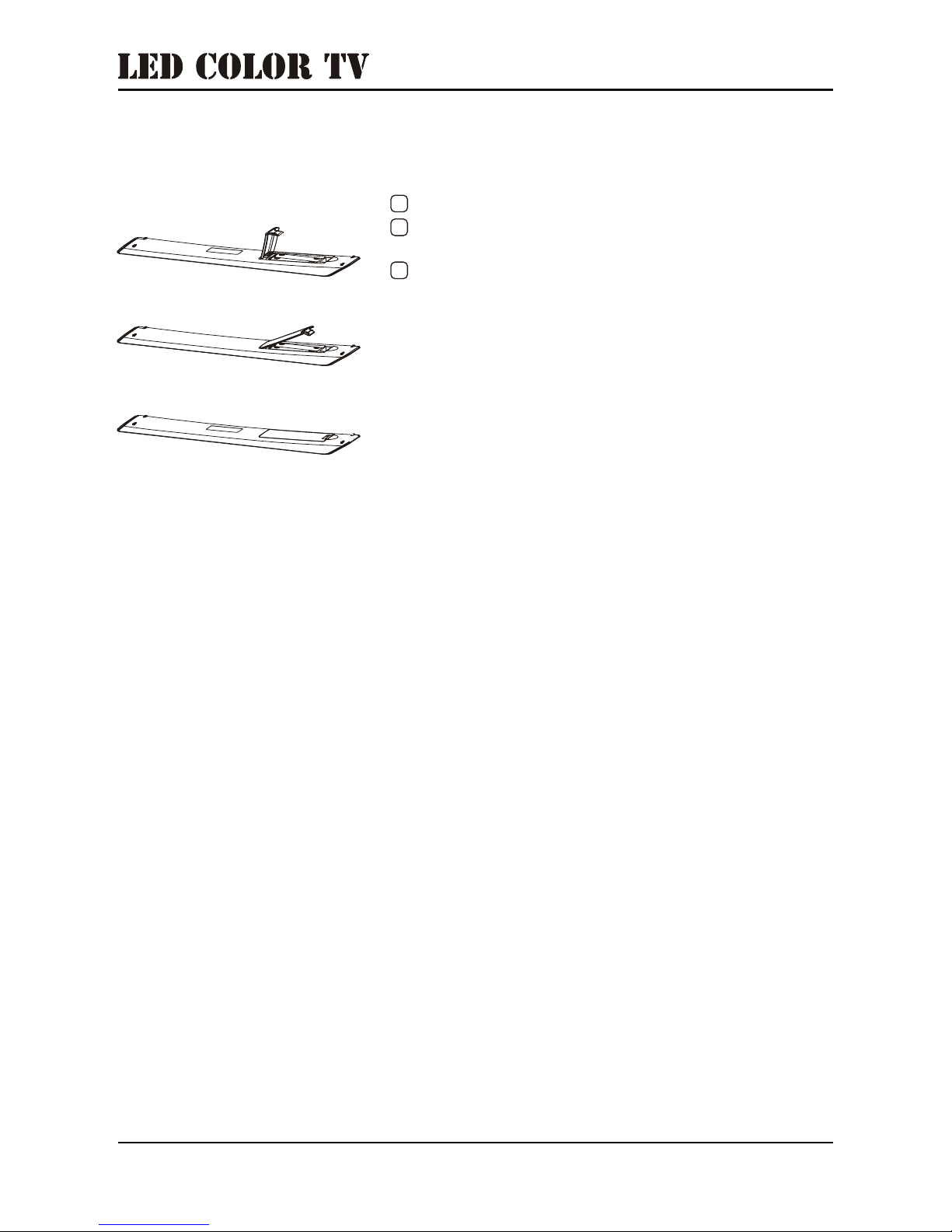

Open the back cover of the remote control.
Install two 7#(AAA)1.5V batteries.
Ensure the polarity of the batteries are correct.
Close the back cover.
Remove the batteries from the remote control
if the remote will not be used for a long time.
If the remote control does not work properly,
please carry out the following checks:
- Check the TV is turned on.
- Check the polarity of the batteries are correct.
- Check the batteries are not drained.
- Check the power supply is normal and that the
power cord is correctly connected.
- Check there are no special fluorescent or neon
lights nearby.
1
2
3
2. Basic Operation
2.1 Built-in Battery Switch
This series of TV model has a switch to control the power supply of the built-in
battery. See the button “BATTERY ON/OFF” on the lower back of TV.
When the switch is turn to “ON” position, to plug the power cord in and connect
the power, the built-in battery can be charged, and when the AC power cord is not
be plugged in or under the condition of no electricity, the battery can supply
power to TV for proper working, and the TV will work in a power-saving mode like
lowering the backlight brightness and reducing the volume of speaker .
Inhaltsverzeichnis
Andere Premax LED-Fernseher Handbücher
