Premier Mounts AM250 Bedienungsanleitung

INSTALLATION INSTRUCTIONS

AM250/AM250-FLIP

Universal Swingout Arm

NORTH AMERICA

3130 East Miraloma Avenue

Anaheim, CA 92806 USA

USA and Canada -

Phone: 800-368-9700

Fax: 800-832-4888

EUROPE

Swallow House,

Shilton Industrial Estate,

Shilton, Coventry, England CV79JY

Phone: +44 (0) 2476 614700

Fax: +44 (0) 2476 614710

Other Locations - Phone: (001)-714-632-7100; Fax: (001)-714-632-1044

©Premier Mounts 2008

9531-008-001-05

AUSTRALIA, NEW ZEALAND,

OCEANIA (Distributor)

P.O. Box 295

Mordialloc Victoria 3195

Australia

Phone: 03 9586 6330

www.premiermounts.com.au

AM250

PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS SHOULD BE READ AND COMPLETELY

UNDERSTOOD. THE INSTALLATION INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL INJURY AND PROPERTY

DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE.

PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR

PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS OR

MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS, DEMANDS, SUITS, ACTIONS OR CAUSES OF

ACTION OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER RELATING TO ANY SUCH USE,

ATTACHMENTS OR MODIFICATIONS.

THE SURFACE MUST BE CAPABLE OF SUPPORTING AT LEAST FIVE TIMES THE WEIGHT OF THE DISPLAY. IF NOT, THE

MOUNTING STRUCTURE MUST BE REINFORCED. PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN

INSTALLATION , AS OUTLINED IN THE INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO COULD RESULT IN

SERIOUS PERSONAL INJURY, OR EVEN DEATH.

SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE PROPER SAFETY

GEAR AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.

At least two qualified people should perform the assembly procedure. Injury and/or damage can result from dropping or mishandling the display.

If mounting to studs, make sure that the mounting screws are anchored into the center of the studs. Use of an edge-to-edge stud finder is

recommended.

Be aware of the mounting environment. If drilling and/or cutting into the mounting surface, always make sure that there are no electrical wires in

wall. Cutting/drilling into an electrical line may cause serious injury.

Make sure there are no water lines inside the wall where the mount is to be located. Cutting/drilling into a water line may cause severe water damage

to the mounting surface.

This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal injury.

Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or chance of impact

Contact Premier Mounts with any questions

(800) 368-9700

techsupport@mounts.com

Warning Statements 2

Parts List 3

Installation Tools 3

Thread Depth Indicator 6

Mount Installation 7

Concrete Mounting 8

Universal Mounting Bracket Assembly 8

Attaching the Display 9

Securing and Leveling the Display 10

Tilt Positioning 10

Technical Specifications 11

Warranty 12

Warning Statements

Page 2 Installation Instructions

Table of Contents

AM250

Installation Instructions Page 3

Parts List

This mount is shipped with all installation hardware and components. Make sure that none of these parts

are missing and/ or damaged before beginning installation. If there are parts missing and/or damaged, please

stop and contact Premier Mounts (800) 368-9700.

Installation Tools

Phillips Head Screw Driver Soft Material/ Blanket 1/2" Socket and Wrench

l Tape Measure Drill GunicneP

Level (Supplied) Thread Depth Indicator (Supplied)

¼" Drill Bit (Pilot Holes)

Masonry Drill Bit (Concrete Applications - Commercially Available)

Swingout Arm

(Qty 1)

5/16" Flat Washers

(Qty 6)

5/16" x 3" Lag Bolts

(wooden studs only)

(Qty 6)

Universal Mounting

Bracket (Qty 2)

Griplate™ (Qty 8)

AM250

Page 4 Installation Instructions

M4 x 16 (Qty 8)

(Qty 8)

M5 x 12

M5 x 16 (Qty 6)

M5 x 25 (Qty 4)

M6 x 12 (Qty 8)

M8 x 25 (Qty 6)

M8 x 30 (Qty 6)

M8 x 35 (Qty 4)

M6 x 20 (Qty 6)

M8 x 70 (Qty 4)

M4 x 25

M5 x 20

M5 x 50

M8 x 20

M6 x 30

(Qty 6)

(Qty 4)

(Qty 6)

(Qty 4)

(Qty 6)

Parts List (Cont.)

Installation Instructions Page 5

AM250

Parts List (Cont.)

Nylon spacers and flat washers' actual size.

The nylon spacers may be stacked to achieve proper spacing.

5/16" Nylon sleeves

(Qty 4)

1/4" Nylon spacers

5/16" Flat washers

(metal)

1" Nylon spacers

1/4" Nylon spacers

9/16" Nylon spacers

(large)

(small)

1/2" Nylon spacers

(large)

(Qty 6)

(Qty 12)

(Qty 6)

Page 6 Installation Instructions

AM250

Thread Depth Indicator

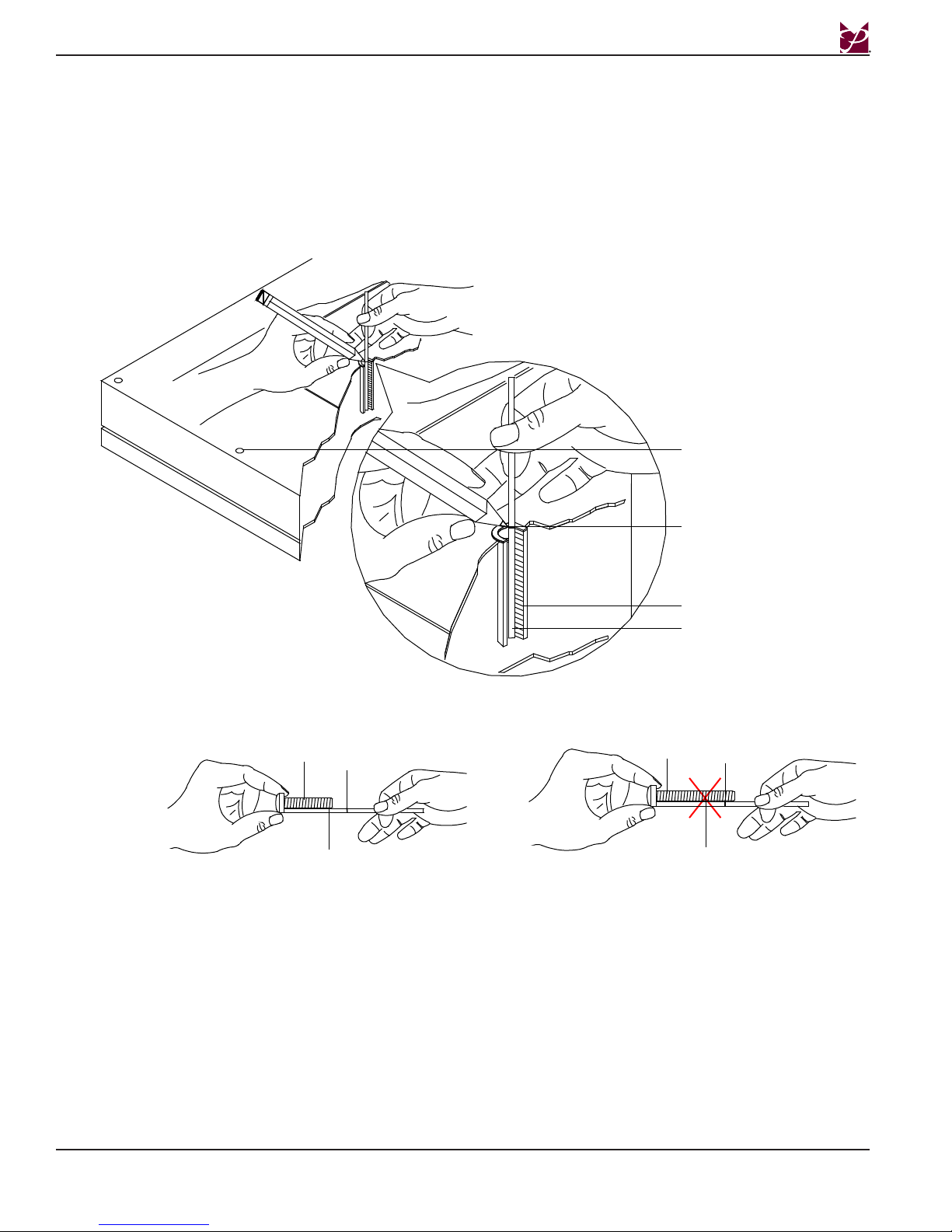

Step 1. Insert the thread depth indicator (supplied) through the thread inserts found on the back of the flat panel to make sure

the inserts measure the same full depth and mark it (Figure 1).

Step 2. Locate the correct diameter screw for the thread insert. Compare your marking to the screws (supplied).

Step 3. If your selected screw is longer than the marking on the thread depth indicator, DO NOT USE this screw.

Step 4. The screw length must not bypass the marking. Select another screw size (Figure 2 and 3), until you find one that comes

closest to your mark without going past.

Figure 1

Figure 2 Figure 3

Thread Depth

Indicator

Marking

Screw

Marking

Screw

Thread Depth

Indicator

Inverted Flat

Panel Display

Marking the

Depth

Thread Insert

Thread Depth

Indicator

AM250

Installation Instructions Page 7

For ease of installation, it is recommended that two people perform the installation. One person should hold the mount

while the other person installs the lag bolt and washer. Making sure that the mount is level, the person not holding the

mount must mark and drill the second mounting hole and secure the second lag bolt and washer.

Mount Installation

Step 1 Step 2 Step 3

Step 4 Step 5 Step 6

If the studs are 12” (304.8mm) apart, use three 3” (76.2mm) lag bolts for the top rail and three 3” (76.2mm) lag bolts for

the lower rail. If the studs are 16”(406.4mm), 18” (457.2mm) or 24” (609.6mm) apart, use two 3” lag bolts for the top

rail and two 3” lag bolts for the lower rail.

THE FOLLOWING STEPS SHOULD BE PERFORMED BY TWO PEOPLE.

Do NOT over-tighten lag bolts when attaching the mount to the wall. Improper installation may result in personal

injury or damage to property.

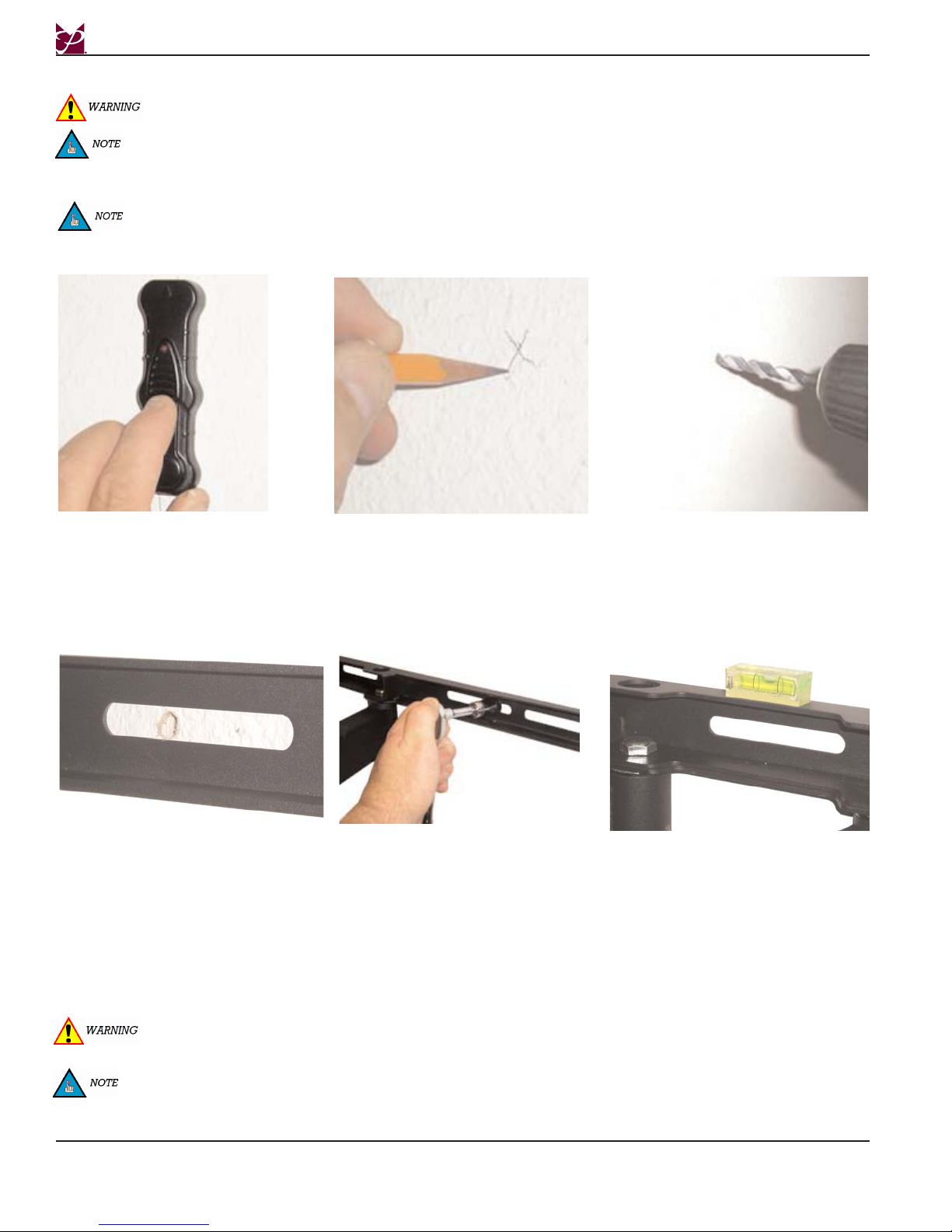

Determine where to mount the

AM250/AM250-FLIP. Use a stud

finder to find the exact center of

each stud.

Once all of the studs have been located, use

a pencil to mark the spots. Place the mount

against the wall and align the mount to the

marked stud locations.

Using a 1/4” drill bit, drill a pilot

hole at the first aligned and marked

location.

If the studs are 12” apart, use three 3” lag bolts for the top row of mounting points and three 3” lag bolts for the lower row

mounting points. If the studs are 16”, 18” or 24” apart, use two 3” lag bolts for the top row of mounting points and two 3”

lag bolts for the lower row of mounting points.

After the pilot hole has been drilled, line

up the mounting slot opening to the drilled

hole.

Insert one (1) 5/16" x 3" lag bolt and

washer into the mounting hole and

tighten (see WARNING: below).

With the help of an assistant, place a level

on the center of the mounting rail and level

the mount. Mark and drill the second

mounting hole.

Insert one (1) 5/16" x 3" lag bolt and

washer into the mounting hole and tighten

(see WARNING: below). Repeat steps 5

and 6 for the remaining mounting points.

AM250

Page 8 Installation Instructions

Universal Mounting Bracket Assembly

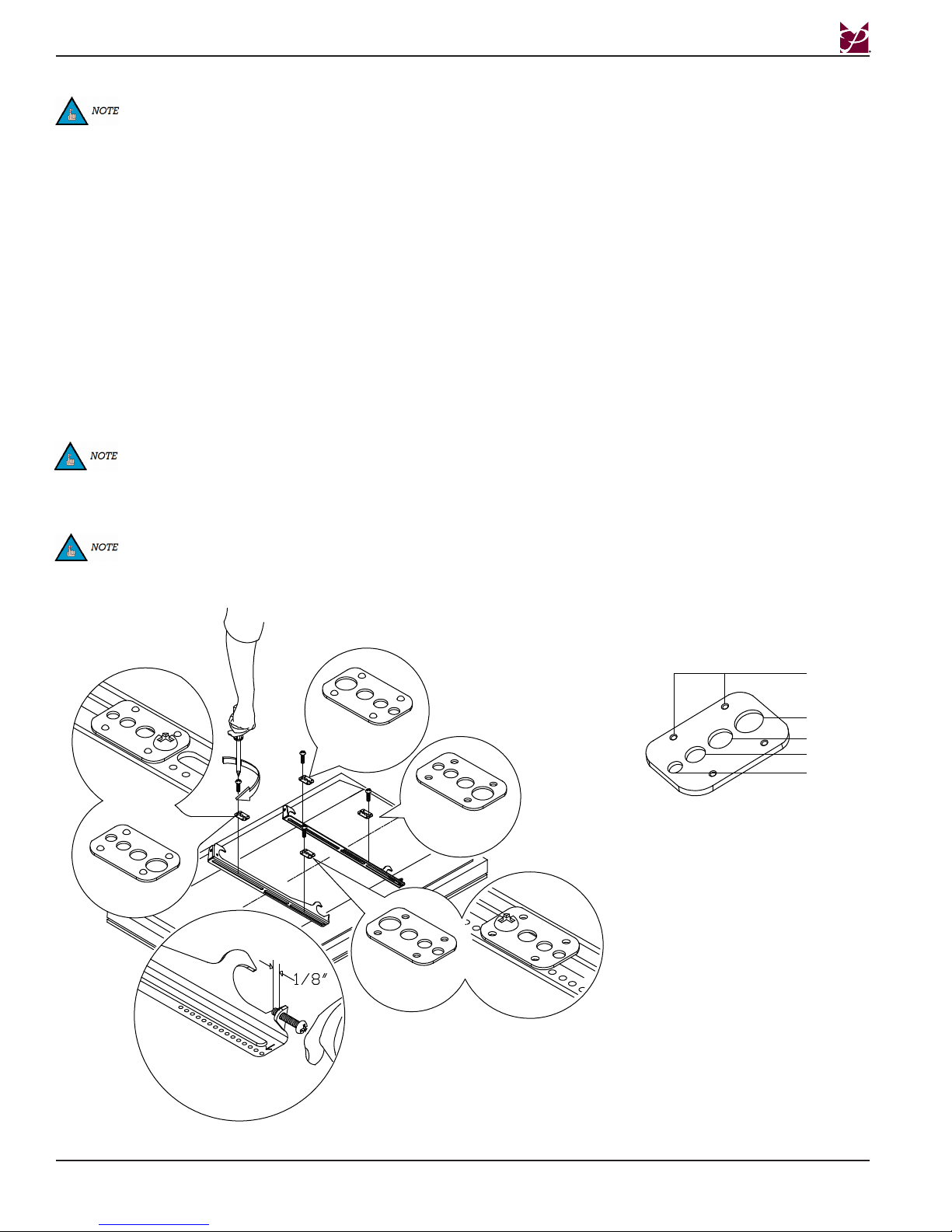

Step 1. Place the display on a soft, flat surface, face-down.

Step 2. Determine where the mounting points are located.

Step 3. Place the universal brackets over the mounting points.

If the mounting surface is not completely level, use the spacers (see Page 6) to ensure that the universal brackets are

level on the display.

Step 4. Once the desired position has been determined, place the Griplate™ over each mounting point (dimples facing

up) and secure them using the appropriate hardware (see Page 5).

For the two upper mounting points, the dimples (Griplate™) must be facing up. For the two lower mounting points,

the dimples (Griplate™) must be facing down.

Concrete Mounting

Concrete anchors must be used for concrete installation. They can be purchased at your local hardware store. The

mounting surface must be a minimum 6” thick.

Step 1. Begin by placing the mount into position against the wall, keeping it level.

Step 2. Mark off four holes to be used for securing the mount.

Step 3. Next, drill holes using a masonry bit for your anchors (recommended 5/16” masonry bit).

Step 4. Insert a commercially available concrete anchor into each hole (recommended 3/8” wedge anchors).

Step 5. If necessary, a hammer can be used to lightly tap each anchor into place so that they are flush with the wall.

Step 6. Once all of the anchors are in place, move the wall bracket into position.

Step 7. Attach the nut onto the threaded shaft that is protruding from the wall.

Step 8. Do not tighten until all nuts are in place.

Dimples

DIMPLES

FACING UP

DIMPLES

FACING DOWN

DIMPLES

FACING UP

DIMPLES

FACING DOWN

AM250

Installation Instructions Page 9

Attaching the Display

IT IS RECOMMENDED THAT TWO PEOPLE MOUNT THE DISPLAY, AS THE UNIT IS

HEAVY AND, IF DROPPED, WILL DAMAGE THE MOUNT, THE DISPLAY, AND/OR PERSONNEL.

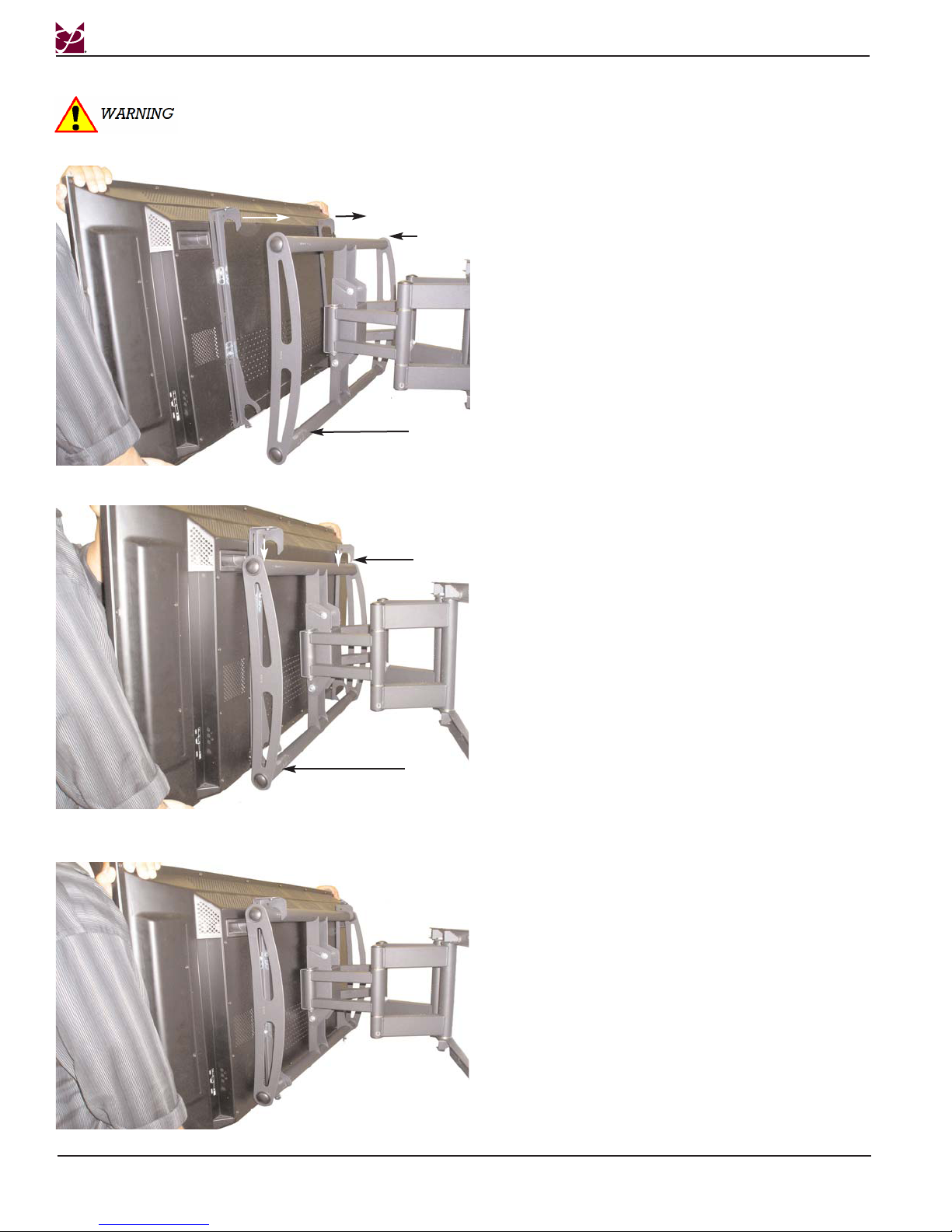

Step 1. Place the universal brackets and the display

over the upper mounting bars of the AM250.

Step 2. Lower the universal mounting brackets

and display onto the mounting bars of the

AM250.

Step 3. This is what the two units will look like after

the universal mounting brackets and display

are mounted to the AM250.

Upper Mounting

Bar

Lower Mounting

Bar

Upper Mounting

Bar

Lower Mounting

Bar

AM250

Page 10 Installation Instructions

Securing and Leveling the Display

Once the brackets have been placed over the upper mounting bars on the AM250, use two (2) M6 x 30mm Phillips Head locking

screws to secure the brackets to the bottom of the mounting bars. This will prevent lateral shift movement. Level your flat panel

by installing the two additional M6 x 30mm Phillips Head screws to the upper bracket assembly as shown below. Once the display

is level, tighten the locking screws.

M6 x 30mm Phillips

Head Screw

Tilt Positioning

TO ADJUST THE TILT TENSION OF THE AM250, LOOSEN THE TENSION BOLTS LOCATED ON THE BOTTOM

RIGHT AND LEFT SIDE OF THE MAIN ARM ASSEMBLY. RE-TIGHTEN THESE BOLTS TO ACHIEVE YOUR

DESIRED TENSION.

To adjust the tilt of the display, place a hand in the top middle of the display and the other hand at the bottom middle of the display.

To Tilt the Display Forward

Gently pull on the upper portion of the display while pushing the lower end of the display away from you. This motion will cause the

display to tilt forward.

To Tilt the Display Back

Gently push on the upper portion of the display and pull the lower end of the display towards you. This motion will cause the display

to tilt back.

Tilt Tension Adjustment

Display

Lower Locking Point

Upper Bracket Leveling

Adjustment Screw

M6 x 30mm Phillips

Head Screw

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Premier Mounts TV-Halterung Handbücher

Premier Mounts

Premier Mounts AM95 Bedienungsanleitung

Premier Mounts

Premier Mounts PMC-MM-501 Bedienungsanleitung

Premier Mounts

Premier Mounts CMF Bedienungsanleitung

Premier Mounts

Premier Mounts CTM-200 Bedienungsanleitung

Premier Mounts

Premier Mounts WMK-027 Bedienungsanleitung

Premier Mounts

Premier Mounts ECM-3763Q Bedienungsanleitung

Premier Mounts

Premier Mounts MM-EP15 Bedienungsanleitung

Premier Mounts

Premier Mounts 7170-0978 Series Bedienungsanleitung

Premier Mounts

Premier Mounts CTM-MS1 Bedienungsanleitung

Premier Mounts

Premier Mounts PTDM1 Bedienungsanleitung

Premier Mounts

Premier Mounts ECM-3763D Bedienungsanleitung

Premier Mounts

Premier Mounts PWM-503 Bedienungsanleitung

Premier Mounts

Premier Mounts PWM-F110 Bedienungsanleitung

Premier Mounts

Premier Mounts CTM-MS1 Bedienungsanleitung

Premier Mounts

Premier Mounts AM100 Bedienungsanleitung

Premier Mounts

Premier Mounts POH46-EX Bedienungsanleitung

Premier Mounts

Premier Mounts RFM Bedienungsanleitung

Premier Mounts

Premier Mounts ECM-MAC2 Bedienungsanleitung

Premier Mounts

Premier Mounts LMVP Bedienungsanleitung

Premier Mounts

Premier Mounts PMC-MM-500 Bedienungsanleitung

Premier Mounts

Premier Mounts LIFT1 Bedienungsanleitung

Premier Mounts

Premier Mounts AM175 Bedienungsanleitung

Premier Mounts

Premier Mounts PSM-402T Bedienungsanleitung

Premier Mounts

Premier Mounts PaneLock Bedienungsanleitung

Beliebte TV-Halterung Handbücher anderer Marken

Ergotron

Ergotron Neo Flex Cantilever UHD Bedienungsanleitung

StarTech.com

StarTech.com FPCEILBTB Bedienungsanleitung

VonHaus

VonHaus 05/038 Bedienungsanleitung

Techlink

Techlink ECHO TV Bedienungsanleitung

Sandstrom

Sandstrom SSTVMC12X Bedienungsanleitung

Sony

Sony SU-WL700 Leitfaden

ICW

ICW SCACC18 Bedienungsanleitung

LG WM-L640V Bedienungsanleitung

Gembird

Gembird WM-65ST-01 Bedienungsanleitung

ERARD

ERARD FiTUP XXL 035320 Bedienungsanleitung

PEERLESS

PEERLESS PLCK-1 Leitfaden

Kanto

Kanto RCF180 Bedienungsanleitung

GEM

GEM GEM GP001 Bedienungsanleitung

Gladiator Joe

Gladiator Joe GJ0A0053 Bedienungsanleitung

Vivotek

Vivotek AM-105 Bedienungsanleitung

Vivo

Vivo VESA STAND-VAD1B Bedienungsanleitung

AmazonBasics

AmazonBasics B07QG3LMG4 Bedienungsanleitung

Secura

Secura QLF210 Bedienungsanleitung
