INSTALLATION INSTRUCTIONS

Mac mini™ Mounting Bracket

Model: ECM-MAC2

9533-007-084-00

ECM-MAC2 (Qty 1)

M6 x 12 Phillips

Head Screw (Qty 4)

ECM-3763S Installation

1) Remove the mounting bracket from the packaging.

2) Align the adjustable mounting slots of the ECM-

MAC2 with the xed mounting holes on the ECM-

3763S.

3) Insert four (4) M6 x 12mm Phillips screws and tighten

using a screwdriver.

The ECM-3763S has six (6) mounting points. Either

the upper two or the bottom two rows must be

used depending on where the ECM-MAC2 is to be

mounted.

Go to Placing the Mac mini™ on page 2.

ECM-3763S

Center

Mounting Point

ECM-MAC2

M6 x 12mm

Phillips Screw

Adjustable

Mounting Slot

Screwdriver

ECM-MAC2

Center

Mounting Points

Upper Mounting

Points

Lower Mounting

Points

ECM-MAC2

ECM-3763S

Parts List

CREATING POSITIVE CUSTOMER EXPERIENCES

Page 1 Visit the Premier Mounts website at http://www.mounts.com Installation Instructions

• If you are using an ECM-3763S mount, continue below.

• If you are using an ECM-3763D, ECM-3763T or ECM-3763Q mount, go to page 2.

EUROPE

Swallow House,

Shilton Industrial Estate,

Shilton, Coventry, England CV79JY

Phone: +44 (0) 2476 614700

Fax: +44 (0) 2476 614710

ECM-MAC2

Page 2 Visit the Premier Mounts website at http://www.mounts.com Installation Instructions

NORTH AMERICA

3130 East Miraloma Avenue

Anaheim, CA 92806 USA

USA and Canada

Phone: 1.800.368.9700

Fax: 1.800.832.4888

Other Locations

Phone: (001).714.632.7100

Fax: (001).714.632.1044

Mac mini™

ECM-MAC2

ECM-3763S

(Shown for illustration

purposes only.)

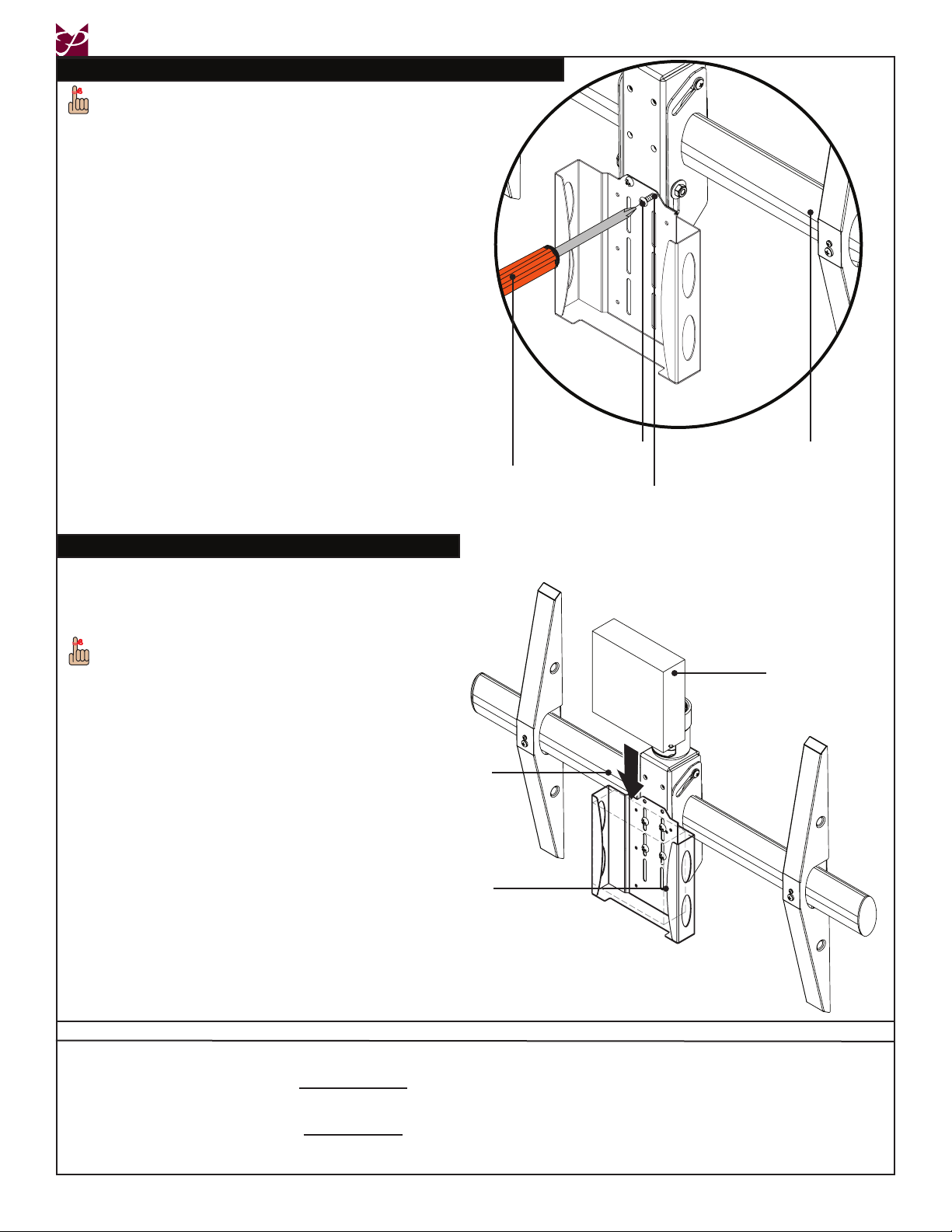

1) Place the Mac mini™ in the ECM-MAC2.

2) Route all cables at this time.

Please refer to the instructions that came packaged

with the Mac mini™ for further assistance.

ECM-3763D, ECM-3763T and ECM-3763Q Installation

1) Locate the two (2) bottom mounting points on the

back of the ECM Series mount.

2) Align the two xed mounting holes on the ECM-

MAC2 with the mounting points on the back of the

ECM Series mount.

3) Insert and tighten two (2) M6 x 12mm screws.

Go to Placing the Mac mini™ below.

Two (2) xed mounting holes will be used on the

ECM-MAC2 mounting bracket.

The ECM-3763D, ECM-3763T and ECM-3763Q will

use the two (2) lowest mounting points on the ECM.

Screwdriver

Fixed Mounting Hole

M6 x 12mm

Screw

ECM Series

Mount

• All trademarks are the property of the respective trademark owners.

Placing the Mac mini™
