Installation Guide
PTDM2
PTDM2
Installation Guide
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
Included components
Required for installation
Maximum Flat Panel Weight:
100 lb. / 45.35 kg.
Page 2
Wall Plate
(Qty 1)
Mounting Bracket
(Qty 2)
5/16” x 3” Lag Bolts
(Qty 4)
Thread Depth Indicator
(Qty 1)
Universal Spacers
(Qty 8)
Lock-it Barrel
(Qty 1)
Finned Anchor
(Qty 4)
5/16” Flat Washers
(Qty 4)
Universal Washers
(Qty 4)
M4 x 12mm (Qty 4)
M4 x 16mm (Qty 4)
M4 x 25mm (Qty 4)
M6 x 12mm (Qty 4)
M6 x 16mm (Qty 4)
M6 x 25mm (Qty 4)
M8 x 12mm (Qty 4)
M8 x 16mm (Qty 4)
M8 x 25mm (Qty 4)
Pencil Level
1/4” Drill Bit
Electronic Stud Finder
Socket Wrench Phillips Tip Screwdriver Tape Measure
Hand Held Drill
Protective Eyewear
1/2” Socket
Q
P
3/8” Masonry
Drill Bit
PTDM2
Installation Guide
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
1
PTDM2
Installation Guide
Page 3

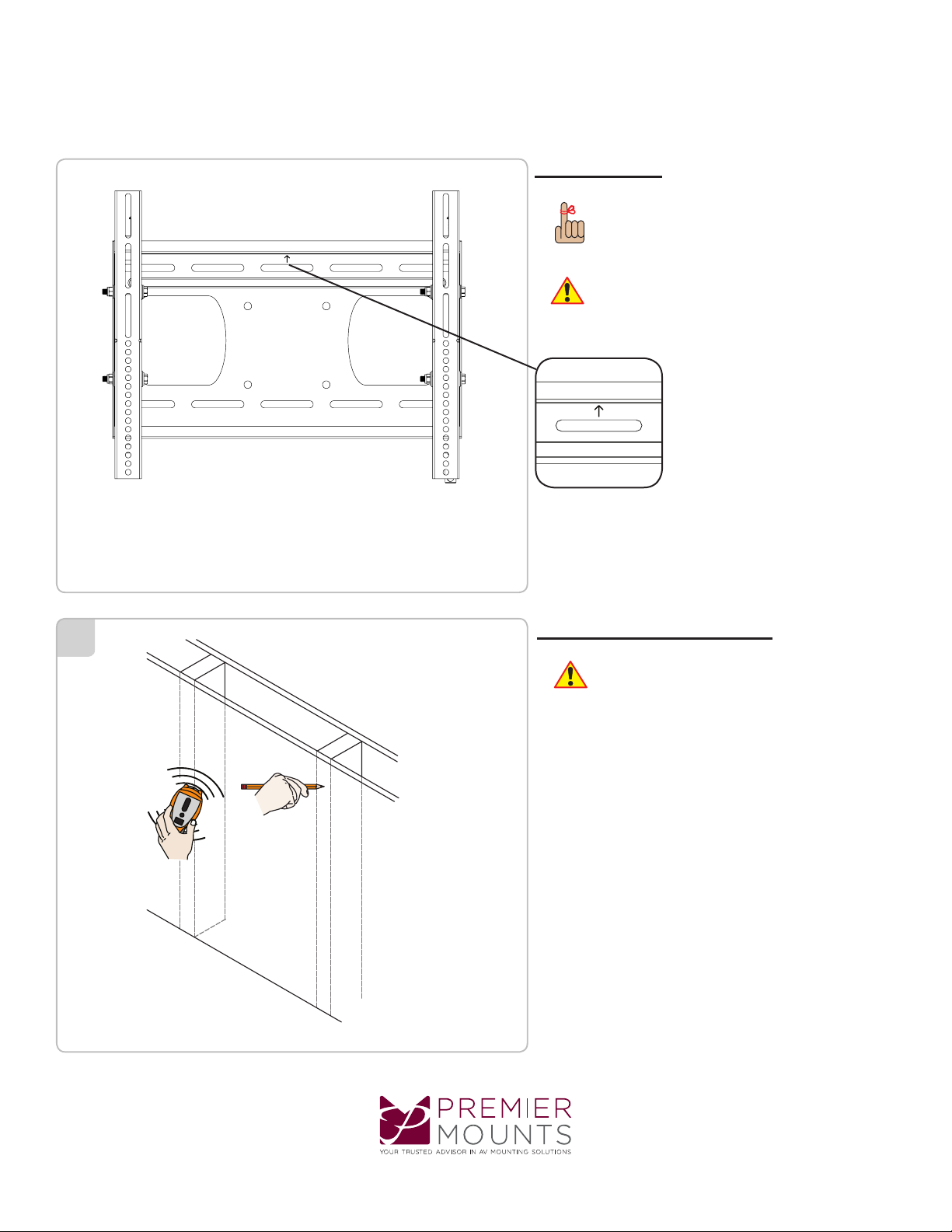

Introduction
Directional Mounting Arrow
The Directional Mounting Arrow stamped
into the top of the PTDM2 wall mount
indicates which edge is the top.
Mounting Safety
Two people are recommended for the
installation of this mount.
XX
Wood Stud Installation
You must secure the wall plate to two (2)
wall studs with a minimum of four (4) lag
bolts (2 lag bolts for each stud found).
1) Use a stud nder to determine the center of
wall studs in the vicinity of the wall plate.
2) Use a pencil to mark the center of each of the
wall studs.
PTDM2
Installation Guide
Page 4
3
2
Drill a “pilot hole” in the center of the upper right mark
using a 1/4” drill bit and power drill.
Only use a 1/4” drill bit when drilling the pilot
holes.
1) Place the wall plate against the wall in the desired
viewing location.
2) Adjust the wall plate to align the mount slots in the wall
plate with the center of the wall studs.
3) Level the wall plate.
4) Use a pencil to mark the upper right mounting location
along the center of the wall stud.
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
4
5
Page 5
PTDM2
Installation Guide
1) Place the wall plate against the wall and align it with
the pilot hole.
2) Insert one (1) 5/16” x 3” lag bolt and one (1) 5/16”
washer into the upper right mounting hole and tighten
using a socket wrench and 1/2” socket.
1) Level the wall plate.
2) Use a pencil to mark the remaining three (3) mounting
locations along the center of each wall stud.
Do not over tighten the lag bolt.
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
PTDM2
Installation Guide
Page 6
7
6Drill a “pilot hole” in the center of each of the marks with
a power drill and a 1/4” drill bit.
Only use 1/4” drill bit when drilling the pilot holes.
1) Insert one (1) 5/16” x 3” lag bolt and one (1) 5/16”
washer into each pilot holes.
2) Tighten all lag bolts using a socket wrench and 1/2”
socket.
Do not over tighten the lag bolts.
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
Page 7
PTDM2
Installation Guide
8Concrete Wall Installation
Two people are recommended for this step; one
person to level the wall plate and another person
mark the mounting locations.
9Drill 4 pilot holes of each mark using a drill and 3/8”
masonry drill bit. Drill 3 inches deep.
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
Installation Guide
PTDM2
Page 8
10
11
Finned Anchor
X 4
1) Insert the Finned anchors into each hole.
2) Lightly tap each Finned anchors into place with a
hammer.
1) Insert one (1) 5/16” x 3” lag bolt and one (1) 5/16”
washer into each pilot holes.
2) Tighten all lag bolts using a socket wrench and 1/2”
socket.
5/16” Washer
5/16” X 3” LAG BOLT
x 4
x 4
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
Installation Guide
PTDM2
Page 9
Small Straw or Toothpick
Marking the 1/8”
Allowance
Small Straw
or Toothpick
Small Straw
or Toothpick Depth Plus 1/8” Allowance
Mark
Depth Plus 1/8” Allowance
Mark
Selecting the Mounting Hardware
1) Insert a small straw or toothpick into the threaded
inserts found on the back of the at-panel.
2) Use a pencil to mark the depth of the threaded
insert on the small straw or toothpick.
3) Mark the straw or toothpick 1/8” above the depth
of the threaded insert, as shown in Figure 1.
4) Insert the small straw or toothpick into the
remaining threaded inserts to compare and verify
their depth using the straw or toothpick’s 1/8”
allowance mark.
5) Locate the correct diameter screw for the threaded
insert.
If the screw you selected is longer than the 1/8”
allowance mark on the small straw or toothpick,
as shown in Figure 2 and Figure 3, do not use
this screw. The screw length must not bypass
the mark.
6) Test each size of the screws provided. The
correct screws should thread easily into the
mounting point and not pull out when tension is
applied.
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
PTDM2
Installation Guide
Page 10

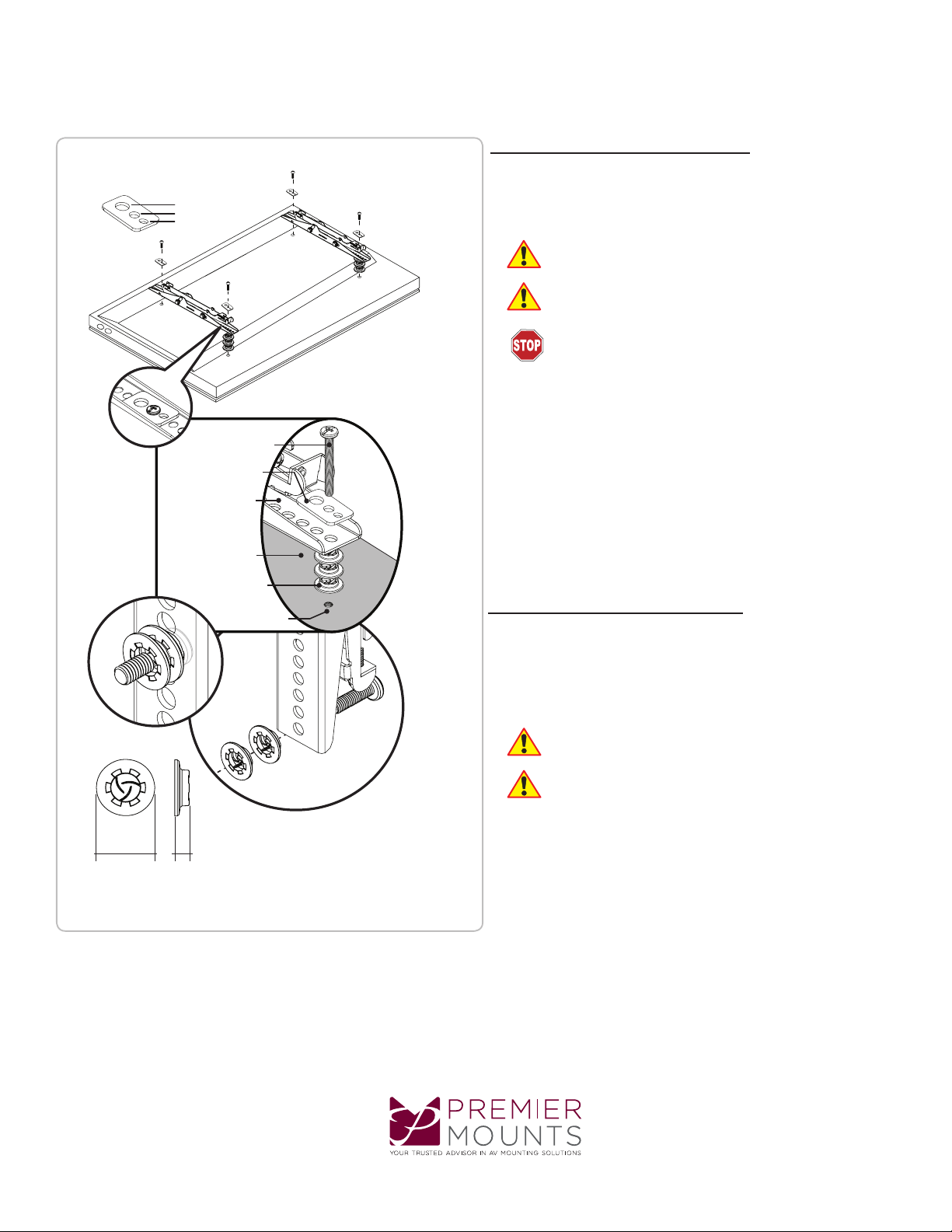

Premier Mounts’ Universal Washers are designed to
accommodate the various M4, M5, M6 and M8 hole
sizes required by at panels.
Do not place excessive pressure on the back of
the at panel, as this may damage your at panel.
The Universal Washer must be installed between
the head of the mounting screw and the mounting
bracket as shown.
Does your at panel have:
●Recessed mount points?
●Uneven mount points?
●A curved back?
●Any obstruction near the mount point?
If Yes, you must install Universal Spacers. Remove the
mounting brackets, Universal Washers, and mounting
screws from the back of the at panel. Proceed to the
“Universal Spacer Installation” section.
If No, skip to the “Attaching the Mounting Bracket
to the Flat Panel” section.
Premier Mounts’ Universal Spacers allow you to
attach the mounting bracket to at panels which have
recessed or uneven mount points. Each Universal
Spacer adds ¼˝ to the distance between the mounting
bracket and your at panel.
The Universal Spacers must be stacked and
oriented as shown.
The Universal Spacers must only be installed
between the mounting bracket and your at panel.
The Universal Spacers will t M4, M5, M6 and M8
screw sizes.
Proceed to the “Attaching the Mounting Bracket to
the Flat Panel” section.
Flat Panel
Universal Washer
Universal Spacer
Mounting Bracket
Mount Point
Mounting Screw
M8
M5, M6
M4
1˝ ¼˝
Universal Washer Installation
Universal Spacer Installation
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
