3.0 Operating Instructions
CGZL series are running 2 models, CGZL-1 and CGZL-2. CGZL-1 is equipped with draw bar
and wheels for easy transportation and an hour meter for calculating operating time. CGZL-2
is not equipped with the draw bar, wheels and hour meter. In transportation for CGZL-2
please use the handle on top of the blow-dryer.
Place the machine on the ground. Before use, please check whether the power cord and
plug are broken. If no breakage is found, connect the plug to the standard earthing socket.
The voltage and current of the socket is greater than the rated voltage and current of the
machine. Then, check the earth leakage protector on the safety plug socket to ensure it is
not tripped. Turn on the power switch and choose the drying mode through the Three-way
Switch on the operating panel (Fig. 3, 1.3).The operator must make sure the blow-dryer is
operating normally after starting up before leaving.

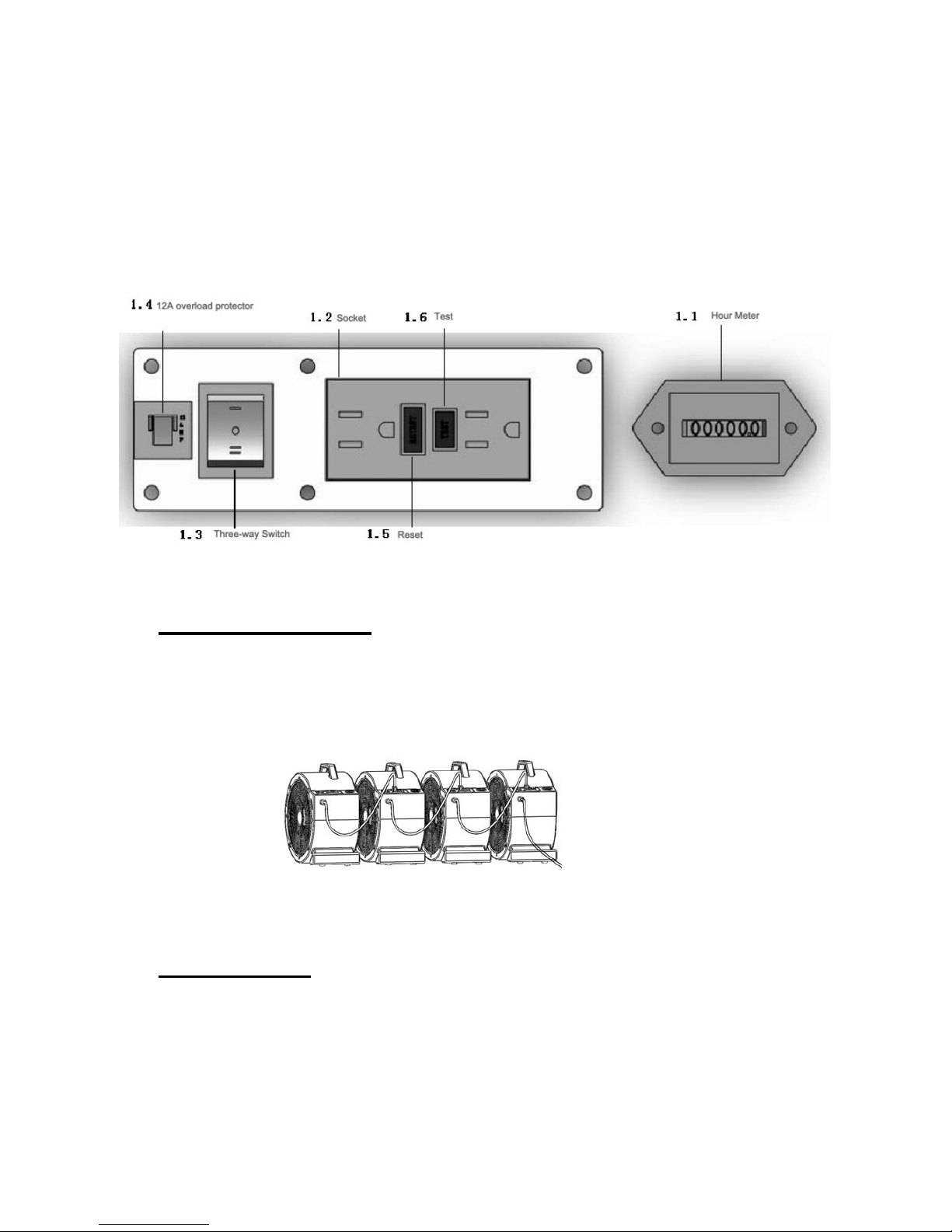

4.0 Functions of Operating Panel
4.1 Hour Meter（Fig. 3，1.1）
The function of the hour meter is to record operating time of the blow-dryer. It offers
convenience to evaluate the time and the charges of different new areas by calculating the
time to dry a similar area. Moreover it offers time record of all historical operating of the
blow-dryer.
4.2 Socket and Earth leakage protector（Fig. 3,1.2）
CGZL series blow-dryers are equipped with sockets, through which the blow-dryers can be
connected one to another. The socket is equipped with an earth leakage protector which
improves the security of the operator operating the blow-dryer under a damp environment.
The protector will break the power automatically in case of the electric leakage in the
machine is detected. It is strongly recommended to check the protector working normally
before operating the blow-dryer. To check the protector please follow the steps, First to press
the “Reset” button after the blow-dryer plug in, A small LED on the protector flashes as an
indication. Second to press the “Test” button. It indicates the protector works normally if the
“Test” button pops out. If it is found the blow-dryer does not work please check whether
“ Reset” button can pop out or not. If yes, please press down the “ Reset” button. If the
“Reset” button pops out again please contact authorized service center or your local dealer.
4.3 Three-way Switch（Fig. 3 ,1.3）
A three-way switch is used for CGZL series blow-dryer. The switch is with 2 gears of speed
regulating and respond to different air output demands. Sign “一” indicates low speed. Sign
“二” indicates high speed. And”O” in middle indicates disconnect state.
