Premier SCR-5381USDR Bedienungsanleitung

MULTIMEDIA CAR AUDIO

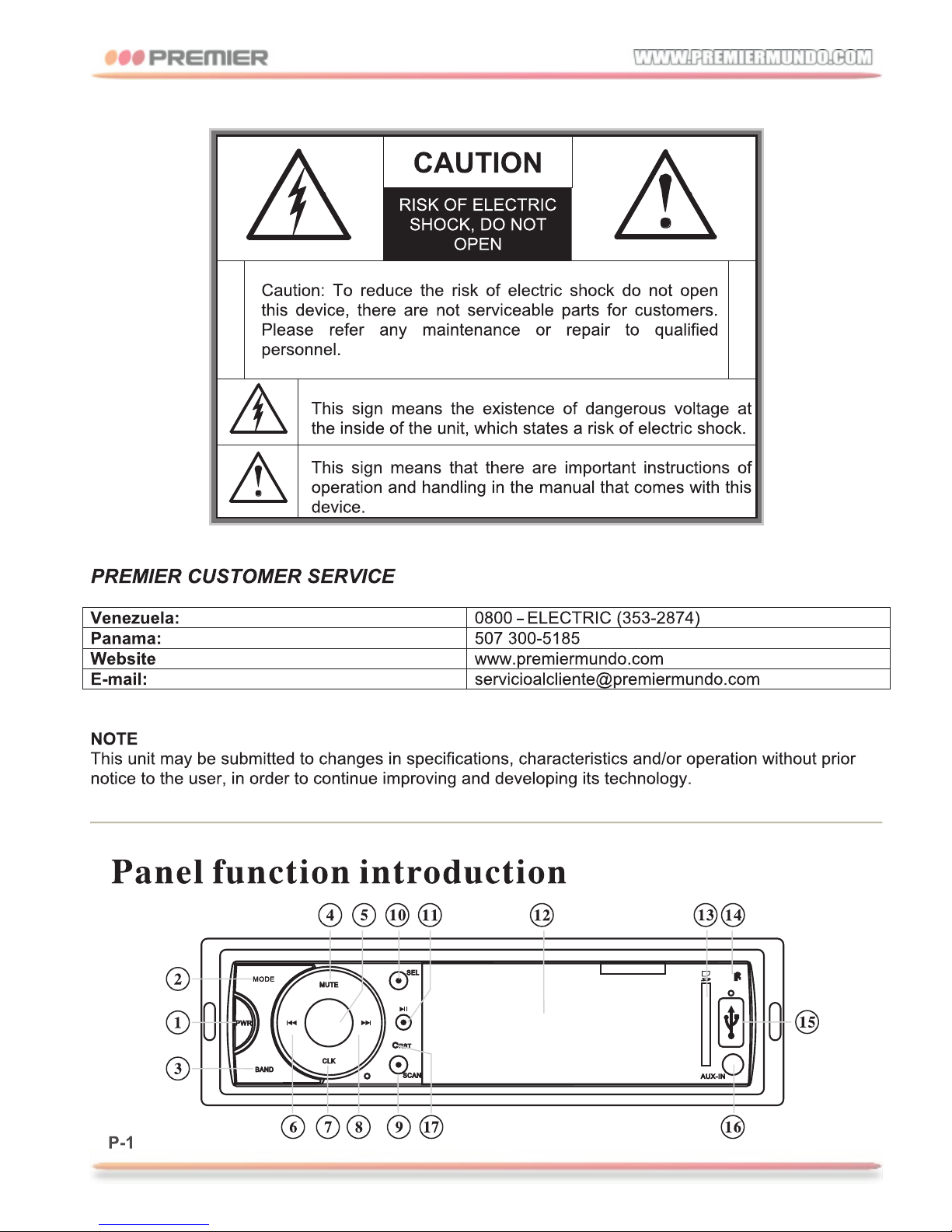

Turn the unit on by pressing any button on the unit. When the

system is on, press this button to turn the unit off.

1.POWER

Press the MODE button to switch between input modes: RADIO /

AUX IN and SD-Card and USB.

2.MODE

Turn to adjust the volume level.

5.VOL

Press to switch between radio bands that are available: FM1, FM2,

FM3 and AM.

3.BAND

Press this button to turn on / off the mute function.

4.MUTE

In radio mode, press to automatically seek a station. A long

press activates the tuning function manual. In SD/USB mode,

press these buttons to select the track you want to play. A long

press activates the return or fast forward.

6.6 and 8. SEEK or

Press this button to display the current time.

button to set Clock. Rotate volume button set hours, pressing

CLK button then rotate volume button to set minute. Press CLK

button to set clock OK

Long press the

7.CLK

Repeatedly SEL button to select your desired mode in

the sequence below:

→FM Bass Treble Balance Fader Loud EQ

Turn the volume control to change the configuration of

these functions.

→ → → → →

10.SEL

Press to pause the USB or SD-Card mode. In radio mode,

press to select a pre-stored station.

11.

USB slot.

SD/MMC CARD SLOT.

Press to return to factory settings.

External audio input socket.

12.DISPLAY

15.USB

16.AUX-IN

13.SD

17.RESET

It can receive the infrared signal from the remote control.

14.IR

To find pre-stored stations.

9.SCAN

When the power is on, each time the button is pressed, the

mode switches between RADIO/USB/SD MMC/AUX.

Remote Controller

Press the button to turn power on/off.

2 3

1. (Power)button

2.MODE(mode switch)button

Press the button to turn off volume output, repress the

to resume previous volume level.

button

3. (Mute)button

During playback mode, press it to play any track at random.

Press the button to switch between play and pause.

10.RDM button

8. (play/pause) button

The function is the same as the function of number buttons on

panel. In USB or SD-Card mode, press to select the track you

want to play.

Press VOL+/- to increase/decrease volume.

The operation is the same as the operation off / button

on panel.

EQ function: POP→ROCK→JAZZ→CLASSIC→EQ OFF.

Long press it to start automatic scanning of radio stations .

the unit will automatically pick up the station and store in to area.

4.Number button

5.EQ(equalizer adjust)/AMS button

6.VOL+/-(volume) button

7. / (fast backward/forward&select station/track)

In USB or SD-Card press to repeat playback. mode,

9.RPT

1.There are 18FM stations pre-stored in the unit(6 stations

each on the FM1/FM2/FM3 band).

(Optional: and 12AM stations pre-stored in the unit(6 stations

each on the AM1/AM2 band).

2.Excellent anti-interference electronic tuning radio system.

3.In FM stereo status, the stereo indicators lights up.

Comprehensive Functions

Standard Connect

Receiving

Range:

Power Output:7WX4CH

FM 87.5-107.9MHZ

AM 530-1710MHZ

Specificaciones

General

Power Input...............12V

Speaker Impedance ....4-8Ω

Max Power Output...7W 4CH

FM RADIO

frequency.....87.5MHZ-107.9MHZ

sensitivity....<10dB

AM RADIO

frequency....530MHZ-1710MHZ

sensitivity....<38dB

MP3

frequency......20HZ-20KHZ

Distortion (1kHz) ....<1%

Channel Separation ....>55dB

Balancing Channels....<3dB

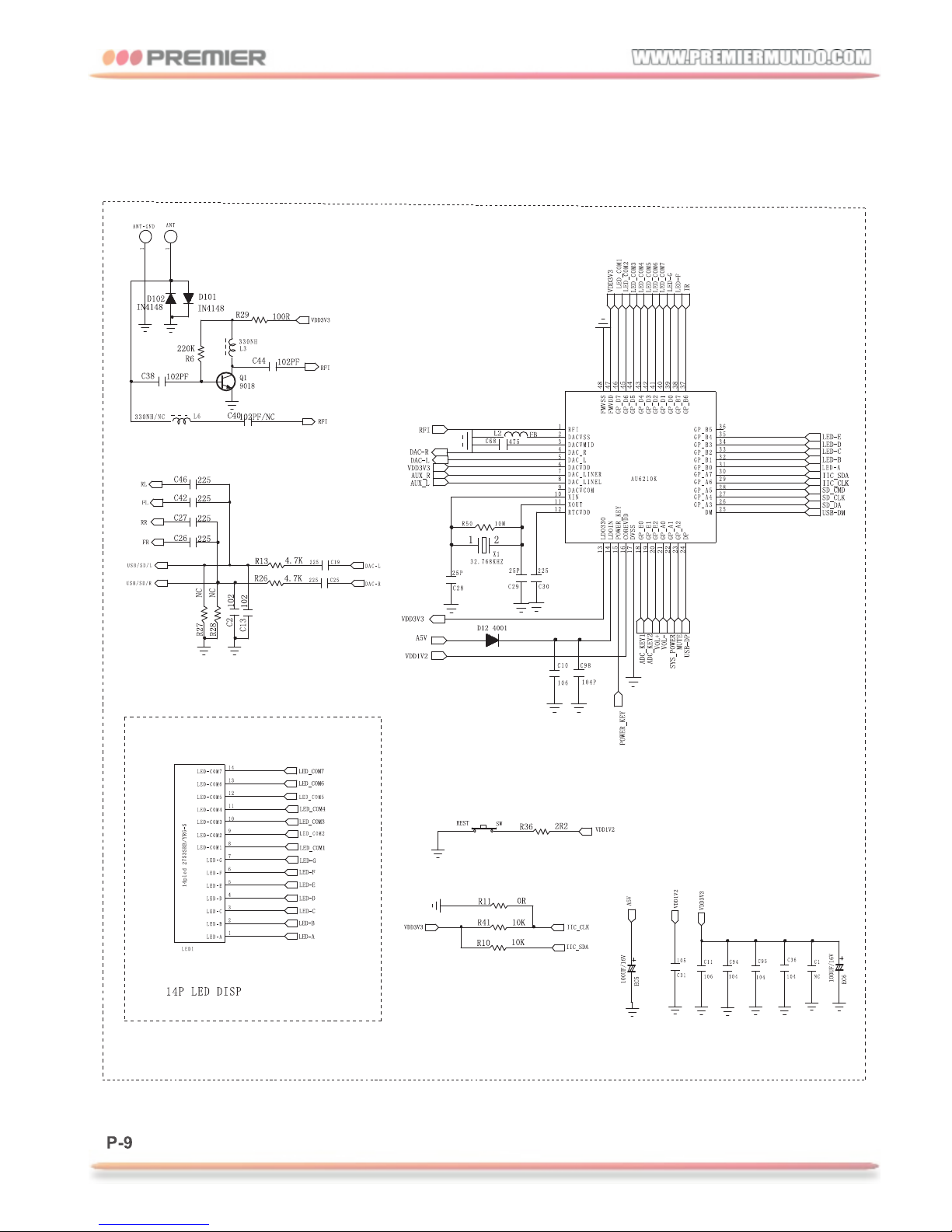

Schematic Diagram
