Premium PRN436MS Bedienungsanleitung

This product is for domestic use only

Use & care manual

Important safeguards

REFRIGERATOR

SUPER DESIGN

PRN435MW

PRN436MS

Service Mamual

CONTENT

1. Content……………………………………………………. 1

2. Product code illumination and Series Introduction…2

3. Specifications……………………….……..……………………. 3

4. Safety precautions……………………………………….……... 4

5. Function Schedule……………………………......…….………. 7

6. System Flow Chart……………..………………………...…… 8

7. Circuit Diagram………………………………..….….….…… 9

8. Maintenance Service and Trouble Shooting…….…... 10

Specifications

Models

capacity

(cu.ft)

PRN435MW&436MS

Color White

Power Supply

(V/Hz) 115V/60HZ

Rated Input Power

(W) 150

Power Consumption

(kW·h/Y) 327

Net Weight

(lbs) 94.7

Gross Weight

(lbs)

Unit Dimension

(D*W*H)

(mm)

Packing Dimension

(D*W*H)

(mm)

Container Quantity

40'HQ

(PCS)

105.7

491x568x1273

162

540x629x1345

4.3

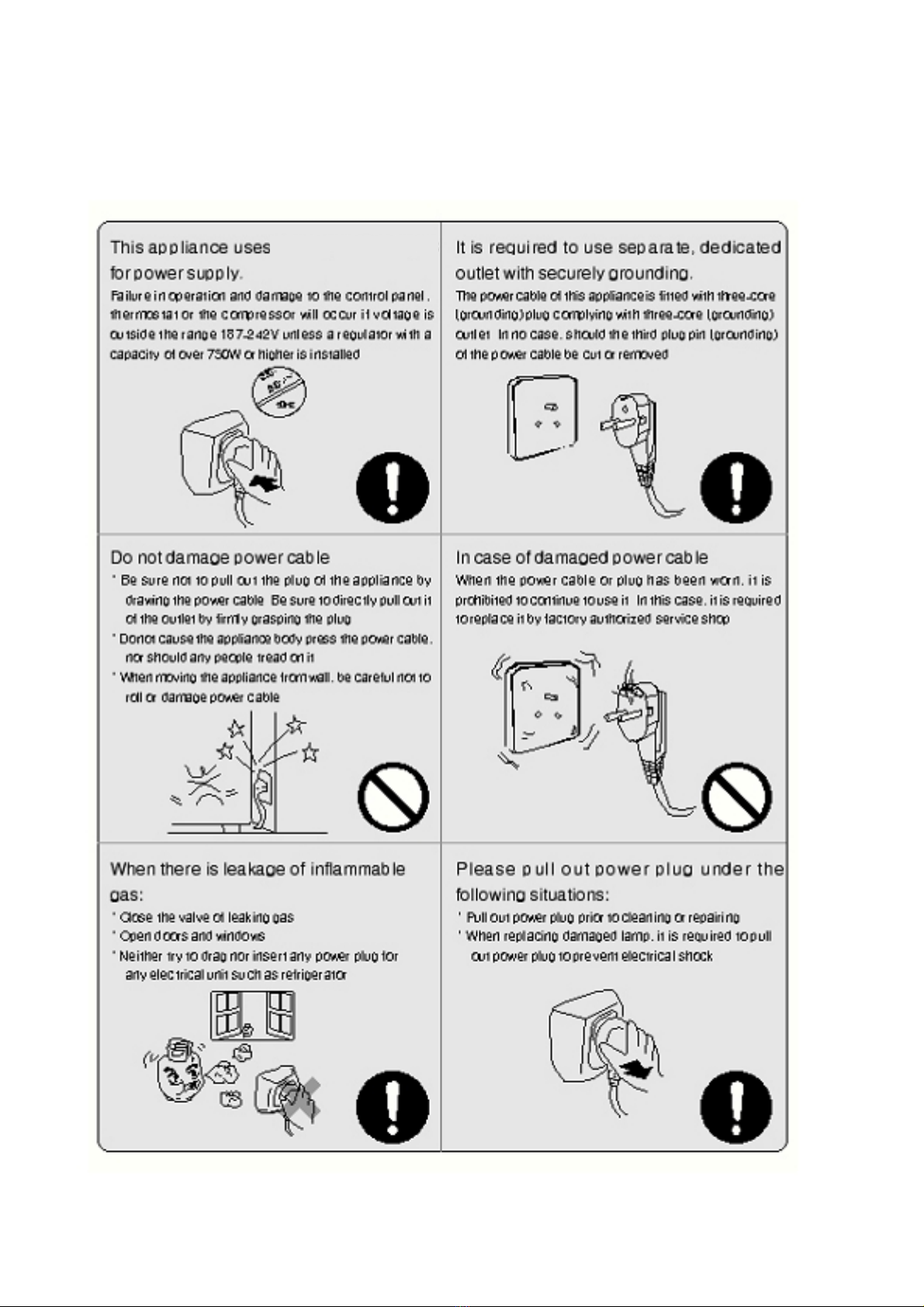

Safety precautions

115V-60 HZAC

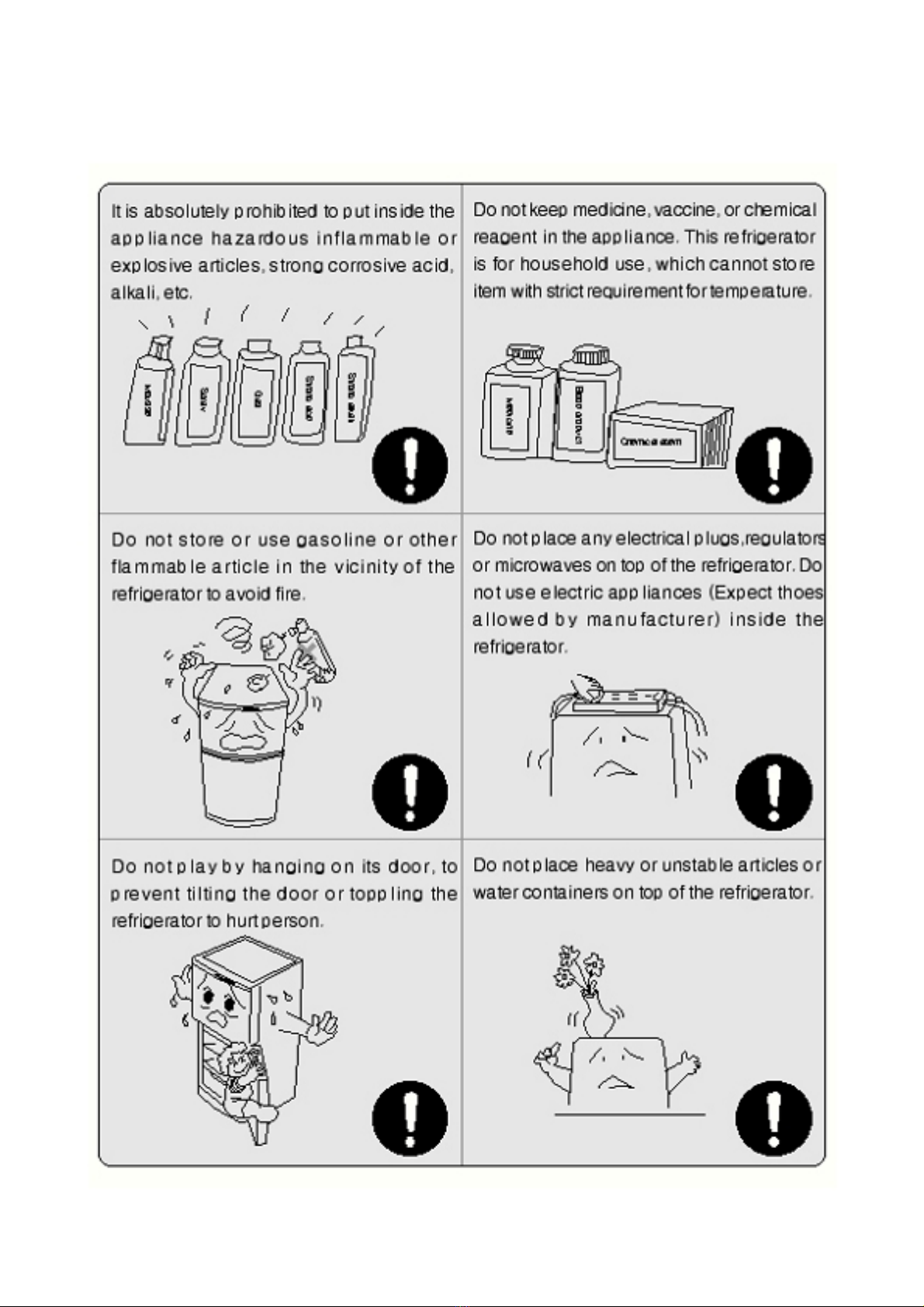

Safety precautions

Function Schedule

●Energy efficiency

●Micro foam technology

●Low noise operation

●Thick insulation for energy efficiency

System Flow Chart

1 Schematic diagram of System Flow Chart

Flows in the sequence: 1->2->3->4->5>1

Maintenance Service and Trouble Shooting

1. No cooling

No cooling

If compressor

can run after it stop to

run five minutes and

give power.

NO Check and repair according to

the section of "the compessor

doesn't work".

YES

If compressor

can run naturally and

temperature raising

of condenser is

very low

YES

NO Refrigerant

leak,check and

repair charge

refrigerant again.

Block by ice or dirty

things,change filter and change

refrigerant again.

! When charging refrigerant,we must

notice to make refrigerant true.

Maintenance Service and Trouble Shooting

2 The compressor doesn't stop

Compressor doesn't

stop

Does the refrigerator

refrgerate? NO Check and repair according to

the section of "No cooling".

YES

Is cooling capacity

insufficient. NO Check and repair according to

the section of "Cooling capacity

is insuffcient".

YES

1 The thermostat was

set at the coldest position.

2 The ambient temperature is very high or

the refrigerator is near by heat resource.

3 The door was opened too many

times or there are more

fresh food inside.

NO Adjust and instruct

consumer how to use.

Check and repair the main

control panel
