OWNER’S MANUAL

Fusion'E' ' -'1'-

WARNING! An authorized Pride Provider or a qualified technician must perform the

initial setup of this travel chair and must perform all of the procedures in this manual.

The symbols below are used throughout this owner’s manual and on the power chair to

identify warnings and important information. It is very important for you to read them and

understand them completely.

WARNING! Indicates a potentially hazardous condition/situation. Failure to follow

designated procedures can cause either personal injury, component damage, or

malfunction. On the product, this icon is represented as a black symbol on a yellow

triangle with a black border.

MANDATORY! These actions should be performed as specified. Failure to perform

mandatory actions can cause personal injury and/or equipment damage. On the

product, this icon is represented as a white symbol on a blue dot with a white border.

PROHIBITED! These actions are prohibited. These actions should not be performed at

any time or in any circumstances. Performing a prohibited action can cause personal

injury and/or equipment damage. On the product, this icon is represented as a black

symbol with a red circle and red slash.

INTENDED USE

The intended use of this Pride Mobility Products device is to provide mobility assistance

to persons with mobility impairment who have the capacity to operate a motorized mobility

power chair.

Regarding Devices for Prescription USE

CAUTION! Federal law restricts this device to sale by or on the order of a physician

or other certified personnel licensed by the law of the State (US only) or region in

which this personnel practices to use or order the use of the device.

Quick Reference Information

NOTE: This owner’s manual is compiled from the latest specifications and product

information available at the time of publication. We reserve the right to make changes as

they become necessary. Any changes to our products may cause slight variations between

the illustrations and explanations in this manual and the product you have purchased. The

latest/current version of this manual is available on our website.

NOTE: This product meets IPX4 classification (IEC 60529).

NOTE: This product and its components are not made with natural rubber latex. Consult

with the manufacturer regarding any after-market accessories.

Fusion E Manual

P4020141/Rev/April 2022

Authorized Pride Provider:

Address:

Telephone:

Purchase Date:

SAFETY GUIDELINES

Fusion'E' ' -'2'-

1. Introduction …………………………………… page 3

2. Safety …..……………………………………… page 5

3. Quick Start Guide …………………………… page 7

4. Features ……………………………………… page 9

5. Install and Adjustment ...…………………… page 11

6. Battery and Charging Information …………. page 19

7. General Warnings …………………………… page 22

8. Routine Maintenance ………………………. page 26

9. Trouble Shooting Guide ……….…………… page 28

10. Warranty ……………………………………… page 31

Pride Mobility Products UK.

INFMANU4005/Rev 0/August 2022

CONTENTS

Fusion'E' ' -'3'-

WELCOME to Pride Mobility Products (Pride). The Fusion E® power chair you have

purchased combines state-of-the-art components with safety, comfort, and styling in mind.

We are confident that these design features will provide you with the conveniences you

expect during your daily activities. Once you understand how to safelyoperate and care

for your power chair, it should give you years of trouble-free operation and service.

Read and follow all instructions, warnings, and notes in this manual before attempting to

operate your power chair for the first time. You must also read all instructions, warnings,

and notes contained in any supplemental instructional booklets for the controller, front

riggings, and/or seating system that accompanied your power chair before initial operation.

Your safety depends upon you, as well as your provider, caretaker, or healthcare

professional in using good judgement.

If there is any information in this manual which you do not understand, or if you require

additional assistance for setup or operation, please contact your authorized Pride Provider.

Failure to follow the instructions in this manual and those located on your power

chair can lead to personal injury and/or damage to the power chair and may void

the warranty.

The Fusion E® power chair is classified as a category B vehicle under the European power

chair standard EN 12184. It is intended for the use of people of all ages who may have

difficulty walking distances or for periods of time. It is ideal for outdoor use and suitable for

users up to 150kg (330 lbs.) in weight. Differing user weights can cause performance

variation. The power chair is designed to be driven on footpaths and to crossroads.

Fusion E® has been manufactured to comply with the requirements of the Medical Device

Directive 93/42/EEC, and the Medical Device Regulation EU MDR 2017/745, the radio

interference requirements of EEC Directive 89/336/EEC and the battery charger

requirements of EEC Directive 73/23/EEC and 89/336/EEC. Electro-Magnetic fields, such

as those emitted by shop alarms may be disturbed by use of the power chair. The function

of the power chair may also be disturbed by Electro-Magnetic fields emitted by shop

alarms.

We are dedicated to providing products of exacting quality that conform fully and reliably

to the requirements of their intended use. The manufacturer is BS/EN ISO 9001 accredited,

which is the internationally recognized standard for quality management systems. This

approval ensures we provide quality in all areas of our business from development through

to final delivery. Should you require any further assistance then please contact your local

Pride dealer.

1. INTRODUCTION

Fusion'E' ' -'4'-

PURCHASER’S AGREEMENT

By accepting delivery of this product, you promise that you will not change, alter, or modify

this product or remove or render inoperable or unsafe any guards, shields, or other safety

features of this product; fail, refuse, or neglect to install any retrofit kits as needed and as

provided by Pride to enhance or preserve the safe use of this product.

SHIPPING AND DELIVERY

Before using your Fusion E® power chair, make sure your delivery is complete as some

components may be individually packaged. If you do not receive a complete delivery,

please contact your authorized Pride Provider immediately. Where damage has occurred

during transport, either to the packaging or content, please contact the delivery company

responsible.

NOTE: If you ever lose or misplace your copy of this manual, contact us and we will

be glad to send you a new one immediately.

Fusion'E' ' -'5'-

DO NOT OPERATE THE POWER CHAIR BEFORE READING AND UNDERSTANDING

THIS INSTRUCTION MANUAL.

IF YOU ARE IN DOUBT ABOUT THE MEANING OF THESE INSTRUCTIONS, OR ANY

OF THE CAUTIONS AND WARNINGS, PLEASE CONSULT YOUR HEALTHCARE

PROFESSIONAL, DEALER OR RELEVANT TECHNICAL PERSONNEL.

FAILURE TO FULLY UNDERSTAND THE POWER CHAIR OPERATION MAY RESULT

IN AN UNEXPECTED RESPONSE FROM THE EQUIPMENT WHICH CAN IN TURN

LEAD TO POSSIBLE INJURY OR DAMAGE.

NOTES

Warning and Caution notices used in this manual, apply to hazards and unsafe practices

that could result in personal injury or damage to property.

WARNING

We supply an extensive range of power chairs to meet the varying needs of individual

users. It is the responsibility of the individual user and their healthcare advisor qualified in

making such choices, to decide which power chair is suitable for the user’s intended

purpose.

With regards to restraints, seat positioning straps, posture correction or other positional

aids and accessories, it is the obligation of the qualified healthcare professional in

conjunction with the dealer to ensure the suitability of such equipment for the safe

operation of the power chair.

Serious injury can occur in the event of a fall from a power chair.

For motor vehicle occupancy, the safest alternative is for an individual to be seated and

properly secured in a motor vehicle manufacturer designed and installed seating system

complying with international standards governing motor vehicle design and safety.

Recognizing, however, that many individuals suffering mobility impairment are practically

incapable of transferring to an automobile seat for automotive transport, international

legislation, enacted with the support of advocates for the disabled and industry

stakeholders, have adopted ISO 7176-19 as a crash worthiness testing standard for

occupied transfer of mobility devices. Fusion E® has been tested and successfully passed

the ISO 7176-19 for four-point tiedowns.

Read and follow the information in the owner’s manual.

Locked and in drive mode.

Place unit on level ground and stand to one side when changing from

drive mode to freewheel mode or freewheel mode to drive mode.

Unlocked and in freewheel mode.

2. SAFETY

Fusion'E' ' -'6'-

Class II equipment.

Power Chair information label

Manufactured in

Do not remove the anti-tip wheels.

Fusion'E' ' -'7'-

Assembly

When lifting always keep the back straight, bend the knees and use the lifting handles

provided.

Ensure your freewheel mechanism is fully engaged, so your power chair cannot move

while assembling.

Lift the seat onto the seat post and press down to ensure it is fully engaged.

Battery Charging

The battery MUST be charged for 12 hours before first use. Do not be tempted to use the

power chair unless the battery has been fully charged as failure to do this will result in

battery damage.

Connect the battery charger to the mains supply and the charging socket located on the

battery pack. Switch on the mains supply and then switch on the battery charger. RED

light = Power On, YELLOW Light = Charging and GREEN Light = Charge Complete.

Charge the power chair overnight after each use to maintain battery condition.

If you are in any doubt then please turn to pages 20 and 21 of this manual.

Typical Use

Designed for use on footpaths, for crossing roads and shopping. It should not be driven

through mud, water, snow, sand, loose gravel, long grass, or any other unsound surfaces.

Control Functions

Your power chair is equipped with the following features that can be found on the tiller

fascia panel:

On/ Off Switch, Alarm, Speed Control, head Light, Handle bar, Charging port, power and

Directional Control Levers.

If you have previously used or owned a power chair before you MUST still read the

Owner’s Manual carefully to fully understand the controls and safety warnings.

If you are in any doubt of their functions then please turn to pages 12 and 15 of this manual.

3. QUICK START GUIDE

Fusion'E' ' -'8'-

Transporting

Your power chair can be disassembled for transportation (no tools needed):

1. Power off

2. Pull the black strip on the back, so that the latch heads protruding from the fixed

plate on both sides exit the fixing plate. Fold the seat down.(8-2)

8-2 8-4

3. Legrest can be removed if there is little room to move. Hold the upper part of

legrest (like picture 8-4), make the pin out of hole and lift legrest up.

4. Place the power chair into the trunk

TIP

To reassemble the power chair, please reverse the sequence above.

Important

When reassembling the power chair, remember to re-install the battery locking bar;

failure to do so may result in the batteries disengaging during use.

Always secure your power chair parts before transportation. Remember to engage the

drive unit by pushing the freewheel lever forwards to stop the power chair from moving.

Fusion'E' ' -'9'-

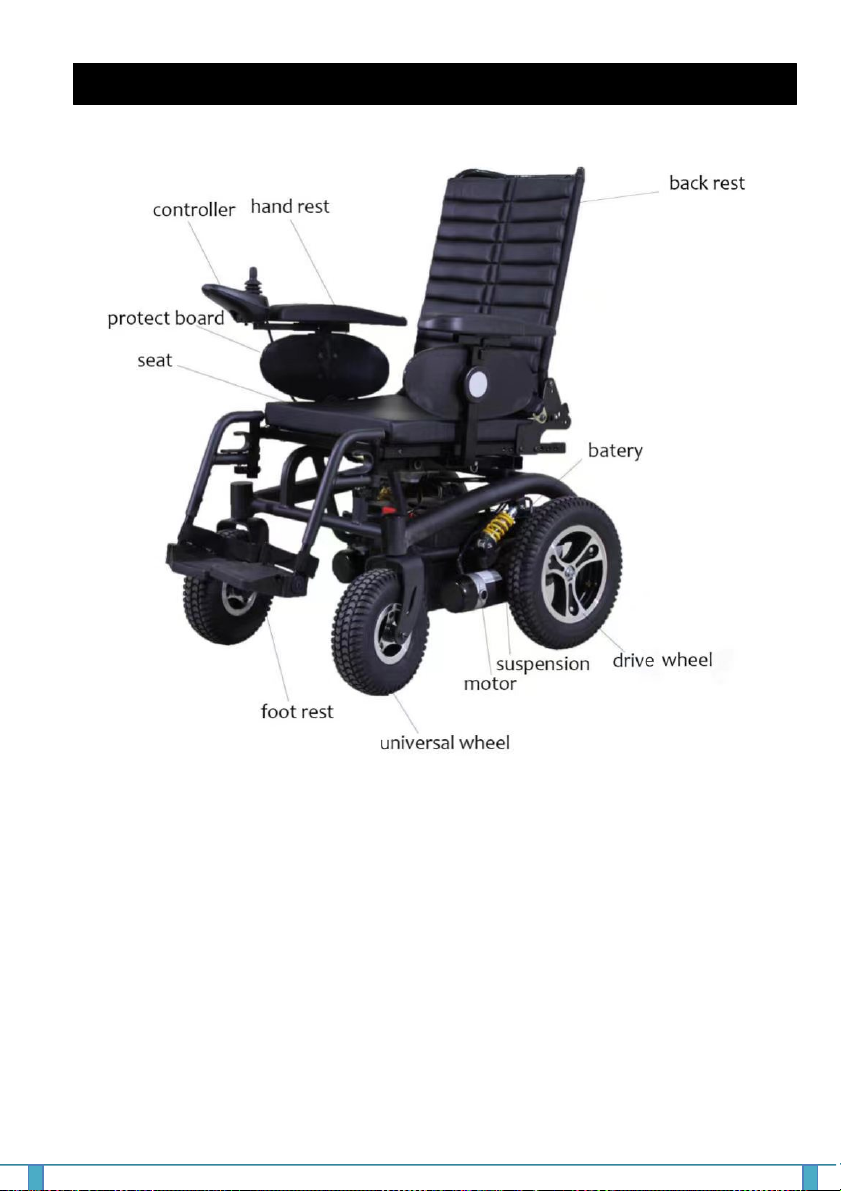

4. FEATURES

Inhaltsverzeichnis

Andere Pride Mobility Rollstuhl Handbücher

Pride Mobility

Pride Mobility 1170XL Plus 2VHD, 1170XL Plus Bedienungsanleitung

Pride Mobility

Pride Mobility Jet 3 Ultra Bedienungsanleitung

Pride Mobility

Pride Mobility Jazzy 1110 Bedienungsanleitung

Pride Mobility

Pride Mobility Jazzy Select 14, Jazzy Select 14XL Bedienungsanleitung

Pride Mobility

Pride Mobility JAZZY 1103 Bedienungsanleitung

Pride Mobility

Pride Mobility Quantum 6000 Bedienungsanleitung

Pride Mobility

Pride Mobility JET 2 Bedienungsanleitung

Pride Mobility

Pride Mobility Jazzy 1170 XL Bedienungsanleitung

Pride Mobility

Pride Mobility Quantum 1121 Series Bedienungsanleitung

Pride Mobility

Pride Mobility JAZZY Jazzy 1113 Bedienungsanleitung

Pride Mobility

Pride Mobility JAZZY Jazzy 1113 Bedienungsanleitung

Pride Mobility

Pride Mobility Front Riggings Quantum Montageanleitung

Pride Mobility

Pride Mobility QUANTUM SERIES Bedienungsanleitung

Pride Mobility

Pride Mobility Jazzy 1115 Bedienungsanleitung

Pride Mobility

Pride Mobility ELITE14 Bedienungsanleitung

Pride Mobility

Pride Mobility Quantum Blast HD Bedienungsanleitung

Pride Mobility

Pride Mobility VICTORY SERIES Bedienungsanleitung

Pride Mobility

Pride Mobility Quantum Jazzy 1420 Bedienungsanleitung

Pride Mobility

Pride Mobility Jet 3 Ultra Bedienungsanleitung

Pride Mobility

Pride Mobility jazzy 1120 Bedienungsanleitung

Pride Mobility

Pride Mobility Jazzy Passport Bedienungsanleitung

Pride Mobility

Pride Mobility Quantum Q6 Edge HD Bedienungsanleitung

Pride Mobility

Pride Mobility J6 J6 2S Bedienungsanleitung

Pride Mobility

Pride Mobility REAR-WHEEL DRIVE POWER CHAIRS Quantum R-4000 Bedienungsanleitung

Beliebte Rollstuhl Handbücher anderer Marken

Otto Bock

Otto Bock Skippi plus Bedienungsanleitung

Invacare

Invacare Action 4NG series Bedienungsanleitung

SORG

SORG LoopSORG 802 Bedienungsanleitung

Designability

Designability WizzyBug Montageanleitung

Vermeiren

Vermeiren RAPIDO Bedienungsanleitung

Excel

Excel G5 KIDS 0285 Bedienungsanleitung

M. Bartels

M. Bartels SA-3 Bedienungsanleitung

nino robotics

nino robotics NIno Bedienungsanleitung

Vermeiren

Vermeiren Turios Bedienungsanleitung

Invacare

Invacare MK5 EX Bedienungsanleitung

Invacare

Invacare Solara Spree GT Handbuch

Nova

Nova TKW-12 Bedienungsanleitung

BCW

BCW Advantage Bedienungsanleitung

You-Q

You-Q Luca Bedienungsanleitung

interco

interco Ortolight Standard Bedienungsanleitung

Nova

Nova 7190L Bedienungsanleitung

Vermeiren

Vermeiren EZ1 Bedienungsanleitung

PaceSaver

PaceSaver Scout M-300 Bedienungsanleitung
