JAZZY

How a Power Chair should FEEL!™

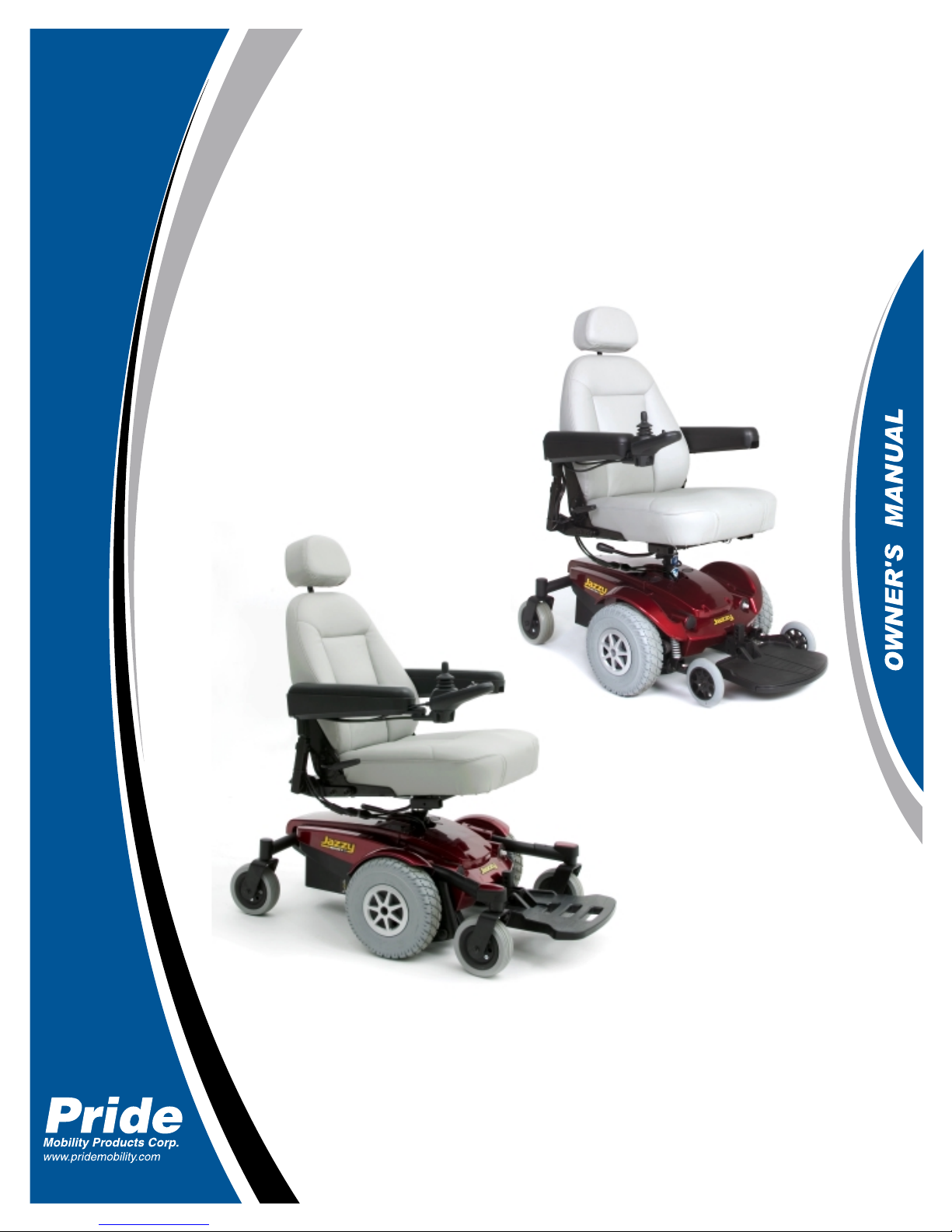

SELECT SERIES

Including Models: Jazzy Select and Jazzy Select 6

1-800-800-8586 (US) 1-888-570-1113 (Canada)

Jazzy Select

Jazzy Select 6

WARNING! An authorized Pride Provider or a qualified technician must perform the initial

setup of this power chair and must perform all of the procedures in this manual.

The symbols below are used throughout this owner's manual and on the power chair to identify warnings and

importantinformation.Itisveryimportantforyoutoreadthemandunderstandthemcompletely.

WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated

procedures can cause either personal injury, component damage, or malfunction. On the

product, this icon is represented as a black symbol on a yellow triangle with a black border.

MANDATORY! These actions should be performed as specified. Failure to perform mandatory

actions can cause personal injury and/or equipment damage. On the product, this icon is

represented as a white symbol on a blue dot with a white border.

PROHIBITED! These actions are prohibited. These actions should not be performed at any

time or in any circumstances. Performing a prohibited action can cause personal injury

and/or equipment damage. On the product, this icon is represented as a black symbol with

a red circle and red slash.

Quick Reference Information

SAFETY GUIDELINES

PrideMobility ProductsCorp.

INFMANU3351/RevB/April07

AuthorizedPrideProvider:_____________________________________________________________

Address:__________________________________________________________________________

PhoneNumber:_____________________________________________________________________

PurchaseDate:______________________________________________________________________

NOTE: This owner’s manual is compiled from the latest specifications and product information

available at the time of publication. We reserve the right to make changes as they become necessary.

Any changes to our products may cause slight variations between the illustrations and explanations

in this manual and the product you have purchased. The latest/current version of this manual is

available on our website.

088 609 661

Jazzy Select Series www.pridemobility.com 3

I. INTRODUCTION ...................................................................................................................................4

II. SAFETY....................................................................................................................................................6

III. YOUR POWER CHAIR ......................................................................................................... 18

IV. ASSEMBLY............................................................................................................................ 23

V. COMFORT ADJUSTMENTS .............................................................................................. 25

VI. BATTERIES AND CHARGING ........................................................................................... 31

VII. CARE AND MAINTENANCE............................................................................................... 35

VIII. WARRANTY........................................................................................................................... 42

CONTENTS

4 www.pridemobility.com Jazzy Select Series

I. INTRODUCTION

SAFETY

WELCOMEto PrideMobility ProductsCorporation (Pride). Thepowerchair youhavepurchased combines state-of-

the-artcomponentswith safety,comfort,andstylinginmind.Weareconfidentthatthesedesignfeatureswill provide you

withthe conveniences youexpectduring your dailyactivities.Once you understandhowto safelyoperateand care for

yourpowerchair,itshouldgiveyou years oftrouble freeoperation and service.

Readandfollowallinstructions,warnings,andnotesinthismanual before attempting tooperateyourpowerchairforthe

first time. Inaddition, your safetydependsuponyou, aswellas yourprovider,caretaker,orhealthcare professionalin

usinggoodjudgement.

Ifthere is anyinformationin thismanual whichyoudo notunderstand,or if yourequireadditional assistance forsetup

or operation, please contact your authorized Pride Provider. Failuretofollowtheinstructionsinthis manualand

thoselocated onyourpowerchaircanlead topersonalinjuryand/ordamageto thepowerchair, andmayvoid

thewarranty.

PURCHASER’S AGREEMENT

Byaccepting deliveryofthis product, youpromise that youwill not change,alter,ormodify thisproductor removeor

renderinoperableor unsafeanyguards,shields,orothersafetyfeatures ofthisproduct;fail,refuse,orneglectto installany

retrofitkitsfrom timeto timeprovidedbyPride to enhanceorpreservethe safe useofthisproduct.

SHIPPING AND DELIVERY

Beforeusingyourpowerchair,makesureyourdeliveryiscompleteas some components may beindividuallypackaged.

Ifyoudonotreceiveacompletedelivery,pleasecontactyourauthorizedPrideProviderimmediately.Wheredamagehas

occurredduringtransport,either to thepackaging or content,please contactthe delivery companyresponsible.

INFORMATION EXCHANGE

We wanttohearyourquestions,comments,andsuggestionsaboutthismanual.Wewould alsoliketohearaboutthesafety

andreliabilityofyournew power chair,andabout the service youreceived from yourauthorized Pride Provider.

Please notify us of any change of address, so we can keep you apprised of important information about safety, new

products,andnew options thatcanincreaseyour ability touse andenjoyyourpower chair.Pleasefeelfree to contactus

atthe address below:

USA: Canada:

PrideMobilityProductsCorporation PrideMobilityProductsCompany

Attn.:CustomerCareDepartment 380VansickleRoadUnit 350

182SusquehannaAvenue St. Catharines, OntarioL2R6P7

Exeter, PA18643-2694 1-888-570-1113

customercare@pridemobility.com

800-424-8205

NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact us and

we will be glad to send you a new one immediately.

Jazzy Select Series www.pridemobility.com 5

I. INTRODUCTION

PRIDE OWNERS CLUB

As an owner of a Pride product, you are encouraged to enroll in the Pride Owners Club. Complete and return your

enclosedproductregistrationcardorvisitPride’sweb siteat www.pridemobility.com.

Fromourhomepage,select “Owners Club” toenter a pagededicated to current andpotential Pride productowners.You

willgainaccesstointerviews,stories,recreationideas,dailylivingtips,productandfundinginformation,and interactive

messageboards.Thesemessageboardsinviteyou to communicate withother Pride customers aswellas Pride represen-

tativeswhoareavailable to assist youwith any questionsor concerns youmay have.

6 www.pridemobility.com Jazzy Select Series

II. SAFETY

Read and follow the information in the owner’s manual.

Do not allow unsupervised children to play near the power chair while the batteries are

charging.

Maximum seating weight.

Keep your hands away from the tires when driving. Be aware that loose fitting clothing

can become caught in drive tires.

Use correct tie-down points for controller harness to prevent the harness from getting

caught in the drive tires or pinched in the seat frame.

Avoid exposure to rain, snow, ice, salt, or standing water whenever possible. Maintain

and store in a clean and dry condition.

PRODUCT SAFETY SYMBOLS

Thesymbolsbelowareusedonthepowerchairtoidentifywarnings,mandatoryactions, and prohibited actions. It is very

importantforyoutoreadand understand them completely.

Jazzy Select Series www.pridemobility.com 7

II. SAFETY

Do not lift the mobility vehicle while seated in it.

Do not connect an extension cord to the AC/DC converter or the battery charger.

Removal of grounding prong can create electrical hazard. If necessary, properly

install an approved 3-pronged adapter to an electrical outlet having 2-pronged

plug access.

Wear safety goggles.

Corrosive chemicals contained in battery.

Do not remove the anti-tip wheels.

8 www.pridemobility.com Jazzy Select Series

II. SAFETY

EMI-RFI - This product has been tested and passed at an immunity level of 20 V/m.

Explosive conditions exist!

Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive

conditions.

Keep tools and other metal objects away from battery terminals.

Battery Set Configuration:

+ = Positive (Red) Terminal Post

- = Negative (Black) Terminal Post

Connect Red wire to Red Positive (+) Terminal Post

Connect Black wire to Black Negative (–) Terminal Post

Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and

new batteries. Always replace both batteries at the same time.

Jazzy Select Series www.pridemobility.com 9

Battery charger for indoor use only.

Disposal and recycling - Contact your authorized Pride Provider for information on proper

disposal and recycling of your Pride product and its packaging.

Disposal and recycling - Contact your authorized Pride Provider for information on proper

disposal and recycling of your Pride product and its packaging.

Locked and in drive mode.

Unlocked and in freewheel mode.

Do not place power chair in freewheel mode on a decline.

Do not place power chair in freewheel mode on an incline.

Contains lead.

II. SAFETY

10 www.pridemobility.com Jazzy Select Series

II. SAFETY

GENERAL GUIDELINES

MANDATORY! Do not operate your new power chair for the first time without completely reading

and understanding this owner’s manual.

Your powerchairisastate-of-the-artlife-enhancementdevicedesignedtoincreasemobility.Prideprovidesanextensive

varietyof productsto bestfit the individualneeds ofthe powerchair user.Pleasebe awarethat thefinal selection and

purchasing decision regarding the type of power chair to be used is the responsibility of the power chair user, who is

capableofmakingsuchadecision, and his/her healthcareprofessional (i.e., medical doctor, physical therapist, etc.).

Thecontentsofthismanualare based on theexpectationthat a mobilitydeviceexpert has properly fittedthe power chair

totheuserandhasassistedtheprescribing healthcare professional and/ortheauthorized Pride Provider in theinstruction

processfor theuse of theproduct.

Thereare certainsituations,includingsomemedicalconditions,wherethepowerchairuserwillneed topracticeoperating

the power chair in the presence of a trained attendant.Atrained attendant can be defined as a family member or care

professionalspeciallytrainedinassistingapowerchairuserinvariousdailylivingactivities.

Asyoubeginusingyourpowerchairduringdailyactivities,youwillprobablyencountersituationsinwhich youwillneed

somepractice.Simplytakeyourtimeandyouwillsoonbeinfullandconfidentcontrolasyoumaneuverthroughdoorways,

onand off ofelevators,up anddown ramps,andover moderateterrain.

Belowaresomeprecautions,tips,andothersafetyconsiderationsthat willhelpyoubecomeaccustomedtooperatingyour

powerchairsafely.

Modifications

Pridehas designedandengineeredyourpowerchair toprovidemaximummobilityandutility.Awiderangeof accessories

isavailable from yourauthorizedPride Providertofurther customize yourpowerchair tobettersuit your needsand/or

preferences.However,under nocircumstances should youmodify, add, remove, ordisable any feature,part, orfunction

ofyourpower chair.

WARNING! Do not modify your power chair in any way not authorized by Pride. Do not use

accessories if they have not been tested or approved for Pride products.

Pre-Ride Safety Check

Getto know thefeelofyour powerchair anditscapabilities. Pride recommendsthatyou perform asafetycheckbefore

eachuse to makesure yourpowerchair operates smoothlyand safely.

Performthefollowinginspectionsprior tousingyourpowerchair:

!Checkforpropertireinflation.Maintainbutdonotexceed35psi(2.4bar)ineachtireifequippedwithpneumatictires.

!Checkallelectrical connections. Makesuretheyare tight andnotcorroded.

!Checkall controller connectionstothe powerbase.Make sure theyaresecured properly.

!Checkthe brakes.SeeVII. “CareandMaintenance.”

!Checkbatterycharge. See VI.“Batteries andCharging.”

NOTE: If you discover a problem, contact your authorized Pride Provider for assistance.
