Owner’s Manual

Exeter, PA

St. Catharines, ON 1-800-800-8586

www.pridemobility.com

ATTENTION:

Please read the content

of your owners manual

before operating your

power chair.

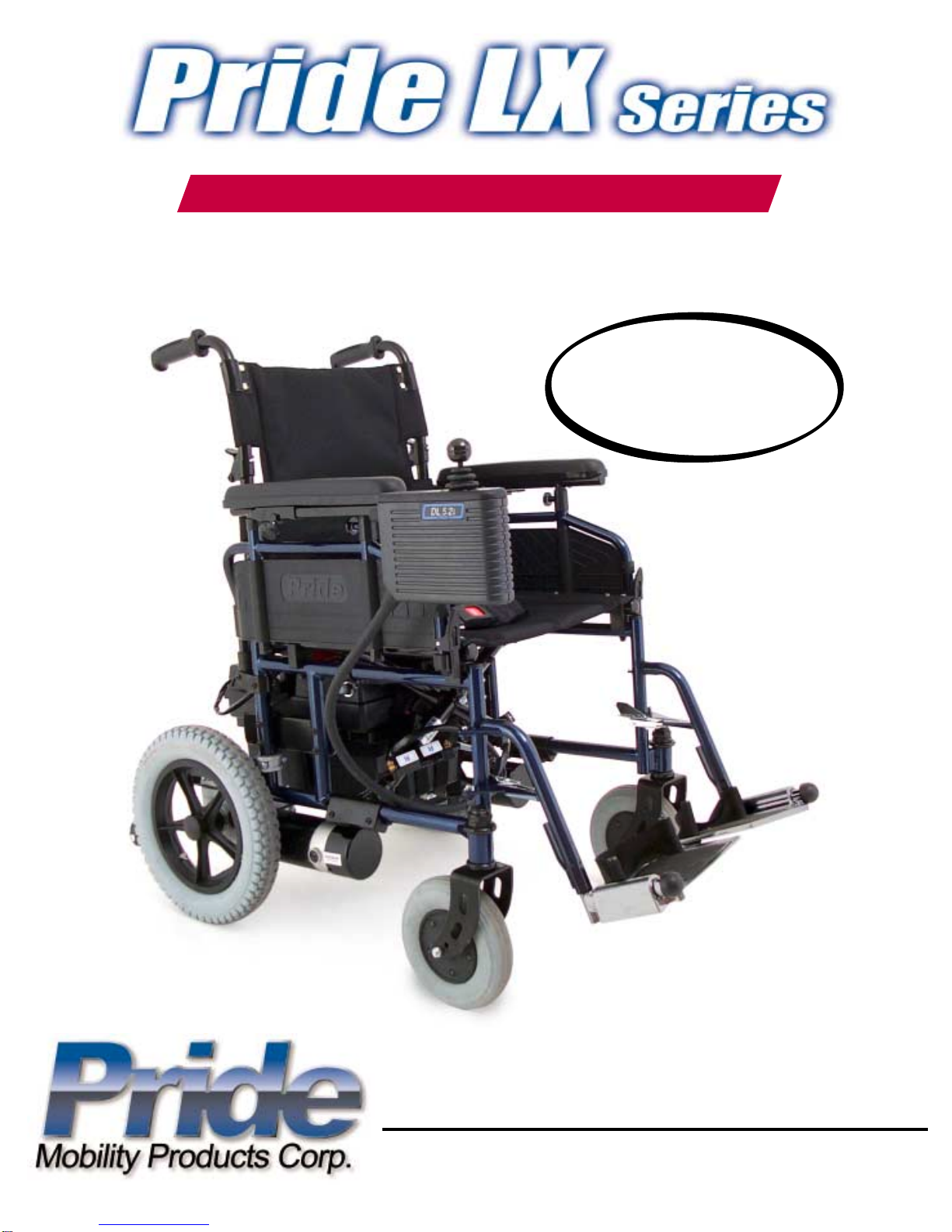

“Pride LX10”

Includes LX10, LX11, and LX12

Pride Mobility Products Corporation

Please read and follow all instructions in this owners manual before attempting to operate your power chair for

the first time. If there is anything in this manual you do not understand or if you require additional assistance for

set-up contact your authorized Pride provider.

Using your Pride product safely depends upon your diligence in following the warnings cautions and instructions

in this owners manual. Using your Pride product safely also depends upon your own good judgement and/or

common sense as well as that of your provider caregiver and/or healthcare professional. Pride is not responsible

for injuries and/or damage resulting from any persons failure to follow the warnings cautions and instructions

in this owners manual. Pride is not responsible for injuries and/or damage resulting from any persons failure to

exercise good judgement and/or common sense.

The symbols below are used throughout this owners manual to identify warnings and cautions. It is very important

for you to read and understand them completely.

WARNING! Failure to heed the warnings in this owners manual may result in personal injury.

CAU ION! Failure to heed the cautions in this owners manual may result in damage to your power chair.

SAFETY GUIDELINES

INFMANU2052

Pride LX Series/Rev B/Feb 03 www.pridemobility.com

CONTENTS

I. INT ODUCTION ........................................................................................................................ 4

II. SAFETY ......................................................................................................................................... 6

III. EMI/ FI ........................................................................................................................................ 13

IV. UNPACKING AND ASSEMBLY .......................................................................................... 15

V. YOU P IDE LX ...................................................................................................................... 18

VI. COMFO T ADJUSTMENTS................................................................................................ 22

VII. DISASSEMBLY ......................................................................................................................... 24

VIII.BATTE IES AND CHA GING ........................................................................................... 25

IX. OPE ATION ............................................................................................................................... 28

X. CA E AND MAINTENANCE ............................................................................................... 34

XI. WA ANTY ............................................................................................................................... 40

4www.pridemobility.com Pride LX Series/Rev B/Feb 03

I. INTRODUCTION

INT ODUCTION

Welcome to Pride Mobility Products Corporation (Pride). Congratulations on the purchase of your new Pride

Power Chair. The Pride Power Chair design combines the most advanced state-of-the-art components with modern

attractive styling. We are certain that the design features and trouble-free operation of your new power chair will

add convenience to your daily living.

At Pride your safety is important to us. Please read and follow all of the instructions in this manual before you

attempt to operate your power chair for the first time. These instructions were produced for your benefit. Your

understanding of these instructions is essential for the safe operation of your new power chair.

Pride is not liable for damage to property or personal injury arising out of unsafe use of a power chair. Pride is also

not liable for any property damage or personal injury arising out of the failure of any person and/or user to following

the instructions and recommendations set forth in this manual or any other instructions or recommendations contained

in other power chair related literature issued by Pride or contained on the power chair itself.

This owners manual is compiled from the latest specifications and product information available at the time of

publication. We reserve the right to make changes as they become necessary. Any changes to our products may

cause slight variations between the illustrations and explanations in this manual and the product you have purchased.

If you experience any problems with your power chair that you are unable to solve or if you do not feel capable of

safely following any of the instructions and/or recommendations as contained in this manual please contact your

authorized Pride provider for assistance.

Once you understand how to operate and take care of your power chair we are certain that it will give you years of

trouble-free service and enjoyment.

Information Exchange

We want to hear your questions comments and suggestions about this manual. We would also like to hear about

the safety and reliability of your new power chair and about the service you received from your authorized Pride

provider.

Please notify us of any change of address so we can keep you apprised of important information about safety new

products and new options that can increase your ability to use and enjoy your power chair. Please feel free to

Pride Mobility Products Corporation

Attn: Customer Care Department

182 Susquehanna Avenue

Exeter PA 18643-2694

customercare@pridemobility.com

800-424-8205

Pride LX Series/Rev B/Feb 03 www.pridemobility.com

I. INTRODUCTION

Pride Owners Club

As an owner of a Pride product you are invited to register your products warranty and enroll in the Pride Owners

Club. You may do so by filling out and returning your enclosed registration card or by visiting Prides web site at

www.pridemobility.com. As a registered member each time you visit our site you will have access to the most

interactive and honest educational venue available today for people with mobility needs their families and friends.

From our home page select Owners Club to enter a page dedicated to current and potential Pride product

owners. You will gain access to interviews stories recreation ideas daily living tips product and funding information

and interactive message boards. These message boards invited you to communicate with other Pride customers as

well as Pride representatives who are available to assist you with any questions or concerns you may have.

My Authorized Pride Provider Is:

Name:_______________________________________________________________________________

Address:_____________________________________________________________________________

Phone Number:________________________________________________________________________

Purchase Date:________________________________________________________________________

NOTE:If you ever lose or misplace your product registration card or your copy of this manual, contact us and we

will be glad to send you a new one immediately.

6www.pridemobility.com Pride LX Series/Rev B/Feb 03

II. SAFETY

SAFETY

WARNING! Do not operate your new power chair for the first time without completely reading and

understanding this owners manual.

Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an

extensive variety of products to best fit the individual needs of the power chair user. Please be aware that the final

selection and purchasing decision regarding the type of power chair to be used is the responsibility of the power

chair user who is capable of making such a decision and his/her healthcare professional (i.e. medical doctor

physical therapist etc.).

The contents of this manual are based on the expectation that a mobility device expert has properly fitted the power

chair to the user and has assisted the prescribing healthcare professional and/or the authorized Pride provider in the

instruction process for the use of the product.

There are certain situations including some medical conditions where the power chair user will need to practice

operating the power chair in the presence of a trained attendant. A trained attendant can be defined as a family

member or care professional specially trained in assisting a power chair user in various daily living activities.

As you begin using your power chair during daily activities you will probably encounter situations in which you

will need some practice. Simply take your time and you will soon be in full and confident control as you maneuver

through doorways on and off of elevators up and down ramps and over moderate terrain.

Below are some precautions tips and other safety considerations that will help the user become accustomed to

operating the power chair safely.

Modifications

Pride has designed and engineered your power chair to provide maximum mobility and utility. A wide range of

accessories is available from your authorized Pride provider to further customize your power chair to better suit

your needs and/or preferences. However under no circumstances should you modify add remove or disable any

feature part or function of your power chair.

WARNING! Do not modify your power chair in any way not authorized by Pride. Unauthorized

modifications may result in personal injury and/or damage to your power chair.

Pre-Ride Safety Check

Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check

before each use to make sure your power chair operates smoothly and safely. See X. Care and Maintenance.

Perform the following inspections prior to using your power chair:

nCheck for proper tire inflation. Maintain 30-35 psi in each tire (if equipped with pneumatic tires).

nCheck all electrical connections. Make sure they are tight and not corroded.

nCheck all controller connections to the electronics tray. Make sure they are secured properly.

nCheck the brakes. See X. Care and Maintenance.

nCheck battery charge. SeeVIII. Batteries and Charging.

Pride LX Series/Rev B/Feb 03 www.pridemobility.com

II. SAFETY

NOTE: If you discover a problem, contact your authorized ride provider for assistance.

eight Limitations

Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit.

WARNING! Exceeding the weight capacity voids your warranty and may result in personal injury

and/or damage to your power chair. Pride will not be held responsible for injuries and/or property

damage resulting from failure to observe weight limitations.

WARNING! Do not carry passengers on your power chair. Carrying passengers on your power

chair may result in personal injury and/or property damage.

Tire Inflation

If your power chair is equipped with pneumatic tires you should check or have the air pressure checked at least

once a week. Proper inflation pressures will prolong the life of your tires and help ensure the smooth operation of

your power chair.

WARNING! It is important that 30-35 psi tire pressure be maintained in pneumatic tires at all

times. Do not underinflate or overinflate your tires. Low pressure may result in loss of control,

and overinflated tires may burst. Failure to maintain 30-35 psi tire pressure in pneumatic tires at

all times may result in tire and/or wheel failure, causing serious personal injury and/or damage to

your power chair.

WARNING! Inflate your power chair drive tires from a regulated air source with an available

pressure gauge. Inflating your tires from an unregulated air source could overinflate them, resulting

in a burst tire and/or personal injury.

Incline Information

More and more buildings have ramps with specified degrees of inclination designed for easy and safe access.

Some ramps may have turning switchbacks (180-degree turns) that require you to have good cornering skills on

your power chair.

nProceed with extreme caution as you approach the downgrade of a ramp or other incline.

nTake wide swings with your power chairs front wheels around any tight corners. If you do that the power

chairs rear wheels will follow a wide arc not cut the corner short and not bump into or get hung up on any

railing corners.

nWhen driving down a ramp keep the power chairs speed adjustment set to the slowest speed setting to ensure

a safely controlled descent. See IX. Operation.

nAvoid sudden stops and starts.

When climbing an incline try to keep your power chair moving. If you must stop start up again slowly and then

accelerate cautiously. When driving down an incline set your power chair to the slowest setting and drive in the

forward direction only. If your power chair starts to move down the incline faster than you anticipated or desired

allow it to come to a complete stop by releasing the joystick then push the joystick forward slightly to ensure a

safely controlled descent.

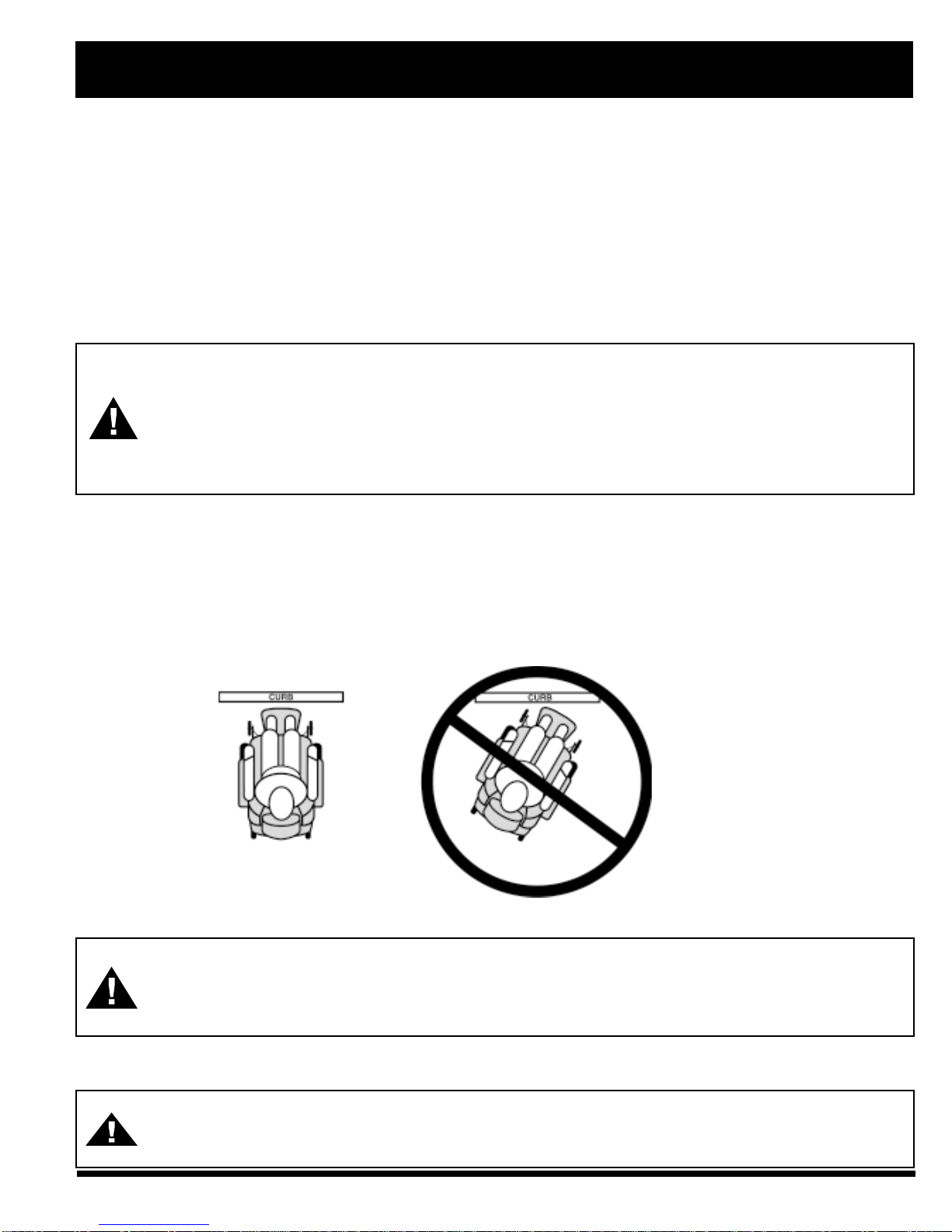

WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the incline.

Drive your power chair straight up the incline. his greatly reduces the possibility of a tip or a

fall. Always exercise extreme caution when negotiating an incline.

8www.pridemobility.com Pride LX Series/Rev B/Feb 03

WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas covered

with snow, ice, cut grass, or wet leaves).

WARNING! When on any sort of an incline or decline, never place the power chair in freewheel

mode while seated on it or standing next to it. Doing so may result in personal injury and/or

damage to your power chair.

WARNING! Never travel down an incline backwards. his may result in personal injury.

In compliance with the Americans with Disabilities Act of 1990 all handicap public access ramps are required to

have a maximum slope of 5°. Therefore Pride recommends that the maximum slope of an incline you attempt to

safely ascend or descend on your power chair does not exceed 5°. See figure 1.

WARNING! Any attempt to climb or descend a slope steeper than 5° may put your power chair in

an unstable position and cause it to tip, resulting in personal injury.

Braking Information

Your power chair is equipped with two powerful brake systems:

1. Regenerative  uses electricity to rapidly slow the vehicle when the joystick returns to the center/stop position.

2. Disc Park Brake  activates mechanically after regenerative braking slows the vehicle to near stop or when

power is removed from the system for any reason.

Cornering Information

While your power chair is equipped with rear caster wheels in back and anti-tip wheels in front excessively high

cornering speeds can still create the possibility of tipping. Factors which affect the possibility of tipping include

but are not limited to: cornering speed steering angle (how sharply you are turning) uneven road surfaces inclined

road surfaces riding from an area of low traction to an area of high traction (such as passing from a grassy area to

a paved area  especially at high speed while turning) and abrupt directional changes. High cornering speeds are

not recommended. If you feel that you may tip over in a corner reduce your speed and steering angle (i.e. lessen

the sharpness of the turn) to prevent your power chair from tipping.

WARNING! When cornering sharply, reduce your speed. his greatly reduces the possibility of a

tip or fall. o avoid personal injury and/or property damage, always exercise common sense

when cornering.

Outdoor Driving Surfaces

Your power chair is designed to provide optimum stability under normal driving conditionsdry level surfaces

composed of concrete blacktop or asphalt. However Pride recognizes that there will be times when you will

encounter other surface types. For this reason your power chair is designed to perform admirably on packed soil

grass and gravel. Feel free to use your power chair safely on lawns and in park areas.

II. SAFETY

Figure 1. Maximum Safe Angle (Ascending and Descending)

Pride LX Series/Rev B/Feb 03 www.pridemobility.com

WARNING! Do not attempt to have your power chair climb or descend an obstacle that is higher

than two inches unless you have the assistance of an attendant.

WARNING! Do not attempt to have your power chair proceed backward down any step, curb, or

other obstacle. his may cause the power chair to tip and cause personal injury.

Public Streets and Roadways

WARNING! You should not operate your power chair on public streets and roadways. Be aware

that it may be difficult for traffic to see you when you are seated on your power chair. Obey all

local pedestrian traffic rules. Wait until your path is clear of traffic, and then proceed with extreme

caution.

II. SAFETY

Figure 2. Correct Curb Approach

nReduce your power chairs speed when driving on uneven terrain and/or soft surfaces.

nAvoid tall grass that can entangle the running gear.

nAvoid loosely packed gravel and sand.

nIf you feel unsure about a driving surface avoid that surface.

Freewheel Mode

Your power chair is equipped with a manual freewheel lever to allow for manual maneuverability by a trained

attendant. For more information about how to place your power chair into and out of freewheel mode see V. Your

Pride LX.

WARNING! Do not use your power chair in freewheel mode without an attendant present. Personal

injury may result.

WARNING! Do not attempt to personally place your power chair in freewheel mode while seated

on it. Personal injury may result. Ask an attendant for assistance if necessary.

WARNING! Do not place your power chair in freewheel mode while on an incline. he chair could

roll uncontrollably on its own, causing personal injury.

Stationary Obstacles (Steps, Curbs, etc.)

Proceed with extreme caution when driving near raised surfaces unprotected ledges and/or drop-offs (curbs porches

stairs etc.). The correct method for approaching a curb is illustrated in figure 2.

10 www.pridemobility.com Pride LX Series/Rev B/Feb 03

Stairs and Escalators

Power chairs are not designed to travel up or down stairs or escalators. Always use an elevator.

WARNING! Never use your power chair to negotiate steps or escalators. You may cause injury to

yourself and to others and/or damage your power chair.

Doors

nDetermine if the door opens toward or away from you.

nDrive your power chair gently and slowly forward to push the door open. Or drive your power chair gently

and slowly backward to pull the door open.

Elevators

Modern elevators have a door edge safety mechanism that when pushed reopens the elevator door(s).

nIf you are in the doorway of an elevator when the door(s) begin to close push on the rubber door edge or

allow the rubber door edge to contact the power chair and the door will reopen.

nUse care that pocketbooks packages or power chair accessories do not become caught in elevator doors.

EMI & RFI

Laboratory tests performed by the Food and Drug Administration (FDA) have shown that radio waves can cause

unintended motion of electric mobility vehicles. Radio waves are a form of electromagnetic energy (EM). When

EM adversely affects the operation of an electronic device it is called Electromagnetic Interference (EMI) or

Radio Frequency Interference (RFI). For more information see III. EMI/RFI.

Lift/Elevation Products

If you will be traveling with your power chair you may find it necessary to use a lift/elevation product to aid in

transportation. Pride recommends that you closely review the instructions specifications and safety information

set forth by the manufacturer of the lift/elevation product before using that product.

Motor Vehicle Transport

Currently there are no standards approved for tie-down systems in a moving vehicle of any type to transport a

person while seated in a power chair.

Transfers

Transferring onto and off of your power chair requires a good sense of balance. Always have an attendant or

healthcare professional present while learning to properly transfer yourself.

To eliminate the possibility of injury Pride recommends that you or a trained attendant perform the following tasks

before attempting a transfer:

nTurn the power off. See IX. Operation.

nEnsure your power chair is not in freewheel mode. See V. Your Pride LX.

nTurn both caster wheels toward the transfer destination to improve power chair stability during transfer.

nMake sure both armrests are flipped up or removed from your power chair.

nFlip the footrest up or move the leg rests aside; this will help to keep your feet from getting caught on the

footrest or the leg rests during the transfer.

nReduce the distance between your power chair and the object you are transferring onto.

II. SAFETY

Andere Handbücher für PRIDE LX10

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Pride Mobility Rollstuhl Handbücher

Pride Mobility

Pride Mobility LUXOR Bedienungsanleitung

Pride Mobility

Pride Mobility Jazzy Select Traveller Bedienungsanleitung

Pride Mobility

Pride Mobility JAZZY Jazzy 1113 Bedienungsanleitung

Pride Mobility

Pride Mobility QUANTUM SERIES Bedienungsanleitung

Pride Mobility

Pride Mobility QUANTUM SERIES Bedienungsanleitung

Pride Mobility

Pride Mobility 1170XL Plus 2VHD, 1170XL Plus Bedienungsanleitung

Pride Mobility

Pride Mobility Jazzy 1170 XL Bedienungsanleitung

Pride Mobility

Pride Mobility JET1 Bedienungsanleitung

Pride Mobility

Pride Mobility jazzy 1120 Bedienungsanleitung

Pride Mobility

Pride Mobility QUANTUM 600 SP Bedienungsanleitung

Pride Mobility

Pride Mobility JAZZY 1103 ULTRA Bedienungsanleitung

Pride Mobility

Pride Mobility Go-Chair Bedienungsanleitung

Pride Mobility

Pride Mobility Jazzy Select 14 Series Bedienungsanleitung

Pride Mobility

Pride Mobility Power Glide Montageanleitung

Pride Mobility

Pride Mobility LIFT CHAIR Series Bedienungsanleitung

Pride Mobility

Pride Mobility JAZZY 1121 Bedienungsanleitung

Pride Mobility

Pride Mobility Jazzy Elite ES Bedienungsanleitung

Pride Mobility

Pride Mobility Jet 3 Ultra Bedienungsanleitung

Pride Mobility

Pride Mobility C550 Bedienungsanleitung

Pride Mobility

Pride Mobility Jazzy 1120 2000 Bedienungsanleitung

Pride Mobility

Pride Mobility QUANTUM SERIES Bedienungsanleitung

Pride Mobility

Pride Mobility Quantum Rehab Jazzy Select 6 Gebrauchs- und Pflegehandbuch

Pride Mobility

Pride Mobility Quantum Blast HD Bedienungsanleitung

Pride Mobility

Pride Mobility REAR-WHEEL DRIVE POWER CHAIRS Quantum R-4000 Bedienungsanleitung

Beliebte Rollstuhl Handbücher anderer Marken

Otto Bock

Otto Bock Skippi plus Bedienungsanleitung

Invacare

Invacare Action 4NG series Bedienungsanleitung

SORG

SORG LoopSORG 802 Bedienungsanleitung

Designability

Designability WizzyBug Montageanleitung

Vermeiren

Vermeiren RAPIDO Bedienungsanleitung

Excel

Excel G5 KIDS 0285 Bedienungsanleitung

M. Bartels

M. Bartels SA-3 Bedienungsanleitung

nino robotics

nino robotics NIno Bedienungsanleitung

Vermeiren

Vermeiren Turios Bedienungsanleitung

Invacare

Invacare MK5 EX Bedienungsanleitung

Invacare

Invacare Solara Spree GT Handbuch

Nova

Nova TKW-12 Bedienungsanleitung

BCW

BCW Advantage Bedienungsanleitung

You-Q

You-Q Luca Bedienungsanleitung

interco

interco Ortolight Standard Bedienungsanleitung

Nova

Nova 7190L Bedienungsanleitung

Vermeiren

Vermeiren EZ1 Bedienungsanleitung

PaceSaver

PaceSaver Scout M-300 Bedienungsanleitung
