Primera Digital Color Label Press CX1200e Bedienungsanleitung

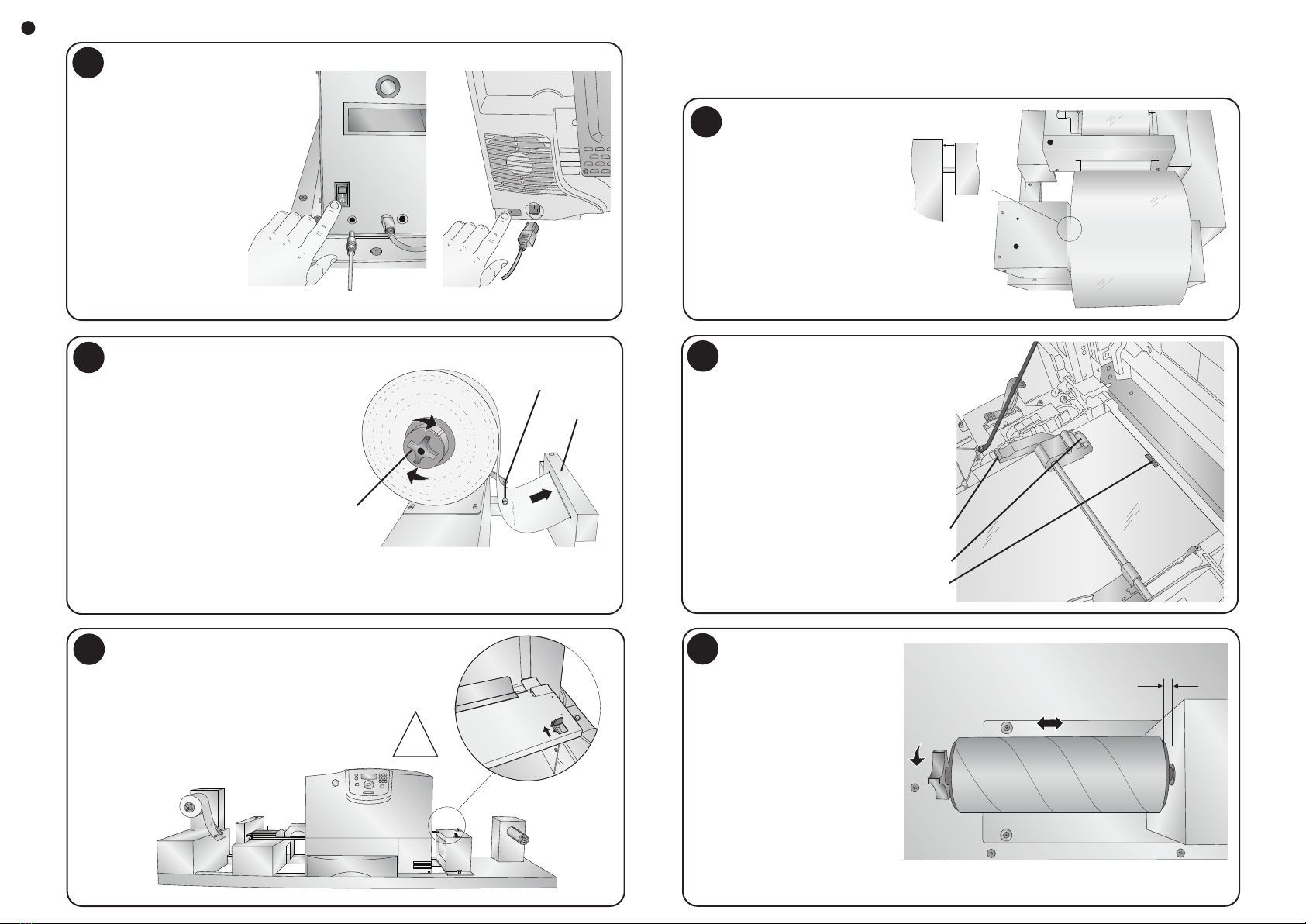

Switch on the

unwinder, printer

and rewinder.

Place the label stock roll

(max 12" OD/

max 30.48 cm) on the

unwinder chuck.

Center the label stock

on the aluminum area

of the chuck.

16 mm

3The loose stock should fall on

the right side of the roll. Turn

the tension knob clockwise to

secure the roll to the chuck.

Turn the knob as as tight as

you can! Feed the stock under

the dancer arm and through

the cutter.

Dancer Arm

Cutter

Tension Knob

Continue feeding the stock

into the printer feeder tray.

Feed the stock under the green

guides and under the paper

feed roller. Stop feeding when

the leading edge of the stock

has covered the red stop block

printed just outside the feeder

door entrance.

Green Guides

Feed Roller

Red Stop Block

5Engage the Feeder Switch (left

Position).

Warning! Failure to engage this switch

will cause the label stock to feed out of

the top of the printer.

6Place an empty label

core on the rewinder

chuck. Center the core

on the aluminum area

of the chuck. Turn the

tension knob clockwise

to secure the core to the

chuck. Turn the knob as

as tight as you can!

16 mm

(.63 inches)

Loading Label Stock Quick Reference Guide

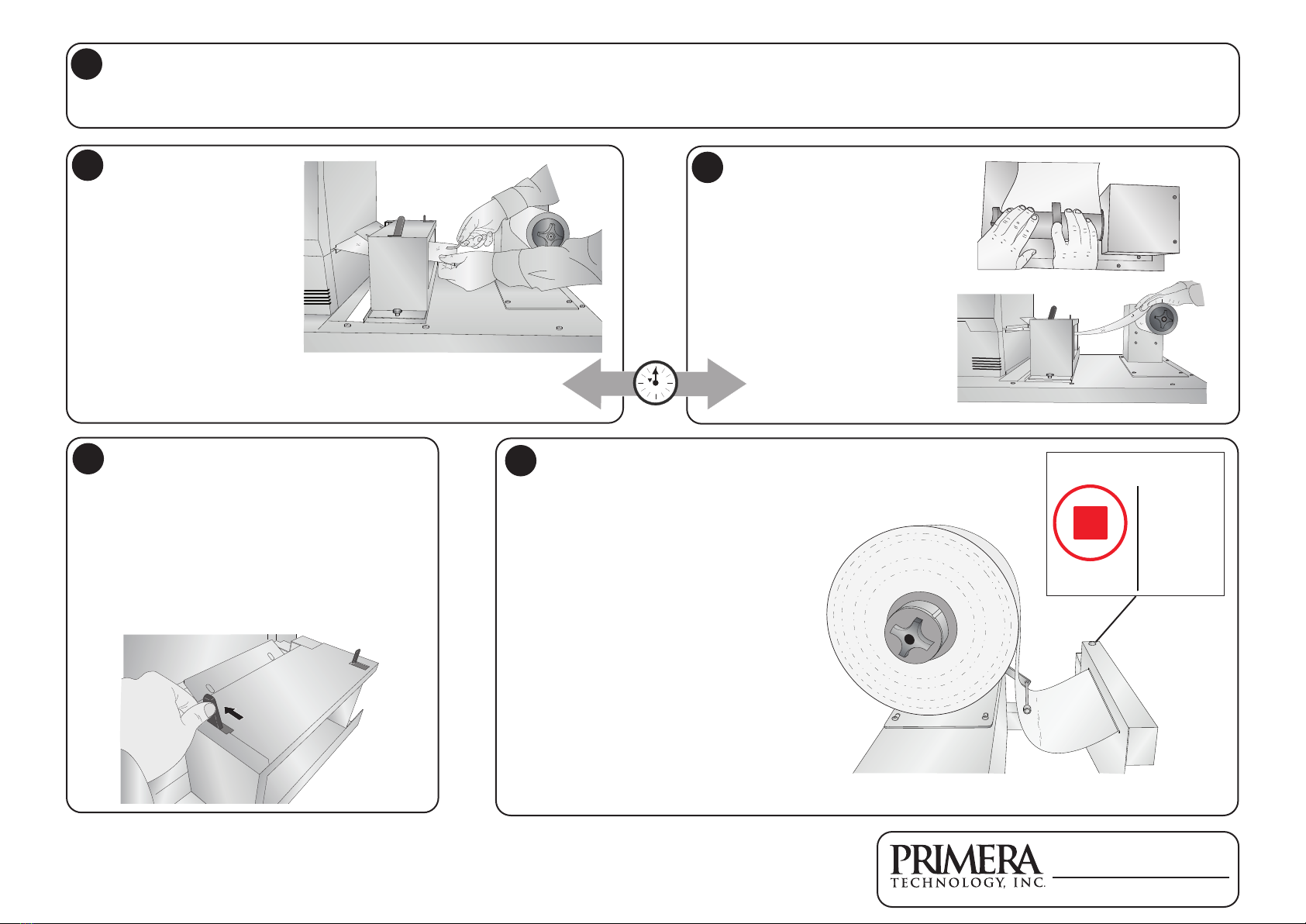

Attach the label stock to

the rewinder core.

As the printer is preparing

to print, get a piece of tape

ready. It is best to stand to

the right side of printer

with your arms above the

rewinder roll. As the stock

is ejected from the printer

hold it with your left hand

while you place the tape on the middle of the

end of the stock.

The stock will continue to

feed at a slower speed.

When it reaches the

rewinder, attach it to the

top of the empty label

core. Position the stock so

that it that it is centered on

the core. The label stock

should be taut (no slack)

when attached to the core.

Immediately after the label stock is attached,

engage the Rewinder by pushing the

Rewinder Lever toward the printer.

Important! To minimize the slack loop that

will be created under the rewinder, it is

very important that you engage this lever

immediately after the label stock is taped

to the core.

8a 8b

220609-511223

7Print your label according to Section 5 of the manual.

Note: Depending on when the printer was last used, the fuser will need to heat up or cool down before the printer will print.

This can take from 2 seconds to 2 minutes.

4 Seconds

iImportant Note: The taping process

occurs very quickly so you may not get

the label stock attached correctly the

first time you try it. It is extremely

important to attach the label stock

centered on the core. If the attached

label stock is too far to the right or left

the rewinder roll will start to walk

back and forth and will eventually not

be useable once the roll reaches its full

size. Any small problem within the first

few revolutions of the rewinder will be

exacerbated as the roll gets

larger. If you think the label stock

was not attached properly, press the

Stop/Cut button and cancel the print

job using the printer control panel.

Stop

Press to

Cut


