SECTION I: SETUP

1. Check to make sure the following items are enclosed:

•Output Bin Holder

•Output Bin

•Teflon Tape Strips

•Operators Manual and

other information

2. Attaching the Output Bin

•After the software has

been updated, you will

need to attach the

Output Bin Holder

and Output Bin to the

Bravo to collect the

finished discs. Attach

the Output Bin Holder

as shown, aligning the

Locating Tabs on the

Output Bin Holder with

the Slots located on the

underside of the Bravo

allowing the holder to

hang off the edge of the

table. Notice the slots

do allow for adjusting

the position of the out-

put bin. If your discs

are not falling into the

bin, you will be able to

move the bin slightly to

align it.

•Place the Output Bin on

the Output Bin Holder

as shown.

•Your kit comes with

Teflon coated tape strips.

These may be necessary

if the discs you use do

not slide freely down

the Output Chute into

the Output Bin. Apply

the strips to the ribs of

the Chute as shown,

starting at the top of the

chute, and continuing

on down to the lower lip of the Chute to reduce friction and

cause the discs to eject properly.

SECTION II: ENABLING KIOSK MODE

Kiosk mode is available both in PrimoDVD and in the driver as a

printing option. This allows you to use the Kiosk Mode for full CD

production as well as print-only jobs.

Using Kiosk Mode in PrimoDVD

In PrimoDVD, click Robotics then Options. You will see the

following window:

Using Kiosk Mode in the Print Driver

If you are using the Bravo AutoPrinter,

or just want to print discs and have

them eject out the front of the unit, you

can enable Kiosk Mode in the driver as

well. In the Driver Settings you will see

a new option, Disc Output Location.

Simply set this to Kiosk Mode. If you

Thank you for purchasing the Kiosk Kit for the Bravo™ Disc

Publisher. This will enable your Bravo to use both the right and left

bins as input, doubling the capacity of your Bravo. This sheet

describes the installation and use of the Kiosk Kit.

Output Bin

Holder

Output Chute

Output Bin

Slots

Locating Tabs

Lower Lip of Chute

Output Chute

Ribs

Start Tape Here

Output Holder

Output Bin

Click the Enable Kiosk

Mode Check Box to use

this feature.

are creating jobs in PrimoDVD, it is not necessary to change this

driver setting if you already have set Kiosk Mode active under

Robotic Options. The PrimoDVD Kiosk Mode option overrides any

driver setting.

NOTE: In print-only jobs, you may see a Windows "Time Out" error

when the Bravo is out of discs in one bin and switches over to the other.

This is normal, and will not affect the completion of the print job. The

Bravo will retry automatically requiring no operator intervention.

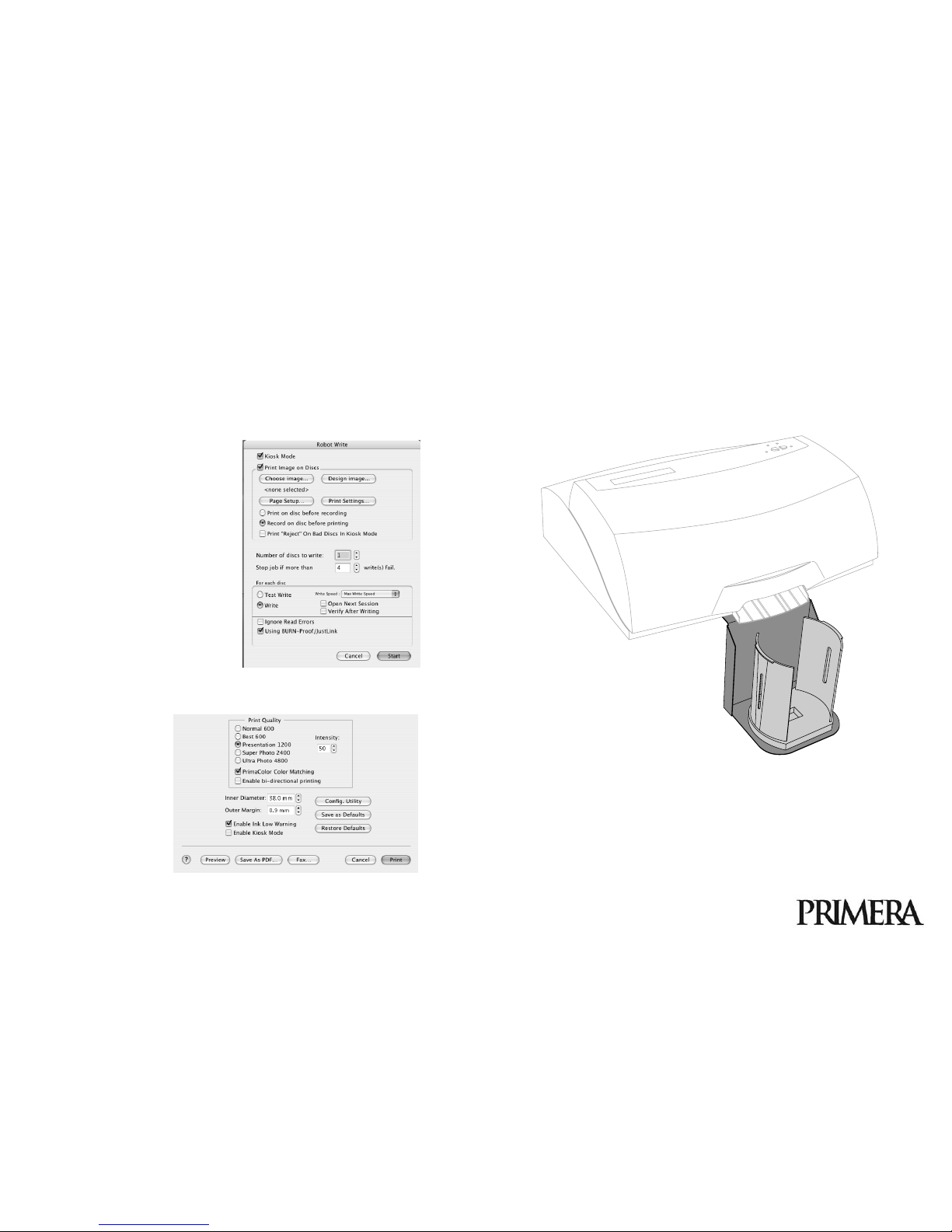

Using Kiosk Mode in Discribe

Set up your job as described in

your Bravo Disc Publisher

Macintosh User's Manual. In

the Robot Write pane you will

see a check box option that will

enable Kiosk Mode.

Using Kiosk Mode in the Mac

Print Driver

If you are using the Mac Bravo

AutoPrinter, or just want to print

discs and have them eject out

the front of the unit, you can

enable Kiosk Mode in the driver

as well.

Click Print Setup to

see the driver pane

and all of its

settings. You will

want to click the

Copies and Pages

button and select

Publisher Settings

option in the drop-

down menu to

see the full pane

and access all the

printer driver settings. At the bottom of the Settings pane you

will see a check box that will enable Kiosk Mode.

Congratulations! You are now ready to use Kiosk Mode, doubling

the capacity of your Bravo Disc Publisher or Bravo AutoPrinter!

Kiosk Kit

For use with Bravo™ Disc Publisher

Operator's Instructions

012204-510710
