Printek FormsPro 5000 Series Handbuch

FormsPro 5000 Series Quick Setup Instructions

Drivers, User Manuals, and SW Utilities available @ www.printek.com

Unpack the Printer: Remove all packing materials, and place on a solid, flat surface. –– Connect the power and host interface cables. –– Turn the Printer On

Install the Ribbon –Move the paper to the park

position. Open the printer top cover.

Cautiously slide the print head carriage to the left stop

(viewed from the printer front).

WARNING: Let printhead cool if necessary.

Move the colored friction tabs on theright and on the left

into the directionofthe respective arrows shown in the

figure andraise the friction mechanism.

Remove the used cassette.

Raise the colored insertion tongue A.

Remove the colored protections Aand B.

Insert the colored ribbon tension knob into the right-hand

front location of the newribbon cassette. Turn the knob in

the direction of the arrow in order to take up slack of the

ribbon.

Slightly tilt the ribbon cassette forwards and thread in the

ribbon between the colored insertion tongue and the ribbon

support (transparent plastic plate).

Align and insert the cassette into the guides on the left and

right, then press down until itclicks into place.

Insert the colored tension knob into one of the two

locations.

Turn the tension knob in direction of the arrow to take up

slack in the ribbon until it is seated correctly atthe bottom

in the ribbon support. WARNING: Remove the knob.

Press down the colored insertion tongue A.

Move the print head carriage backand forthseveral times. If

the ribboniscorrectlyseated, theremust be no perceptible

resistance. NOTE: Ribbon cassette should be on the right.

Press the friction mechanism down until it clicks into place.

Close the top cover.

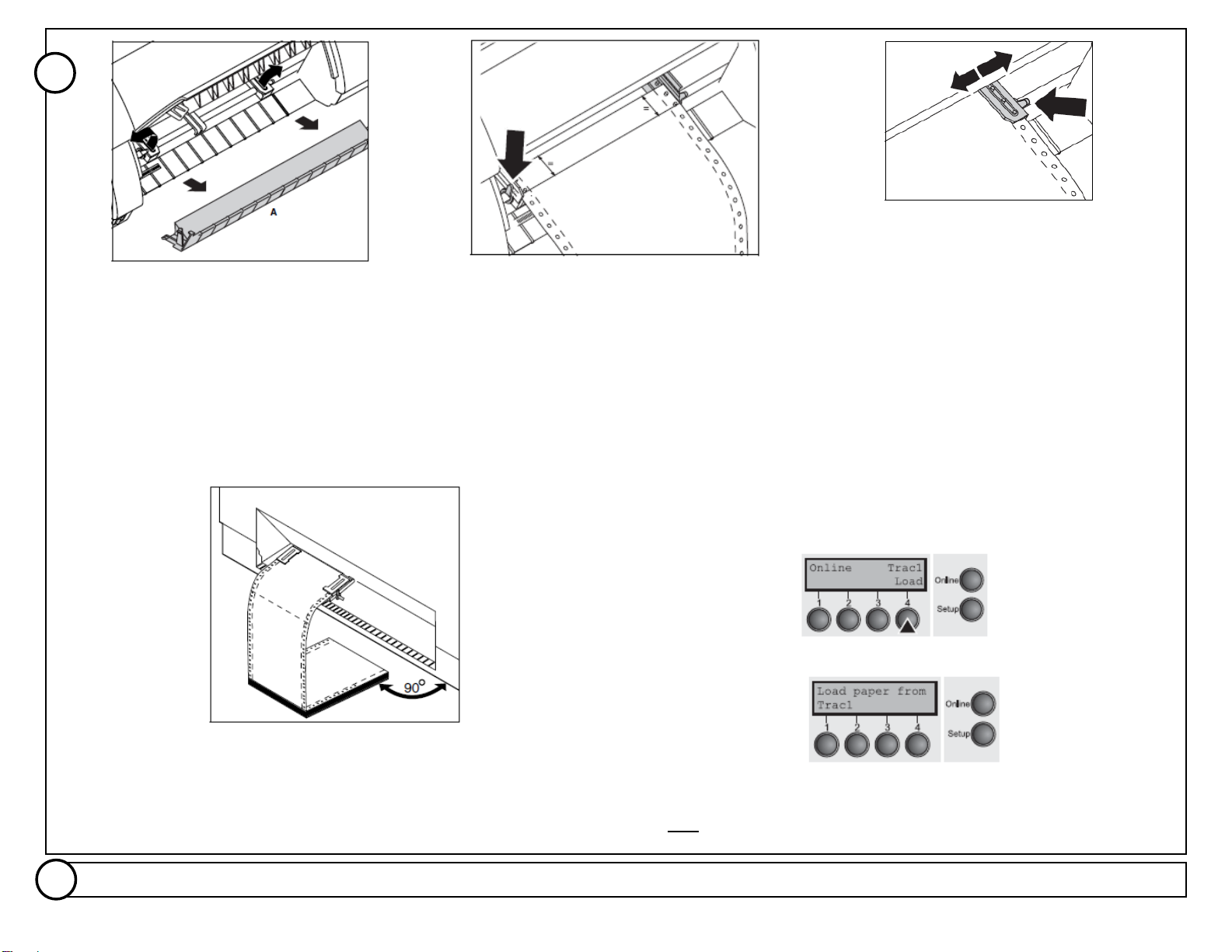

Load Paper –Raise the front cover.

Remove the bottom cover A.

Open the right and left tractor flaps.

Open the colored latch lever and align the tractor so

thatthe firstprintingposition on the paper matches

the Xmark on the printer housing.

Lock the colored lever again.

Place fanfold paper into the left-hand tractor.

Open the colored latch lever of the right-hand tractor

and align it to the paper width.

Insert the fanfold paper into the right-hand tractor.

Make sure thatit is inserted by the same length as on

the left-hand tractor in or der to avoid any paper jam.

Close the tractorflap and lock the tractor by turning the

tractor lever to the rear.

CAUTION: Do not tension thepaper excessively to

avoid tearing the perforation holes; do not allow

excessive slack since in this case the paper will bulge

and there may be problems in the feeding process.

Make sure toalign the paperstack in parallel with the printer and thatthe paperflow is

unobstructed.

Lower the front cover. Switch the printer on. The active paper source (Tractor 1)

appears in the display. The display alternates between…

And…

The paper is automatically loaded when the printer is in online mode and

receives data from the computer.

Note: For FormsPro 5002 printers, see additional included instruction Part

Number 7621 for paper loading.

Review the configuration settings described on the next page. When complete, press the “Online” button to allow the printer to receive data and begin printing.

Part Number 7618 Rev. A

FormsPro 5000 Series Setup Menu Reference

LCD Control Panel Display Function View

Default Configuration Settings

Printer Path Flow: Sub Menu Chart

The LC Display details all the important printer settings and which functions are currently

assigned to which keys. Example below:

The upper line indicates that the printer is either in Online or Offline mode.

The example below displays the printer’s status as in the Online mode.

The selected paper path is Trac 1

The function is Tear indicating that key function is currently active in manual

mode.

Once changes have been made and saved, press Online to return to the main

menu.

Select Setup to access Online MENU (Primary) and to change printer configurations.

NAME

Font

CPI

LPI

Skip

ESCChar

Emulate

Bidir

CG-Tab

CharSet

Country

SI.Zero

Auto-CR

Auto-LF

AutoTear

Width

LeftMrg

RightMrg

Paphand

Barcode

Barmode

Form1

Formlen

Head

FormAdj

From2

Formlen

Head

FormAdj

Interf.

Buffer

CX-bid

Form

ColorOpt

TearAdj Form1

TearAdj Form2

AutoASF

AutoFRM

Quitm.

AGA

AGA offset

Pap.back

PMS

APW

AED

Sound

Single

FFmode

Wrap

Rightzo

Leftzon

Head up

Pagewid

Physlm

Hvy Form

Sleepmod

BarTop

LCPtop

Ignore

FFaftLC

GrSpeed

Jobcntl

FORM_0

Draft

10 CPI

6 LPI

0.0Inch

ESC

Epson LQ-2550

Graphic

Extended

E-US ASCII

Off

Tear=1s

13.6Inch

0/10”

136/10”

Off

Unsecured

Letter 11”

12/72”

Letter 11”

12/72”

Shared

128 KB

Not Installed

0/72”

Off

Normal

Low

Off

136/10”

0/10”

Off

High

Off

There are three levels to make Configuration changes through the FP5000 control panel:

Setup

Primary Menu

Sub-Menu

1. Press Setup to access any of the Primary Menus:

a) Form

b) Adjust

c) Paperway

d) Char

2. Example: Select Form to access Sub-Menus

3. Select Next until you see the Sub-Menu where you will make change settings.

4. Make your changes in the Sub-Menu.

5. Then save the changes by pressing Set. When you have made your changes, press

Setup.

Control Panel

A Company

1517 Townline Road

Benton Harbor, MI 49022

Phone: 800-368-4636

Fax: 269-925-8539

[email protected]

www.printek.com
