What’s In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright
statutes or in wring by the Publisher.
Tango 360° Camera Rotang Dutch Angle Rig (P-TNGO-01)
Assembly Manual
Camera Plaorm
Tango 360° Camera Rotang Dutch Angle Rig
Camera Plaorm Rods with Stopper
1.5mm L
Type Allen Key
2
Loosen and remove the stopper of the camera
plaorm rods, as shown in the picture.
Loosen and remove the stoppers from the
camera plaorm rods, as shown in the
picture.
Tango 360° Rig Setup
Insert the rods into the camera plaorm and
then secure them properly using a 1.5mm
Allen key. Follow the same process on the
other side as well.
Loosen the red knob of the Tango 360°
camera rotang Dutch angle rig and then
insert it into the rods.
Follow the same process on other side.
Aer inserng the rods into the camera
plaorm hole, insert the stoppers from the
boom and ghten them to secure properly.
3
Aer inserng it into the rods, secure it
properly with the help of the red knob and
then secure the rods properly from the top
with the help of stoppers.
Properly aach the Ball Head (Not Included)
to the tripod, by matching it with the 3/8”
thread of the Tripod.
NOTE: Tripod comes with a (1/4” & 3/8”) quick
tripod mounng threads.
Remove the camera plate as shown.
Camera Setup
To give the Ball Head a 360° rotaon, loosen
the knob a lile and then rotate the knob to
ghten it again. To remove the Camera Plate,
loosen the knob.
Aach the camera plate to the boom
mounng 1/4” thread of tango dutch angle rig
and secure it with the help of an Allen key.
Rods are properly secured via stopper.
4
Then mount it on the Ball Head (Not Included)
and properly secure it with the help of the
knob.
To move the camera platform’s position up
and down, loosen the red knob, then
according to your requirement, set the height
at a position where you want your camera
and then properly tighten its knob.
NOTE: Height-adjustable camera plaorm, lets
you posion the camera at an accurate level
where the shot requires.
Fix your setup on the Tango 360° Camera
Rotang Dutch Angle Rig at a specic angle
and secure it properly using the rotaon lock.
It facilitates a camera rotaon lock so that
you keep it to a specic angle for a stac shot.
NOTE: Tango 360° Camera Rotang Dutch Angle
Rig has a 360° rotaon feature, It oers full 360°
rotaon around its lens and also, allows you to
set the rotaon angle
NOTE: Reproduce the shot without trouble, has
angular ring and stopper to set rotaon.
Mount the camera (Not Included) on the
camera plaorm plate. It is provided with a
(1/4”-20) Screw, properly secure it with the
help of the Allen key.
NOTE: Camera plaorm adapts DSLR cameras
with ¼” screw.
5
Now your Setup is ready to use.

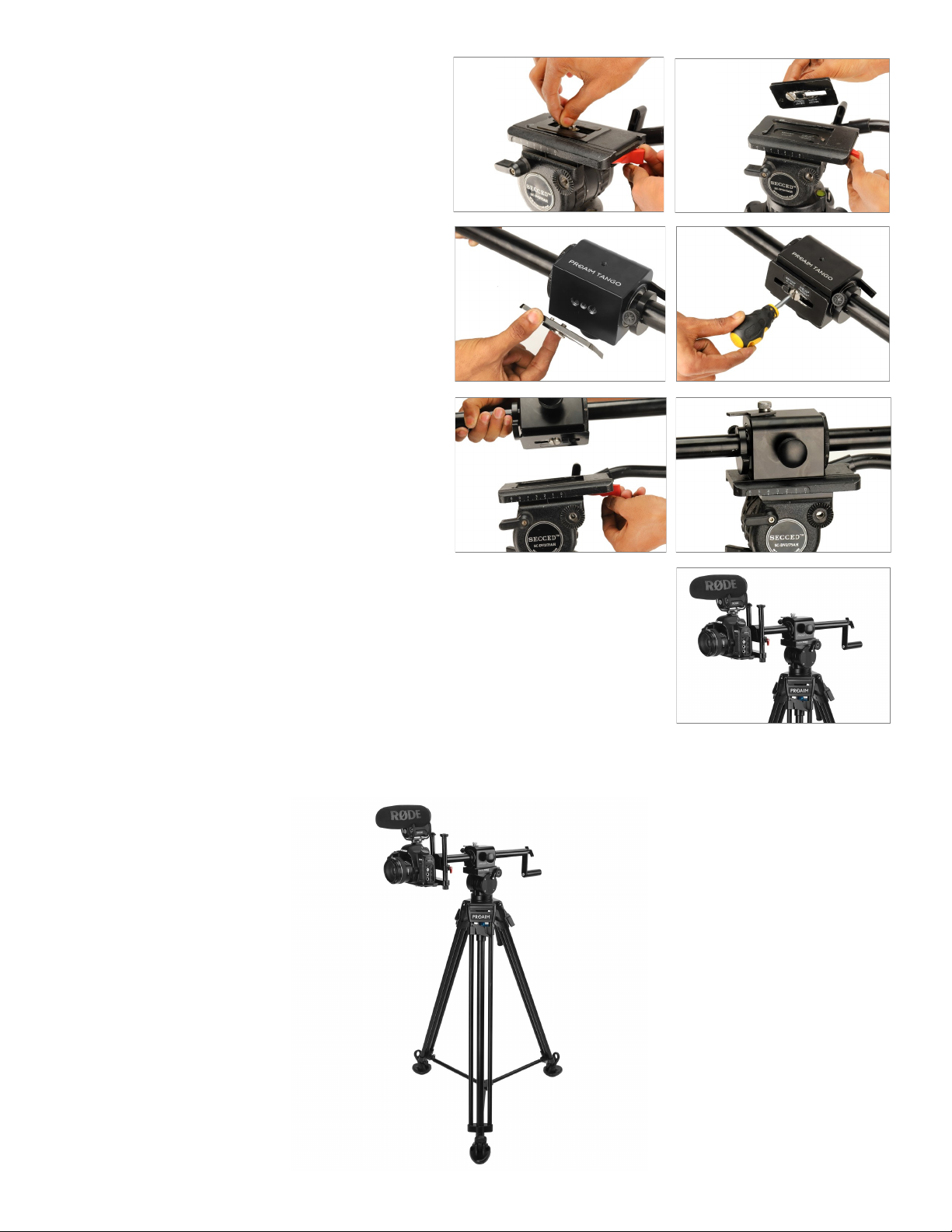

Aer aaching the uid head’s top plate,
mount it on the top of the uid head
(Not Included) and then push the red knob, as
shown in the picture.
Aach the uid head (Not Included) by
matching its top plate thread with boom
side of tango and secure them properly using
an Allen key.
To mount the tango angle rig on the uid
head (Not Included) release the top plate of
the uid head by pulling the red knob.
YOUR PROAIM TANGO 360° CAMERA ROTATING DUTCH ANGLE RIG
ALL DRESSED UP AND READY TO GO!
(SHOWN WITH OPTIONAL ACCESSORIES)
6
Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,
we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it
cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon
and evaluaon by us.
Liability: We are not liable for damage caused by products that we do not supply or from mishandling in
transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.
Contact Us: In case of any kind of dissasfacon, please Contact us immediately and we promise our ut-
most support and care unl you use our product.
