Procom FBD28TCC-M-HC Bedienungsanleitung
CORNER COMBO
WOOD FIREPLACE MANTEL
Questions about installation, Operation or troubleshooting?
Before returning to your retailer, contact our customer service department at 1-877-886-5989,
8:00a.m.—4:30p.m., EST, Monday—Friday or e-mail customerservice@usaprocom.com.
PC-FBD28-M1-1101
Model #FBD28TCC-M-HC/MO
2

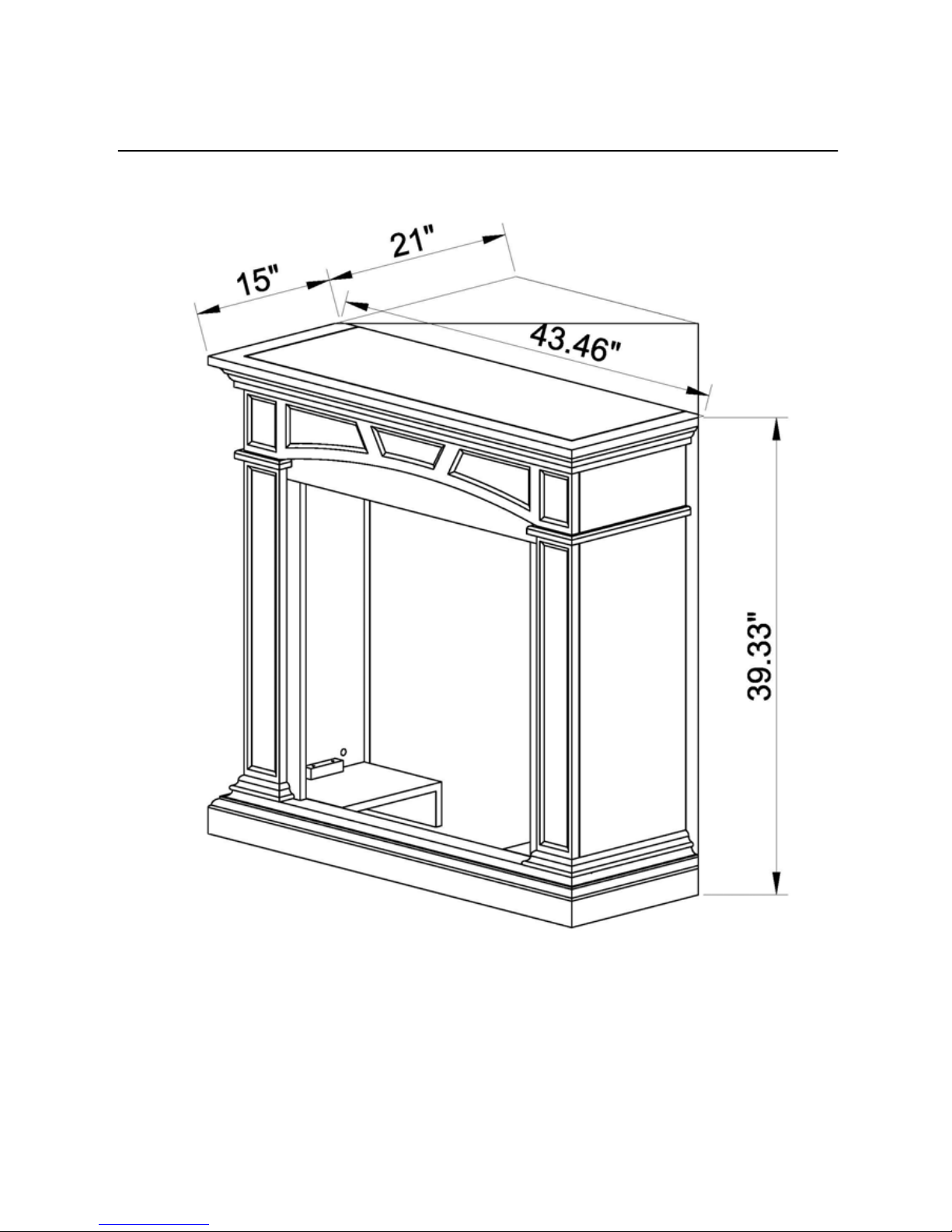

PRODUCT SPECIFICATIONS
3

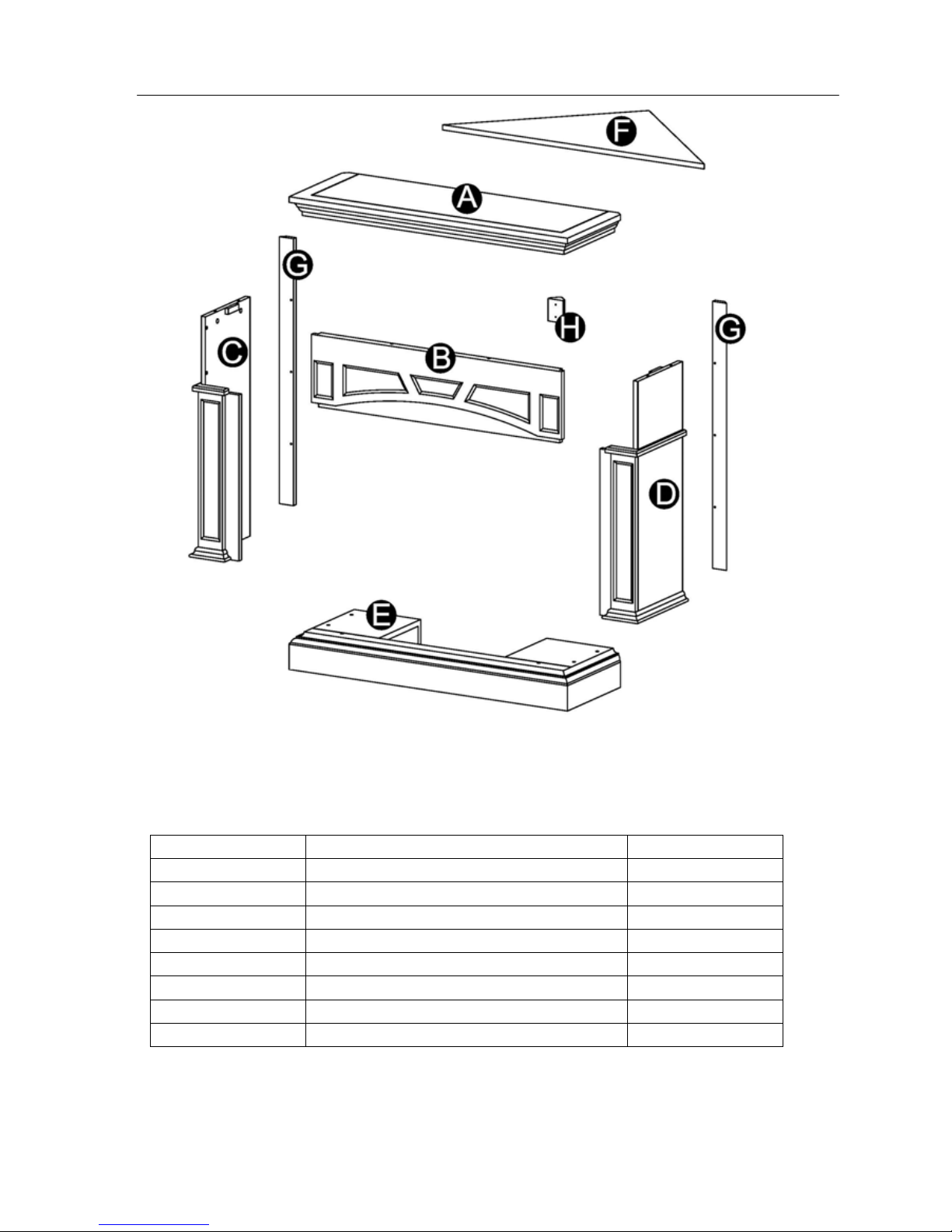

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Top 1
B Panel 1
C Left Side Panel 1
D Right Side Panel 1
E Base 2
F Top Triangle Panel 1
G Backboard 2
H Set Square Support
If a part is missing or damaged - return to place of purchase (exterior wood
components are not replaceable).
4
HARDWARE CONTENTS
Part
Description Quantity
(Shown to size)Part Description Quantity
(Shown to size)
BB
Cam Dowel 16
AA
Cam Lock 16
Wall Anchor 2
ST4 Screw
1 -3/16 in.
8
ST5 Screw
2- 3/8 in.
2
ST4 Screw
5/8 in.
18
Connector
Bracket
3
BB
CC
DD
EE
FF
GG
HH
II
White Key
1
ST4 Screw
1 -9/16 in.
8
WARNINGSANDCAUTIONS
PREPARATION
Before beginning assembly of product, make sure all hardware contents parts are present. Compare parts with
package contents list and diagram on page 4. If any part is missing or damaged, do not attempt to assemble the
product. Contact customer service for replacement parts.
Estimated Assembly Time: 60 minutes
Tools Required for Assembly: Philips Screwdriver, Flathead Screwdriver, Drill, and Tape Measure.
WARNING
yWhen tightening screws, do not over tighten, this may cause threads to strip. We recommend using a
hand-held screwdriver rather than a power screwdriver.
yDo not force screws into holes.
CAUTION
yFor corner installations(optional); if baseboards are installed where the fireplace is intended to be
displayed, then the fireplace will not fit flush against the wall. For a proper flush fit, you may need to remove
part of the baseboard mold if necessary.
5
1. Insert Cam Locks (BB) into Panel (B). Screw in
Cam Dowels (AA) into the Left Side Panel (C) and
the Right Side Panel (D). Attach Panel (B) into the
Left Side Panel (C) and the Right Side Panel (D)
by tightening the Cam Locks (BB) as shown in Fig1.
ASSEMBLY INSTRUCTIONS
BB
Fig 1
Hardware Used
×4
2. After assembling the mantel (B, C, D), insert Cam
Locks (BB) into Base (E), screw in Cam Dowels (AA)
into the Left Side Panel (C) and the Right Side Panel
(D). Attach Base (E) into assembled frame (B, C, D) by
tightening the Cam Locks (BB) as shown in Fig 2.
Fig 2
Skip to step 5 for Corner Mantel Installation.
×4
Cam Lock
Hardware Used
Cam Dowel
AA
BB
×6
×6
Cam Lock
Cam Dowel
AA
BB
6
Fig 3
3. Insert Cam Locks (BB) into assembled frame (B, C,
D). Screw in Cam Dowels (AA) into the Top (A). Attach
Top (A) into assembled frame (B, C, D, E) by
tightening the Cam Locks (BB) as shown in Fig 3.
Fasten the batten with ST4 Screw 1-9/16 in. (II) to the
Top (A) and the Base (E) as shown in Fig 3.
ST4 Screw
1 -9/16 in. ×4
Fig 4
4. Place insert into the mantel as shown in Fig 4.
Hardware Used
II
×6
×6
Cam Lock
Cam Dowel
AA
BB
7
Fig 5
Hardware Used
ST4 Screw
5/8 in. ×18
Connector
Bracket ×3
5. Turn the fireplace Top (A) Panel over. Using the
Connector Brackets (GG) that supplied, connect
the Fireplace Top (A) to the Top Triangle Panel
(H) with ST4 Screw 5/8 in. (FF) as shown in Fig 5.
Cam Dowel
×6
Cam Lock
×6
ST4 Screw
1 -9/16 in.
×4
II
FOR CORNER APPLICATION
Hardware Used
FF
GG
Fig 6
6.Insert Cam Locks (BB) into assembled frame (B,
C, D).Screw in Cam Dowels (AA) into the Top (A).
Attach Top (A) into assembled frame (B, C, D, E) by
tightening the Cam Locks (BB) as shown in Fig 6.
Fasten the batten with ST4Screw 1-9/16 in. (II) to
the Top (A) and the Base (E) as shown in Fig 6.
AA
BB
8
AA
BB
7. Attach the left and right Backboard (I) trim pieces to the
back of the fireplace with ST4 Screw 1-3/16 in. (DD) as
shown in Fig 7.
Fig 7
Hardware Used
Wall Anchor ×2
Hardware Used
CC
Fig 8
8. Drill two holes (5/16 in.) in the corner where the
fireplace is to be displayed. Drill the first hole 37-7/8 in.
from the ground up, and the second hole 1-9/16 in.
from the first hole as shown in Fig 8. Put the Wall
Anchor (CC) in the holes by pinching the anchor tabs
together as shown in Fig 8.
ST4 Screw
1 -3/16 in.
×8
DD
9
9. Attach the triangular wood block to the holes drilled
in step 8 with ST5 Screw 2-3/8 in. (EE) as shown in
Fig 9. This block is used to support the Set Square
Support (J). For thin walls, insert white key (HH) into
wall anchor and push to “pop” open anchor wings.
Fig 9
ST5 Screw
2 3/8 in.
×2
Hardware Used
White Key ×1
EE
HH
10. Push fireplace into corner so that the Top Triangle Panel (F) is resting on top of the Set Square Support (H) as
shown in Fig 10.
Fig 10
10
REPLACEMENT PARTS LIST
Part Description Part # Quantity
Hardware Package HP006 1
AA Cam Dowel PCAM-023 16
BB Cam Lock PCAM-023 16
CC Wall Anchor ML066-01 2
DD ST4 Screw 1-3/16 in. GB/T 951 4×30 8
EE ST5 Screw 2-3/8 in. GB/T 950 5×60 2
FF ST4 Screw 5/8 in. GB/T 951 4×16 18
GG Connector Bracket SJ002 3
HH White Key ML067-01 1
II ST4 Screw 1-9/16 in. GB/T 951 4×40 8
