Please read the user manual before using the airbrush gun
SAFETY INSTRUCTION AND WARNINGS
1. INTRODUCTION
We would like to congratulate you on the purchase of your airbrush gun. We appreciate your trust. That‘s why func-
tional security and operational safety stands on rst place for us.
To prevent damage to persons or property, you should read this user manual carefully. Please observe
all safety precautions and instructions for proper use of the airbrush components. Failure to follow the
instructions and safety precautions can result in injury or property damage. Please keep this manual with
the instructions and safety instructions carefully in order to at any time you can restore them.
2. IN GENERAL
The airbrush guns are developed according to the newest stand of technology, manufactured with much care and go
under strict intensive controls.
Make sure after unpacking that the data given on the type label match with the included operating instructions. In the
case of doubt is not to be used. Transport damages are immediately to be reported to the package distributor on the
shipping invoice and to us in written form.
3. RANGES OF APPLICATION
Airbrush guns can be used in:
l Bodypainting
l Fingernail painting
l Cosmetic
l Craftwork spraying
lAnd much more
lt can be also used for providing air source for medical, environment protect, breed aquatics Indnstrial, food
Industrial, chemical industrial, laboratory and so on.
4. Important note: please pay attention before commissioning the airbrush!
l The air hoses for airbrush guns are air-tight. Sealing of the screw connections can be carried out with Te on tape. The
rubber seals are to be checked regularly and replaced if necessary.

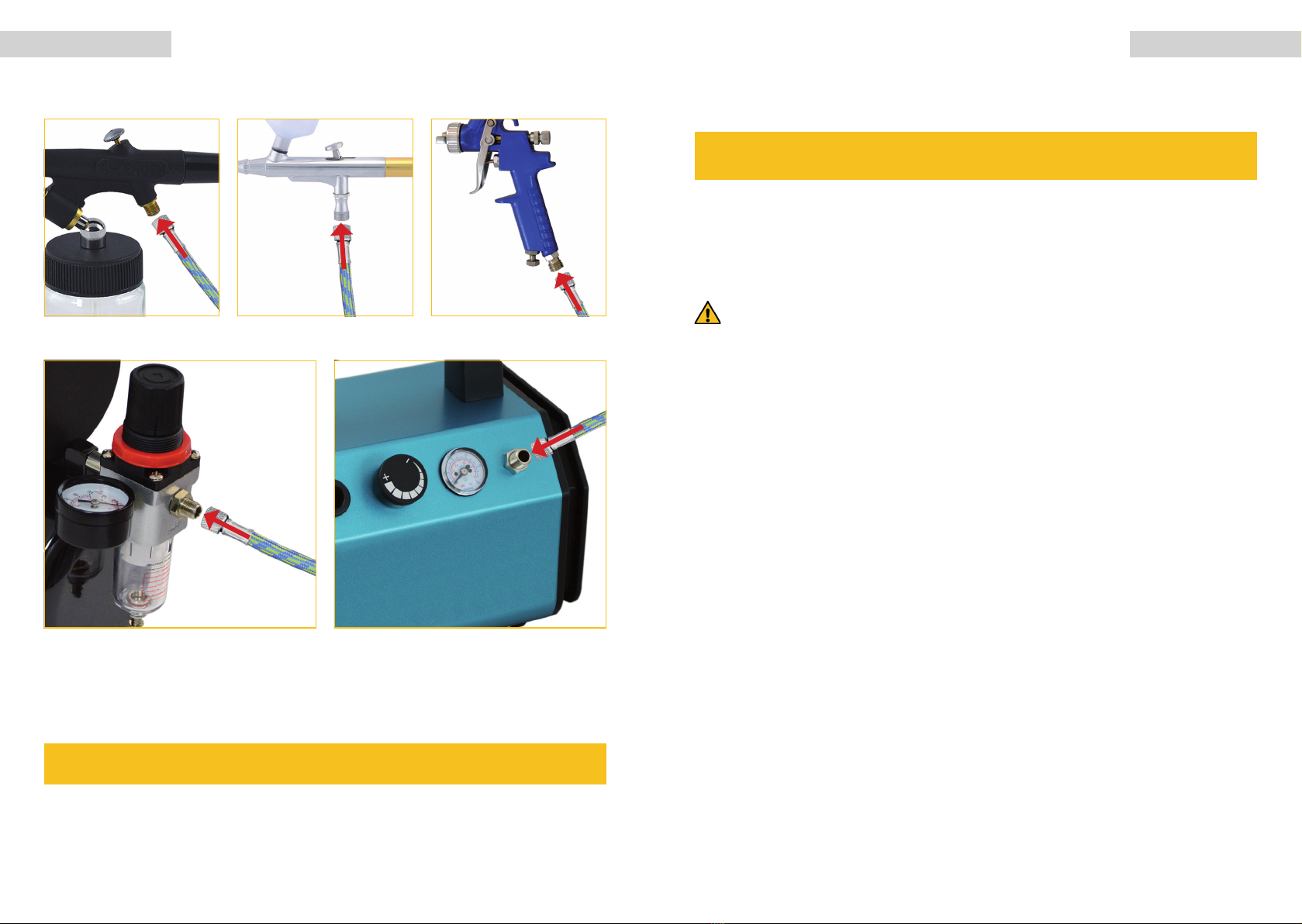

l Connect the air hose, the airbrush gun to the 1/8 „port on the compressor tting.
In order to avoid leaks, the screw connection of the air hose should always be sealed with Te on tape.
l Before starting up, especially after cleaning or after repairs, check the tightness of all connecting elements as well as the
tightness of the unit and the hoses..
l Please, note that in dependence of the device used (compressor/gun) the color must be diluted.
l Your airbrush gun must be cleaned thoroughly after each color change, otherwise the residual color mixes with the
newly lled color.
Moreover, the very ne nozzle will be clogged by dried ink. The gun should be cleaned with thinner and water.
Especially the nozzles, which are subject to wear, will have longer lifetime by careful cleaning .
l Please, inform yourself in the literature or on the Internet about the working methods and techniques before
starting work .
l Please, check the funktion of the gun with clean water. Is the function correctly given, the technology of the gun
is perfect.
l Please connect compressor, hose and gun always tight. Avoid oscillatingly opening (constant on and off) of the
compressor in order to reduce wear and to save energy.
l We sell only tested products. These are strictly for personal use.
l Claims for damages for improper disassembly and cleaning can not be accepted.
l Complaints about contaminated airbrush guns with paint,residues, could not be recognized.
5. HOW IT WORKS
5.a The airbrush gun is a two-stage atomizer according to the principle of a jet pump using compressed air as a
propellant. With the airbrush gun, any liquid paint with ne pigment, suitable for airbrush guns, can be applied to all
substrates, depending on the nozzle size. Acrylic paints, watercolor paints, textile paints and dilute oil paints are easy
to apply. The working pressure is usually between 1.5 and 3 bar. The higher the pressure is set, the ner the ink is
atomized. In order to deliberately create uneven surfaces, e.g. In order to display sand, one can set the pressure
very deliberately very low.
Single Action: In this version, only the compressed air quantity is controlled via the control lever and the color
quantity regulating screw regulates the color quantity.
5.b Flowing gun:
From an overhead paint cup, the spray material ows through the gravity to the
paint nozzle. This in ow is supported by the suction effect of the compressed air.
5.c Suction cup gun:
The color is here in a hanging suction cup, into which a riser protrudes. The
atomizer air owing past the paint nozzle causes a vacuum, whereby the mate-
rial is sucked out of the container.
Control lever
Control lever
color quantity
regulating screw
color quantity
regulating
screw
