Acute2 manual Profoto, Stockholm, Sweden.

Warning

Profoto generators and lamp heads are parts of a complete

professional lighting system. Please read the instruction

manual carefully before use. Flash tubes and modelling

lamps emit considerable heat and may cause injury if not

handled properly.

Note, always unplug the lamp cable from the generator

before changing the modelling lamp or flash tube.

• Under no circumstances are generators or heads to be

opened.High voltage is inside the equipment.

• Do not touch hot metal parts.

• Do not obstruct ventilation

• Do not connect flash heads with the protective cap in place

When using the flash, do not place filters, diffusing mater-

ials, or any other obstructions directly onto the glass cover,

flash tube or modelling lamp.

Never position the light extremely close to people.

When mounting umbrellas, do not touch the flash tube or

modelling lamp with the metal shaft – risk of high voltage.

Never connect accessories of other brands without consult-

ing an authorised service station.

Service only to be performed by an authorised repair station!

Always use a grounded mains outlet.

Note! Under no circumstances is any part of the equipment

to be opened! The equipment is not user-serviceable and

there is dangerous high voltage inside!

Contents

Thanks! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

The Acute2 System Chart . . . . . . . . . . . . . . . . . . . . . . . 6

Acute2 head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Acute2 twin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

The flash heads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Acute2 head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Acute2 twin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Acute2 ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Brief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Energy distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Energy distribution Acute2 twin . . . . . . . . . . . . . . . . . . 20

Energy control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Gas generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . 26

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

The Acute2 system consists of the following products:

Generators:Acute2 1200, Acute2 2400

Heads: Acute2 head, Acute2 twin, Acute2 ring

All Profoto reflectors and accessories fit the Acute2 system.

Thanks for showing us your confidence by investing in an Acute2 system. For more than

three decades we have sought the perfect light. What pushes us is the conviction that we can

offer even the most demanding photographer yet better tools.

Before our products are shipped we have them pass an extensive and strict testing pro-

gram. We check that they pass the quality and capacity levels the most demanding photog-

raphers require. For this reason our flash equipment is the standard in most rental studios

in New York and Tokyo and the most rented flash all over the world. The system consists

of a variety of generators built and designed to meet the demands of the most demanding

photographers on this planet. Yet the most important thing is the light you create and it is

then essential that the system offers freedom to create your own light. The Acute2 heads in

particular offer you this possibility . The light source, both the flash tube and the modelling

light, is placed high and free in the flash head. This makes it easier for you to adjust the light

and use your creativity. The reflectors are moveable and lock easily into place. By moving

the position of the reflector you can get a higher or lower concentration of light in the center

or more of a flood light. This is not new, of course. Our flash heads have always been designed

that way. What is new, however, is our new glass cover, which is designed to increase preci-

sion. The Acute2 head and the Acute2 twin are supplied with a frosted and UV-coated cover

glass, which together with the flash tube, produce a colour temperature adapted to daylight

colour film. There are glass covers with varying filtration, for greater diversity.

The whole Acute2 system is modular. Every single reflector and accessory creates its

special light and the unique Profoto focusing system offers you a possibility to create your

own light with only a few different reflectors.

Thanks!

”A photographer’s tools are a natural part of the crea-

tive process. Like a painter’s brush, an artist’s chisel or

a musician’s instrument, their form and design should

reflect their function, they should have the right feel, and

they should be aesthetically pleasing”.

Profotos founders Eckhard Heine och Conny Dufgran,

At ”Photokina”,Cologne, Germany 1968

Acute 2

Acute2 1200 Acute2 2400

Acute2 Flash Extension Cable

Acute2 twin

Acute2 head

Softlight

Reflector Silver

Honeycomb

Grid

ProZoom

Pattern

Holder &

Pin Set

Iris

Diaphragm

Heat absorbing

filter Slide

holders

60x60 24x36

ProFocus

ProBox

White

Transparent Silver

5 and 7 foot

Reflector

Glass

Kit

ProGlobe

w/Chimera

Barn Doors

for ProFresnel

Softlight

Reflector white

ProGlobe

w/clips

ProFresnel

Adapter

Plate

Disc

Reflector

Narrow

Beam travel

Reflector

The Acute2 series

The system chart shows how the wide Profoto

line of accessories fit together with generators

and heads. Reflectors and heads can be combined

in a number of varieties. The common denomi-

nator is the lamp head diameter, which is the

base of the Profoto line of products. The lines

indicate the possible combinations that Profoto

equipment offers.

ProGas

Zoom Reflector

7”Grid Reflector

7”Grid

FilterHolder

40x40 cm

Filter

Cassette

5°, 10°&

20°Grid

Snoot

Grid & Filter

Holder

Barn Doors

Magnum Reflector

Pro Tube

10°Honey-

comb Grid

Close-up

Reflector

Softlight

Reflector

Power Cable

Acute2 ring

Narrow

Beam

Reflector

13”

Bell Reflector

Narrow

Beam travel

Reflector

BarnDoor

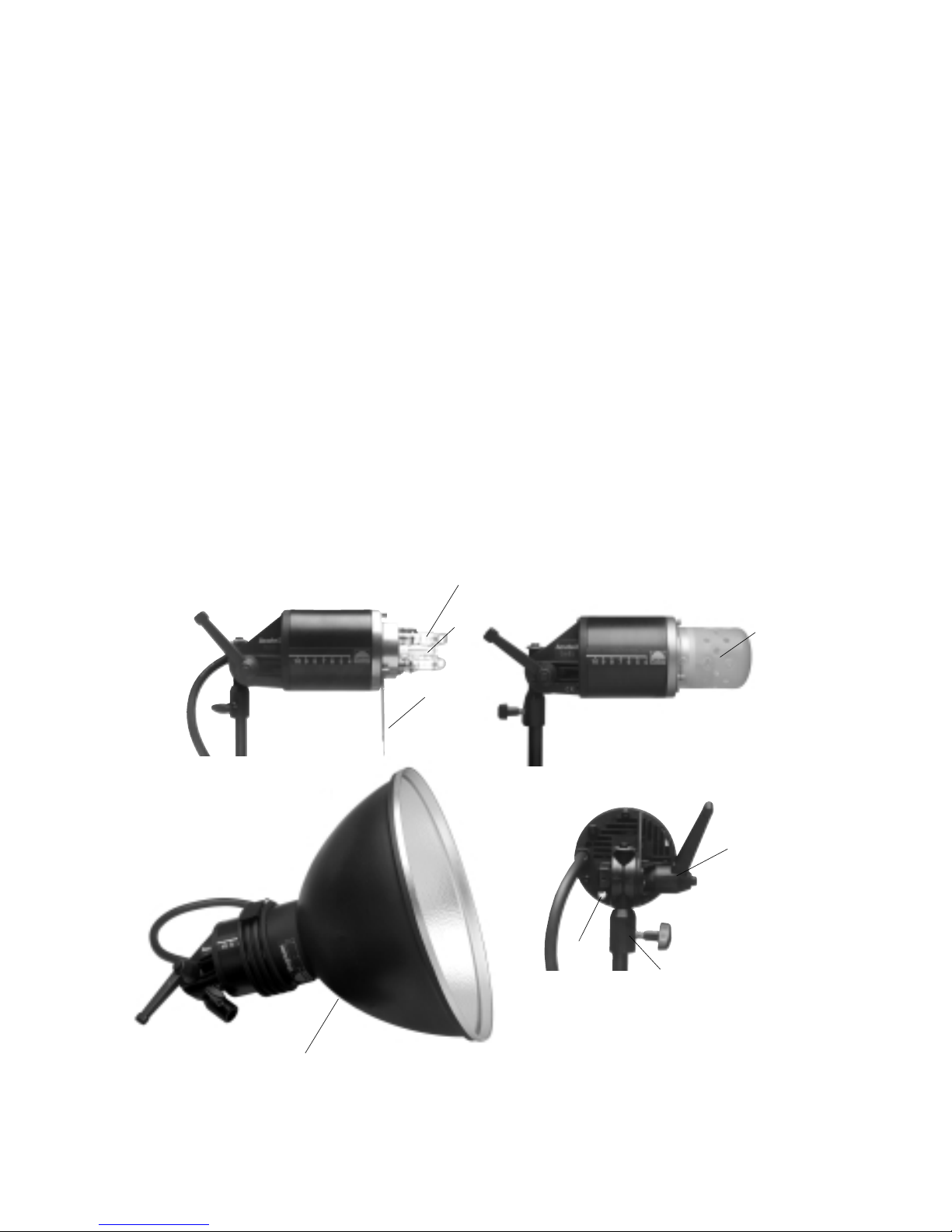

Acute2 head

1. UV reduced flash tube

2. Umbrella holder

3. Manoeuvre system with locking lever

4. Stand adapter 16mm (5/8")

5. Acute2 Glass Cover, frosted, UV-coated

6. Halogen modelling lamp, 250W, Mini-can E11 socket

7. Locking springs

8. Zoom reflector

Acute2 twin

1. UV reduced flash tubes

2. Umbrella holder

3. Manoeuvre system with locking lever

4. Stand adapter 16mm (5/8")

5. PB/Twin Glass Cover , frosted, UV-coated

6. Halogen modelling lamp, 500W, Mini-can E11 socket

7. Locking springs

8. Magnum Reflector

The flash heads

All Profoto lamp heads are designed for maximum light shap-

ing purposes. The light source (both the flash tube and the mod-

elling lamp) is mounted high and free in the flash head. This

makes it easier for you to adjust the light and use your creativity.

The flash head has a built in holder for the umbrella.

The reflectors lock easily into place and by moving the reflector

different types of light shaping is achieved. All Profoto reflec-

tors and accessories fit the Acute2 heads.

A UV-reduced quartz flash tube is included with all Acute2

heads. The flash tube has two metal pins. When removing a

flash tube, pull it straight out of the sockets. When inserting

a new flash tube, check that the trigger wire clasps properly

around the flash tube (please see mounting instructions in pack-

age).

In case the head overheats the modelling light automatically

switches off. When the temperature has dropped sufficiently the

modelling light will switch on again.

NOTE!

Always unplug the lamp cable from the generator before chang-

ing modelling lamp or flash tube.
