TY-05-30 / TY-05-40 / TY-05-50
User Manual
Page 2
Page 3
Page 3
Caution/Liability
Dimensions in Inches
Specifications
Electronics Hardware
Assembly Instructions
Page 4
Contents
Page 5-7
Caution
Liability
2
Make sure no obstacles are in the lift's path.
Make sure the lift is not touching any walls.
Make sure all cords are appropriate length to
accommodate the change in height.
Keep children away from electric TV lift, control units and remotes.
There is a risk of injury and electric shock
Keep all electrical components away from liquids.
Do not sit or stand on the TV lift.
Do not crawl or lie under the TV lift.
Do not open any of the components - the linear actuator, control box or remote.
There is a danger of electric shock.
This product is designed with a duty cycle of 10%
(2 min. on, 18 min. off).
The height adjustable TV lift contains electric motors and is designed for dry areas only.
The TV lift is adjustable so that it can be positioned at the most ergonomically suitable height.
Any other use is at user's risk.
Under no circumstances does the manufacturer accept warranty claims or liability claims for
damages caused from improper use or handling of the TV lift.

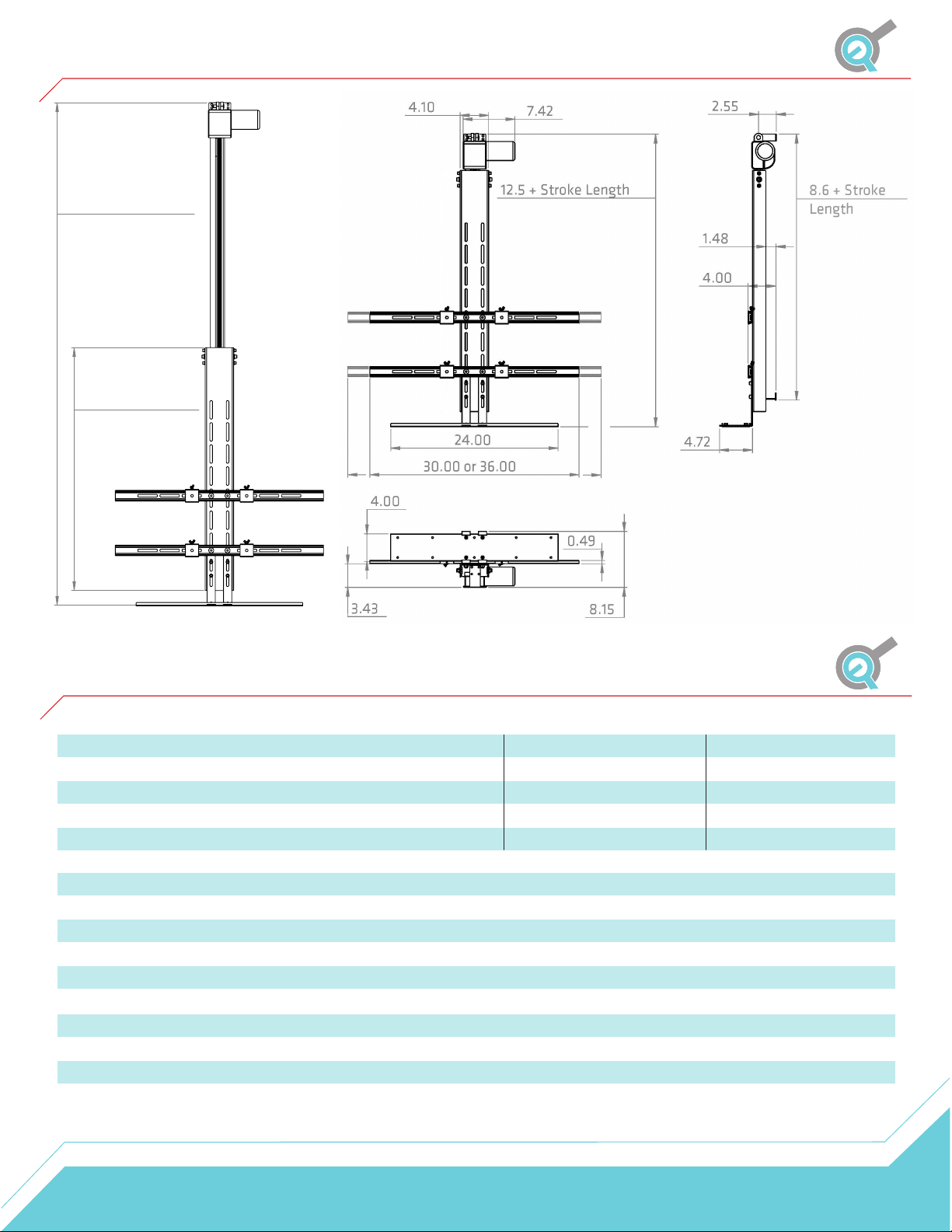

Dimensions in Inches
3
Specifications
12.5 + Stroke Length
+ Stroke Length
Dynamic Load
TV Maximum Height:
Wall Mount Measurements:
Speed at Full Load:
Output Voltage:
Weight:
Overload Protection:
Duty Cycle:
IP Grade:
Operational Temperature:
Certification:
Control Options:
30" Stroke = 30" Tall
700mm x 500mm
110 - 220 VAC
30"
25.5 lbs
Fused
10% (2 minutes on, 18 minutes off)
Built-in, non-adjustable and externally mounting
IP20
CE and RoHS
Wired and wireless
Limit Switch:
-26ºC to +65ºC (-15ºF to 150ºF)
TY-05-30 TY-05-40
140 lbs
0.9"/sec
40" Stroke = 40" Tall
700mm x 700mm
Input Voltage:
Stroke Length: 40"
24VDC
38.5 lbs
Model:
35" for a 30" stroke
45" for a 40" stroke
TY-05-50
50" Stroke = 50" Tall
700mm x 1200mm
50"
40.3lbs
4

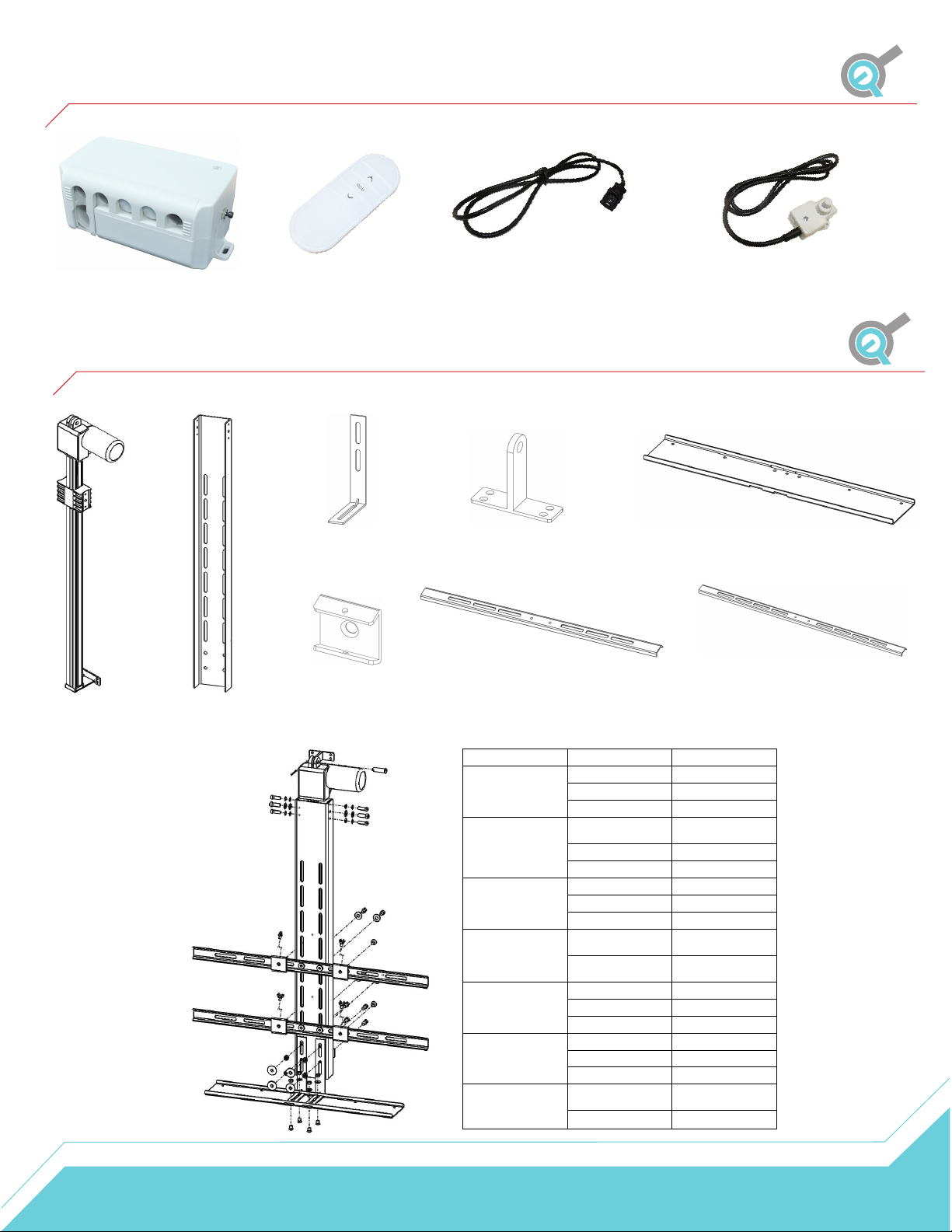

Electronics
Hardware
Rocker Switch (Wire 35")
x 1
External Limit Switch (Wire 60")
x 1
Track Linear Actuator
x 1
Support Column
x 1
Ceiling Cover Brackets
x 2
Actuator Mounting Bracket
x 1
TV Mounting Brackets
x 4
Ceiling Cover
x 1
TV Support Arms 30"
x 2
TV Support Arms 36"
x 2
Purpose Name Quantity
P1 Ceiling Cover
Brackets
Hex Bolt M8x18
4
Nut M8
4
Flat Washer M8
4
P2 Ceiling Cover
Brackets
Phillips Countersunk
Screw M5x12
4
Nut M5
4
Flat Washer M5
4
P3 TV Support Arm Hex Bolt M8x12
4
Nut M8 (spare parts)
4
Flat Washer M8
4
P4 TV Mounting Bracket Thumb Screw M5
4
Phillips Countersunk
Screw M8x12
4
P5 Support Column
(middle)
Hex Bolt M10x25
2
Locking Washer M10
2
Flat Washer M10
2
Hex Bolt M6x25
4
Locking Washer M6
4
Flat Washer M6
4
P6 Actuator Mounting
Bracket Clevis Pin
1
Cotter Pin 1
P5 Support Column
(outside)
Control Box
x 1
Wireless Remote
x 1
5

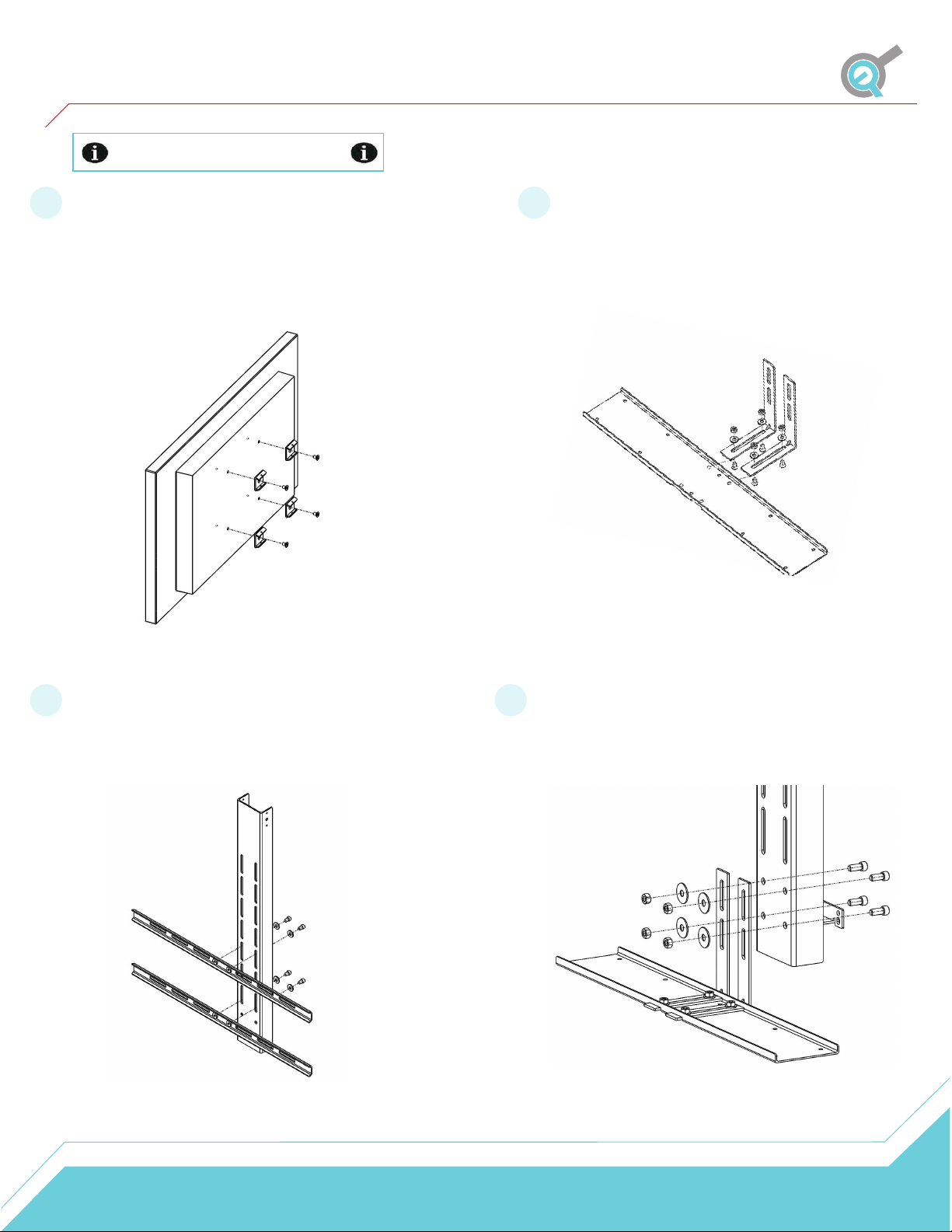

Assembly Instructions
Use the four M8x12 Phillips Countersunk Screws
from bag P4 to mount the TV Mounting Brackets to
the back of your television. Please be aware that
the supplied screws may not fit your television.
Ensure that you have the appropriate TV mounting
screws before continuing. Tighten until secure.
Use the four M8x12 bolts, nuts and washers
from bag P3 to attach TV Support Arms to the
Support Column. Either the 30” or 36” TV
Support Arm can be used depending on which
width suits the installed TV. Tighten until secure.
Use the four M8x18 bolts, nuts and washers from bag P1
to mount the assembled Ceiling Cover to the Support
Column. Tighten until secure.
4
1
2
Use the four M5x12 screws, nuts and washers
from bag P2 to attach the Ceiling Cover to the
Ceiling Cover Brackets. Tighten until secure.
3
4
Tools needed: philips screwdriver, 5mm allen key,
6mm allen key, 8mm allen key, 8mm socket, 13mm
socket

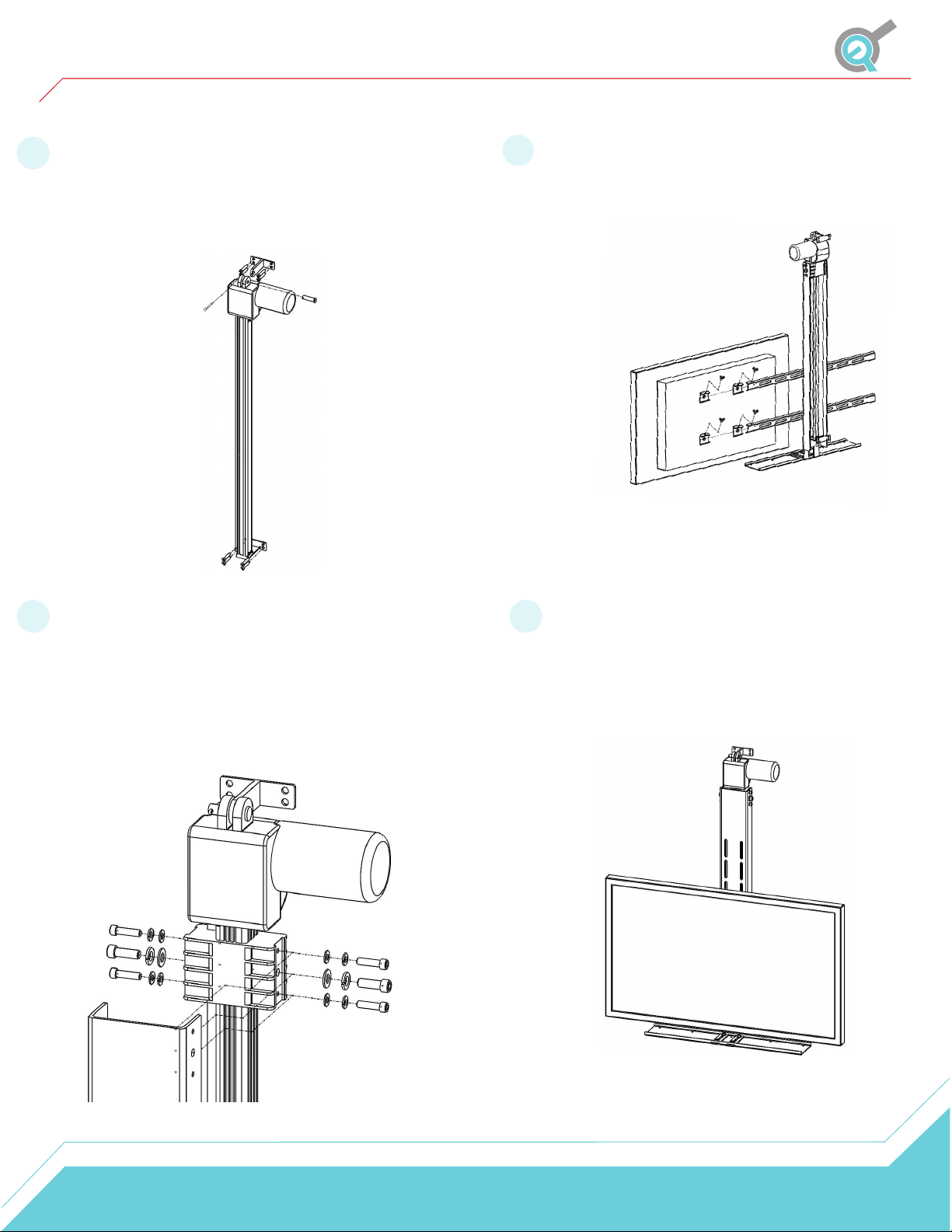

Assembly Instructions
6
Use the Actuator Mount Bracket, Clevis Pin and Cotter Pin
from bag P6 to mount the top portion of the Track Linear
Actuator to your installation. The bottom portion comes with an
attached bracket for installation. The wood screws shown in the
diagram are not included. Tighten until secure.
Now that your Drop Down TV Lift is assembled you can attach
your TV Mounting Brackets to the TV Support Arms using the
four M8x12 screws. Tighten until secure.
7
Your Drop Down TV Lift is now fully assembled and ready for
use.
5
For this step we recommend having at least two peope. From
bag P6, use the four M6x25 bolts and washers for the smaller
holes on the outside and the two M10x25 bolts and washers for
the middle holes to mount the assembled Support Column to
the Track Linear Actuator. Install all of the bolts before
tightening to ensure proper alignment.
68
Assembly Instructions
7
Please keep in mind this procedure is completely optional
and does not need to be set up in order for the TV Lift to
operate. The external limit switch stops the lift from moving
once it is pressed. Please note that the external limit switch
will only operate in the extending direction.
Install the switch in a way that it will be pressed while the
lift is moving up and right before the ceiling cover touches
the ceiling.

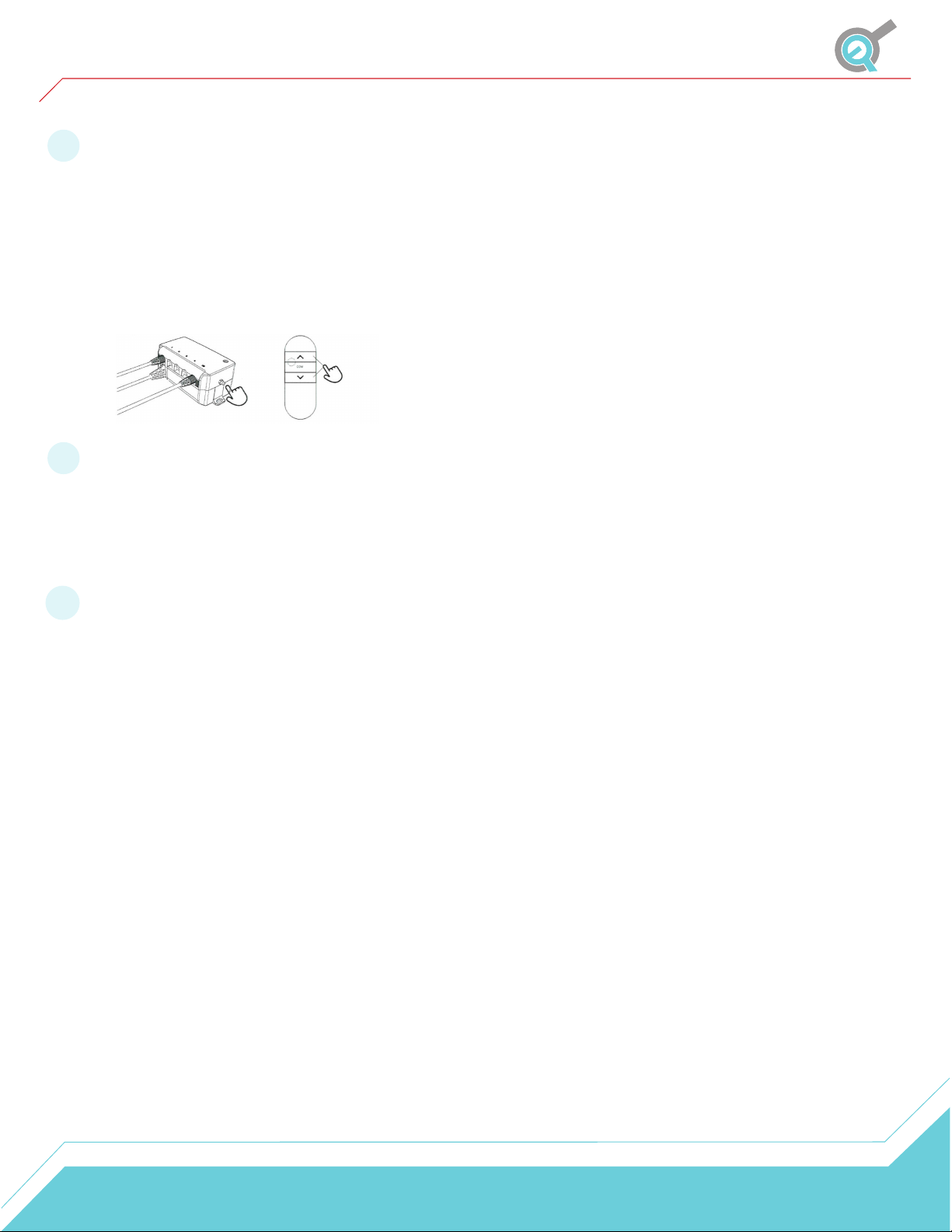

Pairing the Wireless Remote
Changing Travel Functionality
To change the wireless remotes travel function from
Momentary to Non-Momentary, hold the COM button for
approximately 10 seconds.
9
10
Pairing the wireless remote is required before use.
•Press and hold the UP and DOWN buttons on the wireless
remote while simultaneously pressing the button on the
side of the control box for 10 seconds.
The TV lift will raise after the remote pairing has been completed.
11 External Limit Switch
