ProKlima Split 900 FLAT EQ C+H Bedienungsanleitung
tOperating Instructions for the
Indoor and Outdoor Device
Split-system Air Conditioner
Important note:
This high-quality product will only offer
optimum service if installed correctly and in
the right place, and is put into operation for
the first time by a suitably competent person.
Avoid malfunctions by seeking competent
advice from an expert with regards to the
location, installation and starting up of the
system.
We shall accept no liability for malfunctions
or inadequate cooling performance resulting
from the improper handling of the product.
The socket-outlet required to supply power
must be connected and commissioned by a
specialist contractor.
If the system is to be moved to another
location or disposed of, only a suitably
qualified electricianʼs/cooling system firm is
permitted to undertake any work of
disassembly or disposal.
Art.-Nr.: 23.658.20 I.-Nr.: 01017
Art.-Nr.: 23.658.21 I.-Nr.: 01017
Split 900 FLAT EQ C+H
Split 1200 FLAT EQ C+H
Anleitung_SPLIT_900-1200_E+Q_C_H_GB:_ 18.01.2008 7:26 Uhr Seite 1
2 3
1BAC
I
H
J
F
L
M
N
E
2
1/3
2
3
7/8
9
5/6
4
1
O
P
Q
K
G
D
2
Anleitung_SPLIT_900-1200_E+Q_C_H_GB:_ 18.01.2008 7:26 Uhr Seite 2

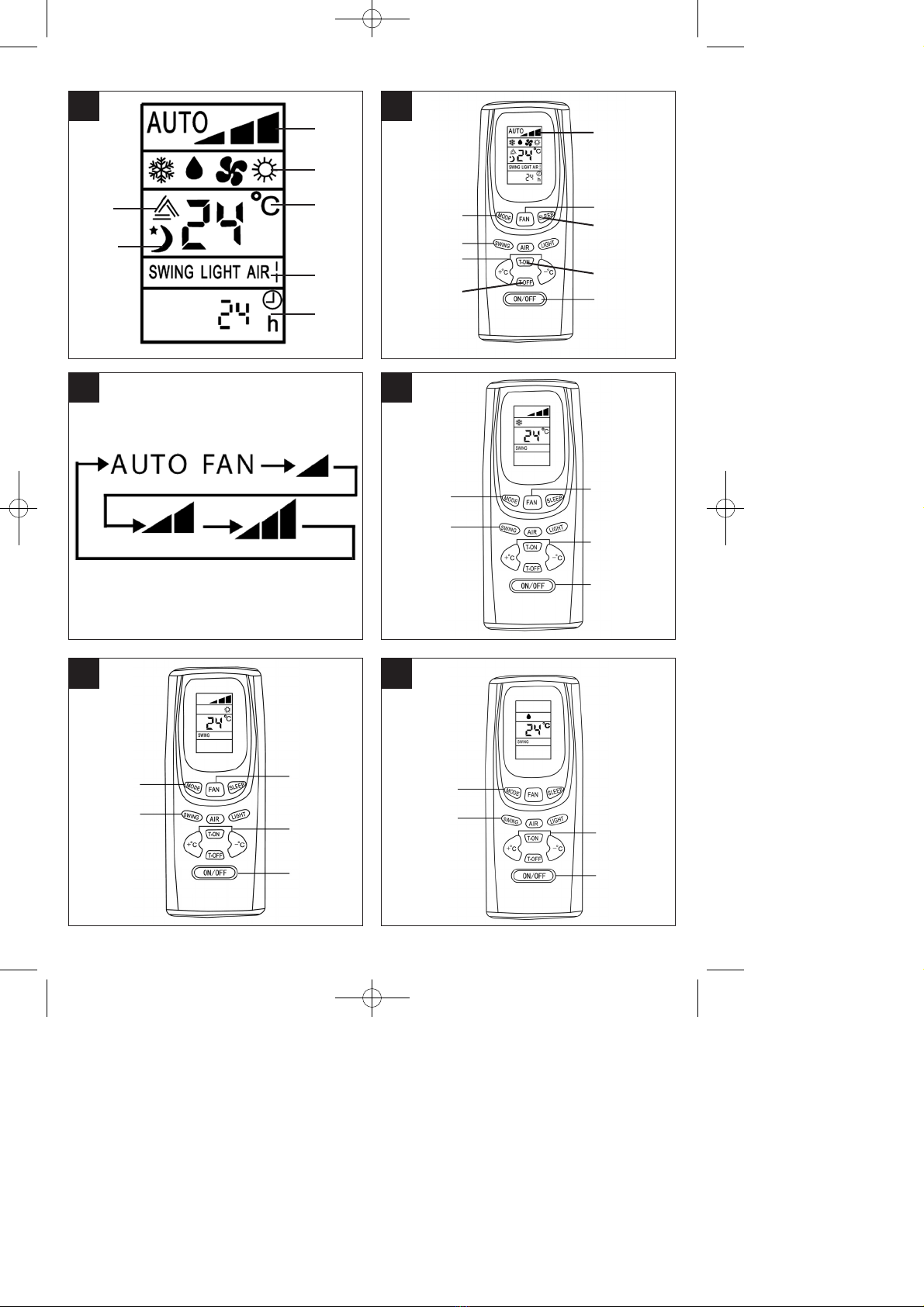

5
8
7
9
1
1
2
3
2
3
6
4
7
9
8
5
4
1
2
3
4
5
1
2
3
4
5
4
6
1
2
3
5
6
4
2
3
Anleitung_SPLIT_900-1200_E+Q_C_H_GB:_ 18.01.2008 7:26 Uhr Seite 3
10 11
12 13
A
1
23
2
1
1
2
3
4
5
6
4
Anleitung_SPLIT_900-1200_E+Q_C_H_GB:_ 18.01.2008 7:26 Uhr Seite 4
16
15
Ø 90 Ø 90
> 15 cm
> 15 cm
> 300 cm
> 230 cm
> 15 cm
> 50 cm
> 30 cm
> 30 cm
> 50 cm
> 200 cm
14
17 18
AB
5
Anleitung_SPLIT_900-1200_E+Q_C_H_GB:_ 18.01.2008 7:26 Uhr Seite 5
22
20
21
2423
19
B
1
F
E
D
A
2
6
Anleitung_SPLIT_900-1200_E+Q_C_H_GB:_ 18.01.2008 7:26 Uhr Seite 6
2625
27
A
A
G
7
Anleitung_SPLIT_900-1200_E+Q_C_H_GB:_ 18.01.2008 7:26 Uhr Seite 7
Table of contents
1. Safety instructions
2. Items supplied
3. Technical data
4. Intended use
5. Description of parts
6. Setting up the remote control
7. Functional description of the remote control
8. Indoor device settings
9. Cleaning notes
10. General notes
11. Troubleshooting
12. Installation accessories
13. Installation instructions
14. Ordering replacements parts
8
GB
Anleitung_SPLIT_900-1200_E+Q_C_H_GB:_ 18.01.2008 7:26 Uhr Seite 8
Important!
When using the equipment, a few safety precautions
must be observed to avoid injuries and damage.
Please read the complete operating instructions and
safety regulations with due care. Keep this manual in
a safe place, so that the information is available at all
times. If you give the equipment to any other person,
hand over these operating instructions and safety
regulations as well. We cannot accept any liability for
damage or accidents which arise due to a failure to
follow these instructions and the safety instructions.
1. Safety instructions
앬Read the safety instructions before you start to
use the device.
앬These points set out extremely important
precautionary measures that you must comply
with.
앬Keep the Operating Instructions in a safe place
once you have read them.
앬Check that the drainage line is correctly
connected. If not, water will escape.
앬Warning!
Do not extend the cable and never use multiple
plugs. A poor electrical connection, poor
insulation or voltage which is higher than
permitted can cause fire.
앬Remove all dirt from the power plug and plug
it in firmly. Soiled plugs can cause fire or an
electric shock.
앬Warning!
앬Never pull out the plug while the device is in use.
앬Never permit cool air to be blown directly at you
for any lengthy period of time.
앬In the event of any abnormalities (e.g. smell of
burning), immediately switch off the device and
pull the plug. Contact your service partner.
앬Never poke fingers or sticks in the air inlet and
outlet vents.
앬Never attempt to repair the air conditioner
yourself. Always contact your service partner if it
requires repair.
앬Never pull the plug out by pulling on the cable.
Hold the plug firmly and pull it out of the plug
socket, otherwise there is a risk of damaging the
cable.
앬Always switch off the device and pull the plug
before you start to clean it.
앬Never actuate any switches with wet hands.
앬Never clean the air conditioner with water.
앬Never place any plants or animals under a
location to which cool air flows as this could have
an undesirable affect on them.
앬Never use combustible cleaning agents as these
could cause a fire or deformation.
앬If the air conditioner is to be used in conjunction
with other heaters, the air should be refreshed
periodically, otherwise there is a risk of lack of
oxygen.
앬Never use the device for any other purpose than
the intended use. Never place food, precision
instruments, plants, animals, paint, etc. on the
device.
앬Never hold any burning objects close to the
device if they could be directly affected by the
emitted air.
앬Always pull out the power plug if the device is not
going to be used for any lengthy period of time.
Collections of dust can cause fire.
앬Never step onto the outdoor device and never
place anything on it.
앬Never use an unsteady or rusty base.
앬Never allow the device to run for too long with the
doors or windows open, or if the humidity is very
high. If the air conditioner runs for a long time in
cooling mode and the humidity is high (over
80%), condensed water may drip out of the
device.
앬Never stand on an unsteady base when you
remove the device from the holder on the wall.
앬Check that the condensation water can run off
unhindered. Water damage can result if the
condensation water cannot run off properly.
앬Never touch any metal parts on the indoor device
when removing the air filter. You may injure
yourself.
앬Never install the device in a room in which
combustible gases can be emitted. Emitted
gases may collect and cause an explosion.
앬Always switch off the device and pull out the
power plug during a storm. Electrical parts may
get damaged.
앬Earthing connection!
The power cable (plug) comes with an earthing
wire. Do not, therefore, change the plug.
앬For electrical safety purposes we recommend
that you install an earth-leakage circuit-breaker.
앬Leave the electrical installation of the 230 V
socket for the system to an authorized electrical
contractor. Incorrect installation can lead to injury
or damage to property.
앬If you are not confident in being able to assemble
the system, ask our customer service team or a
refrigeration contractor of your choice to do the
refrigeration part of the installation work. Incorrect
installation can lead to injury or damage to
property.
앬Incorrect installation may cause injury or damage
to the device.
9
GB
Anleitung_SPLIT_900-1200_E+Q_C_H_GB:_ 18.01.2008 7:26 Uhr Seite 9
앬Check the mains lead at regular intervals for
signs of defects or damage. A damaged mains
lead may only be replaced by an electrician or
ISC GmbH in compliance with the relevant
regulations.
앬The equipment is not designed for installation in
laundries.
앬The equipment must be positioned in such a way
that the mains plug is accessible at all times.
앬The temperature in the cooling circuit may
become very hot. For this reason keep all cables
away from the copper lines.
CAUTION!
Read all safety regulations and instructions.
Any errors made in following the safety regulations
and instructions may result in an electric shock, fire
and/or serious injury.
Keep all safety regulations and instructions in a
safe place for future use.
Packaging:
The unit is supplied in packaging to prevent it from
being damaged in transit. The raw materials in this
packaging can be reused or recycled.
Tips on saving energy
Only use the air conditioner when you really need to.
Do not select too high a temperature for heating or
too low a temperature for cooling. Select the “Sleep”
function during the night.
Close all windows, doors and Venetian blinds in
order to reduce incoming sunlight as far as possible.
Principle of operation for cooling
Heat is extracted from the air in the room by the air
heat-exchanger (evaporator) in which the coolant
circulates. This air is conveyed to the outside air
heat-exchanger (condenser).
This gives off heat to the outdoor air. Electrical
energy is required for this. In certain circumstances
condensation may form on the evaporator on the
indoor unit, which will be removed by the
condensation hose.
2. Items supplied
Split 900 Flat EQ C+H
1 indoor device (box 1, art. no. 23.654.54)
1 outdoor device (box 2, art. no. 23.654.55)
1 set of installation accessories (for details, see page
16)
Split 1200 Flat EQ C+H
1 indoor device (box 1, art. no. 23.654.56)
1 outdoor device (box 2, art. no. 23.654.57)
1 set of installation accessories (for details, see page
16)
3. Technical data
Split 900 Flat EQ C+H
Cooling capacity 2600 watts
Heating capacity 2800 watts
Energy efficiency A (EER 3.25/COP 3.26)
Air capacity 450 m3/h
Absorbed humidity (30°C/80% RH) 1.0 l/h
Timer 24 h
Operating voltage 230 V ~ 50 Hz
Socket fusing 10 A
Nominal power consumption, cooling 960 watts
Nominal current consumption, cooling 4.17 A
Nominal power consumption, heating 1120 watts
Nominal current consumption, heating 4.87 A
Compressor Rotary piston
Compressor starting current 17 A
Outdoor operating temperature 0 - +43 °C
Indoor operating temperature +16 - + 30°C
Fluid line Ø A 6.35 mm
Suction pipe Ø A 12.7 mm
Length of refrigerant line supplied 4 m
Length of refrigerant line, max. 10 m
Max. difference in height between indoor/outdoor
device 5 m
Refrigerant R 410 A
Refrigerant filling capacity 1100 g
Refrigerant refill quantity from 5 m 20 g/m
Sound pressure level
Inside ≤ 38 dB (A)
Outside ≤ 53 dB (A)
Dimension Inside 100,5 x 29 x 15 cm
Dimension Outside 84,8 x 54 x 32 cm
Weight Inside 16 kg
Weight Outside 40 kg
Split 1200 Flat EQ C+H
Cooling capacity 3500 watts
Heating capacity 3700 watts
Energy efficiency A (EER 3.21/COP 3.30)
