32" SOUND BAR SPEAKER

USER MANUAL

Model:PSB322

PLEASE READ BEFORE OPERATING THIS EQUIPMENT.

SAFETY INSTRUCTIONS

1.Read these instructions.

2.Keep these instructions.

3.Heed all warnings.

4.Follow all instructions.

5.Do not use this apparatus near water.

6.Clean only with a slightly damp cloth.

7.Do not block any ventilation openings.

8.Install in accordance with the manufacturer’s instructions.

9.Do not install or operate near any heat sources such as radiators,stoves,or other apparatus

that produce heat

10.Unplug this apparatus during lightning storms or when unused for long periods of time.

11.Servicing is required when the apparatus has been damaged in any way, such as the

power-supply cord or plug is damaged,liquid hasbeenspilledorobjectshavefallenintotheapparatus,

the apparatus has normally, or has been dropped.

Warning:

Do not expose this product to rain or moisture. The product must not be exposed to dripping

splashing and no object filled with liquids should be placed on the product.

Caution:

Changes or modifications not expressly approved by the manufacturer could void the user’s

authority to operate this device.

Caution:

Usage of controls or adjustments or herein may result in hazardous exposure.

Refer all servicing to qualified service personnel.

Caution:

To reduce the risk of fire or electrical shock.No fire sources such as candles should be

placed on the products.

MOUNTING

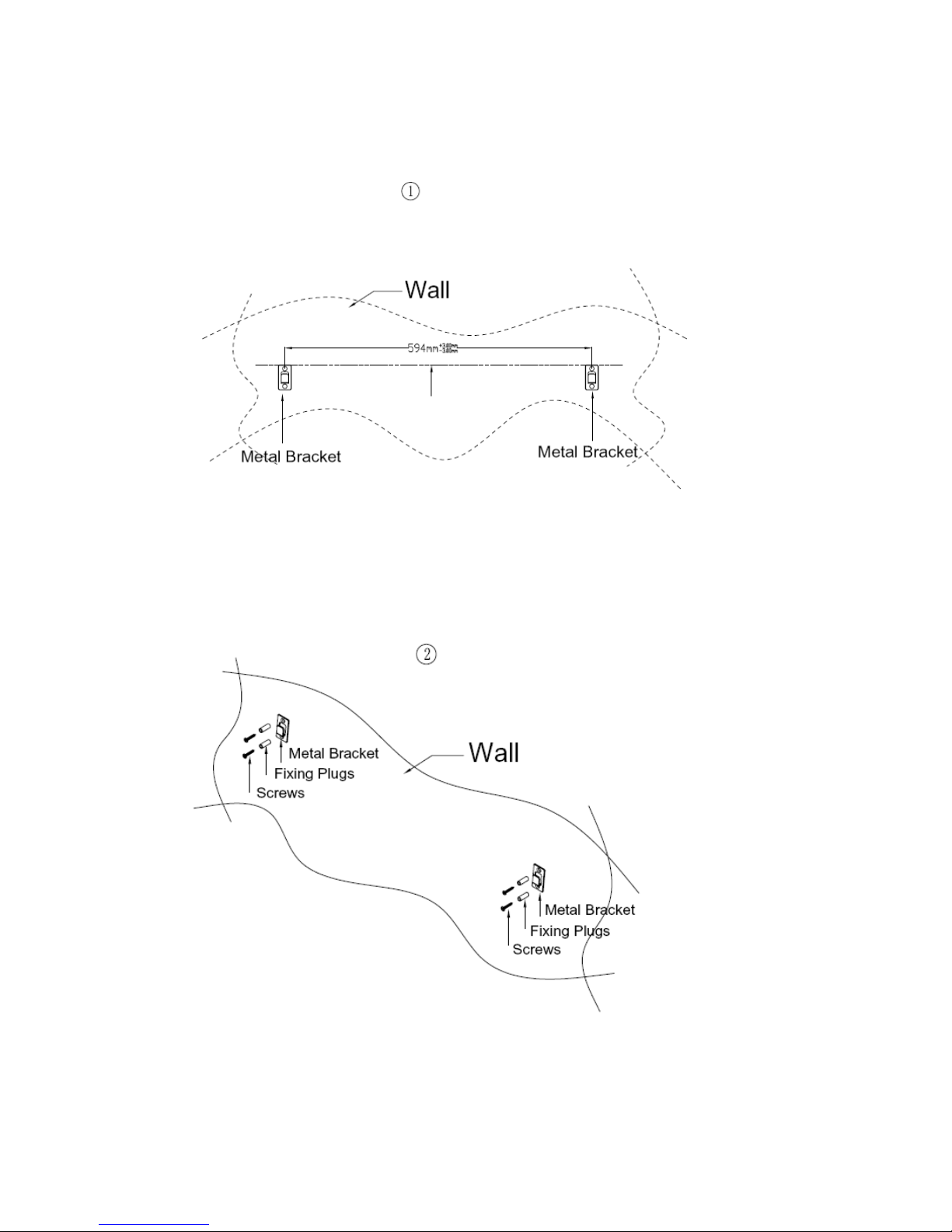

1. Follow the figure 1 above to determine the positions where the screws should be mounted.

Make sure the two brackets are mounted in the same level.

2. Insert the fixing plugs into the screw holes and insert screws to fix the metal bracket onto the

wall.

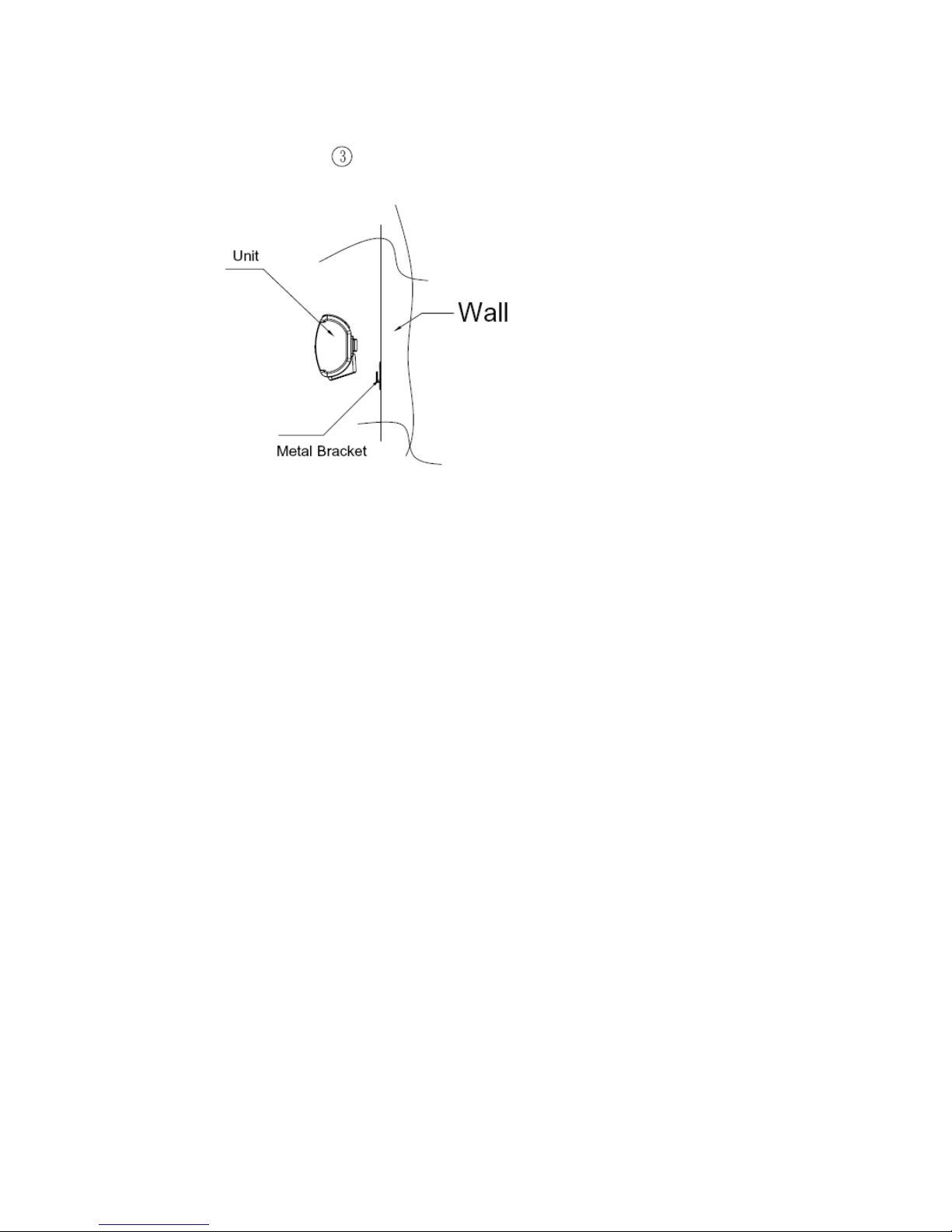

3. Hang the unit on the wall

Note:

The gap between the metal bracket and plastic mounting holder on the rear of the unit is designed

for simple mounting, which will make the unit movable.

PRODUCT OVERVIEW

Front View

1. LCD Display 6. Remote Sensor

3. Tune- Button 8. Volume- Button

4. Tune+ Button 9. Speakers

Rear View

TUN- TUN+

VOL- VOL+

AUX IN 1

MODE

TUN- TUN+

VOL- VOL+

AUX IN 1

MODE

2. Standby/MODE Button

JackIN1

ANT

AUX 2

AUX IN2

DC IN

A1212090750000001

S/N:A1 2 1 2 0 9 0 7 5 0 0 0 0 0 0 0 1

10 11 11 12

ANT

AUX 2

AUX IN 2

DC IN

12.FM Antenna11.RCA Audio Input Jacks

10.DC IN Jack

5. AUX

Button7. Volume+

Remote Control

4. TUNE-Button 9. TREBLE- Button 15. Play/Pause Button

BATTERY INSTALLATION

- Before installation

Remove and discard the insulation tab.

-Replace battery for the remote control

1. Push and slide out the battery holder as Figure 1 below.

2. Replace the battery with a new CR2025 button cell with the polarity (+) side upward.

3. Slide into the battery holder.

Battery precautions

• Never recharge the batteries, apply heat to them or take them apart.

• Battery shall not be exposed to excessive heat such as sunshine, ire or the like.

• Do not throw the batteries in ire!

• Attention should be drawn to the environmental aspects of battery disposal.

• If the remote control is not going to be used for a long time, remove the battery

to avoid damage caused by battery leakage corrosion.

7VOL+

FM SCAN

TUN-

M+ EQ

VOL-

BASS- BASS+

TREBLE-

TREBLE+

TUN+

CLOCK

MO/ST

MODE

Button on Button6. EQ Butt1.MODE

2. Standby Button 7. VOL-(Volume-) Button 13. VOL+ (Volume+) Button

5. M+(Memory+) Button 10. Mute Button 16. TREBLE+ Button

11. TUNE+ Button

12. CLOCK/MO/ST

3. FM SCAN Button 8. BASS- Button 14. BASS+ Button

POWER CONTROL

- To turn the unit on

·Press STANDBY button to turn on the unit.

- To turn the unit off

·Press STANDBY button on the remote control or hold STANDBY button in the front of the unit.

NOTE:

If the unit is not used for a long period of time, disconnect the power adapter.

TIME SETTING

1. Place the unit to standby mode.

2. Hold CLOCK/MO/ST button on the remote control until the hour digit flashes.

3.Then press TUNE+ or TUNE- button on the unit or remote control to adjust the hour.

4. Press CLOCK/MO/ST button on the remote control to confirm the hour setting and the minute

digit will flash.

5. Then press TUNE+ or TUNE- button on the unit or remote control to adjust the minute.

6. Press CLOCK/MO/ST button on the remote control to confirm the minute setting.

FM RADIO

display.

- Search and store the stations

1. Hold TUNE+ or TUNE- button to search stations forward or backward. The unit will stop if a

station is found. Then press FM SCAN button, “CH XX” will flash and then use M+ button to

select the place you want the station stored to. Press FM SCAN button to confirm. Or

2. Hold FM SCAN button then release the unit will search and store the stations automatically.

- Listen to the preset stations

PressM+buttonrepeatedlytoselectthedesiredpresetstationstolistento.

NOTE:

If the received FM stations are in stereo mode, the unit will play in stereo mode automatically.If

reception is weak, press the CLOCK/MO/ST button to turn the unit to mono mode. Press again to

turn to stereo mode again.

MODE

Power on the unit and press button repeatedly until the FM frequency appears on the

Connect the supplied power adapter.

AUX IN

- AUX IN source may include:

·Personal audio players

·Personal computers or laptops

- AUX IN connection:

1. Connect a stereo 3.5mm jack cable (supplied) between the headphone or LINE/Audio output of

Set your personal audio player/computer to play.

NOTE: If there is no sound or if the volume is not loud enough, you may increase the setting on

the source.

- During playback

·Press MUTE button to turn off the sound. Press again to resume the sound.

·Press VOLUME+/- buttons to adjust the volume level.

·Press BASS+/- buttons to adjust bass level.

·Press TREBLE+/-buttons to adjust treble level.

·Press EQ button to switch between POP/JAZZ/CLASSIC/ROCK/NORMAL.

MODE2.Power on the unit and press button repeatedly until "AUX1" appears on the display.

POWER

RESET

Computer

MP3

Supplied audio

connection cable To AUX IN 1 Jack

Connect to the output

socket of external

audio devices (MP3,

Computer,ext.)

on the unit

TUN- TU N+

VOL- VO L+

AUX IN 1

MODE

the personal audio player and the jack on the front of the unit.AUX IN1

·TV/DVD/VCR

1. Connect the RCA audio cable (supplied) to the audio output jack on DVD player and AUX IN

NOTE:

- During playback

·Press MUTE button to turn off the sound. Press again to resume the sound.

·Press VOLUME+/- buttons to adjust the volume level.

·Press BASS+/- buttons to adjust bass level.

·Press TREBLE+/-buttons to adjust treble level.

·Press EQ button to switch between POP/JAZZ/CLASSIC/ROCK/NORMAL.

RCA AUX IN

-RCA AUX IN sources may include

-RCA AUX IN connection

2. Press MODE button repeatedly until or

appears on the display.

AUX IN1 jack in the front of the unit.

AUX 2

AUX IN2

AUX 2

White

Red

or jack on the rear of the unit.

BeforeAUX IN 2 connection, make sure theAUX IN cable is not inserted into the

AUX 2

"AUX1" (for connection) (forAUX "AUX 2" AUX 2IN 2

connection)

BLUETOOTH

- Paring:

2. Turn off the Bluetooth functionality of other devices that are paired with your unit.

3. Turn on Bluetooth functionality on your Bluetooth device. Typically, Bluetooth controls are

found on the device’s tools or settings menu (see your user manual).Turn on Bluetooth

connectivity and make your device “discoverable”.

4. Clean out the paring list on your Bluetooth device.

5. Choose “add a new Bluetooth device”or “setup Bluetooth device”on your device. It will start to

please enter 0000. If the pairing attempt fails or times out, please start pairing procedure again.

”

- During playback:

Make sure the Bluetooth connection between the unit and the device is activated.

·Press PLAY/PAUSE button to suspend momentarily the playing track. Press again to resume

playing.

·PressTUNE+buttontoskipforwardtothenexttrackandTUNE-buttontoskipbackwardtothe

previous track.

·Press MUTE button to turn off the sound. Press again to resume the sound.

·Press VOLUME+/- buttons to adjust the volume level.

·Press BASS+/- buttons to adjust bass level.

·Press TREBLE+/-buttons to adjust treble level.

·Press EQ button to switch between POP/JAZZ/CLASSIC/ROCK/NORMAL.

1.Press MODE button repeatedly until "BT" appears on the display.

search. Once “PSB322” shows on your device, select it. If your device prompts you for a pass code,

6. After your device and the “PSB322 have connected each other “Du” sound can be heard., a
