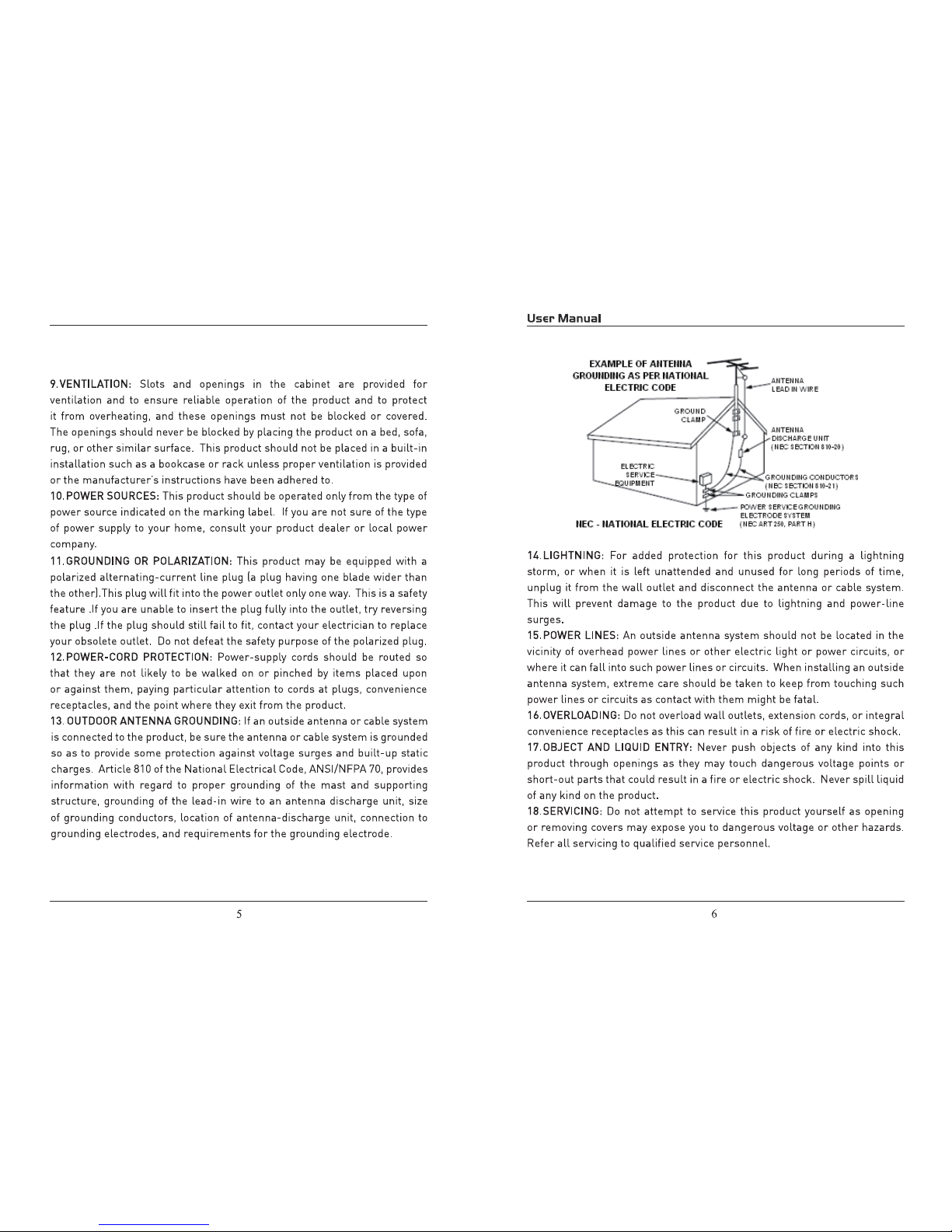

TV Base Stand assemble

3.2. Audio/Video Source Selection

3.1. Initial Installation

3.3. DTV Mode Operations

SETTINGS

PC Mode

Initial Setup

4.1.Customizing the PICTUERE Settings

4.2.Customizing the Audio Settings

4.3.Customizing theTIME Settings

4.4.Customizing the SETUP Settings

4.5.Customizing the Patental Settings

4.6.Customizing the TV Settings

TV Base Stand assemble

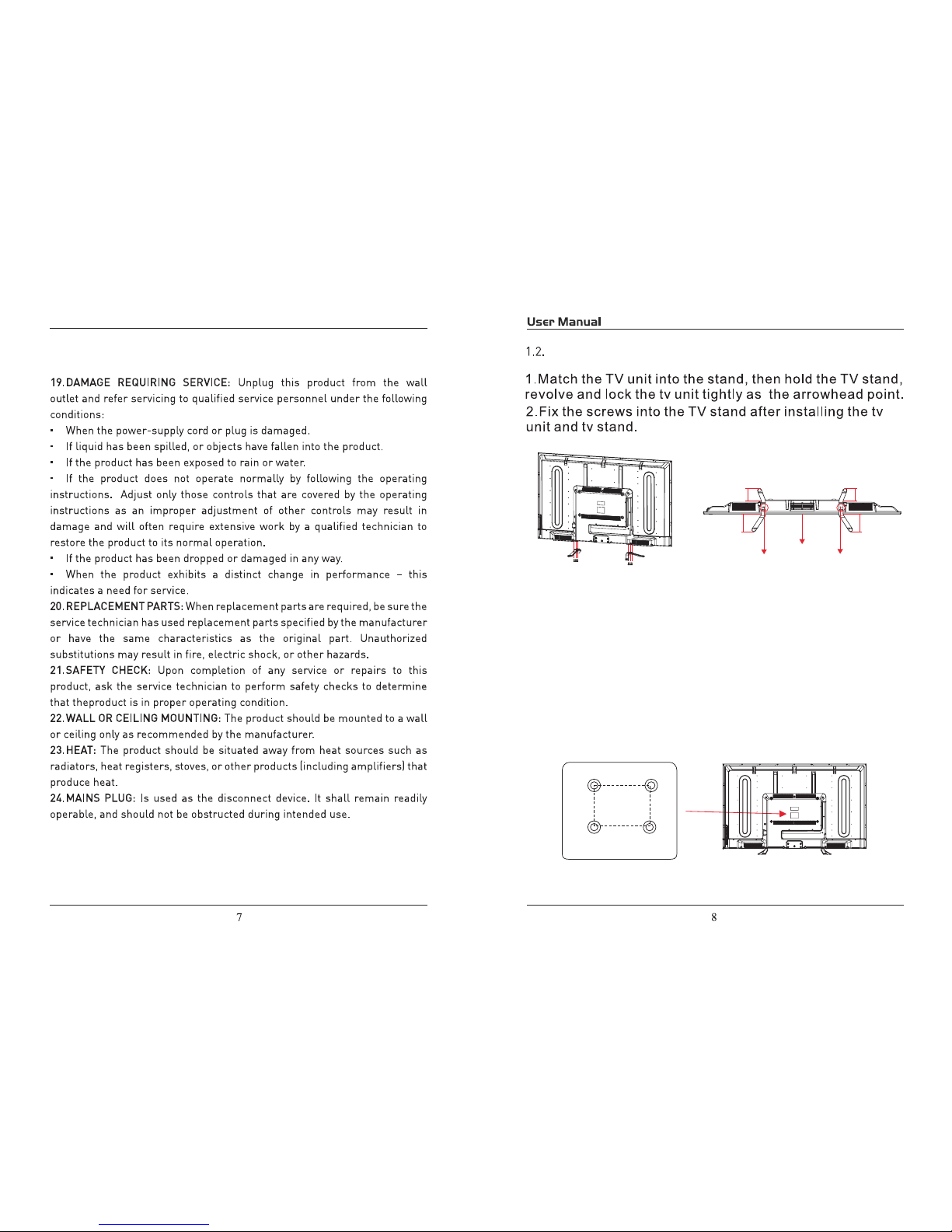

3.Mounting on the wall

This unit is VESA-complian,and is designed to be wall-mounted

with a VESA-compliant 15.75"x7.87"(400mmx200mm)mounting kit

designde for flat-panel TVs(not supplied).Mount this unit according

to the instructions included in the monting kit. Length of screw should

not exceed 12 mm

NOTE

Remove the base stand before mounting the unit on the wall.

6 Screws (23BMH)

Long

Short

Long

Short

Panel side

Four mounting holes

(size M6 screw)

400mm

200mm

AUDIO OUT: Output

Audio L / R (left / right)

1. USB (For Service)

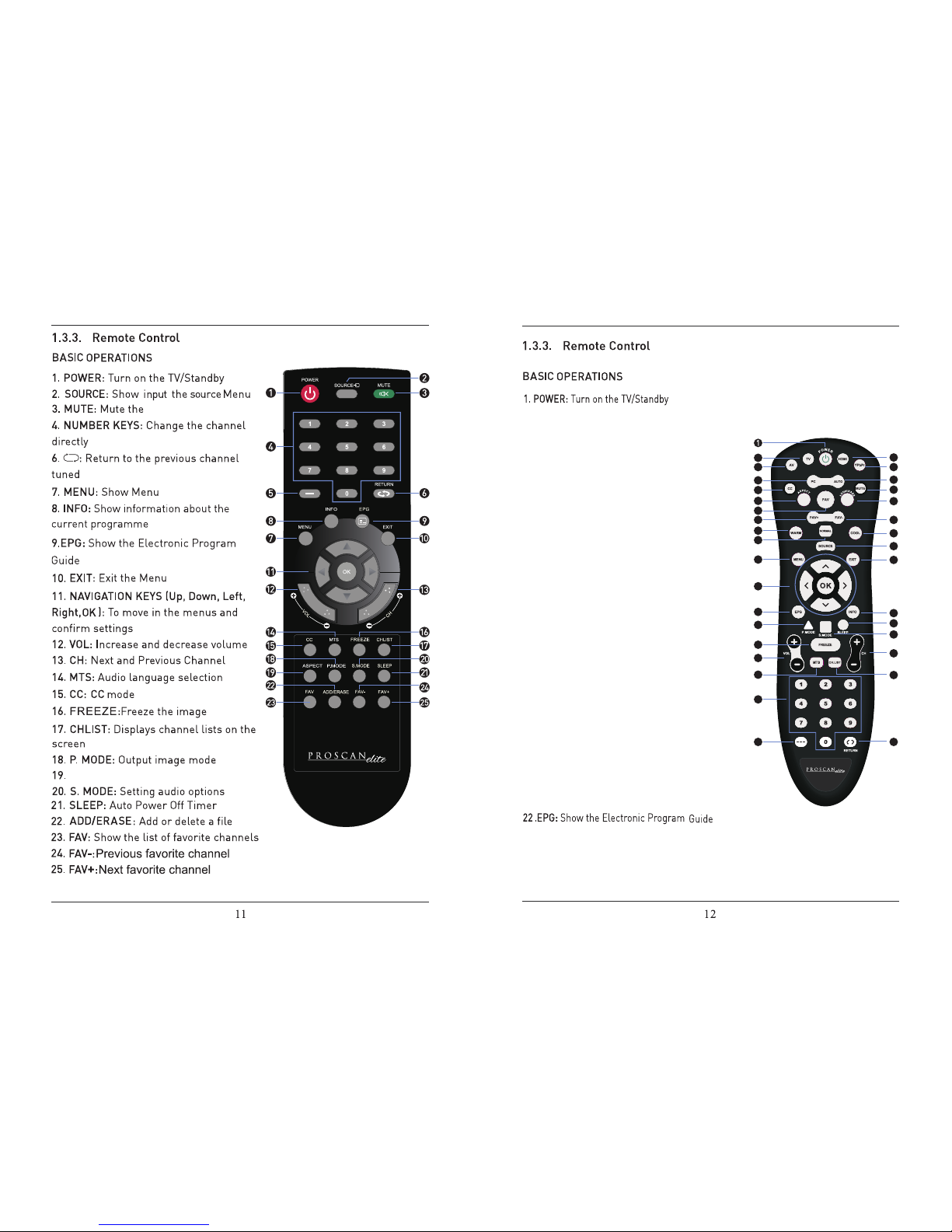

CH+

VOL+

SOURCE

POWER

Universal Remote Code:08F7

(Universal Rmote Control is not included)

ASPECT:Selects the screen size

sound from speakers

2. TV: Press to switch to TV signal source directly.

3. AV: Press to switch to AV signal source directly.

4. HDMI: Press to switch to HDMI signal source

directly.

5. YPbPr: Press to switch to YPbPr signal source

directly.

6. PC: Press to switch to VGA signal source directly.

7. AUTO: Press to adjust the picture automatically

in PC mode.

8. CC: CC mode.

9. ASPECT: Selects the screen size.

10. FAV: Show the list of favourite channels.

11. MUTE: Mute or restore the sound.

12. ADD/ERASE: Add/erase the favorite channels.

13. FAV+: Next favourite channel.

14. FAV-: Previous favourite channel.

15. WARM: The cool color temperature adjustment

16. COOL: To warm color temperature adjustment

17. NORMAL: To the standard color temperature

adjustment

18. SOURCE: Press to change signal source.

19. MENU: Show Menu.

20. EXIT: Exit the Menu.

23. INFO: Show information about the current program.

24.P.MODE: Output image mode selection.

25.SLEEP: Auto Power Off Timer.

26.S.MODE: Setting audio options.

21. NAVIGATION KEYS (Up, Down, Left,

Right and OK): To move in the menus and

confirm settings.

adaptor

27.FREEZE: Freeze the image.

28. VOL: Increase and decrease volume.

30. MTS: In the TV condition, press this button to

select the stereo mode.

29. CH: Next and Previous channel.

32. NUMBER KEYS: Change the channel directly.

33.

31. CH.LIST: Show the list of channels.

Note:Coaxial output

1817

3.1. Initial Installation

The first time the unit is turned on or anytime the system is restored to

the defaulted settings, the Initial Installation wizard will be displayed on the

screen.

Conect the antenna cable to the RF connector at the connections panel

and follow the steps displayed on the screen to set up the system basic

settings (Language, Cable, etc.) and start an auto search of TV channels.

Turn on the TV by pressing the POWER button on TV

or on the remote control, press SOURCE and use the

direction buttons /to select the desired source

depending on the equipment you have connected (AV,

HDMI, VGA) or choose TV to enter these mode.

Use CH+ or CH- buttons to tune the desired channel, or enter the channel

number directly using the numeric keypad. Press OK to display on screen the

list of TV and radio channels (press the /buttons to sort by group and

show only the DTV, the analog TV channels, etc.).

Use MTS button to select the audio language broadcasting, CC button to

show or hide subtitles on screen and FAV button to see a list of your favorite

channels.

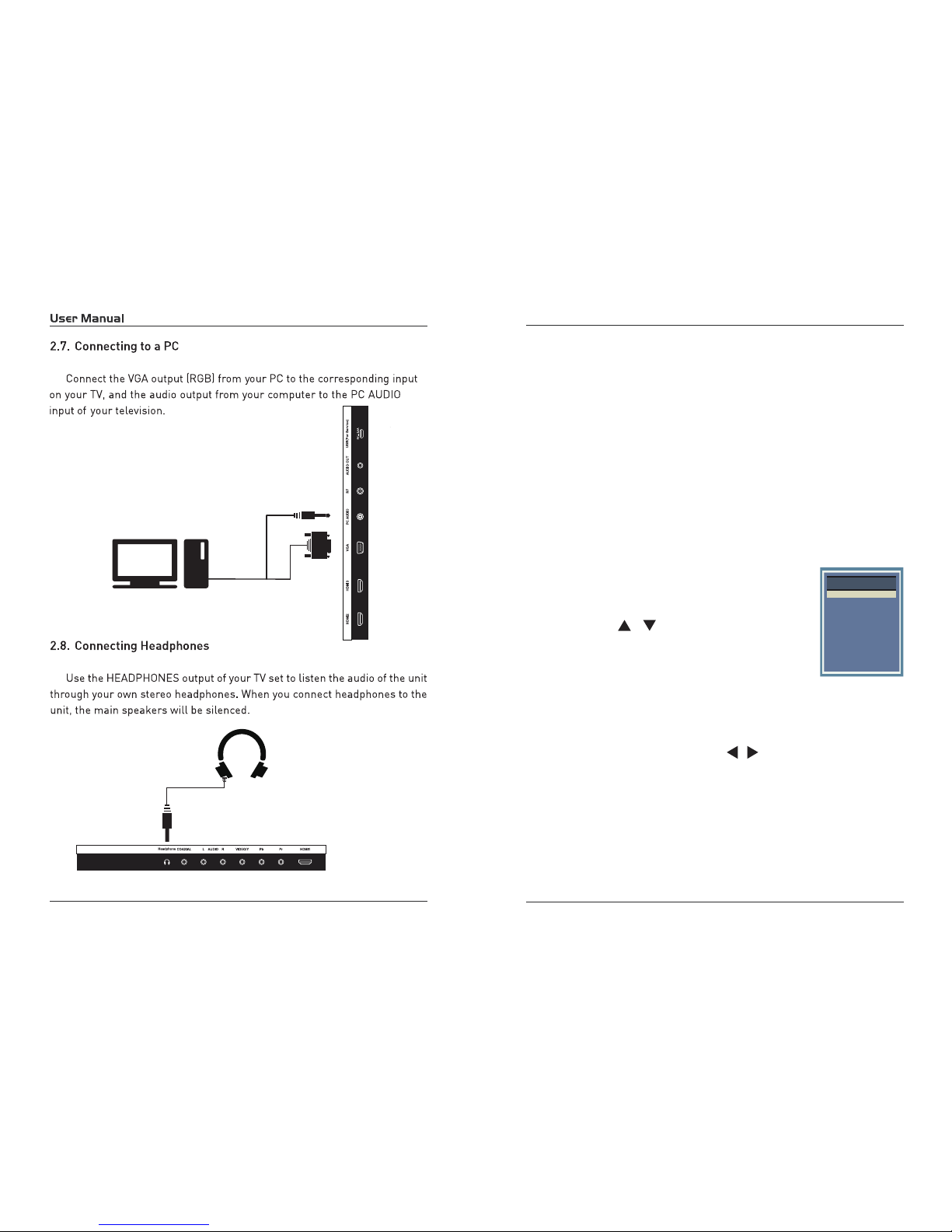

3.2. Audio/Video Source Selection

3.3. DTT Mode Operations

3. Initial Setup

4. SETTINGS

YPbPr

HDMI1

HDMI2

HDMI3

Source Select
