Protect America Simon XT Leitfaden

Protect America Installation Manual and User Guide

This manual is the property of Protect America, Inc. This installation

manual contains condential information which is proprietary to Protect

America, Inc. You may not disclose this information to third parties and

you may not copy all or any part of this installation manual.

Table of Contents

Simon XT Easy Installation Manual

Step 1: Check Package Contents .................................. page 2

Step 2: Connect the Simon XT ...................................... page 3

Step 3: Get to Know the Simon XT ................................ page 4

Step 4: Chime, Clock & User Setup ............................... page 5

Step 5: Installing Your Sensors ...................................... page 6

Step 6: Activate Your System ......................................... page 7

Sensor Information Worksheet ...................................... page 8

FCC Notices .................................................................. page 9

Simon XT User Guide

Product Overview .......................................................... page 10

Simon XT Key Features ................................................. page 11

Access Codes and Arming/Disarming ............................ page 12

Top Level Menus ............................................................ page 16

Security System Beeps and Messages ......................... page 19

Smoke and Heat Detector Locations ............................. page 21

Testing Your System ...................................................... page 22

False Alarm Prevention ................................................. page 24

Frequently Asked Questions ......................................... page 26

Cellular Conversion Installation Manual ....................... page 28

GPS Vehicle Tracking Device ......................................... page 34

IMPORTANT

Complete User Setup Worksheet Before You Begin

A very important step in the installation process is deciding your 4-digit Master

Code, Duress Code, Verbal Password, Emergency Contacts, and Additional

User Codes. Please refer to User Setup on the bottom of page 5 and ll out the

USER SETUP WORKSHEET before you begin the installation process. This is

an important step for the safety of your home and family. It will also save you a

lot of time during the alarm activation process.

The Simon XT Easy Installation Manual

Simon XT Installation

Step 1: Check Package Contents

1.2 — Verify Materials

Find a convenient location for your Simon XT control panel. It should be located

near a phone jack and a non-switched electrical outlet. It should be in a location

that can be accessed easily when entering or leaving the home.

Doors +

Windows Motions Disarm Status

Silent Bypass

Simon

Disarmed

12:23a

1.1 — Verify Contents

Locate your packing slip. Use your packing slip to verify the contents of your package.

(1) Screwdriver

(2) 0.5" Screws per Microsensor

(2) Plastic Wall Anchors

(2) 0.75" Mounting Screws

(1) Plastic Spacer per microsensor (1) Line Grabber

(Not included with HomePulse or

Cellular - do not install unless instructed

by Tech Support)

Simon XT Installation

Step 2: Connect the Simon XT

2.3 — Plug in the Power Supply

Make sure you properly secure the power supply to a non-switched and non-GFCI outlet faceplate.

Plug in power supply and secure

with screw provided.

Unscrew the faceplate. Ensure that power supply is secure.

DO NOT PLUG IN YOUR SIMON XT!

You must connect the battery

before

plugging your Simon XT into the wall outlet.

2.1 — Connect the Battery

CLICK

Turn Simon XT and locate the two red

wires on the back of the Simon XT

control panel.

Clip the two wires together. The

Simon XT will power on & beep. Not

included for HomePulse OR Cellular

Broadband

CLICK

Landline

CLICK

2.2 — Connect the Phone Cord or the Ethernet Cable — Cellular users skip this step

Standard and Two-Way Voice customers follow the "Landline" instructions. HomePulse Broadband customers follow the

"Broadband" instructions.

Locate the phone wire labeled "Wall" on the back of the Simon XT

and plug it into the wall phone jack.

Locate the ethernet cable on the back of the Simon XT and

plug it into your router. This must be done before connecting

the battery wires.

Simon XT Installation

Step 3: Get to Know the Simon XT

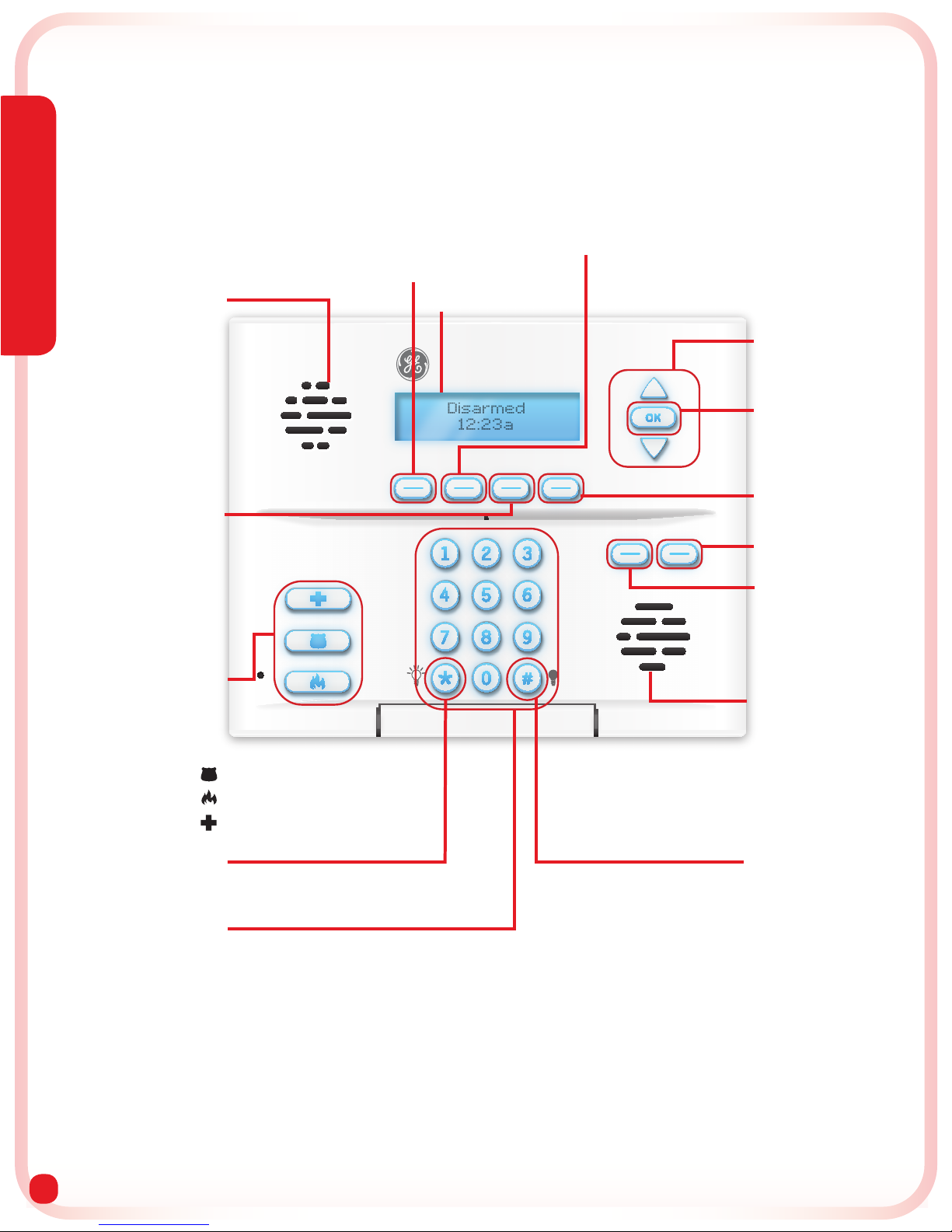

3 — The Controls

Doors +

Windows Motions Disarm Status

Silent Bypass

Simon

Disarmed

12:23a

Enter

Press to select a particular

menu item or commit to

memory a menu item

that has just been

programmed.

Motions

Press to arm interior sensors.

Siren

The piezo siren is used

for status beeps and

alarms. Fire and intrusion

alarms always sound at

high volume. The volume

of status beeps (such as

trouble or chime beeps,

entry and exit delay

beeps, or auxiliary alarm

beeps) are programmable.

Disarm

Signies the system is

armed when lit. When

illuminated, pressing

the button will prompt

you to enter your

access code to disarm

the system.

Keypad

Twelve-key keypad for

entering access codes or

other numerical data.

Turn on lights (additional

equipment is required).

Emergency

Buttons

Press and hold button

for two seconds (or press

twice quickly) to notify

the central monitoring

station of a call for help.

Police

Emergency

LCD Display

The LCD display can

show a variety of

phrases and icons.

Doors + Windows

Press to arm

perimeter sensors.

Scroll Up /

Scroll Down

Press to scroll

through the menus.

Silent

Press to silence exit

beeps when arming.

Status

Press to check

system status.

Bypass

Press to bypass a sensor.

Speaker

Used for voice output and

key beeps. The Simon

XT speaks arming level

changes, system status,

and voice-chime

sensor trips.

Turn off lights (additional

equipment is required).

Simon XT Installation

Step 4: Chime, Clock & User Setup

Set the Clock

Press SCROLL UP ( ) until the display reads "Set Clock," and then press ENTER ( ).

Enter the master code, then press ENTER twice ( ).

If no master code has been set, the default master code is 1234.

The hour should be blinking. Type in the current hour using the KEYPAD then press ENTER ( ).

The minute should be blinking. Type in current minute using the KEYPAD then press ENTER ( ).

Press SCROLL UP ( ) to select "am" or "pm," then press ENTER ( ).

Press STATUS twice (

Status Status

) to return to the main menu.

USER SETUP WORKSHEET

Code Description Code

Master Code

User Code 1

User Code 2

User Code 3

User Code 4

User Code 5

User Code 6

User Code 7

User Code 8

Duress Code

Verbal Password

Emergency Contacts Name Phone 1 Phone 2

Emergency Contact 1

Emergency Contact 2

Emergency Contact 3

Turn on Chime

If the chime is on and the system is disarmed, the Simon XT panel will use voice notication when doors or windows are opened.

When the chime is on, a bell icon is shown on the display.

Press SCROLL DOWN ( ) until the display reads, "Chime," then press ENTER ( ).

Press SCROLL UP ( ) to select “on” or “off,” then press ENTER ( ).

(Note: It is recommended that the chime be turned on while installing sensors.)

Press STATUS ( Status ) to return to the main menu.

Programming the Simon XT requires keys to be pressed in order, with little or no

delay. It is recommended that you familiarize yourself with these steps before

beginning. For initial programming, the default master code is 1234 ( ).

Simon XT Installation

Step 5: Installing Your Sensors

5.1 — Install Door & Window Sensors

Place marked sensors in their proper location. Additional sensors may be placed to your liking. When placing

sensors, make sure that the arrows on each side are aligned.

8in

magnetsensor

Make sure that the sensor and magnet are

within 3/8" of each other. Use spacers on

metal doors or to aid proper sensor alignment.

Use the provided self-adhesive velcro to

secure the sensor to the door or window,

and the magnet to the door or window frame.

Determine an appropriate location for

each sensor.

6.5-7ft6.5-7ft

Place the motion detector in the corner of

the room, 6.5-7 feet above the ground.

Use the self-adhesive velcro to secure

the motion detector in a corner.

25 ft

Each motion detector protects up to a

25' range in a 90° arc.

5.2 — Install Motion Detector (If Included)

Motion detectors should be placed in the highest-trafc areas of your home, e.g., a living room or a hallway.

!Make sure to clean the installation location before applying each sensor.

Upon installing, write the location of each sensor on the "Sensor Information

Worksheet" located on page 8 of the installation manual for future reference.

Simon XT Installation

Step 6: Activate Your System

Congratulations!

Your system is now installed and ready to be activated.

Post-installation Service & Support

If you need any help or service after installing your system, call us toll-free at 1-800-951-5111.

Monitoring

When a proper user code is entered within sixty (60) seconds of an alarm activation, the system is

disarmed and a cancel code is sent automatically to the monitoring station. No further steps are

necessary and the monitoring station will not take action.

If a proper user code is not entered within sixty (60) seconds of an alarm activation, the siren will

sound and the monitoring station will take action.

If an intrusion alarm has been triggered and is not deactivated, the monitoring station will attempt

to call and verify an authorized contact. If there is no answer, if the line is busy, or if the contact

does not know the correct password, then the monitoring station will immediately notify the proper

authorities.

Additional Equipment

If you purchased additional equipment that is not found in this manual, please call toll free

1-800-951-5111 to speak with our Installation representatives.

Call to Activate

Protect your home and family today!

Your system is not yet active—you must call Protect America

to activate your system!

When calling, please have your Sensor Information Worksheet and your Packing Slip at

hand. A representative will guide you through the activation process.

Call toll-free:

1-800-951-5111

and select the option "to install and activate your new security system"

If any siren has gone off, disarm the system, then contact the monitoring station

toll-free at 1-877-274-0604.

Simon XT Installation

Sensor Information Worksheet

Sensor

Number Sensor Name Sensor Type Location

Example Front Door Door/Window Sensor Front Door

Sensor 1

Sensor 2

Sensor 3

Sensor 4

Sensor 5

Sensor 6

Sensor 7

Sensor 8

Sensor 9

Sensor 10

Sensor 11

Sensor 12

Sensor 13

Sensor 14

Sensor 15

Sensor 16

Sensor 17

Sensor 18

Sensor 19

Sensor 20

Sensor 21

Sensor 22

Sensor 23

Sensor 24

Sensor 25

Sensor 26

Sensor 27

Sensor 28

Sensor 29

Sensor 30

Sensor 31

Sensor 32

Sensor 33

Sensor 34

Sensor 35

Sensor 36

Sensor 37

Sensor 38

Sensor 39

Sensor 40

Andere Handbücher für Simon XT

Inhaltsverzeichnis

Andere Protect America Sicherheitssystem Handbücher

Protect America

Protect America Peacekeeper Bedienungsanleitung

Beliebte Sicherheitssystem Handbücher anderer Marken

Inner Range

Inner Range Concept 2000 Bedienungsanleitung

Climax

Climax Mobile Lite R32 Montageanleitung

CADDX

CADDX NX-6 Bedienungsanleitung

FBII

FBII XL-31 Series Bedienungsanleitung

Johnson Controls

Johnson Controls PENN Connected PC10 Bedienungsanleitung

Aeotec

Aeotec Siren Gen5 Bedienungsanleitung

Blaupunkt

Blaupunkt SA 2700 Bedienungsanleitung

IDEAL

IDEAL Accenta Betriebsanleitung

AJAX

AJAX DoubleButton Bedienungsanleitung

Swann

Swann SW-P-MC2 Bedienungsanleitung

Ecolink

Ecolink Siren+Chime Bedienungsanleitung

Digital Monitoring Products

Digital Monitoring Products XR150 Bedienungsanleitung

EDM

EDM Solution 6+6 Wireless-AE Bedienungsanleitung

Highway Safety Group

Highway Safety Group EA401 Bedienungsanleitung

Siren

Siren LED GSM Bedienungsanleitung

Detection Systems

Detection Systems 7090i Montageanleitung

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Bedienungsanleitung

Siemens

Siemens FDM273 Bedienungsanleitung
