Protocol TREK 4X4 Bedienungsanleitung

INSTRUCTION MANUAL

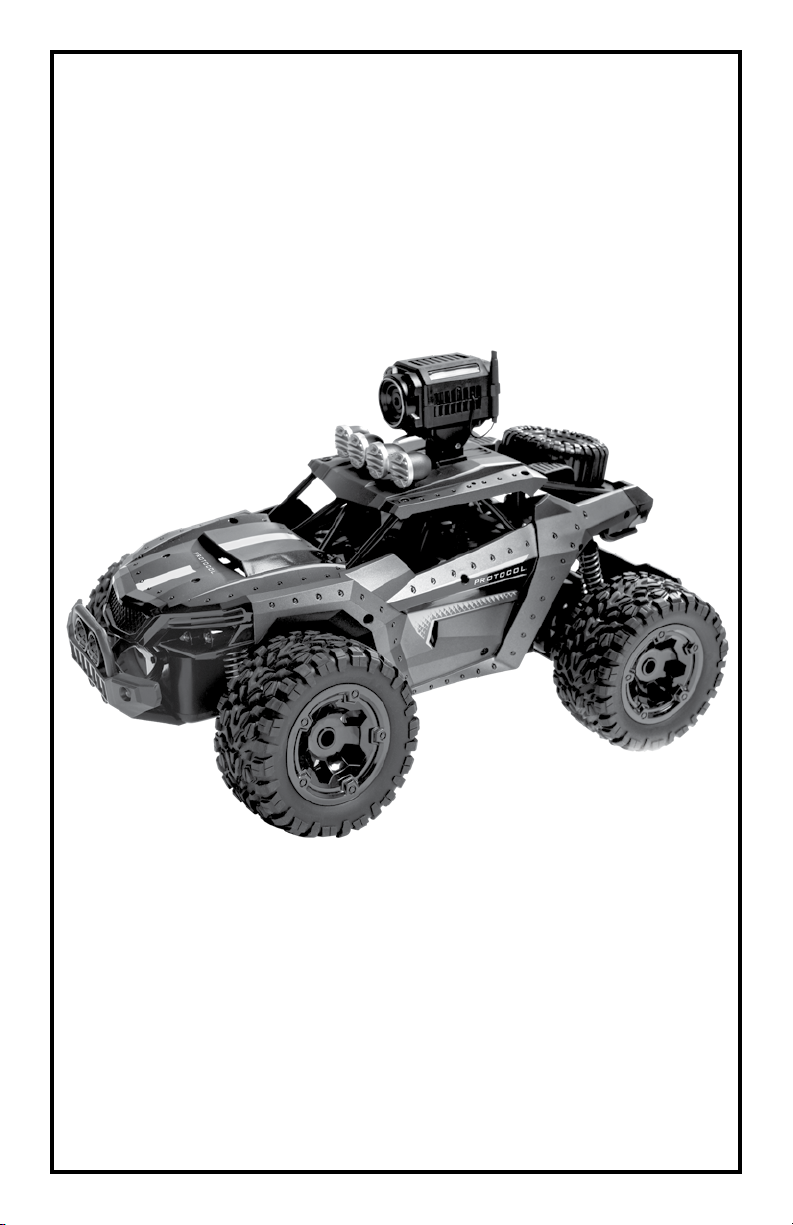

TREK 4X4

R/C CAR WITH LIVE STREAMING HD CAMERA

Thank you for your purchase of Protocol’s Trek 4x4 R/C Car with

Live Streaming HD Camera. You are about to experience the

best of what remote control driving has to offer. We strongly

recommend that you take the time to read this manual thoroughly.

It contains many tips and instructions on how to get the most out

of this vehicle and maintain it for a long life.

As with any vehicle, this is a precision driving machine. Treat it

well and enjoy all the fun it has to offer, drive after drive.

THANK YOU.

01 Safety & Precautions

02 Parts

04 Remote Battery, Phone & Camera Installation

05 Charging the Car

06 Start-Up Procedure

07 Operation: Testing the Car

08 Operation: Driving the Car

09 Correcting Tire Alignment

10 Troubleshooting

11 APP Instructions & Photo/Video

12 Replacement Parts & Limited Warranty

TABLE OF CONTENTS

SAFETY WARNINGS

•Read and follow instructions on how to synchronize electronics before

each use.

•To prevent damage to people or property, always avoid contact with

other objects while driving.

•Inspect car prior to each use and do not drive if damaged.

•Never expose product or any of its electronic parts to moisture, water,

or heat sources.

•To prevent overheating, allow battery a cool-down period

before recharging.

•To prolong engine life, allow a cool-down period between ﬂights.

•Use only the charger and/or charging cable that is supplied with

this item.

•Do not strike, cut, or pierce the internal battery or subject it to

hard impacts.

•Do not mix old and new batteries or mix different types of batteries.

•Never attempt to modify function of vehicle or controller or attempt

repairs using parts other than those supplied by Protocol. Spare parts

are available at www.ProtocolNY.com

HAVE FUN, BUT SAFETY FIRST!

THIS DEVICE USES COMPONENTS THAT OPERATE AT HIGH SPEEDS.

AS WITH ANY SUCH DEVICE, USE CAUTION TO OPERATE SAFELY.

FAILURE TO FOLLOW ANY OF THESE GUIDELINES MAY RESULT IN BODILY

INJURY OR DAMAGE TO PERSONAL OR PUBLIC PROPERTY.

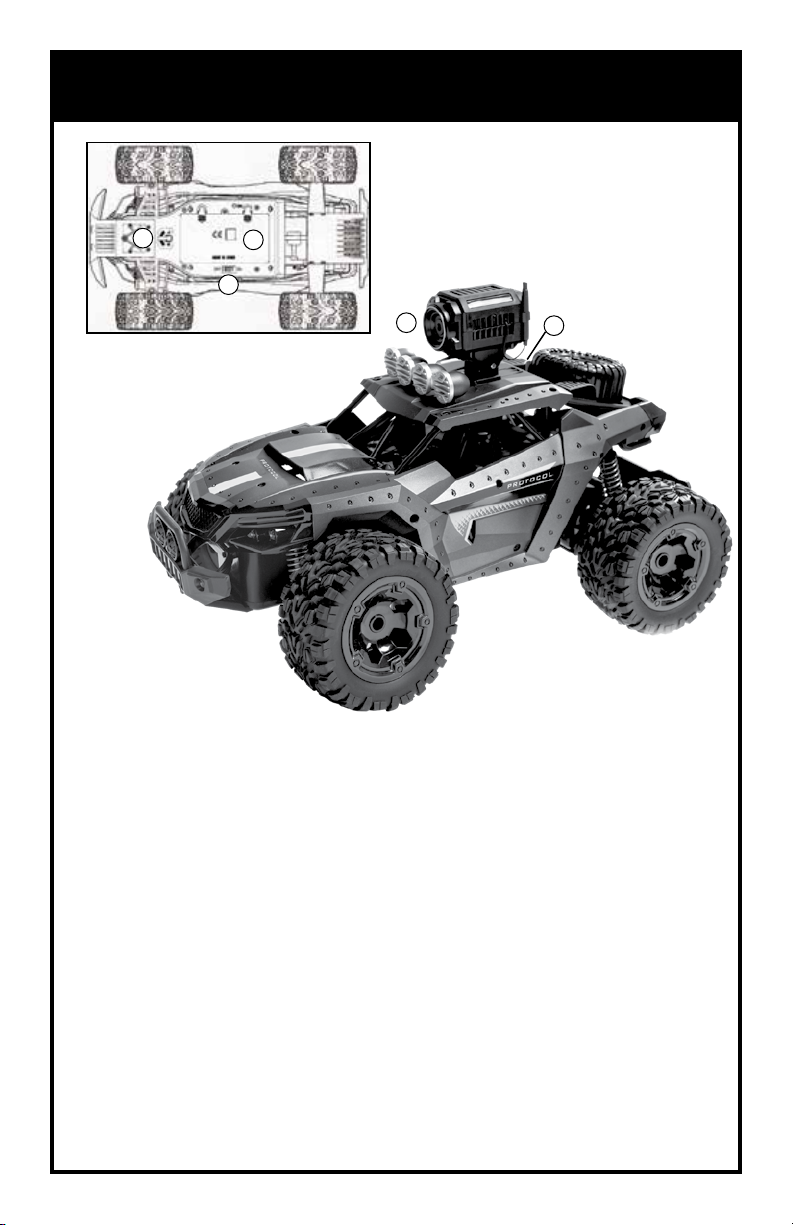

PARTS

CAR

1. On/Off Switch

2. Direction Trimmer

3. Battery Compartment

4. Camera

5. Camera Jack

PARTS

REMOTE

1. Power Switch

2. Power Indicator

3. Trigger

4. Battery Compartment

5. Phone Mount

6. Steering Wheel

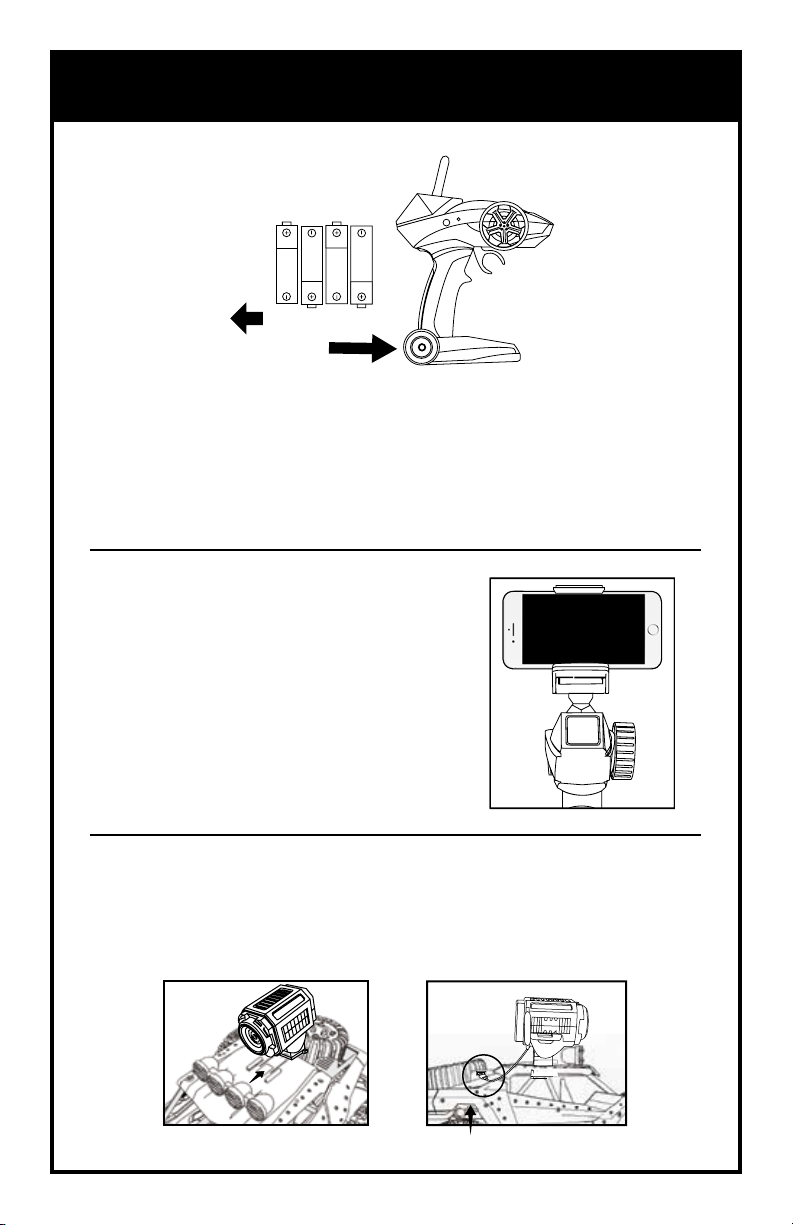

REMOTE BATTERY, PHONE & CAMERA INSTALLATION

INSTALLING THE PHONE MOUNT

1. Insert the base of the mount into the slot

until it clicks.

2. Pull the clamp open and insert the phone.

INSTALLING THE CAMERA

1. Slide the camera onto the top of the car.

2. Plug the camera into the camera jack on the car.

1. Install batteries carefully.

2. Do not mix old and new batteries.

3. Do not mix different types of batteries.

Remove battery cover from controller. Insert 4 x ‘AA’ batteries according to

indicated polarities. Replace battery cover.

INSTALLING THE BATTERIES

4 x 1.5vAA Batteries

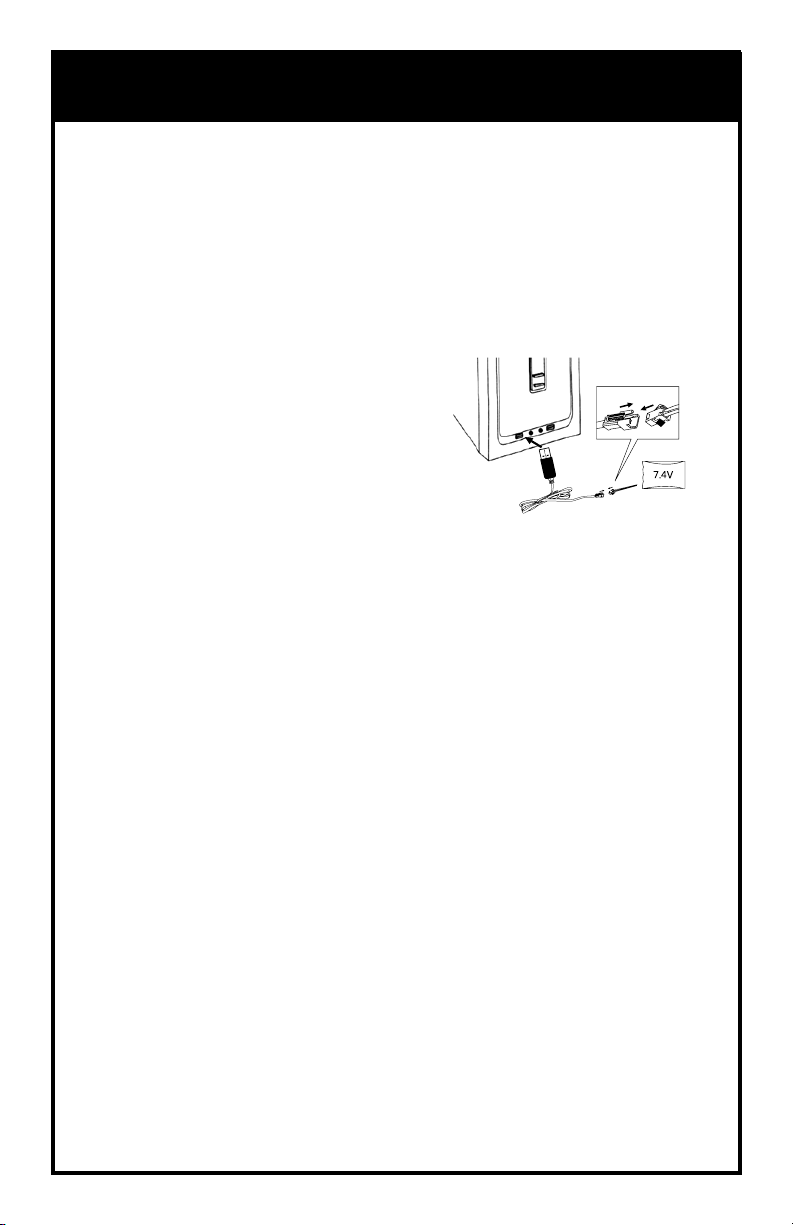

REMOTE BATTERY, PHONE & CAMERA INSTALLATION CHARGING THE CAR BATTERY

1. Make sure the car is turned off.

2. Remove the battery from the battery compartment.

3. Connect the USB charging cable to the battery.

4. Plug the charger into a USB port. The USB light will turn red while charging

and will turn green once fully charged.

5. Plug the battery back into the car and close the battery compartment..

Charging time: 240 minutes --- Drive time: approximately 25-28 minutes

CAUTION WHEN CHARGING

1. When charging, place product on a dry, well-ventilated surface and keep

away from heat sources.

2. Always use adult supervision while charging.

3. In order to increase battery longevity, avoid repeat charging and

excessive discharging.

4. As battery temperature is high immediately after driving, charge after cooling

down for higher efﬁciency.

5. Do not strike or subject battery to hard impacts or sharp surfaces.

6. Do not use another charger than that which is supplied with this item.

7. Do not use or leave battery near a heat source such as ﬁre or space heater;

exposure to heat may result in reduced performance or in some cases

dangerous conditions.

8. If battery is left in charging state for an extended period of time after being

fully charged, the battery may automatically discharge.

9. Never leave the battery unattended during charging.

10. Do not disassemble battery.

11. Do not submerge battery in water. 5

DO NOT CHARGE OVERNIGHT OR BEYOND

THE CHARGING TIME STATED. DO NOT LEAVE BATTERY UNATTENDED.

*Battery: Li-ion, 7.4V, 1200mAh

If you purchased extra batteries, allow the engines to cool between uses in

order to prolong engine life.

START-UP PROCEDURE

NOTE:

1. If after 30 seconds, it has not recognized the car, turn off the controller

and repeat Start-Up procedure.

Before driving, the car and controller must be turned on in sequence

1. Turn on the car.

2. Turn on the controller.

3. The power indicator on the remote will blink once to indicate connection

with the car.
