CONNECTION:
Warning. Danger of death through electric shock!
⚫Must be installed by professional electrician.
⚫Disconnect power source.
⚫Cover or shied any adjacent live components.
⚫Ensure device cannot be switched on.
⚫Check power supply is disconnected.
➢Connect the power and the load according to the
connection-wire diagram.
➢Fix the bottom on the selected position with the inflated
screw.
➢Switch on the power and test it.

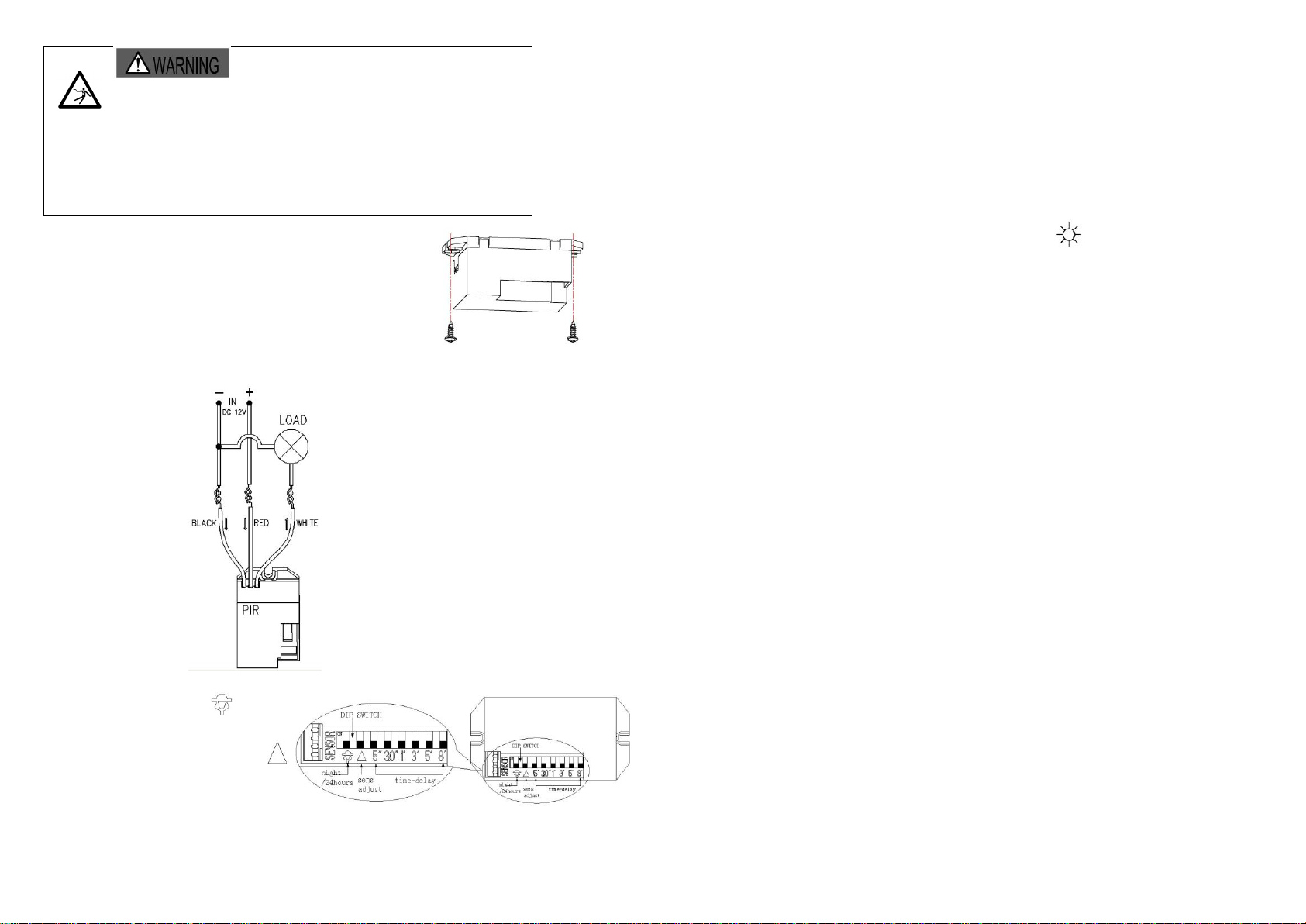

CONNECTION-WIRE DIAGRAM:
(See the right figure)
TEST:
➢Slide the LUX switch to SUN
position (below is SUN). Slide the
SENS switch to maximum
(below is the maximum).
Adjust the TIME switch, slide 5”
switch to ON position. (slide
upwards)
➢Switch on the power; the sensor and its connected lamp will have no signal at the beginning.
After Warm-up 30sec, the sensor can start work .If the sensor receives the induction signal,
the lamp will turn on. While there is no another induction signal any more, the load should
stop working within 5sec and the lamp would turn off.
➢Slide the LUX knob above on the minimum (moon). If the ambient light is more than
10LUX, the sensor would not work and the lamp stop working too. If you cover the
detection window with the opaque objects (towel etc), the sensor would work .Under no
induction signal condition, the sensor should stop working within 5sec.
Note: when testing in daylight, please turn LUX knob to (SUN) position, otherwise
the sensor lamp could not work! If the lamp is more than 60W, the distance between lamp
and sensor should be 60cm at least.
SOME PROBLEM AND SOLVED WAY:
➢The load does not work:
a. Please check if the connection of power source and load is correct.
b. Please check if the load is good.
c. Please check if the settings of working light correspond to ambient light.
➢The sensitivity is poor:
a. Please check if there is any hindrance in front of the detector to affect it to receive
the signals.
b. Please check if the ambient temperature is too high.
c. Please check if the induction signal source is in the detection field.
d. Please check if the installation height corresponds to the height required in the
instruction.
e. Please check if the moving orientation is correct.
➢The sensor can not shut off the load automatically:
a. Please check if there is continual signal in the detection field.
b. Please check if the time delay is set to the maximum position
c. Please check if the power corresponds to the instruction.
