Introduction
Your Proxima Lightbook Projector
The Proxima® Lightbook™ projector makes sharing data and presenting
information as easy as connecting your computer to your monitor.
800
600
400
200
0
APR
MAY
JUN
JUL
Figure i-1 The Proxima Lightbook projector in use
This manual covers the Proxima Lightbook family of light, portable
projectors which provide images of unrivaled clarity and color accuracy.
i-2
Introduction
WHAT’S IN THE BOX?

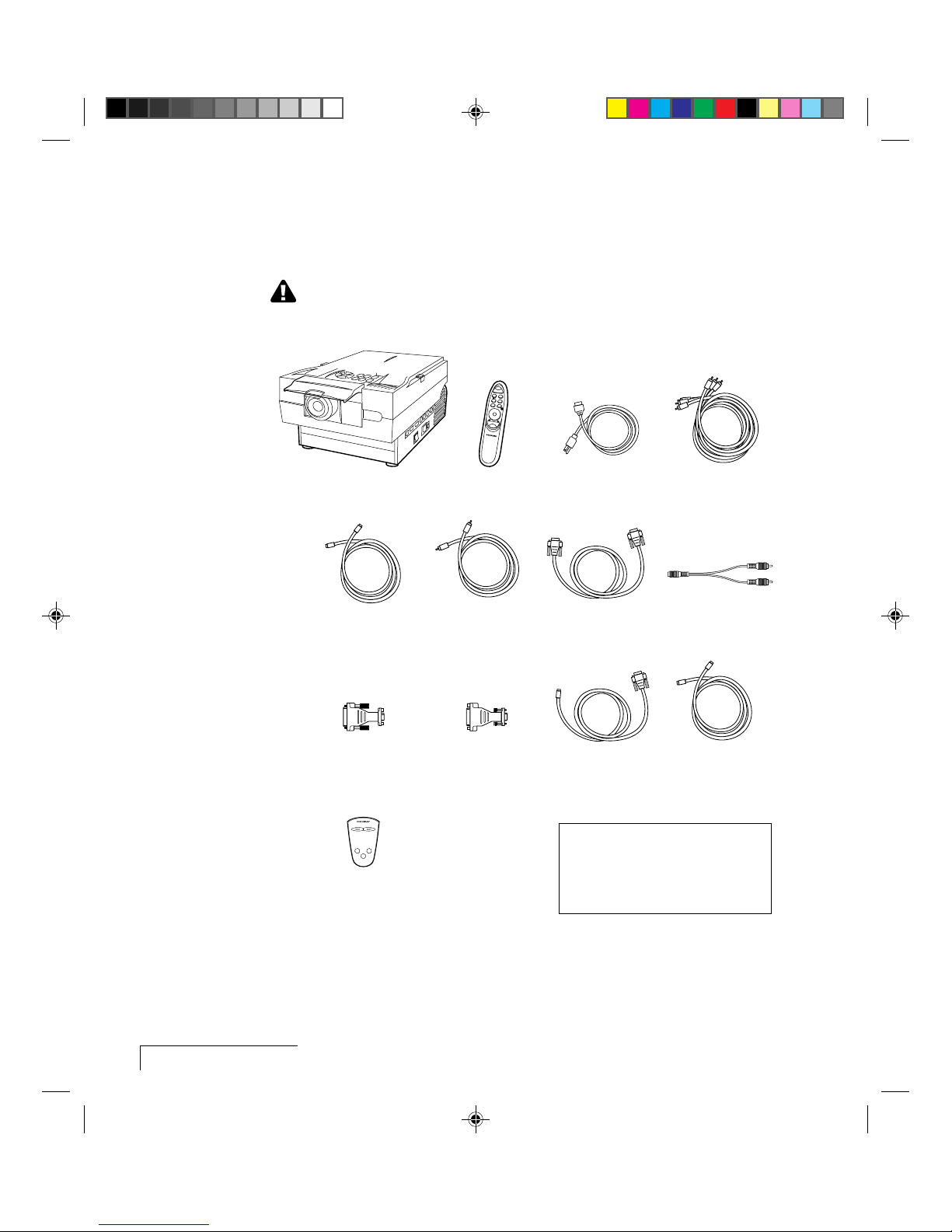

After you’ve opened the box and removed the projector and accessory packs,
make sure you have all of the items shown in Figure i-2.
CAUTION! The Proxima Lightbook projector should be treated like any
other precision optical instrument. Handle it carefully.
Proxima
Lightbook Projector Cyclops Remote
Control
080-01101-1
Power Cord
C1002-10
VGA Video Cable
C951-6
Mac – VGA
Adapter
C922
Also included but not shown:
• Cyclops F/X Diskettes
• (2) AAA Alkaline Batteries
• Product Registration Card
Composite
Video/Audio Cable
C497-6
S-Video Cable
C466-6 Computer
Audio Cable
C498-6
VGA – Mac
Monitor Adapter
C924
Serial Cable
C936-6 ADB Cable
C4070-6
Mini Jack to RCA
Cable Adapter
C5105
PROG1 PROG2/
SOURCE SETUP
MUTE
–VOLUME+
MENU
/O
MAC
MAC
VGA
preview select
source
Cyclops Quick
Remote Control
A85
Figure i-2 Items included with the projector
Your projector also includes power cords for Europe, the United Kingdom,
and Italy.
Your Proxima Lightbook Projector
i-3
OPENING THE PROJECTOR
1Press the gold buttons on both sides of the projector and pull the top
assembly up. It will click into place.
Figure i-3 Opening the projector
NOTE: The and indicators will both flash if the projector is not
completely open.
2Lift the gold front door latch to pop the lens open.
Figure i-4 Opening the lens
i-4
Introduction
YOUR LIGHTBOOK PROJECTOR
Before you begin, locate the main parts of the Lightbook projector.
Computer InSerial S. VHS Video In L
A
M
P
10
RIn–Audio–Out
Monitor Out
O
I
PROG 1 PROG 2/
SOURCE SETUP
MUTE
–VOLUME+
MENU
/O
910
12 11
11
3
8
2
3 4
5
6
7
4
3
preview select
source
13
Figure i-5 The Lightbook projector and Cyclops Remote Control
1Internal Speakers 8Cyclops Remote Control
2Control Panel 9Circuit Breaker
3Cooling Fans 10 Power Cord Receptacle
4Release Button 11 Main AC Power Switch
5Keystone Adjustment 12 Connector Panel
6Focus Ring 13 Cyclops Quick Remote
7Remote Control IR Lens
Your Proxima Lightbook Projector
i-5
CONNECTOR PANEL
All connections between the projector and computer or video source are
made on the side connector panel.
Computer InSerial S-Video Video In L
A
M
P
10
RIn–Audio–Out
Monitor Out
O
I
11 9
10
1 2 3 4 5 6 7 8
Figure i-6 The Connector Panel
CONNECTOR DESCRIPTION
1SERIAL Connects to your computer so you can use
Cyclops F/X software.
2COMPUTER IN Connects computer video to the projector.
3MONITOR OUT Provides computer video output to a separate
monitor.
4S-VIDEO Allows S-Video video input.
5VIDEO IN Allows video input from an NTSC, PAL, or
SECAM source.
6L-AUDIO-R Allows stereo/mono audio input from an NTSC,
PAL, or SECAM source.
7AUDIO IN Allows stereo/mono audio input.
8AUDIO OUT Provides audio output to an external stereo
system.
9AC CIRCUIT BREAKER Restarts the system after a power failure.
10 AC PLUG Connects AC power.
11 AC POWER Turns the projector on or off.
i-6
Introduction
CONTROL PANEL
Use the Lightbook projector’s control panel keys to turn the projector on or
off, adjust the projected image, and display and hide the menu. The and
indicators provide status information about your projector.
Source
Setup
Menu
Over-Temperature
Replace Lamp
3
4
5
6
7
1
2
Figure i-7 The Control Panel
KEY FUNCTION
1Controls the menu and adjusts screen position.
2
Source
Switches the video inputs.
3
Setup
Activates the Setup menu.
4
Menu
Displays or hides the menu.
5Turns the lamp on or off.
6Adjusts the volume.
7
Your Proxima Lightbook Projector
i-7
LIGHT FUNCTION
Glows red to warn of an over-temperature condition.
Flashes quickly if the projector is not fully opened.
Flashes slowly if the spare lamp burns out.
Glows red when the active lamp burns out.
Flashes quickly if the projector is not fully opened.
QUICK START
Follow the appropriate section below for the type of system that you have.
Be sure to observe the indicator lights when you power up the projector.
Connecting a Notebook
NOTE: If you are connecting to an Apple PowerBook, attach the Mac - VGA
cable adapter to the computer’s Video Out port (or video adapter cable).
1Plug the COMPUTER end of the supplied VGA Video cable into the
notebook’s VGA Out port or into the Mac - VGA cable adapter
(Macintosh only).
Serial Computer In Monitor Out
S-Video
Video In L R
In Audio Out
VIDEO/VGA
SERIAL
AUDIO
VIDEO/VGA
SERIAL
AUDIO
Figure i-8 Connecting a notebook
2Plug the end of the VGA Video cable with the large round collar into the
COMPUTER IN port on the projector.
3Connect your audio source to the AUDIO IN port on the projector.
4Turn the projector on.
i-8
Introduction
Connecting Desktop PCs
Serial Computer In Monitor Out
S-Video
Video In L R
In Audio Out
VIDEO/VGA
SERIAL
AUDIO
Figure i-9 Connecting a Desktop PC
1Turn the PC power off. Unplug the monitor cable from the computer.
2Plug the end of the supplied VGA cable with the large round collar into
the COMPUTER IN port on the projector. Plug the other end into the
computer’s Monitor Out port.
3Connect your audio source to the AUDIO IN port on the projector.
4You can project without using the PC monitor. If you want to also use the
monitor, plug the monitor cable into the MONITOR OUT port on the
projector.
5Turn the projector on.
6Turn the computer on.
Your Proxima Lightbook Projector
i-9
Connecting Macintosh Computers
VIDEO/VGA
SERIAL
AUDIO
Serial Computer In Monitor Out
S.Video Video In L R In Audio Out
Figure i-10 Connecting a Macintosh
1Unplug the existing monitor cable from your computer.
2Plug the end of the supplied VGA video cable with the large round collar
into the COMPUTER IN port on the projector. Attach the VGA end of the
Mac - VGA cable adapter to the other end of the VGA video cable.
3Plug the Mac end of the Mac - VGA cable adapter into your computer’s
video port.
4Connect your audio source to the AUDIO IN port on the projector.
5To project and view the monitor at the same time, plug the monitor cable
into the Mac end of the VGA - Mac monitor adapter.
NOTE: The Lightbook projector only supports Multi-sync monitors for
Macintosh computers.
6Plug the VGA end of the VGA - Mac monitor adapter into the MONITOR
OUT port on the projector.
7Turn the projector on.
NOTE: If you turn the projector off while the computer is on, your external
monitor will go blank. This is normal. Just turn the projector on again and the
monitor display will return.
i-10
Introduction
Connecting NTSC, PAL, SECAM, or S-Video
Use the supplied AV cable to connect an NTSC, PAL, or SECAM source to the
projector. Use the supplied S-Video cable to connect an S-Video source.
VideoOut
LR
Serial
ComputerIn
MonitorOut
S.Video
VideoIn L R
InñAudioñOut
4Head
VCR
S.Video
S-VideoCable
S-Video Cable
(Optional)
Figure i-11 Connecting video
Special Configurations
If your computer has an internal monitor but no external video capability
(such as the Macintosh Performa 575, PowerMac 5200, and certain
PowerBooks), you need a video adapter card to attach the Lightbook
projector.
Setup for a third-party adapter is identical to the procedures outlined in the
Quick Start section above. Contact your dealer, Proxima Customer Service, or
a third-party supplier for more information about an appropriate video
adapter.
