PSB

Universal Speakers

OWNER’S GUIDE

www.psbspeakers.com

CONTENTS

I. Speaker Placement - Maximizing your Enjoyment 4

II. Mounting The Speakers 4

III. Aiming and Positioning the Speakers 6

IV. Weather Resistance 6

V. Connecting the Speakers 7

VI. Painting 7

VII. Protecting your Investment 8

VIII. Troubleshooting 9

Thank you for your purchase. Our speakers are designed to make high-performance sound easy

to bring into your life. They have wide frequency and dynamic range, natural tonal balance and

precise spatial imaging needed to make music lifelike and enjoyable.

I. SPEAKER PLACEMENT—MAXIMIZING YOUR ENJOYMENT

In most installations, ideal speaker placement relative to the listening positions and

surrounding areas can be difﬁcult to achieve. However, following as much as possible, the

guidelines listed below can greatly improve the ﬁnal sonic effect, lower the expense and

simplify the installation.

Consider the desired and probable locations of listeners when deciding on speaker

placements. As much as possible, listeners should have a clear line-of-sight/hearing to all

speakers in their listening area. Other important factors are:

1. Locating speakers equidistant to listeners.

2. Locating speakers slightly closer to each other than their distance from listeners.

3. Locating speakers symmetrically to each other and to the listeners.

4. Aiming speakers slightly above the listening area—the speakers have been voiced

to achieve enhanced coverage in open spaces.

5. In horizontal installations locating the tweeters towards the outside of the

listening area.

Balance adjustments on the ampliﬁer can compensate for some physical location

differences between the left and right speaker.

Mounting/locating a speaker in a corner, near the ceiling or under the sofﬁt and similar

single or multiple boundary surfaces will increase the bass output. For full bass extension

in addition to placement, the Port Plug should be removed from the port (if applicable).

However, under extreme weather conditions, the Port Plug should be inserted to protect

the speaker.

II. MOUNTING THE SPEAKERS

Select corrosion resistant fasteners (eg. made of stainless steel) of sufﬁcient quality and

size, appropriate for the surface to which the speakers will be mounted, to ensure secure

mounting with good safety margin.

It is your responsibility to ensure that the surfaces selected for attaching the speakers are

structurally sound and strong enough to bear the weight of the speakers. Consider using

#10 - #12 (5.0 or 5.5mm) screws that are 2.5 to 3” (65 to 75mm) long for direct-to-wall

stud attachment or specialty anchoring hardware for hollow-wall or masonry installation.

It is strongly recommended to use Steel Cable for tethering the speaker to the mounting

surface. The cable should pass through the Cable Guide and wrap around the Aluminium

Bracket as shown in Figure 2.

1. Remove the Aluminium Bracket assembly from the speaker by removing two

plastic Knobs.

Please refer to Figure 1.

2. Hold the bracket assembly against the intended mounting surface, ensuring that

such location allows for full adjustment range of the speaker orientation without

interfering with close-by objects. Using the Plastic Wall Plate of the Aluminium

Bracket as your template, mark screw hole locations.

3. Take the Aluminium Bracket and Plastic Wall Plate, as an assembly, and install to

the mounting surface with the appropriate hardware.

4. Secure the speaker to the mounted bracket assembly with the two Knobs.

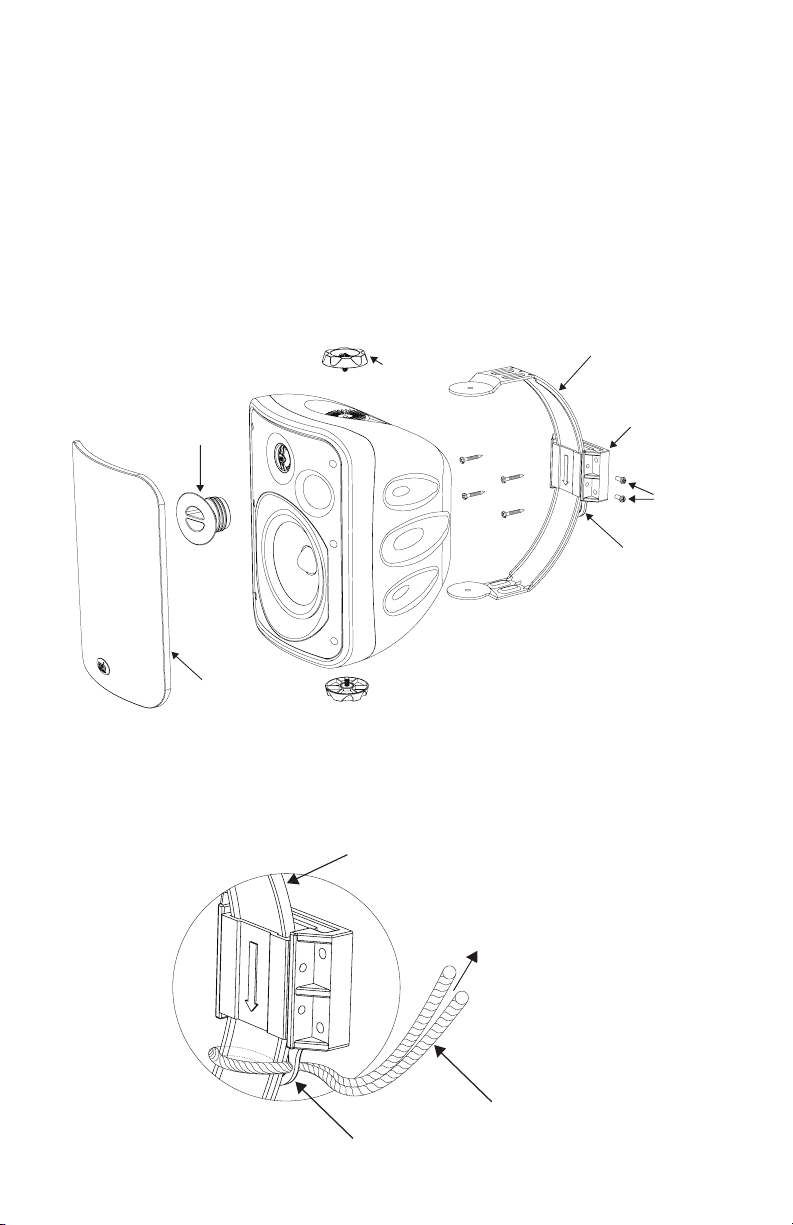

Figure 1:

Figure 2:

CAUTION: When using the Cable Guide ensure the Steel Cable wraps around the

Aluminium Bracket.

Grille

Port Plug

(if applicable)

Knob

Aluminium Bracket

Plastic Wall Plate

Cable Guide

Set Screws

Aluminium Bracket

Steel Cable

Cable Guide

Secured to mounting surface

Figure 3:

III. AIMING AND POSITIONING THE SPEAKERS

The speaker can be tilted up or down by loosening the two Set Screws located on the

right side of the Plastic Wall Plate and sliding the speaker on the curved Aluminium

Bracket to the desired position and tightening the Set Screws.

The speaker can be turned to the left or to the right side by loosening both plastic Knobs

and then tightening them again after the desired position is achieved.

IV. WEATHER RESISTANCE

Materials used in building PSB Universal speakers have been selected for their durability,

while providing excellent sonic performance in most indoor and outdoor applications.

For outdoor applications, preference should be given to locations that provide protection

from the elements.

During extreme weather conditions, the Port (if applicable) should be closed with the

supplied Port Plug to prevent water from entering the speakers.

To access the port (if applicable), the Grille needs to be removed by using the supplied

Grille puller and gently pulling along the Grille’s edge, starting at the groove in the

middle of the speaker. With the Port Plug installed, carefully install the Grille by gently

applying pressure around the perimeter of the Grille, in the sequence illustrated in

Figure 4.

For outdoor applications, we recommend covering the terminals with the supplied Rubber

Terminal Cover (Figure 3).

Rubber Terminal Cover

Figure 4:

V. CONNECTING THE SPEAKERS

Connect each speaker with a standard two-wire cable to the signal source either directly

or through a local volume control. The speakers must be wired appropriately for the

intended control. The impedance loads of the speakers must be balanced with the

capabilities of the ampliﬁer. In some mono-only systems, a single wire may be connecting

speakers in series, entering from one speaker to another—beginning and ending at the

ampliﬁer. Wire gauge should decrease with longer runs—usually 16AWG (1.3mm dia)

stranded copper wire is minimal, with 12 AWG (2.0mm dia) being better for longer runs.

The ends of each wire need to be separated, stripped, twisted and inserted into the

correct terminal post. Polarity needs to be maintained to ensure in-phase connection for

maximum bass and clarity. Out-of-phase connection will result in frequency cancellations

and produces thinner, less distinct sound—with less bass, vague vocal quality and no

solid centre image.

To help ensure proper connection, the two separate conducting wires in a standard two-

conductor speaker cable are coded in one way or another to be distinguishable from each

other (for example +/rib/writing/red).

VI. PAINTING

Before painting, the Grille has to be separated from the enclosure. Starting at the bafﬂe

groove detail, use the supplied Grille puller to gently pull along the edge of the Grille,

until the Grille comes out. The Rubber Terminal Cover, Aluminium Bracket and Knobs need

to be removed as well.

Carefully mask the bafﬂe, terminals, threaded inserts and logo on the Grille. Lightly sand

the enclosure, Grille, Aluminium Bracket, Plastic Wall Plate and Knobs. Using a cloth

moistened with mild detergent remove paint residue and any grease contamination.

Let dry. For best results apply several light paint coats instead of one heavy coat. This is

especially important for the Grille, to prevent clogging of the perforations. Application of

primer prior to top coating is recommended.

For outdoor installations use exterior grade paint.

When painting is completely dry on all parts, carefully insert the Grille by applying

minimum pressure and working it slowly along its edge to prevent bending as shown in

Figure 4.

VII. PROTECTING YOUR INVESTMENT

A. For full, year-after-year enjoyment from your speakers, you should

respect their limits. They will produce space-ﬁlling volume in average-sized

areas—and handle peak momentary levels at those volumes without audible

strain. But avoid louder-than-life playback of music or movies. Even the most

robust speakers can be damaged by excessive volume levels, especially for long

periods.

B. When listening to music or movies at very loud volume, you shouldn’t turn up

bass or treble to maximum or near maximum levels. This sends tremendously

increased, disproportionate power into the speakers and may damage them.

Some loudness compensation (Loudness) controls, which boost both bass and

treble, can also be troublesome at high volume. They are intended only for low-

volume listening.

C. Finally, you should be aware that when ampliﬁers and receivers are pushed

to their limits to produce excessive volume levels, they are driven into

“clipping” and can do severe damage—especially to tweeters. Often, the

damage is done by underpowered ampliﬁers, which may reach their limits very

soon. When such units begin to “clip” the audio waveform, they may generate

high-frequency spikes of tremendous power. More tweeters have probably

been destroyed by this phenomenon than any other. If using your speakers at

high volume levels, listen carefully for any sign of harsh, garbled midrange and

diminishing intelligibility—and turn the volume down right away if you detect it.

NEVER TURN UP THE VOLUME ALL THE WAY TO SEE HOW LOUD YOUR SYSTEM

WILL PLAY!

D. Recommended Power

We recommend ampliﬁers and receivers rated from a range of 20-150 watts. For

playing at consistently space-ﬁlling volume, a minimum of 50 watts is usually

a good idea. As just indicated in the paragraph above, be wary of driving low-

powered ampliﬁers to their limits.

We recommend a maximum of 80-120 watts for sustained program material—

as, for instance, with organ pedal tones of long duration, or minutes-long

subterranean special effects in movies.

Ampliﬁers with equal power rating may not play equally loud. Those with higher

dynamic power ratings, better satisfy the power requirements. Some have

protective circuitry that curtails power available in demanding situations.

E. Cabinet Care

If necessary, wipe the cabinets carefully with a slightly dampened cloth. Do not

use solvents or any abrasive materials.

F. Grilles and Ports

A lint brush does a good job of cleaning Grilles. The Grilles can be taken off and

vacuumed if you prefer. If need be, you can use a lint brush to clean ports. Avoid

touching speaker diaphragms. Particularly, pushing in the tweeter domes will

permanently damage tweeters.

VIII. TROUBLESHOOTING

A. Lower the volume if a speaker begins to sound distorted or seems to be missing

certain frequencies, to check ﬁrst if playing at somewhat lower volume seems

to clear up the problem. It can be especially important to turn down the volume

right away if you have pushed a low-powered ampliﬁer or receiver past its

comfortable limits.

B. Determine if the problem is caused by the electronics or the speakers and, if it is

the speakers, which speciﬁc speaker. Interchange the speaker wire connections

on your ampliﬁer or receiver between channels, for example by connecting the

left speaker to the right channel, or vice versa. If the problem shifts to the other

speaker, the problem is not in the speaker but in the electronics.

C. Another component—or, very often, a cable or connection problem between

components—may be at fault. If the problem stays in the same speaker,

irrespective of the channel to which it’s connected—and after changing the

connecting wire—chances are the speaker itself probably needs service.

D. See your dealer if you require service. PSB dealers are equipped to handle

almost all problems. If you have moved since your purchase, the nearest

authorized PSB dealer should be able to help you. If the problem is not resolved,

please contact us, providing the model name, serial number, date of purchase,

dealer name, and a full description of the problem.

We appreciate your purchase, and hope this owner’s guide helps you enjoy the exceptional

value that PSB speaker systems have to offer. We wish you many years of enjoyable

listening!

Notes on environmental protection

At the end of its useful life, this product must not be disposed of with

regular household waste but must be returned to a collection point for

the recycling of electrical and electronic equipment. The symbol on the product, user’s

manual and packaging, points this out.

The materials can be reused in accordance with their markings.Through re-use,

recycling of raw materials, or other forms of recycling of old

products, you are making an important contribution to the protection

of our environment.

Your local administrative ofﬁce can advise you of the responsible waste disposal point.

OM-UNI, 11-024, Rev A4

PSB Speakers

633 Granite Court

Pickering, Ontario L1W 3K1

CANADA

www.psbspeakers.com

888-772-0000 (North America)

905-831-6555 (International)

Fax: 905-837-6357

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere PSB Sprecher Handbücher

PSB

PSB CHS60 Bedienungsanleitung

PSB

PSB CustomSound series C-LCR Bedienungsanleitung

PSB

PSB CustomSound CW60R Bedienungsanleitung

PSB

PSB Alpha Alpha LR1 Bedienungsanleitung

PSB

PSB Platinum Series Bedienungsanleitung

PSB

PSB ALPHA PS1 Bedienungsanleitung

PSB

PSB 6919217 Bedienungsanleitung

PSB

PSB CHS40 Kurzanleitung

PSB

PSB Custom Sound m6x6.1 Bedienungsanleitung

PSB

PSB CSIW SUB10 Bedienungsanleitung

PSB

PSB Synchrony Series Bedienungsanleitung

PSB

PSB Synchrony Series Bedienungsanleitung

PSB

PSB 760IMGNT Bedienungsanleitung

PSB

PSB Alpha Alpha LR1 Bedienungsanleitung

PSB

PSB the CustomSound Series Bedienungsanleitung

PSB

PSB CustomSound CW28 Bedienungsanleitung

PSB

PSB PSB Bedienungsanleitung

PSB

PSB CW600E Bedienungsanleitung

PSB

PSB CustomSound CW26 Bedienungsanleitung

PSB

PSB VisionSound VS300 Bedienungsanleitung

PSB

PSB the CustomSound Series Bedienungsanleitung

PSB

PSB CustomSound CW88R Bedienungsanleitung

PSB

PSB CHS212 Bedienungsanleitung

PSB

PSB ALPHA PS1 Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
