2 TON TROLLEY JACK
& JACK STANDS
OWNER’S MANUAL
Item Number W1605

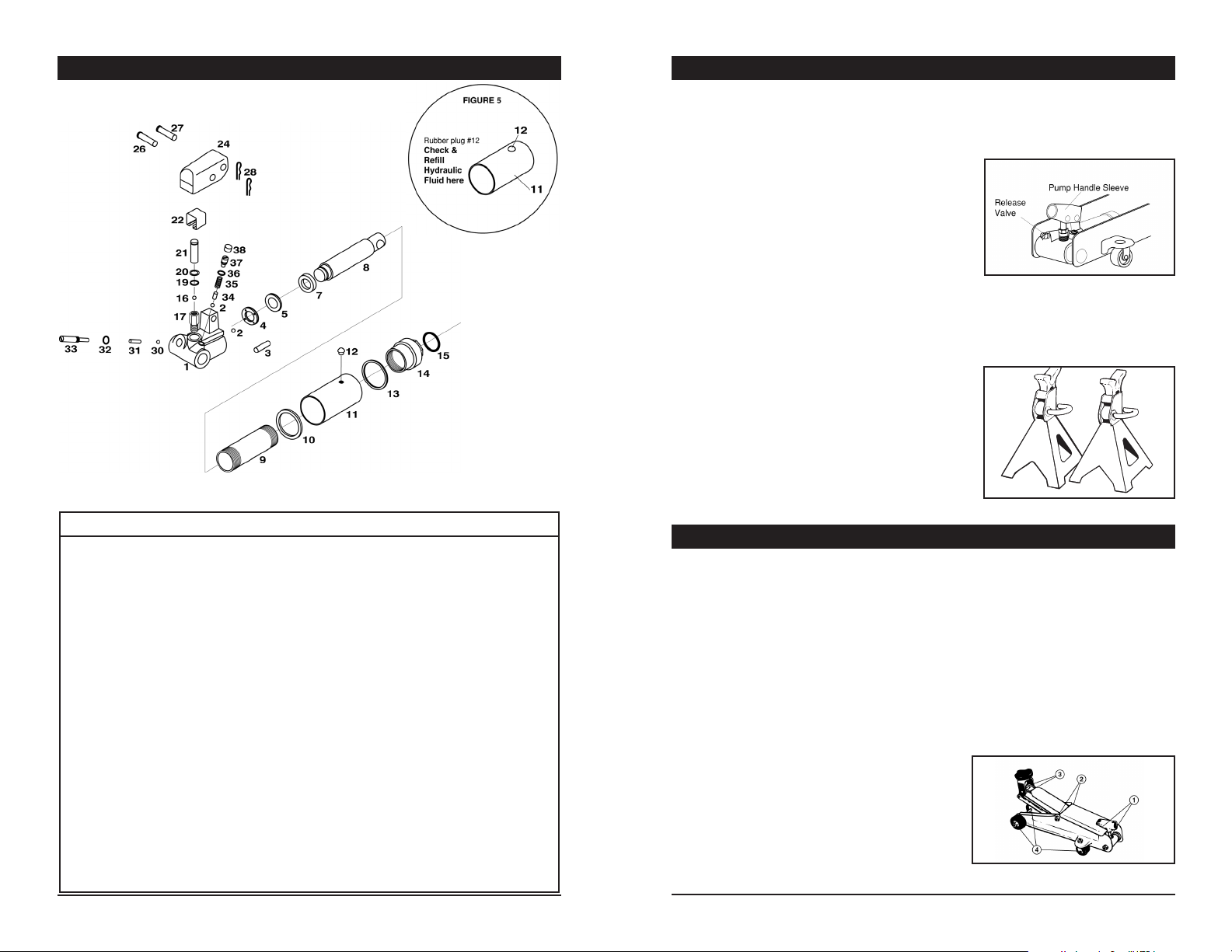

RAM ASSEMBLY - JACK
Ram Assembly Parts List
OPERATION - JACK
Before using your jack:
1. Turn release valve counter-clockwise to open. Pump jack handle
about 6 full strokes to assure complete distribution of hydraulic
fluid. (See Figure 1)
To raise:
Turn release valve clockwise to close.
Make certain that load is on center of
saddle. Pump the jack handle to raise
load to desired height. Never exceed the rated load value.
Transfer load to jack stands provided, use in pairs ONLY. Always
use appropriate supports before working under load. (See figure 2)
To lower:
Raise load slightly to remove jack
stands. Slowly turn release valve
counter-clockwise just enough to allow
controlled descent. (Never turn
counter-clockwise more than 3
full turns)
1. When jack is not in use, lifting arm and handle sleeve should be in
fully down position to keep their precision machined surfaces free
from corrosion.
2. Keep jack clean and well lubricated. (See figure 3 )
3. For best results, use only hydraulic fluid with a rating of SAE 10 for
refills. Check fluid level with jack in fully down position. Fluid level
should be 5mm below filler hole. (See figure 5)
4. Regularly check for loose, worn or damaged parts and repair or
replace as necessary.
5. Replace worn or damaged parts
with Performance Tool
replacement parts. Be sure that
only qualified personnel perform
repairs.
CARE & MAINTENANCE - JACK
Figure 3
Figure 2
Figure 1
Figure 6
# Description Qty. # Description Qty.
1 Hydraulic Unit Body 1 21 Pump Piston 1
2 3/16 in. Steel Ball 2 22 Piston Clamp 1
3 Filter Body Screen 1 24 Handle Sleeve 1
4Copper Washer 1 26 Piston Pin 1
5 Pump Cylinder O-Ring 1 27 Connecting Pin 1
7 Ram Collar 1 28 Retaining Pin 2
8 Ram 1 30 5/16 in. Steel Ball 1
9 Cylinder 1 31 Release Valve Spacer 1
10 Fiber Washer (B) 1 32 Release Valve O-Ring 1
11 Oil Chamber 1 33 Release Valve 1
12 Oil Fill Plug 1 34 Spring Guide 1
13 Fiber Washer (A) 1 35 Overload Valve Spring 1
14 Top Nut 1 36 O-Ring 1
15 Top Nut O-Ring 1 37 Adjusting Screw 1
16 1/4 in. Steel Ball 1 38 Cap 1
17 Pump Cylinder 1
19 Pump Cylinder O-Ring 1
20 Back Up Ring 1
JACK ASSEMBLY
Figure 4
# Description Qty. # Description Qty. # Description Qty.
39 Return Spring *1 54 Front Wheel Spindle 1 69 Snap Ring 2
40 Lock Washer 4 55 Body Spindle 1 70 Pump Handle 1
41 Nut 6 58 Left Side Member 1 72 Cover Plate 1
44 Caster Wheel Assy. *2 60 Radius Link 2 73 Support Bar 1
47 Right Side Member 1 61 Retaining Ring 2
48 Flat Washer 2 62 Lifting Arm 1
49 Lock Washer 2 63 Cross Head Pin 1
50 Nut 2 64 C 19 Retaining Ring 1
51 Front Wheel Spacer 2 65 Lifting Arm Spindle 1
52 Front Wheel 2 67 Saddle Assembly 1
53 Flat Washer 2 68 Radius Link Pin 1
Replacement Parts
W1605CK Ram Repair Kit
W1605-39 Return Spring
W1605-44 Caster Assembly
W1605-70 Pump Handle
* Notes the replacement parts
Your Performance Tool hydraulic jack was constructed of quality
materials and workmanship and will give you many years of trouble free
use when cared for as described in the "Care & Maintenance" section
on page 3. However, as with any mechanical device, periodic
adjustments are necessary to maintain a peak level of performance.
Should your jack be displaying any of the following symptoms, the
simple procedures shown below will correct the problem.
TROUBLESHOOTING
Read these safety warnings before operation.
WARNING!
Failure to heed these warnings may result in loss of load,
damage to jack, and/or jack failure resulting in personal injury
or property damage.
WARNING!
This is a lifting device only. Do not move load while it is on the
jack. Load must be supported immediately by Jack Stands or
other appropriate means.
Do not overload jack beyond rated capacity. Overloading can
cause damage to or failure of the jack.
REFER TO YOUR VEHICLE OWNERS MANUAL FOR PROPER
JACKING PROCEDURES. Lift only on areas of the vehicle as
specified by the vehicle manufacturer.
This jack is designed for use only on hard level surfaces
capable of sustaining the load. Use of jack on other than hard
level surfaces can result in jack instability and possible loss of
load.
Be sure all personnel are clear of load before lowering load.
Ensure that no personnel pass underneath load until load is
securely supported by jack stands.
SPECIFICATIONS
Capacity: .................... 4,000 lbs.
Low Height: .................. 5-1/8 in.
Max. Height: ...................... 13 in.
Lift Range: .................... 7-7/8 in.
Specifications are subject to
change without notice
IMPORTANT SAFETY INFORMATION
OPERATION - JACK STANDS
Read these safety warnings before operation.
WARNING!
Failure to heed these warnings may result in loss of load,
damage to jack, and/or jack failure resulting in personal injury
or property damage.
WARNING!
Do not overload jack stands beyond rated capacity.
Overloading can cause damage to or failure of the jack stands.
POSITION LOAD ON CENTER OF SADDLE ONLY. ALWAYS USE
STANDS IN PAIRS ON HARD, LEVEL SURFACE CAPABLE OF
SUSTAINING THE LOAD. USE OF STANDS ON OTHER THAN
HARD LEVEL SURFACES CAN RESULT IN STAND INSTABILITY
AND POSSIBLE LOSS OF LOAD.
Be sure all personnel are clear of load before lowering load.
Ensure that no personnel pass underneath load until load is
securely supported by jack stands.
SPECIFICATIONS - JACK STANDS
Capacity: .................... 4,000 lbs.
Low Height: ................ 10-3/8 in.
Max. Height: ............... 16-3/8 in.
Lift Range: ........................... 6 in.
Specifications are subject to
change without notice
IMPORTANT SAFETY INFORMATION
MAINTENANCE & INSPECTION - JACK STANDS
1. Refer to your vehicle owner's manual for proper jacking procedures.
Lift only on areas of the vehicle as specified by vehicle manufacturer.
2. Position stands under vehicle at points specified by vehicle manufacturer
as proper load support points.
3. To adjust stands: Hold control lever up while lifting saddle shaft to desired
height. Push control lever down to lock pawl into teeth located in center
column. MAKE SURE PAWL IS FULLY ENGAGED INTO TEETH.
4. Carefully lower load onto stands.
Saddle
Pawl
Center
Column
Control
Lever
1. Visual inspection shall be made before each use of the stands, checking
for cracks, cracked welds and missing and/or damaged parts. Any stand
that appears to be damaged in any way shall be removed from service
immediately.
2. BECAUSE OF THE POTENTIAL HAZARDS ASSOCIATED WITH THE
MISUSE OF EQUIPMENT OF THIS TYPE, NO MODIFICATIONS SHALL
BE MADE TO THE PRODUCT.
