PTN IPH300 Bedienungsanleitung
IPH300
Full HD HDMI over IP Extender
All Rights Reserved
Version: IPH300_2020V1.2
User Manual
Full HD HDMI over IP Extender
Preface
Read this user manual carefully before using the product. Pictures shown in this
manual are for reference only. Different models and specifications are subject to real
product.
This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. The functions described in this version were updated till
March, 2020. In the constant effort to improve the product, we reserve the right to make
functions or parameters changes without notice or obligation. Please refer to the
dealers for the latest details.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.
Full HD HDMI over IP Extender
SAFETY PRECAUTIONS
To ensure the best performance from the product, please read all instructions carefully
before using the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install
this product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage.
If an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.
Full HD HDMI over IP Extender
Table of Contents
1. Product Features ........................................................................................................5
2. Package List ...............................................................................................................5
3. Specification ...............................................................................................................6
4. Panel Description........................................................................................................7
4.1 Encoder (Tx)......................................................................................................7
4.2 Decoder (Rx) .....................................................................................................7
5. System Connection.....................................................................................................8
6. Operation of Mango ..................................................................................................10
6.1 Construction Structure of Mango and Encoder/Decoder devices ....................10
6.2 Features of Mango ..........................................................................................11
6.3 Default Operation - Automatic..........................................................................12
6.4 Searching Devices...........................................................................................13
6.5 Device Information...........................................................................................14
6.6 Other Buttons ..................................................................................................15
6.7 Operation Guidelines.......................................................................................16
6.8 Configuration & Operation ...............................................................................17
6.8.1 Configure One-by-One before Installation .............................................17
6.8.2 1-to-1 (1:1) Session Build ......................................................................18
6.8.3 1-to-1 (1:1) Session Disconnect ............................................................24
6.8.4 1-to-Many (1: N) Session Connection (Grouping)..................................27
6.8.5 Add a Rx Device to a Group Session ....................................................32
6.8.6 Changing Tx Device While 1: N Session Is Alive...................................36
6.8.7
Disconnecting 1: N Session
G
r
o
u
p
.....................................................40
6.8.8 Disconnecting a Certain Rx Device from a 1: N Session Group ............43
6.9 Registering Mango
U
s
e
r
s
..............................................................................46
7. Customer Service .....................................................................................................47
Full HD HDMI over IP Extender
5
1. Product Features
Full HD HDMI over IP extender Kits.
Supports resolution up to 1920x1080p.
HDCP compliant.
H.264 and TCP/IP protocol.
Video data takes up 40Mbps of bandwidth when transmitted over IP
Low-latency: 30 ~ 50 msec.
Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications.
The advanced management system controls all devices in LAN uniformly.
Low power consumption.
2. Package List
Items
Q’ty
Remarks
IPH300E Encoder
1
84.4mm(L) x 50.6mm(W) x 19.5mm(H)
Power Adaptor
1
DC output: 5V/1A
AC input: 110V ~ 220V, 50/60Hz
User Manual
1
Items
Q’ty
Remarks
IPH300D Decoder
1
84.4mm(L) x 50.6mm(W) x 19.5mm(H)
Power Adaptor
1
DC output: 5V/1A
AC input: 110V ~ 220V, 50/60Hz
User Manual
1
Note: Please contact your distributor immediately if any damage or defect in the
components is found.
Full HD HDMI over IP Extender
6
3. Specification
IPH300E Encoder
Video Input
(1) HDMI
Video Input Connector
(1) Type-A female HDM
HDMI Input Resolution
Up to 1920x1080p@60Hz
Control
(1) ETHERNET
Control Connector
(1) RJ45
IPH300D Decoder
Video Output
(1) HDMI
Video Output Connector
(1) Type-A female HDMI
HDMI Output Resolution
Supports 1920x1080(Full-HD,1080p),
1680x1050(WSXGA), 1280x1024(SXGA),
1280x720(HD,720p), 1024x768(XGA),
800x600(SVGA) and 640x480(VGA)
(Progressive only—1080p,720p,480p and etc;
60Hz/50Hz)
Control
(1) ETHERNET
Control Connector
(1) RJ45
General
Transmission Distance
(Point-to-Point)
UTP Cable: 100m ~120m
External Power Supply
DC output: 5V/1A
AC input: 110V ~ 220V, 50/60Hz
Power Consumption
Encoder:1.55W (Max);
Decoder: 1.28W (Max)
Operation Temperature
-10℃~ +55℃
Storage Temperature
-25℃~ +70℃
Relative Humidity
10%-90%
Dimension (W*H*D)
50.6mm x 19.5mm x 84.4mm
Full HD HDMI over IP Extender
7
Net Weight
Encoder/Decoder: 55g
4. Panel Description
4.1 Encoder (Tx)
①HDMI IN: Type-A HDMI port to connect HDMI
source device.
②DC 5V: Micro-USB port for external 5V DC power
supply
③ETHERNET: RJ45 port to connect to the
decoder.
④Factory Reset.
⑤POWER LED: The LED illuminates red when
power is applied.
⑥LINK LED: The LED blinks green when the
encoder and the decoder communicate
successfully each other with video/audio data.
⑦DC 5V: DC jack for external AC power supply
110V ~ 220V,50/60HZ
4.2 Decoder (Rx)
12
3
4
6
7
5
Full HD HDMI over IP Extender
8
①HDMI OUT: Type-A HDMI port to connect HDMI
display device.
②DC 5V: Micro-USB port for external 5V DC power
supply
③ETHERNET: RJ45 port to connect to the
encoder.
④Factory Reset.
⑤POWER LED: The LED illuminates red when
power is applied.
⑥LINK LED: The LED blinks green when the
encoder and the decoder communicate
successfully each other with video/audio data.
⑦DC 5V: DC jack for external AC power supply
110V ~ 220V,50/60HZ
5. System Connection
Usage Precautions
Make sure all components and accessories included before installation.
System should be installed in a clean environment with proper temperature and
humidity.
All of the power switches, plugs, sockets, and power cords should be insulated and
safe.
All devices should be connected before power on.
12
3
4
6
7
5
Full HD HDMI over IP Extender
9
The product is connected on standard Ethernet (Internet) network. (Refer to the picture
above).
1) IPH300E encoder (Tx) is connected via HDMI cable to HDMI output port of video
source devices like PC and set-top-box.
2) IPH300D decoder (Rx) connects to monitor/TV via HDMI cable as well.
3) The encoder and decoder are connected via Ethernet cable (UTP or fiber optic
cable) directly or through the step of Ethernet switches in- between.
4) “PWR” LED light is on when power is supplied.
5) “Link” LED light (green) is blinking when the encoder and the decoder
communicate successfully each other with video/audio data.
Full HD HDMI over IP Extender
10
6. Operation of Mango
The Mango is the program that searches, detects, shows, and configures the
Encoder/Decoder devices through Ethernet network.
Requirement: Windows computer.
All devices are connected through L2 switch which supports IGMP feature for 1-to-
many connection - one Encoder sends video to many Decoders.

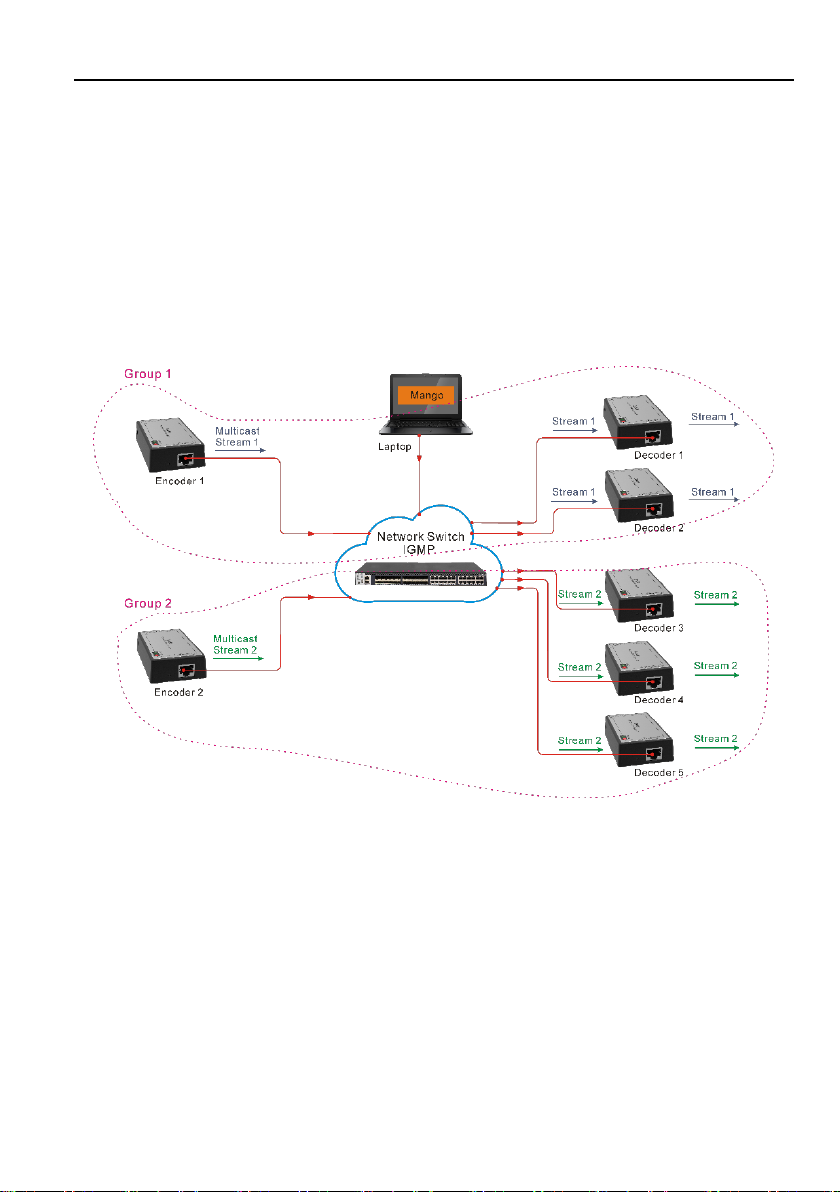

6.1 Construction Structure of Mango and Encoder/Decoder devices
1) Connect a computer to the Ethernet network to which Encoders (T1, T2 …) and
Decoders (R1, R2 …) are connected.
2) Run Mango program on the computer.
Note: All devices should be located in the same network of same subnet address.
Mango does not support those devices out of the network - different subnet address.
