Pulsar® Infinity

Installation and Operation Manual

Model #PS-2SD

Revised August 2019

2 Water Treatment – Pulsar® Infinity Operation and Installation Manual

Product Stewardship

MAKING THE WORLD A BETTER PLACE

Innovative Water Care is committed to maintaining and improving our

leadership in the stewardship of our products. One of our initiatives is

to make health, safety, and environmental protection an integral part of

a product’s life cycle – from manufacture, marketing, and distribution

to use, recycling, and disposal.

Everyone involved with the product has responsibilities to address so-

ciety’s interest in a healthy environment and in products that can be

used safely. We are each responsible for providing a safe workplace.

All who use and handle products must follow safe and environmentally

sound practices.

For more information about our Product Stewardship Program, contact

your Innovative Water Care Representative. For product inquiries, con-

tact 1-800-4-PULSAR or [email protected].

Dealer Contact:

Pulsar® Infinity Operation and Installation Manual – Water Treatment 3

Innovative Water Care

1400 Bluegrass Lakes Parkway

Alpharetta, GA 30004

Registration

days of your purchase date and your equipment will qualify for a two

(2) year warranty! Register your feeder at www.pulsarinfinity.com.

Please note you will need to provide proof of purchase with purchase

date when registering your feeder.

Limited Extended Warranty

If your Pulsar® Infinity Feeder is registered within 30 days of pur-

chase, your equipment is warranted against defects in material and

workmanship for a period of 24 months after shipment by Innova-

tive Water Care. If you do not register your Pulsar® Infinity Feeder be-

fore the registration deadline, your equipment is warranted against

defects in material and workmanship for a period of 6 months after

purchase. This warranty applies only to the original end-user and

this warranty is not transferrable. The extended warranty does not

include any electrical components. Electrical components’ warranty

is limited to 6 months in all cases.

Pulsar® Infinity Replacement Parts

Innovative Water Care warrants any equipment replacement parts to

be free of defects in material and workmanship for a period of ninety

(90) days from the date of installation. This warranty is restricted to

Pulsar® Infinity Feeder parts purchased on a replacement basis.

Exclusions

This warranty does not cover service, damage or failure due to ac-

cidents; fire, flood or other acts of God; abuse; misuse; abnormal or

improper use; neglect; improper maintenance; alterations or modifi-

cations by anyone other than Innovative Water Care or a Innovative

Water Care authorized dealer representative; repairs by anyone other

than Innovative Water Care or a Innovative Water Care authorized

dealer representative; or ordinary wear and tear. Use of any tablets or

chemicals other than the Pulsar® Infinity Tablets with the equipment

voids any warranty. Innovative Water Care makes no expressed or im-

plied warranties other than those stated above. No Innovative Water

Care representative or authorized dealer representative has authority

to change or modify this warranty in any respect. Innovative Water

Care shall not be responsible or liable for any indirect, special, or con-

sequential damages or any damages with respect to loss of property

or loss of revenues or profit that arise out of or in connection with the

use or performance of the equipment.

Pulsar® Infinity Feeder Warranty Policy

4 Water Treatment – Pulsar® Infinity Operation and Installation Manual

Table of Contents

1 Introduction

1.1 Pulsar® Infinity Tablets 5

1.2 Pulsar® Infinity Feeder 5

2 Overview

2.1 Theory of Operation 5

2.2 Major Components 6 - 8

2.3 Specifications 9

3 Installation

3.1 Pulsar® Infinity System Schematic: Standard Installation 10

3.1.1 Pulsar® Infinity System with ORP chemical

control 11

3.2 Tools & Equipment Required for Feeder Installation 11

3.3 Installation Parts and Assemblies 12

3.4 Installation Procedure 13 - 14

3.4.1 Making the inlet connection from the pool to

the feeder (Pre-Filter) 13

3.4.2 Making the chlorine injection connection from

the feeder to the pool (post-filter and heater) 14

3.4.3 Completing the feeder circulation loop 14

4 Feeder Start Up

4.1 Pre-Startup Procedure 15 - 18

4.1.1 Verify water flow through feeder 15

4.1.2 Adjusting the cartridge feed rate setting 15

4.1.3 Loading the cartridge assembly with

Pulsar® Infinity Tablets 16- 18

4.2 Startup Procedures 18 - 19

4.2.1 Feeder Startup 18

4.2.2 Feed Rate Table 19

4.2.3 Controlling Chlorine Output With an ORP 19

5 Feeder Inspection and Maintenance 22

5.1 Feeder Maintenance 20

5.2 Preventive Maintenance 20

6 Troubleshooting Guide 23

Troubleshooting Guide 21

7 Feeder Views

7.1 Feeder Assembly View (standard installation) 22

7.2 Installation Kit View (Standard Installation) 23 - 24

8 Optional ORP Kit

8.1 Optional ORP Kit 25 - 26

8.1.1 ORP Drain Kit (for use with ORP kit) 26

8.2 Vent Installation for Feeder Draining if used with an ORP kit 26 - 27

9 Appendix

A . Technical Bulletin: Pitot Tubes for 2 ½” and 3” Pool piping 28

Pulsar® Infinity Operation and Installation Manual – Water Treatment 5

1 Introduction

2 Overview

1.1 Pulsar® Infinity Tablets

The patent-pending, slow dissolving Pulsar® Infinity Tablets are a 3-in-1 product that chlorinates consistently, increases calcium to protect plaster,

and increases alkalinity to stabilize pH. The benefits of the Pulsar® Infinity Tablets include but is not limited to:

• DOES NOT add cyanuric acid to your pool reducing wasteful drainage

• DOES NOT reduce ORP effectiveness

• Dissolves slowly to give long lasting chlorination

• DOES NOT form nitrogen trichloride (strong chlorine odor) associated with trichlor use

• Highly concentrated to reduce shipping and handling costs

• More concentrated than liquid bleach

• Longer shelf life when compared to liquid bleach

• Adds less total dissolved solids (TDS) than liquid bleach

• Class 2 Oxidizer (less restrictive storage requirements compared to Class 3 Oxidizers)

1.2 Pulsar® Infinity Feeder

The Pulsar® Infinity Feeder is an easy to use, automatic solution that is exclusively designed to feed Pulsar® Infinity Tablets. Other calcium hypo-

chlorite or trichlor tablets will not fit into the feeder nor will they dissolve properly and provide the appropriate feed rate. With the simplicity of an

erosion feeder, the Pulsar® Infinity Feeder’s streamlined design is easy to install, service and requires minimal operator maintenance.

2.1 Theory of Operation

The patent-pending Pulsar® Infinity System is a pressurized feeder system designed for pools and spas ranging from 500 to 60,000 gallons

[

1,892.7

to 227,124.7 liters]

. A pre-filter to post-filter loop will be added to the main pool recirculation system as part of the Pulsar® Infinity Sys-

tem. This recirculation loop will create the pressure differential to provide the proper flow of water through the feeder.

The Pulsar® Infinity System incorporates the principles of High Capacity Erosion (HCE) technology. Water rises in a “column” from a submerged

nozzle below the tablet grid making contact with the Pulsar® Infinity Tablets. The tablets are then submerged in a column of water with the water

flow from the nozzle creating a chlorinated solution that is discharged to the pool return line. The feeder operates in a pressurized condition with a

pressure range between 5 to 20 psig

[0.35 to 1.38 bar]

The chlorine output is controlled by the cartridge height setting (distance of the tablet from the nozzle) and the inlet flow rate which has an operat-

ing range of 0.5 to 4.5 gpm [1.9 to 17.03 lpm]. In addition, an ORP controller may be used for more precise control. The inlet flow rate will allow a

minimum available chlorine (AvCl) output of 0.5 lb/day [0.2 kg/day] and will allow a maximum AvCl output of 9 lbs/day [4.1 kg/day] for both pools

and spas.

Pulsar® Infinity Operation and Installation Manual – Water Treatment 6

2.2 Major Components

Pressure Cap creates pressure tight seal

with minimal operator eort

Integrated Flow Meter

Pulsar® Infinity Operation and Installation Manual – Water Treatment 7

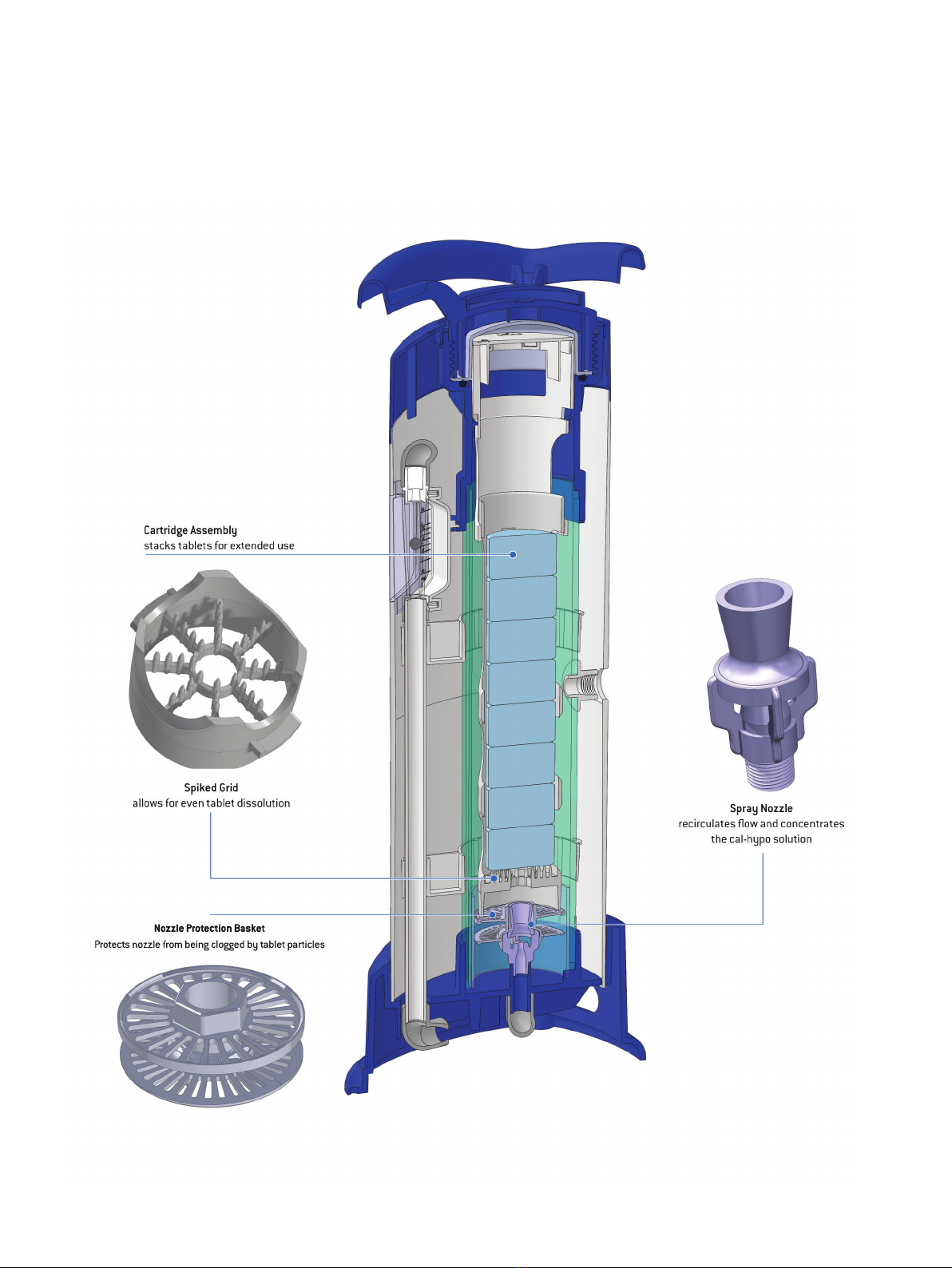

2.2 Major Components

Pulsar® Infinity Operation and Installation Manual – Water Treatment 8

2.2 Major Components (continued)

Locking mechanism allows for an

easier controlled reload

Adjustable grid height and

ow rate to control output rate

Pulsar® Infinity Operation and Installation Manual – Water Treatment 9

2.3 Specifications

Operational Characteristics

Operating Pressure range 5 to 20 psig [0.35 to 1.38 bar]

Nominal Pressure 15 psig [1.03 bar]

Operating Temperature range 40º to 130º F [4.4º to 54.4º C]

Flow Rate range 0.5 to 4.5 gpm [1.9 to 17.03 lpm]

Dimensions

Tubing 5/8” [15.9 mm] O.D. (LLDPE)

Feeder W12” x D13” x H31”

[304.8 mm x 330.2 mm x 787.4 mm]

Weight

Feeder Weight full 29.4 lbs [13.3 kg]

Feeder Weight empty 23 lbs [10.4 kg]

Cartridge Capacity

Tablet Quantity 11

Weight 6.4 lbs [2.9 kg]

Feed Rate

Available Chlorine (per day) Pool: 0.5 to 9.0 lbs (0.2 to 4.1 kg)

Spa: 0.5 to 9.0 lbs (0.2 to 4.1 kg)

Available Chlorine (per hour) Max: 0.375 lbs ( 0.17 kg)

Recommended Pool Size (Notes 1 & 2)

Indoor 1,000 to 60,000 gallons

[3,785.4 to 227,124.7 liters]

Outdoor Stabilized 1,000 to 40,000 gallons

[3,785.4 to 151,416.5 liters]

Outdoor Un-Stabilized 1,000 to 25,000 gallons

[3,785.4 to 94,635.30 liters]

Commercial Spa 500 to 5,000 gallons

[1,892.7 to 18,927.1 liters]

NOTE:

1. Applicable pool size is subject to local health codes.

2. Recommended pool size is a guideline based on ideal conditions. Actual pool size will vary due to site specific conditions.

Pulsar® Infinity Operation and Installation Manual – Water Treatment 10

3 Installation

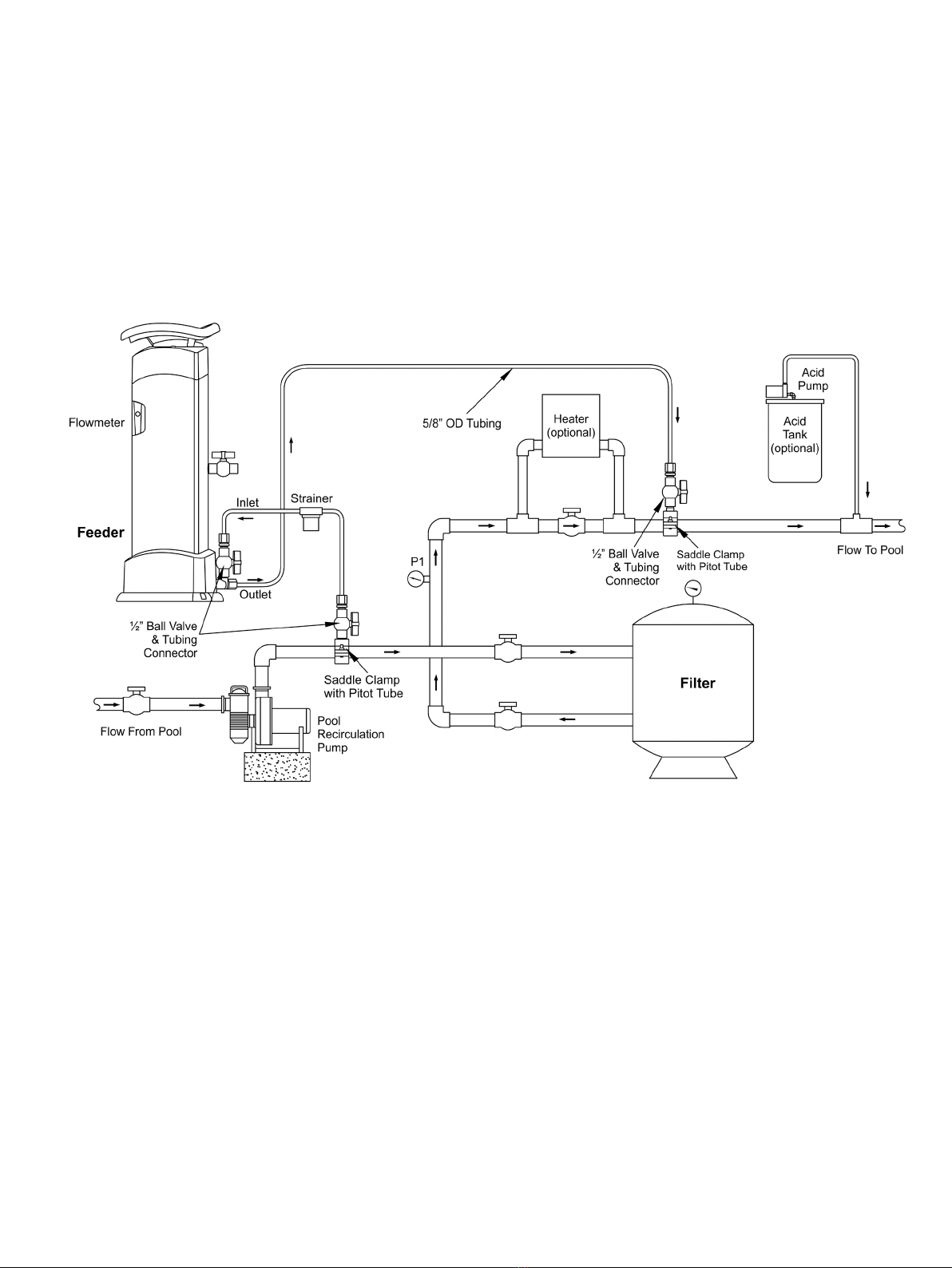

3.1 Pulsar® Infinity System: Standard Installation

Choose a location in the pump room that will allow easy access for replenishing the feeder cartridge with Pulsar® Infinity Tablets. The Pulsar® Infin-
