1 Description
DMX signal splitter enables branching in complex DMX installations.
The combination of a large number of receivers in series can be troublesome,
therefore it was possible to create branching DMX tracks using a splitter.
The PX349 supports the RDM protocol, which allows bidirectional packet
transmission.
With PX349, it possible to split the DMX input signal into four independent
branches. The individual outputs are galvanically isolated from input
and between each other. The output signals are appropriately reinforces,
which guarantees correct operation of the entire installation.
Splitter DMX-RDM is manufactured in a housing adapted for mounting
on standard DIN 35mm rails.
3
2 Safety conditions
Splitter PX349 is a device powered with safe voltage 12 – 24V DC,
however, during its installation and use the following rules must be strictly
observed:
1. The device may be connected to 12 – 24V DC (stabilized voltage)
with current-carrying capacity compatible with technical data.
2. All the conductors should be protected against mechanical
and thermal damage.
3. In the event of damaging any conductor, it should be replaced with
a conductor of the same technical data.
4. Only use a shielded cable for connecting the DMX signal.
5. All repairs and connection of outputs or DMX signal can only be made
with cut off power supply.
6. PX349 should be strictly protected against contact with water
and other liquids.
7. All sudden shocks, particularly dropping, should be avoided.
8. Do not connect the device with a damaged (broken) housing
to the power supply.
9. The device cannot be turned on in places with humidity exceeding
90%.
10. The device cannot be used in places with temperature lower than +2°C
or higher than +40°C.
11. Clean with damp cloth only – splitter should be cut off from power
supply.
4
3 Connectors and control elements
5
+ + +
– –
–
12-24V DC
GNDGNDGND
GND
GND
GND
120R
PX349
DMX outputs (optically
and galvanically isolated)
DMX signal
indicator
power supply
12 – 24V DC
DMX-RDM input
passive DMX-RDM
output
shorting pins
(termistor)
4 DMX signal connection
PX349 have to be connected to DMX line in serial mode, with no branches
on DMX control cable. That mean that DMX line, from the signal source, must
be connected to DMX IN pins of PX349 and later, directly from DMX THRU pins
to the next device in DMX chain.
If the PX349 is the last DMX chain receiver (there is no connected receiver
for the DMX THRU output), it is necessary to shorten 1 0R pins – the bridge
on these pins will act as a terminator (120 Ohm resistor).
DMX IN DMX THRU
- -
+ +
GND GND
CORRECT
DMX-512 input DMX-512 output
DMX IN DMX THRU
- -
+ +
GND GND
WRONG
DMX-512 line
SHORTEN 120R INS (as terminator)
DMX-512 input
DMX IN DMX THRU
- -
+ +
GND GND
120R
Each of the four splitter outputs is treated as the start of a new DMX line.
A maximum of 32 devices can be connected with the DMX line, with the length
up to 500 meters. In the last device of each DMX output line it is necessary
to connect the terminator.
NOTE! A maximum of 4 splitters can be connected in a cascade (the scheme
is on the next page).
6
7

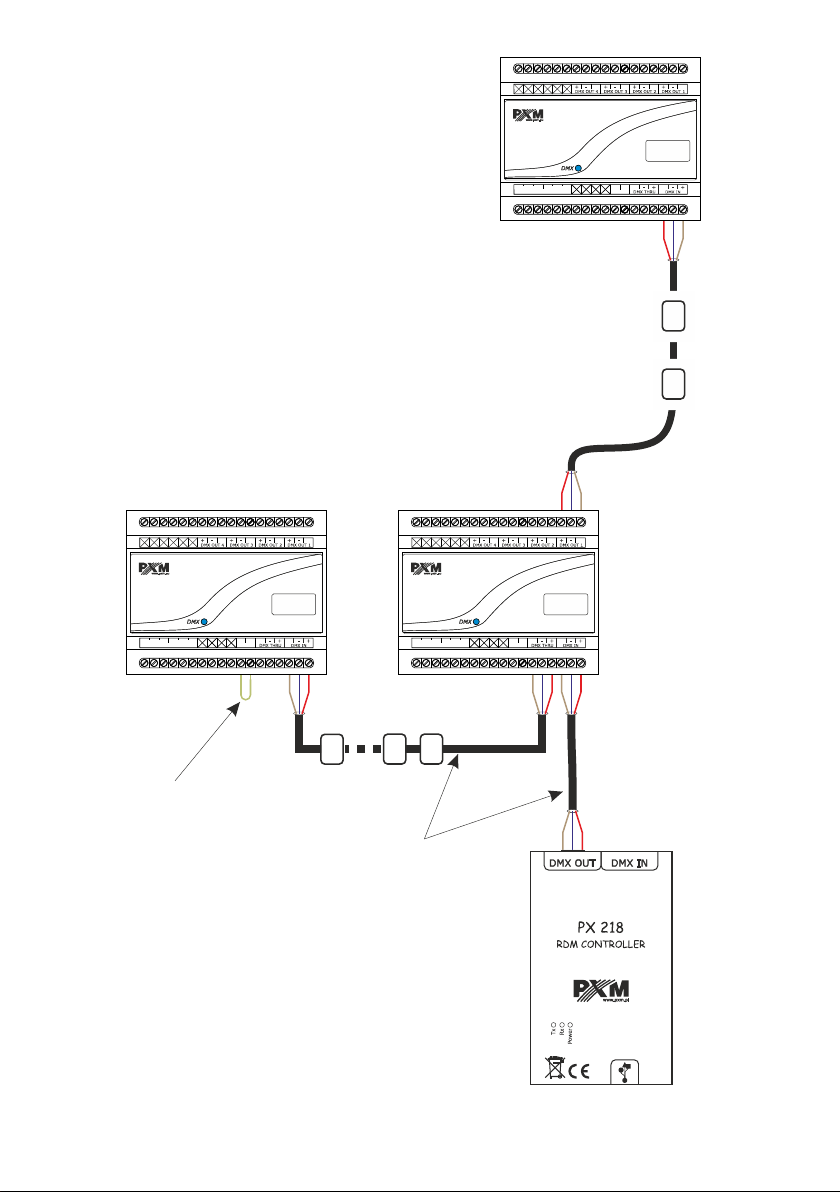

DMX line
Splitter DMX-RDM
X349
Splitter DMX-RDM
X349
max. 32 devices
(including splitters)
RDM Controller
e.g: X218
shorten of pins works like
connecting a terminator
(for the last device)
+++
– –
–
12-24V DC
GNDGNDGND
GND
GND
GND
120R
PX349
max. 4 splitters in a cascade
+ + +
– –
–
12-24V DC
GNDGNDGND
GND
GND
GND
120R
PX349
+ + +
– –
–
12-24V DC
GNDGNDGND
GND
GND
GND
120R
PX349
5 Information communicated by ED
indicator
On the device housing there is a diode indicating the operating status
of the device.
Action Function
blinks few times orange and blue power connection
blinking in blue DMX signal transmission
blinking in orange sending the RDM package
constantly lights up blue the device does not receive the DMX
signal
8
6 Connection scheme

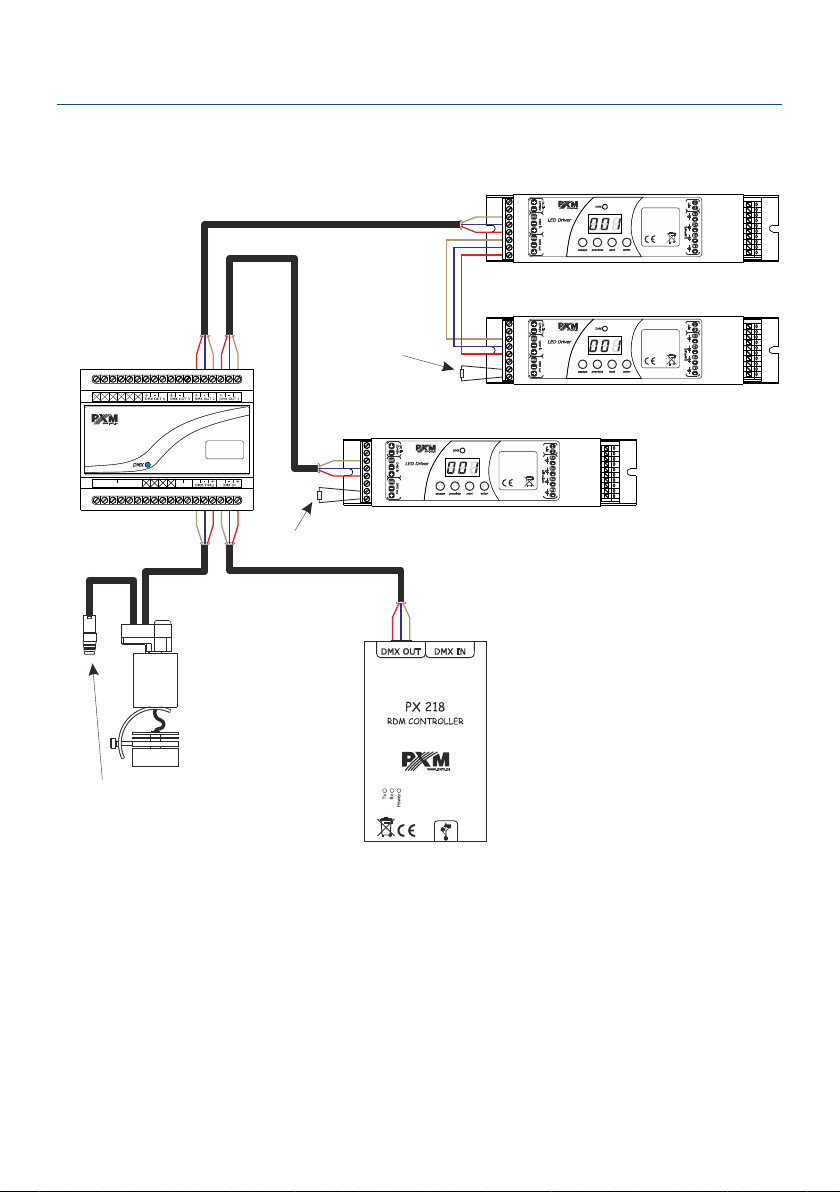

a) connection of the RDM controller and three drivers to two DMX outputs
9
Splitter DMX-RDM
X349
DMX terminator
connected in the last device
RDM Controller
e.g: X218
next
devices
+++
– –
–
12-24V DC
GNDGNDGND
GND
GND
GND
120R
PX349
PX715
4x700 mA/48V
PX715
4x700 mA/48V
PX715
4x700 mA/48V
terminator
terminator
b) shorting of 120R pins – if the splitter is the last device and no receiver is
connected to the DMX THRU output, the bridge on these pins acts as a
terminator
7 Dimensions
10
60 mm
86 mm
46 mm
105mm
+ + +
– –
–
12-24V DC
GNDGNDGND
GND
GND
GND
120R
PX349
shorting of 120R pins,
(works like connecting a terminator,
if the splitter is the last device)
GND GND
120R
PX349
