Pyle PL71PHB Bedienungsanleitung

Instruction Manual

PL71PHB

AV MENU MODE POWER IR

PL71PHB

Pair of Adjustable Headrest with Built-in 7" TFT-LCD Monitors

Warning

Read this manual before using this product.

This product is composed of precision components

and should not be dissembled Service must be

perfurmed by a factory authorized technician.

Protect the product from moisture and shock.

1. When connect the electric power wires, you should make clear about the

positive and negative electrode ( the red one is positive and the black

is negative). If you wrongly connected the fuse in the filter box will be

broken protectively. Please replace the fuse in same parameter.

2. Because the LCD screen is the main component It should be paid

attention to be damp-proof.

3. The device must be installed firmly to prevent falling of device that will

possibly cause injury and device-broken.

4. The connecting-point of direct current (12V) should connect on the Main

line of storage battery as possible as it can , for keeping this device in

normal operation and be away from the large voltage drop influence.

5. There is high voltage cluster in this machine, if you are the professional

person, should never to take part the machine if malfunction and

contact the dealer in time.

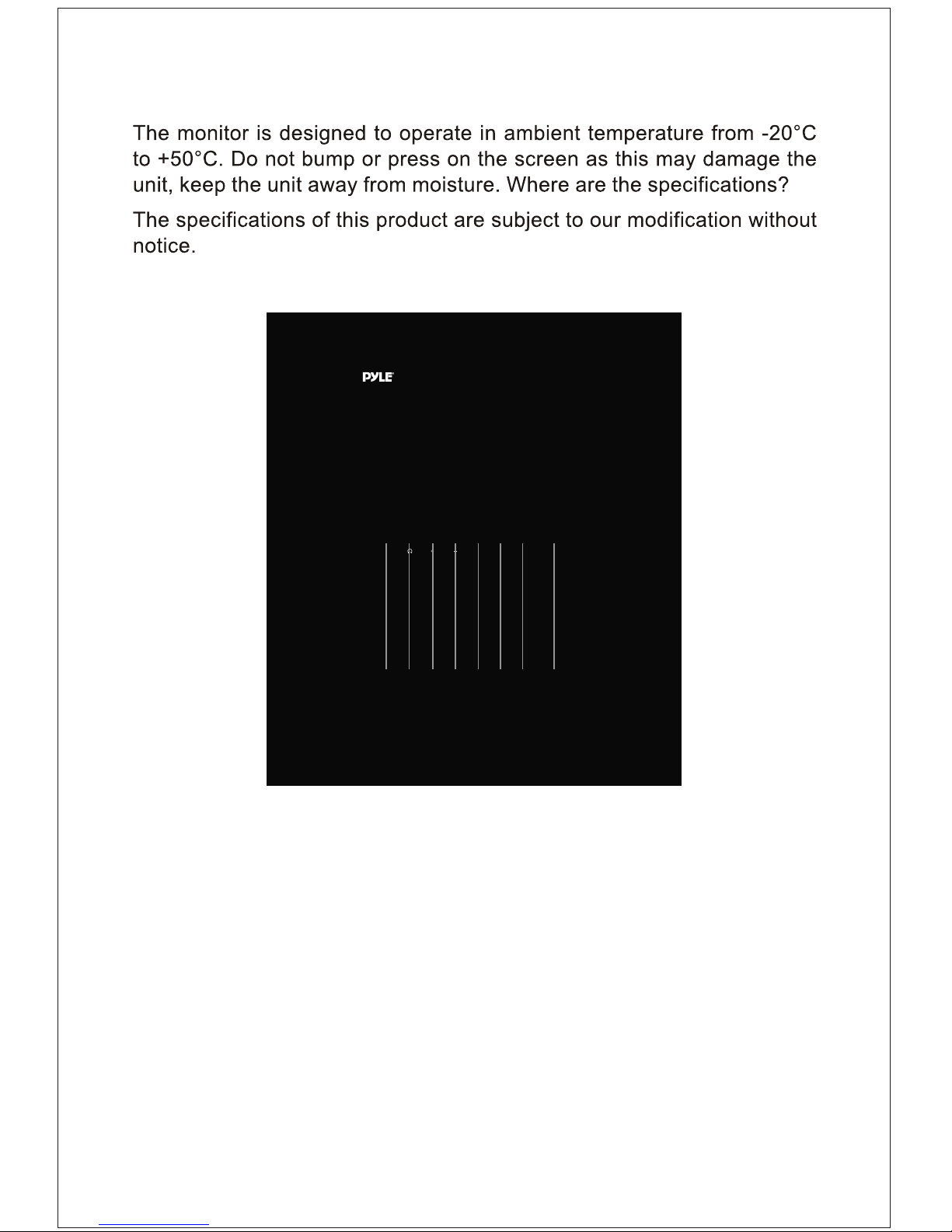

Attentions:

UNIVERSAL

HEADREST

WITH

PRE-INSTALLED

MONITOR OWNER'S MANUAL

Congratulations

your purchase

this headrest monitor system. The

product

designed and built to deliver excellent video quality and long

lasting high performance. For best results please consult a professional

mobile electronics installer for application advice

troubleshooting.

Please read these instructions thoroughly before installation.

Installation Instructions

Remove the existing headrest from the seat.

2. Adjust the posts ofthe new headrest to fit the holes in the seat where

the headrest will

installed. The post can

moved together or

apart: grasp one post

each hand, move the posts

opposing

directions (like they were walking) while pushing them toward each

other oraway from each other.

Insert the cable

the proper hole. Insert the posts into the holes

the seat and carefully work the headrest into position. Make sure the

cable

not pinched.

4. Run the cable down the seat and out to the location of the video

source unit (such as a

DVD

player).

Connect the wires as indicated:

Red: Connect to a switched (+) 12 volt source (ACC). Use a lead

that has (+) 12V when the ignition is

the ACC position so

the monitors turn off when the key

the off position. Wiring the

monitors "hot" could cause your battery to

run

down when the

engine is not running.

Black: Connect to a good chassis ground.

Reversing the polarity of the

red

and black leads will damage the

monitor.

Connect the video input connector to the video output from the

source unit (Le.DVD player).

Test the system.

VCD/DVD

Sound system

Red line (+12V)

Black line (ground)

Yellow line (signal)

Install the Pillow

How to use the adapter tubes

Monitor Controls and Features

1. V2 in (Alternate video input)

2. Earphone jack

3. Positive adjustment

4. Negative adjustment

5. Activation of menu indicator

7. Power on/off

8. IR remote window

16:9/4:3 mode select

AV MENU MODE POWER IR

PL71PHB

1 2 3 4 5 6 7 8

Remote Contorl

Power ON/OFF

Analog variable increase

Menu button

V1/V2 conversion

Analog variable decrease

Switch for mode

Installation Diagram

(Yellow) Video 2 input

Changing the battery in the remote control

The remote battery is held in a small " drawer"

on one edge of the remote. To open this

drawer, press and hold the small button on

the edge of this drawer (as shown below) and

slide the drawer out.

Insert a new battery and push the drawer

back fully into the remote.

Battery

Release button

(Yellow) Video 1 input

(Red) Audio right input

(White) Audio left input

(Black) Grounding

(Red) Battery +12V

Specification

Troubleshooting

* Screen Size: 7" TFT-LCD Monitor

* Built-in Mini Speaker

* Aspect Ratio: 16:9 Wide Screen

* 1440 x 234 Resolution

* Contrast Ratio: 300:1

* Brightness: 350cd/m2

* Viewing Angle: U/D: 160°, L/R: 160°

* Response Time: 25ms

* Video Input Systems: AV1, AV2

* PAL/NTSC Compatible

* Full Function Wireless Remote Control

* English OSD Menu

* Built-In IR Transmitter for Wireless IR Headphones

* Adjustable Mouning Posts From 4 3/4" - 7 1/2"

* Dual Diameter Mounting Posts (1/2" 3/8")

* Dimensions: 10" W x 7.5" H x 4.5 D

* Sold as: Pair

Accessories

7" TFT LCD Pillow Monitor

Wireless Remote Control

Assembling Stick

AV Input Line

Power Wire

User's Manual

Thank you for purchasing the headrest TFT LCD color monitor. To enjoy the

features of this device and to ensure years of trouble-free operation, please read

this manual carefully and follow the instructions.

WARNING:

Hazard do not operate this unit unless vehicle is parked in safe and legal area.

AUTO VIDEO ACCESSORIES

PYLE CAR VIDEO
