Pyle PLCD19XMR Bedienungsanleitung

OWNER’S MANUAL

Mobile Audio System

•PLL Synthesizer Stereo Radio

•Digital Compact Disc Player

•XM Ready Function

•Automatic Memory Storing

•Slide Down Detachable Panel

•Direct Track Access

•Program CD Tracks

•CD Changer Control

•Auxiliary Input Function

•Wired Commander Control

www.pyleaudio.com

PLCD19XMR

CONTENTS

Installation .....................................................................................................3

DIN Front-Mount....................................................................................................3

Installing the unit.............................................................................................3

Removing the unit...........................................................................................4

Using the Detachable Front Panel .............................................................5

Wiring Connection ........................................................................................6

Operation.....................................................................................................10

General Operation ..............................................................................................10

Radio Operation .................................................................................................13

XM Operation ......................................................................................................13

CD Operation ......................................................................................................14

CDC Operation ....................................................................................................15

Specification................................................................................................17

Trouble Shooting.........................................................................................18

Notes:

• The unit can be installed on the vehicle

or the ships.

• Choose the mounting location where

the unit will not interfere with the normal

driving function of the driver.

• Before finally installing the unit, connect

the wiring temporarily and make sure

it is all connected up properly and the

unit and the system work properly.

• Use only the parts included with the

unit to ensure proper installation. The

use of unauthorized parts can cause

malfunctions.

• Consult with your nearest dealer if

installation requires the drilling of holes

or other modifications of the vehicle or

the ship.

• Install the unit where it does not get in

the driver’s way and cannot injure the

passenger if there is a sudden stop,

like an emergency stop.

• If installation angel exceeds 30¢Xfrom

horizontal, the unit might not give its

optimum performance.

30˚

• Avoid installing the unit where it would

be subject to high temperature, such

as from direct sunlight, or from hot air,

from the heater, or where it would be

subject to dust, dirt or excessive

vibration.

TAKE OUT SCREWS BEFORE

INSTALLATION

Before install the unit, please remove the

two screws.

NOTE: If this unit is installed on the ship,

you should use two pieces of plastic film

(30mmX20mm) supplied with the unit to

seal the two holes after remove the

screws. And this will be waterproof.

DIN FRONT-MOUNT

Installing the unit

1. Dashboard

2. Holder

After inserting the holder into the

dashboard, select the appropriate tab

according to the thickness of the

dashboard material and bend them

inwards to secure the holder in place.

3. Screw

INSTALLATION

(Fig. 1)

182

Take out screws before installation

INSTALLATION

(Fig. 2)

OPEN button

Front Panel

1. Dashboard

2. Nut (5mm)

3. Spring washer

4. Screw (5x25mm)

5. Screw

6. Strap

Be sure to use the strap to secure the

back of the unit in place. The strap can

be bent by hand to the desired angle.

7. Plain washer

Removing the unit

1. Before removing the unit, press the

OPEN button to slide down the front

panel.

2. Lever

Insert the levers supplied with the unit

into the grooves in the housing as

shown in figure until they click. Pulling

the levers makes it possible to remove

the unit from the dashboard.

Bottom

Button

Bottom

Button

Protective Case

Front Panel

USING THE DETACHABLE FRONT PANEL

To Detach the Front Panel

1. Press the OPEN button, the front panel

will slide down.

2. When the front panel slides down,

press the bottom button of the front

panel upward and pull it out from the

panel bracket.

3. For safekeeping, store the front panel

in the supplied protective case

immediately after being removed.

To Reinstall the Front Panel

1. When the panel bracket is in slide down

position, insert the front panel into the

panel bracket and push the front panel

from the middle to slide it up.

Open

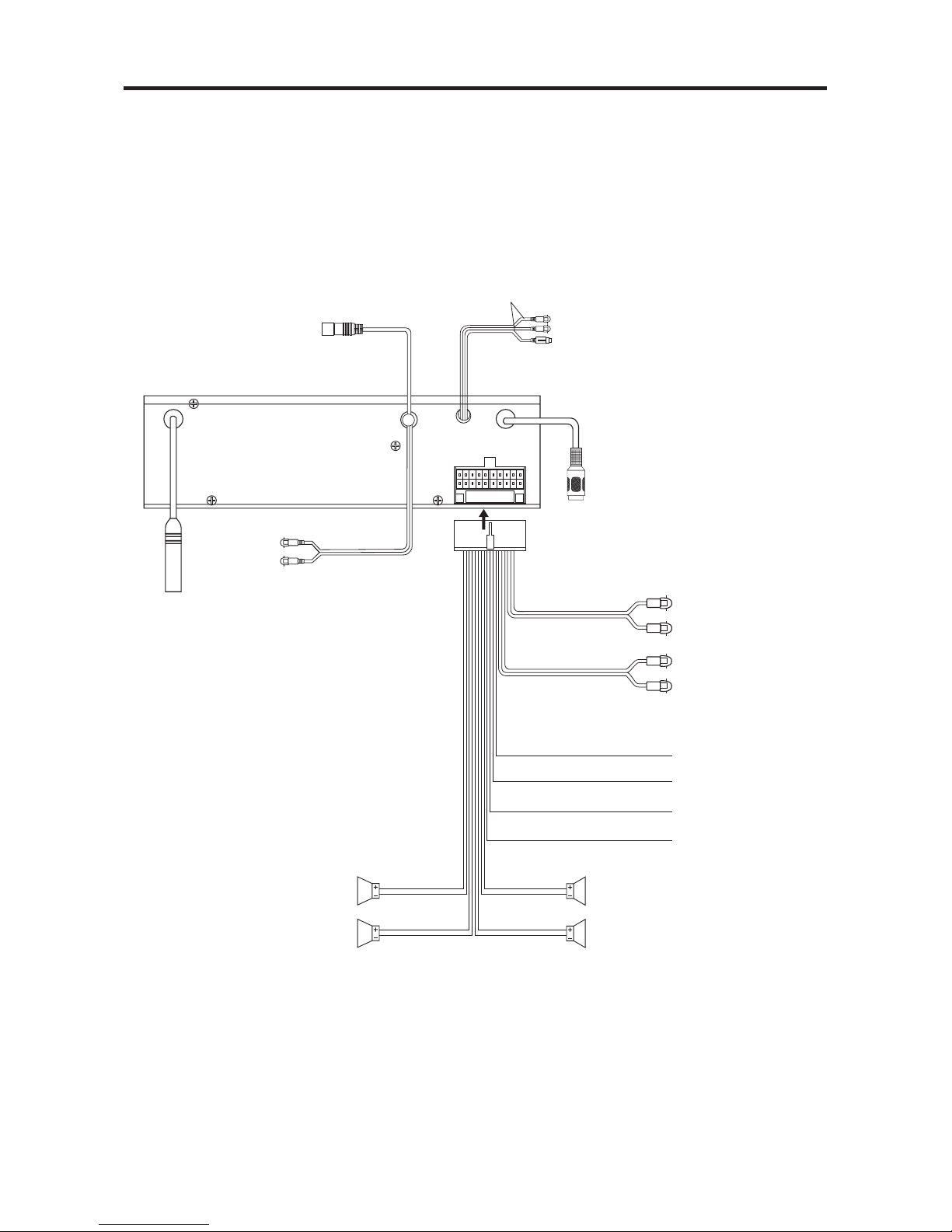

WIRING CONNECTION

ANTENNA CONNECTOR

(BLACK)

CD CHANGER

CONNECTOR SOCKET

(BLACK)

FUSE

WIRING REMOTE

CONNECTOR SOCKET

AUDIO R IN (RED)

AUDIO L IN (WHITE)

XM RECEIVER CONNECTOR SOCKET (BLACK)

RED RCH

WHITE RCH

AUX IN CABLE (YELLOW)

XM AUDIO CABLE(BLACK)

RED

WHITE

Rch

Lch

FRONT RCA CABLE (BROWN)

RED

Rch

Lch

REAR RCA CABLE (GREY)

BLUE

RED

YELLOW

BLACK

POWER ANTENNA

IGNITION SWITCH (ACC+)

MEMORY/BATTERY (B+)

GROUND (B-)

FRONT Lch

SPEAKER

REAR Lch

SPEAKER GREEN

GREEN/BLACK

WHITE

WHITE/BLACK

VIOLET

VIOLET/BLACK

GREY

GREY/BLACK

FRONT Rch

SPEAKER

REAR Rch

SPEAKER

WHITE

OPERATION

CONTROL & FUNCTIONS KEYS

This unit is a marine rated wired remote control made using a modified controller or

similar layout. It is capable of operation specified functions on the marine AM/FM/CD

receiver. The body, buttons, controls and display need to be UV and water-resistant.

It includes and LCD and an illumination circuit. The flat body should be watertight and

the circuit board clear coated.

1 Power button

Press the button (1) shortly to turn on/off the head unit.

Press button (1) for more than 3 seconds, the button is operated to initial volume

control button. When system power turns on, the volume is set to initial volume

level.

2 MUTE button

In RADIO/AUX IN mode, press MUTE / button (2) to activate mute function and

“MUTE” will appear on the display. Press the button once again to release mute

function and return the volume to the last position before it was muted.

In CD/CDC mode, press / MUTE button (2) to pause CD/CDC player. Press it

again to resume play.

3 VOLUME +/- buttons

Press VOL / buttons (3) to increase/decrease volume level.

1 8 56

2 3 4 7

OPERATION

4 MODE SELECTION button

Press the MODE button (4) to step sequentially through the following sources:

e.g. radio mode to CD mode to CDC mode to AUX in mode.

5 BAND SELECTION button

Press the BAND button (5) to step sequentially through the following bands: FM1,

FM2, FM3, AM1, AM2.

6 TRACK/SEARCH/TUNE buttons

• STATION SELECTION (FOR RADIO OPERATION)

Press /buttons (6) shortly to activate automatic seek function. Press for

more than 3 seconds until “MAN” appears on the display, the manual tuning

mode is selected. If both buttons have not pressed for several seconds, they

will return to seek tuning mode and “AUTO” appears on the display.

• SELECT TRACKS (FOR CD OR CDC OPERATION)

Press the /buttons (6) shortly to move to the following track or the previous

track.

Press the /buttons (6) for more than 3 seconds to activate fast forward or

rewind of the disc. Disc play starts from when you release the button.

7 SHIFT/SCAN button

• SCAN (FOR RADIO OPERATION)

Press SHIFT/SCAN button (7) to scan through strong stations in the current

band. Radio pauses for five seconds at each strong station. At each time the

frequency is flashing on the display. Press SHIFT/SCAN button (7) again to

listen to current station.

• SELECT DISC (FOR CDC OPERATION)

During CDC operation, press SHIFT/SCAN button (7) to shift mode. And then

“SHIFT” will appear on the display. At shift mode, press /buttons (6) to

select next disc or previous disc. If there is not any operation for several seconds,

it will exit shift mode automatically.

8 Liquid Crystal Display

Exhibit the number, the current disc and the current track, and other activated

functions on the display (8).

INSTALLATION

3. Align the screw holes on the holder with

the screw holes on the base and the

screw holes on the bracket, then use the

two screws (ø4X50) and nuts to fix the

bracket, the base and holder to the proper

location.

4. Last install the remote control to the

holder. See below, align the four hooks

on the holder with the four slots on the

remote control.

1. First insert the hooks on the base into

the slots of the holder to install the base

to the holder.

2. Select the proper object, then place the

remote mounting bracket on the base

and let the object go through the base

and the mounting bracket.

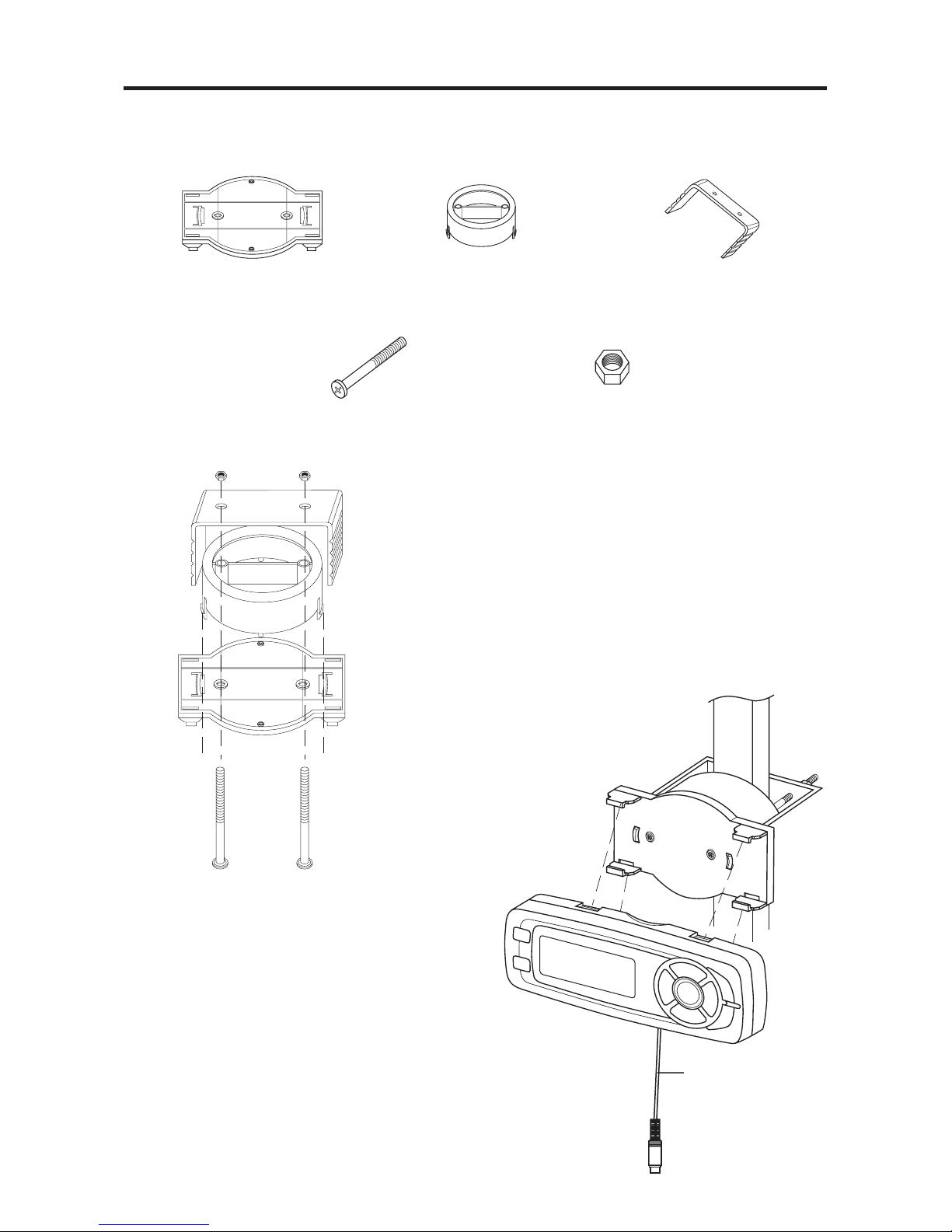

INSTALLATION HARDWARE

HOLDER

BASE REMOTE

MOUNTING BRACKET

SCREW (ø4X50)

INSTALLATION DIAGRAM

NUT

X1X1X1

X2 X2

WIRE

OPERATION

1419

1312

119 1

22 2320 21 246

16 1710

2 7

1518

5 25

LOCATION OF KEYS

1. DISP

2. AS/PS/ELAPSE

3. //MUTE

4. EJ

5. DISC SLOT

6. MODE

7. OPEN

8. LIQUIID CRYSTAL DISPLAY

9. PWR

10. SEL/MENU

11. VOL

12. VOL

13. SHIFT/SCAN/XM-MOD

14. M1~M6 Preset buttons

15. LOUD/DIM

16. CH

17. CH

18. BAND/ENTER

19. M1 MEM (CAT )

20. M2 PGM (CAT )

21. M3 RPT

22. M4 SHF

23. M5 SCN

24. M6

25. Reset Button
