Precautions

THANK YOU FOR PURCHASING THIS CAR DVD PLAYER .

Before operating the unit, read this manual thoroughly and keep it handy

for future reference .

To avoid injury or accident , read the following precautions before

installing and operating the unit .

ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) PANEL

Do not press on the LCD panel on the unit as doing so can distort the

picture or cause a malfunction . The picture may become unclear , or the

LCD panel may be damaged .

DO NOT install any receiver in locations where;

- it may obstruct the steering wheel and gearshift lever operations, as this

may result in a traffic accident.

- it may obstruct the operation of safety devices such as air bags, as this

may result in a fatal accident.

- it may obstruct visibility.

DO NOT operate any receiver while manipulating the steering wheel, as

this may result in a traffic accident.

The driver must not watch the monitor while driving.

IF THE DRIVER watches the monitor while driving, it may lead to

carelessness and cause an accident.

IF YOU NEED to operate the receive while driving, be sure to look ahead

carefully or you may be involved in a traffic accident.

IF THE PARKING BRAKE is not engaged.“ ParkingBrake” flashes on the

monitor, and no playback picture will be shown.

- This warning appears only when the parking brake wire is connected to

the parking brake system built in the car ( refer to the electric connection)

ON INSTALLATION

NOTES ON CLEANING

-Clean the LCD panel with a slightly damp soft cloth.

-Do not use solvents such as benzine, thinner, commercially available

cleaners or antistatic spray .

-Do not use alcohol to clean the screen .

If your car was parked in a cold or hot place, the picture may not be clear .

The monitor is not damaged . The picture will become clear the temper-

ature in your car becomes normal .

Safety Information

REGION MANAGEMENT INFORMATION:

This DVD Player is designed and manufactured to respond to the Region

Management Information that is recorded on a DVD disc. If the Region number

described on the DVD disc does not correspond to the Region number of this

DVD Player, this DVD Player cannot play this disc.

CAUTION:

THIS DVD PLAYER ISACLASS I LASER PRODUCT. HOWEVER THIS DVD

PLAYER USESAVISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE .

HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE

THE DVD PLAYER CORRECTLYAS INSTRUCTED.

USE OF CONTROLS ORADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THANTHOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERSAND DO NOT

REPAIR YOURSELF. REFER SERVICINGTO QUALIFIED PERSONNEL.

WARNING:

TO REDUCETHE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

EQUIPMENTTO RAIN OR MOISTURE.

TO REDUCETHE RISK OF FIRE OR ELECTRIC SHOCK,ANDANNOYING

INTERFERENCE, USE ONLYTHE RECOMMENDEDACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected

by method claims of certain U.S. Patents and other intellectual property rights

owned by Macrovision Corporation and other rights owners.Use of this

and is intended for home and other limited viewing uses only unless

otherwise authorized by Macrovision Corporation. Reverse engineering or

disassembly is prohibited.

Disc Notes

Preparing New Discs with

Spots

Rough

Anew disc may have rough edges on

itsinside and outside edges. If a disc

withrough edges is used, the proper

settingwill not be performed and the

player will not play the disc. Therefore,

removetherough edges in advance

by using a ball point pen or pencil as

shown on the right. To remove the

rough edges, press the side of the pen

or pencil against the inside and outside

edges of the disc.

Rough spots

outside edge

Ball point pen

or pencil

Rough spots

on inside

edge

Do not touch

the

underside

of the disc

Do not

bend

Wipe the disc from

center

toward the outside

edge

Label side

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

Handling and Cleaning

Dirt, dust, scratches and warping disc

will cause misoperation.

Do not place stickers or make

scratches on discs.

Do not warp discs.

Adisc should always be kept in its

case when not in use to prevent from

damaging.

Do not place discs in the following

places:

1.Direct sunlight

2.Dirty, dusty and damp areas

3.Near car heaters

4.On the seats or dashboard

Discs which cannot be played

with this player

DVD-RAM

CDV

CDG

Note:

Adisc may become somewhat scratched

(although not enough to make it

unusable) depending on your handle it

and conditions in the usage environment.

Note these scratches are not an

indication of any problem with the player.

Disc formats supported by this

player

DVD

VCD

MP3

Audio and Video

Discsize12cm

Audio and Video

Discsize12cm

Audio

Discsize12cm

Audio

Discsize12cm

Installation

1. Choose the mounting location where the unit will not interfere with the normal

driving function of the driver.

2. Before finally installing the unit, connect the wiring temporarily and make sure

all connected up properly and the unit and the system work properly.

3. Use only the parts included with the unit to ensure proper installation. The use

unauthorized parts can cause malfunctions.

4. Consult with your nearest dealer if installation requires the drilling of holes or

modifications of the vehicle.

5. Install the unit where it does not get in the driver s way and cannot injure the

passenger if there is a sudden stop, like an emergency stop.

. If installation angle exceeds 30 from horizontal, the unit might not give its

performance.

NOTES:

it is

other

.Avoid installing the unit where it would be subject to high temperature, such

as from direct sunlight, or from hot air, from the heater, or where it would be

subject to dust, dirt or excessive vibration.

optimum

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from "Front"(conventional DIN

Front-mount) or "Rear"(DIN Rear-mount installation, utilizing threaded

screw holes at the sides of the unit chassis). For details, refer to the following

illustrated installation methods.

Revoving the unit

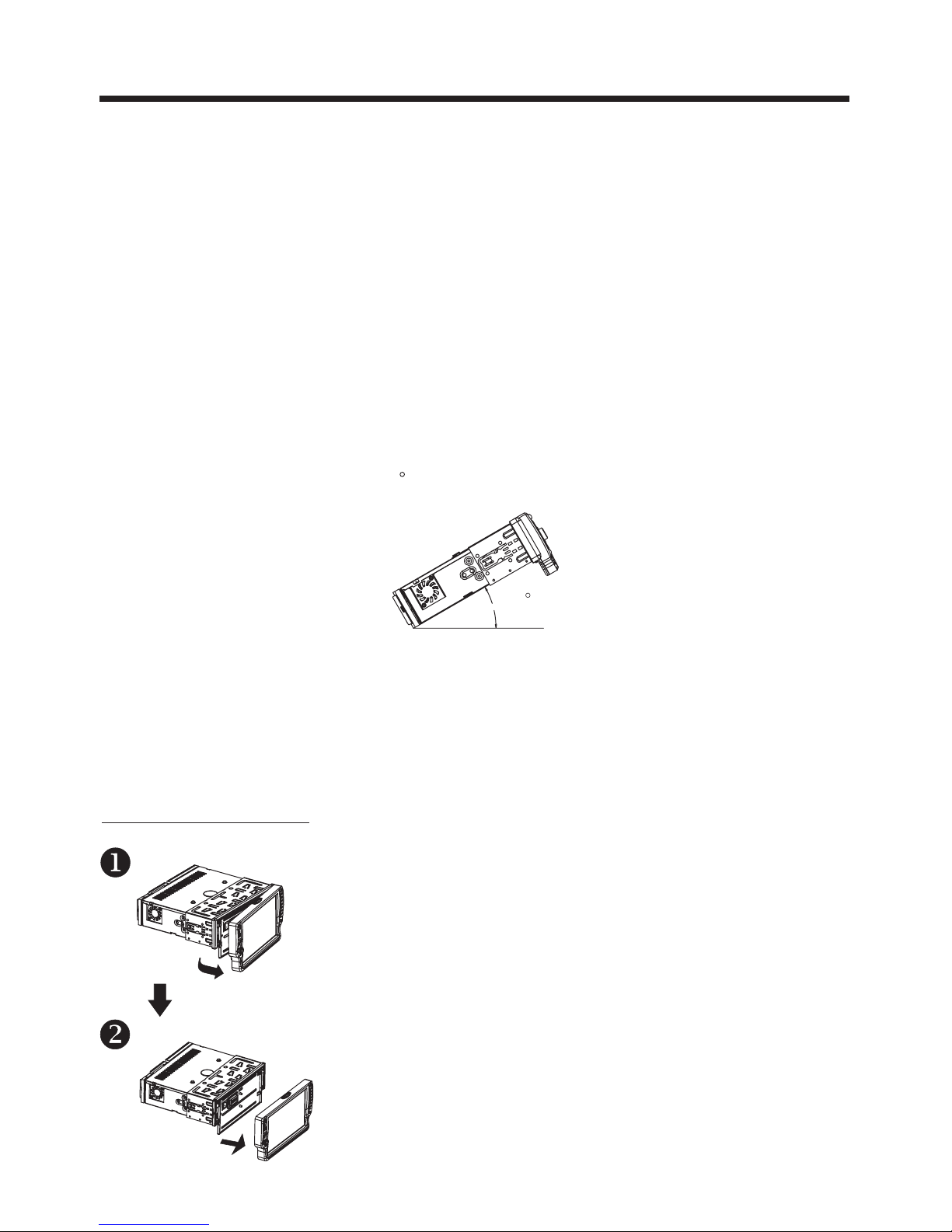

1. Press the button to release the front panel .REL

2. Remove the control panel .

Installation

Installation the unit

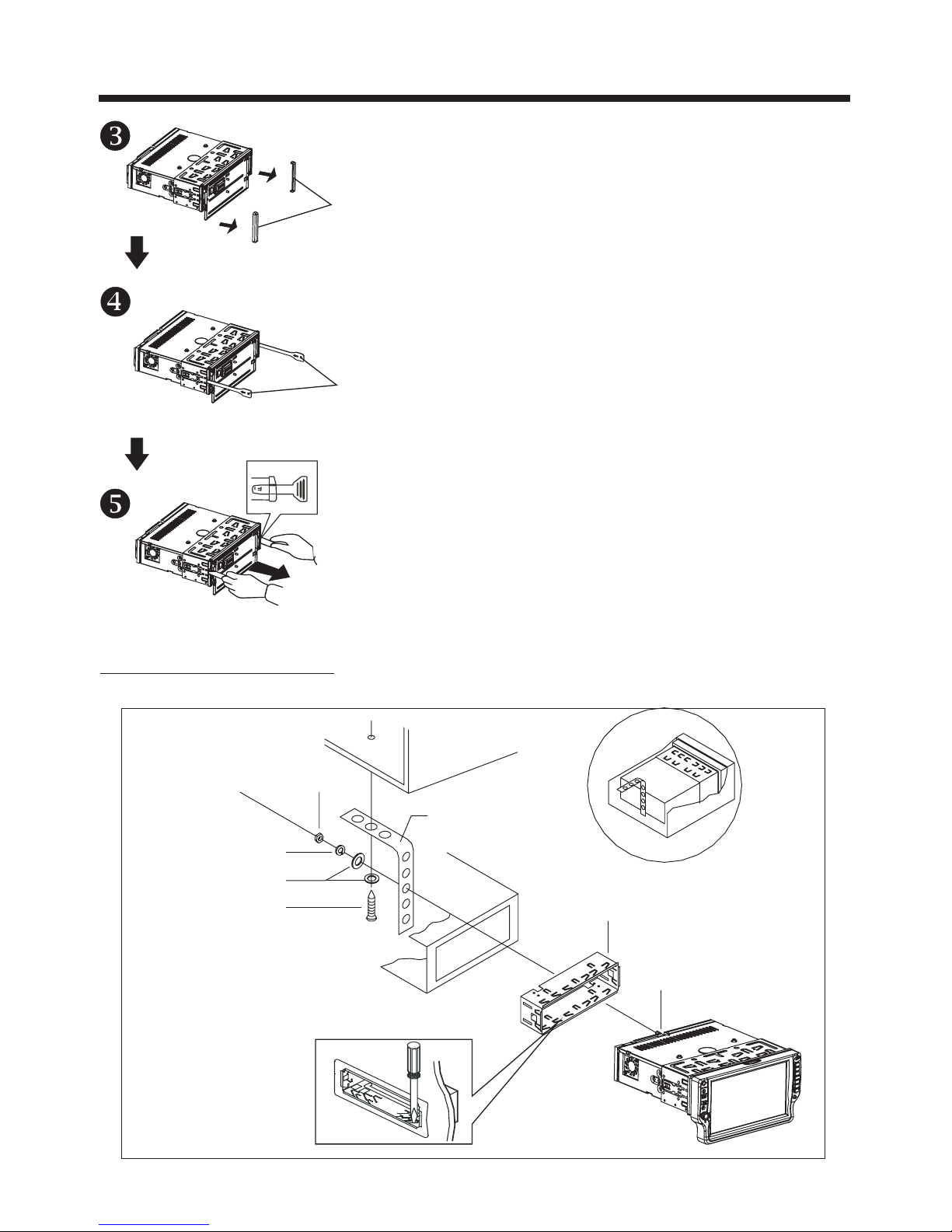

3. Remove the PLASTIC COVER of the both sides away

4. Insert the two KEY PLAT into the grooves at both sides

of the unit as shown in figure until they click .

PLASTIC COVER

KEY PLATE

5. Pulling the levers makes it possible to remove

the unit from the dashboard .

DASH BOARD

METAL MOUNTING

STRAP

HEX NUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

CONSOLE

SLIDE BRACKET

HOUSING

HEX BOLT

Installation

How To Remove And Install The Front Panel

When detaching or attaching the control panel, be careful not to damage the

connectors on the back of the control panel and on the panel holder.

2). Pull-off the front panel and keep the front panel into the case .

PROTECTIVE CASE

Detaching The Front Panel

Before detaching the control panel, be sure to turn off the power.

1). Press the release button and the left hand side of front panel will release.“REL”

Attaching The Front Panel

1). First insert the right hand side of the front panel into the hollow of the unit .

(NOTE : the “bulge” point on the panel must be attached into the hollow of the unit .)

2). Gently push the left hand side of the front panel until you feel a “ Click” .

Hollow Bulge

RELEASE BUTTON

PUSH

Panel Angle Adjustment

Caution:

Do not insert your finger behind the control panel.

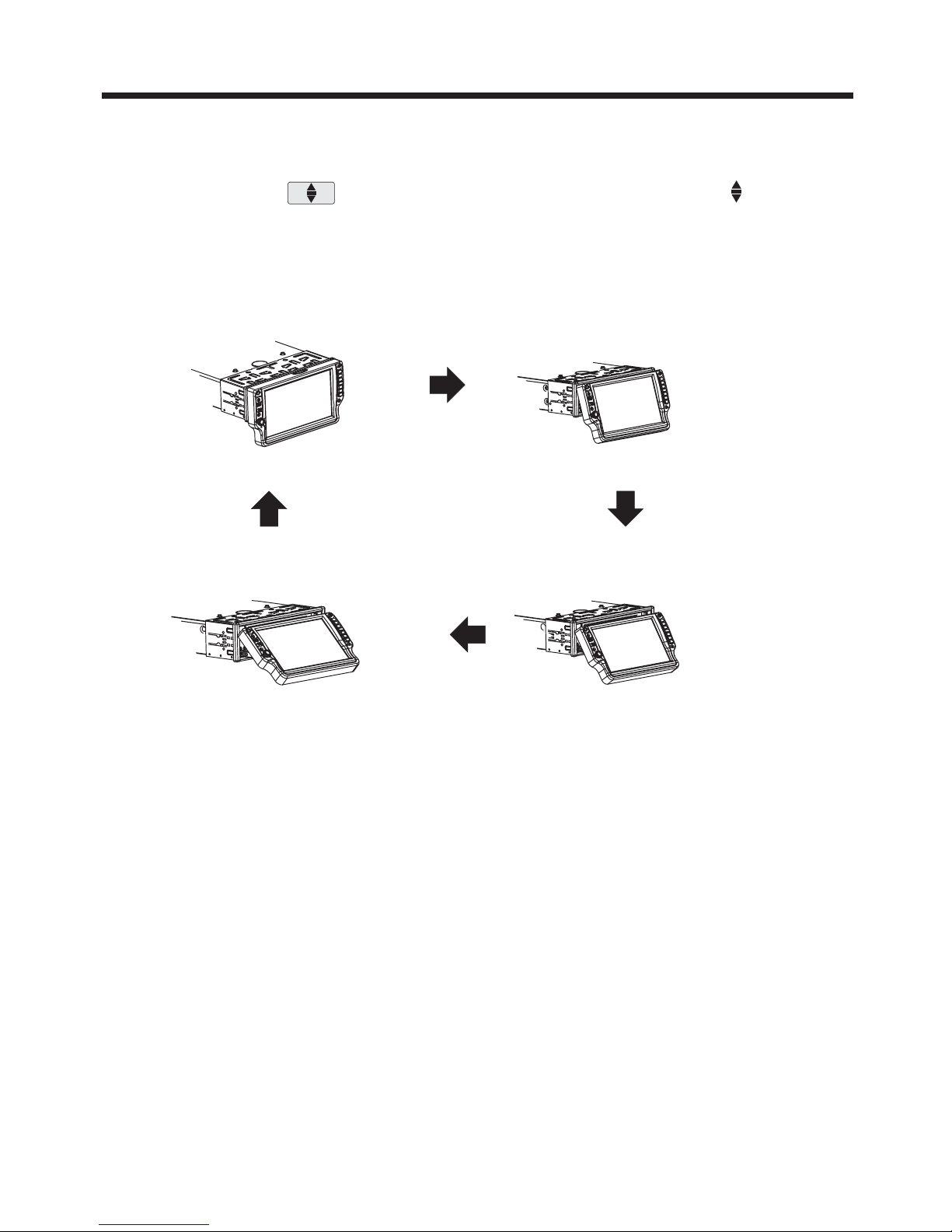

When you want to change the viewing angle of the operating unit to play,

you can touch the section on touch screen (or press the button

on the front panel) repeatedly to select the desired angle as follows:

ANGLE1-ANGLE2-ANGLE3-ANGEL4-ANGLE 1 .

CHANGING THE CONTROL PANEL ANGLE

ANGLE 1 ANGLE 2

ANGLE 3ANGLE 4

Electric Connection

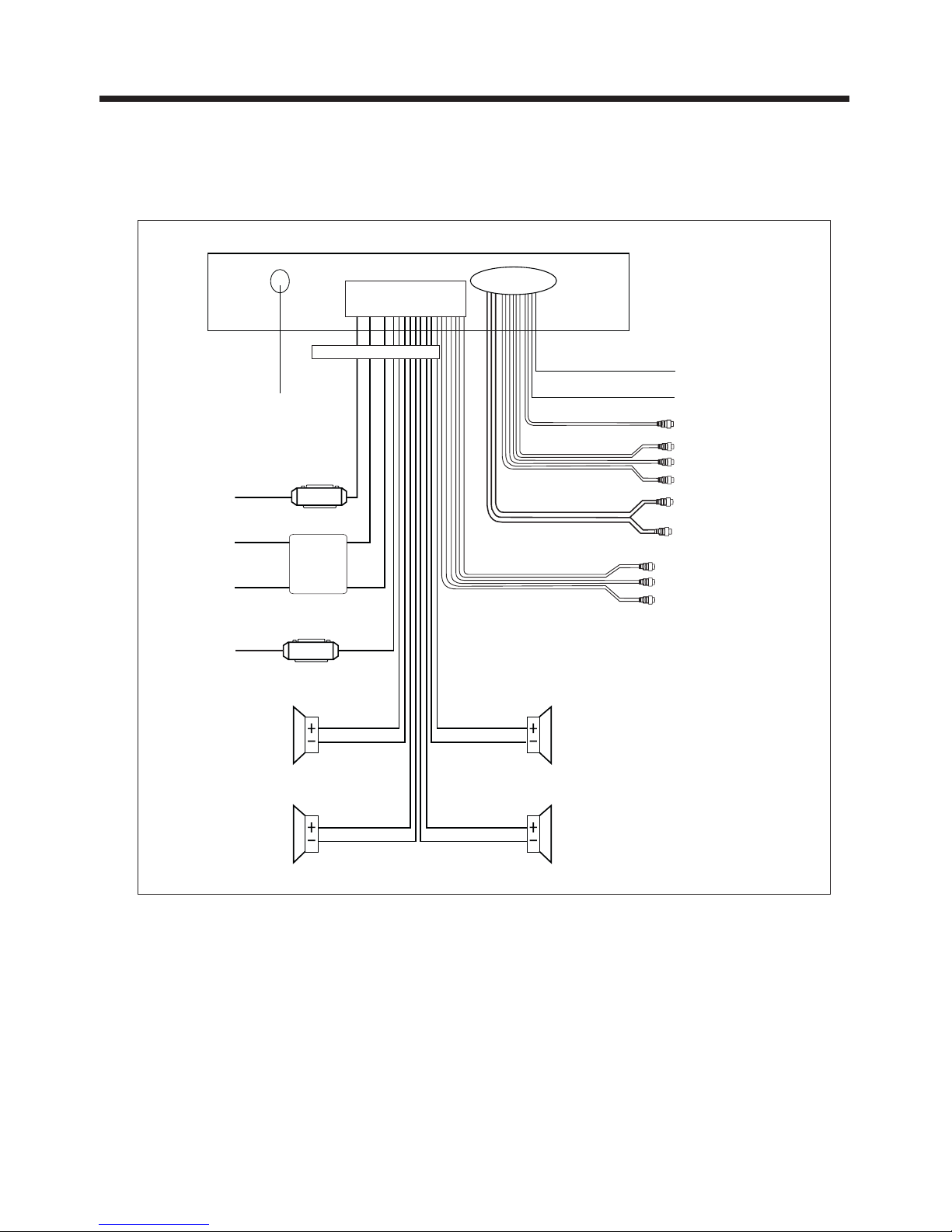

WIRING CONNECTION

Note:

the earth connection cable (parking brake B-) must be connected in order for DVD

pictures to be played back to the monitor. If the cable has not been correctly

connected, the message “PARKING BRAKE” appears on the monitor.

FRONTRCA WHITE L

FRONTRCARED R

VIDEO OUT1YELLOW

FRONTRCAOUTPUT

CABLE

GREY

GREY/BLACK

FRONT

Rch SPK.

VIOLET

VIOLET/BLACK

WHITE

WHITE/BLACK

GREEN

GREEN/BLACK

REAR

Lch SPK.

AUTO

ANTENNA BLUE FUSE

GROUND(B-)

MEMORY

BACK-UP(B+)

IGNITION

SWITCH(B+)

RADIOANTENNAJACK

RED

YELLOW

BLACK

MAIN UNIT

REAR

Rch SPK.

FRONT

Lch SPK.

CHOKE

BOX

GREYSUBWOOFER

VIDEO OUT2YELLOW

COAXIALOUTBROWN

WHITE (B+)12V

REAR CAMERASWITCH

BROWN

YELLOW

RCA CABLE

REAR CAMERAINPUT

(B-)PARKING BRAKE

RCH RED

LCH WHITE

REAR RCAOUTPUT

CABLE

FUSE

ISO CONNECTOR

Remote Control

Button

Ref #

REPEAT

CLOCK Press it briefly to view the clock time , Press again to return to

normal display mode . Press longer to set the time .

MODE Press repeatedly to cycle through the various modes:

RADIO>DISC>AUXIN.

3STOP Press once to pause playback. Press PLAY/PAUSE to resume

playback. Please note: if you press STOPtwice, playback will

start at the beginning of the disc.

SETUP

4Press this button to open the SETUP menu.

MO/ST

(AUDIO)

In Radio mode, press this button to change between Mono and

Stereo reception modes (when a station is weak, sometimes

switching to Mono will improve sound quality). In Disc Playback

mode, pressing this button opens theAUDIO setup menu for

making changes to the way the soundtrack is reproduced.

SUBTITLE

LOCAL/

DISTANT

In DVD Disc Playback mode, pressing this button will allow you to

change the subtitle language on discs which have this as an

option. In Radio mode, press this button to change the radio

reception sensitivity in stations are near or far.

7Pressing this button will open a menu presenting you with the

playback repeat options available for that kind of disc.

Function

316

20 1

DVD/RECEIVER CONTROLDVD/RECEIVER CONTROL

SETUP

ENTER

123

45 6

789

VOL

SEL

A/PS

MUTE STOP

MO/ST

MODE

CLK

PLAY/PAUSE

ANGLE

BAND

VOL

OSD

TITLE/PBC

LO/DX

GOTO +10

TOP INT

RDM

REPEAT

MODE

Andere Handbücher für PLD71MU

Inhaltsverzeichnis

Andere Pyle Auto-Videosystem Handbücher

Pyle

Pyle PLVIN72 Bedienungsanleitung

Pyle

Pyle PLHR78W Bedienungsanleitung

Pyle

Pyle PLCD88USMP Kurzanleitung

Pyle

Pyle PLDVD115 Bedienungsanleitung

Pyle

Pyle PLVSR10GR Bedienungsanleitung

Pyle

Pyle PLD38MU Bedienungsanleitung

Pyle

Pyle PLDVD124 Montageanleitung

Pyle

Pyle PLVWR7200F Bedienungsanleitung

Pyle

Pyle PYLE View Series PLHR4M Bedienungsanleitung

Pyle

Pyle PLD7MU Bedienungsanleitung

Pyle

Pyle PLTV7.5DIN Bedienungsanleitung

Pyle

Pyle PYLE PL7PHRB Bedienungsanleitung

Pyle

Pyle PYLE View Series PLTFT72 Bedienungsanleitung

Pyle

Pyle PLRD106 Bedienungsanleitung

Pyle

Pyle Mobile Video System PLD41MUT Bedienungsanleitung

Pyle

Pyle PLHR7T Bedienungsanleitung

Pyle

Pyle PLDN63BT Bedienungsanleitung

Pyle

Pyle PLDVD120 Bedienungsanleitung

Pyle

Pyle PLCM6000 Bedienungsanleitung

Pyle

Pyle PYLE View Series PLVSMN56 Bedienungsanleitung

Pyle

Pyle PLVWR840 Bedienungsanleitung

Pyle

Pyle PLDNAND623 Bedienungsanleitung

Pyle

Pyle PYLE View Series PLVWR5600 Bedienungsanleitung

Pyle

Pyle PLVIN60 Bedienungsanleitung

Beliebte Auto-Videosystem Handbücher anderer Marken

Stinger

Stinger HEIGH10 RB10RAM13B Bedienungsanleitung

Eonon

Eonon E1057 Bedienungsanleitung

Milion

Milion D2223 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8153 Bedienungsanleitung

Voxx Electronics

Voxx Electronics HR8MA1 Bedienungsanleitung

Axxera

Axxera AV604Bi Bedienungsanleitung

Clarion

Clarion NX706E Bedienungsanleitung

Pyle view

Pyle view PLDN74BTi Bedienungsanleitung

Clarion

Clarion NX602 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5850N Bedienungsanleitung

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Benutzerhandbuch

Lanzar

Lanzar SVDVD5 Bedienungsanleitung

Kia

Kia MTXM100YPPE Bedienungsanleitung

Eonon

Eonon E1060 Bedienungsanleitung

Macrom

Macrom M-AN900 Bedienungsanleitung

Hyundai

Hyundai BAPE-L3000N Bedienungsanleitung

r.LiNK

r.LiNK RL2-UCON8-SM Bedienungsanleitung

Blaupunkt

Blaupunkt DVP 01C Bedienungsanleitung
