Pyle PLTVD7P Bedienungsanleitung

OWNER’S MANUAL

Mobile Video System

• Digital Audio Out-Coaxial

• DVD Player With TV Tuner

• Multi Color TFT Monitor

• Multi-subtitle Languages Function

• Multi-audio Languages Function

• Multi-angle Function

• Parental Control

• Remote Control

PLTVD7P

FEATURES

Compatible with PAL DVD (Video

CD) and NTSC DVD (Video CD)

This player can play discs recorded in

either PAL or NTSC format.

• A single LSI chip now integrates all

major DVD playback circuit functions

including MPEG2 decoder, video D/A

converter, and audio decoders.

• L/R stereo analog audio outputs for

connection to existing head unit aux

inputs. Video output is composite

video.

• Supplied remote handles multi-function

software (multi-language audio-

track/subtitle, multi-angle, multi-

story, etc.), plus all basic functions.

Built In TV Tuner

• PLL Tuning System

•I

2C Bus Control

USE THIS PRODUCT

SAFELY

When Driving

Keep the volume level low enough to be

aware of road and traffic conditions.

When Car Washing

Do not expose the product to water or

excessive moisture. This could cause

electrical shorts, fire or other damage.

When Parked

Parking in direct sunlight can produce

very high temperatures inside your

vehicle. Give the interior a chance to

cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with

a 12 volt DC, negative ground battery

system (the regular system in a North

American car).

Protect the Disc Mechanism

Avoid inserting any foreign objects into

the slot of this player.

Failure to observe this may cause

malfunction due to the precise

mechanism of this unit.

Use Authorized Service Centres

Do not attempt to disassemble or adjust

this precision product. Please refer to

the Service Centre list included with this

product for service assistance.

For Installation

The unit should be installed in a

horizontal position with the front end up

at a convenient angle, but not more than

30°.

Safety Information ........................................................................................4

Disc Notes .....................................................................................................5

The Player......................................................................................................6

Installation .....................................................................................................8

Open/Close the Monitor and Angle Adjustment........................................9

Electric Connection ....................................................................................10

Remote Control...........................................................................................11

Preparing the Remote Control..............................................................................13

Loading a DVD/VCD/CD Disc...............................................................................13

Ejecting a Disc ......................................................................................................13

Basic Operation ..........................................................................................14

On-Screen Display Function.................................................................................16

Multi-audio Language Function............................................................................17

Menu Function......................................................................................................17

Title Menu Function ..............................................................................................17

Multi-subtitle Language Function .........................................................................17

Multi-angle Function .............................................................................................17

MP3 Disc Play.......................................................................................................18

TV Operation.........................................................................................................18

Setup ............................................................................................................19

Initial Setup ...........................................................................................................19

General Setup.......................................................................................................19

Speaker Setup ......................................................................................................21

Audio Setup ..........................................................................................................21

Preferences Setup ................................................................................................22

Defaults Table .......................................................................................................24

Specifications..............................................................................................25

CONTENTS

CAUTION:

MOBILE DVD PLAYER IS A CLASS I

LASER PRODUCT. HOWEVER THIS

MOBILE DVD PLAYER USES A

VISIBLE/INVISIBLE LASER BEAM

WHICH COULD CAUSE HAZARDOUS

RADIATION EXPOSURE IF DIRECTED.

BE SURE TO OPERATE THE MOBILE

DVD PLAYER CORRECTLY AS

INSTRUCTED.

USE OF CONTROLS OR

ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND - DO NOT

REPAIR YOURSELF. REFER SERVICING

TO QUALIFIED PERSONNEL.

WARNING:

•TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS EQUIPMENT TO RAIN OR

MOISTURE.

•TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE

RECOMMENDED ACCESSORIES.

•THIS DEVICE IS INTENDED FOR

CONTINUOUS OPERATION.

This product incorporates copyright

protection technology that is protected

by method claims of certain U.S. patents

and other intellectual property rights

owned by Macrovision Corporation and

other rights owners. Use of this copyright

protection technology must be authorized

by Macrovision Corporation, and is

intended for home and other limited

viewing uses only unless otherwise

authorized by Macrovision Corporation.

Reverse engineering or disassembly is

prohibited.

Region Management Information

Region Management Information:

This Mobile DVD Player is designed and

manufactured to respond to the Region

Management Information that is recorded

on a DVD disc. If the Region number

described on the DVD disc does not

correspond to the Region number of this

Mobile DVD Player, this Mobile DVD

Player cannot play this disc.

SAFETY INFORMATION

DISC NOTES

Disc formats supported by this player

DVD

12 cm disc

(Single-sided disc only)

VIDEO CD

12 cm disc

MP3

12 cm disc

Discs which cannot be played with this

player

•DVD-ROM

•DVD-R/DVD-RAM

•CDV

•CD-G

Handling and Cleaning

•Dirt, dust, scratches and warping disc

will cause misoperation.

•Do not place stickers or make

scratches on discs.

•Do not warp discs.

•A disc should always be kept in its

case when not in use to prevent from

damaging.

•Do not place discs in the following

places:

1. Direct sunlight

2. Dirty, dusty and damp areas

3. Near car heaters

4. On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

Note:

A disc may become somewhat scratched

(although not enough to make it

unusable) depending on your handle it

and conditions in the usage environment.

Note these scratches are not an

indication of any problem with the player.

Preparing New Discs with Rough Spots

A new disc may have rough edges on its

inside and outside edges. If a disc with

rough edges is used, the proper setting

will not be performed and the player will

not play the disc. Therefore, remove the

rough edges in advance by using a ball

point pen or pencil as shown on the right.

To remove the rough edges, press the

side of the pen or pencil against the

inside and outside edges of the disc.

Rough spots

on inside edge

Ball point pen

or pencil

Rough spots on

outside edge

Label side up

Do not touch

the underside

of the disc

Do not bend

Wipe the disc from center

toward the outside edge

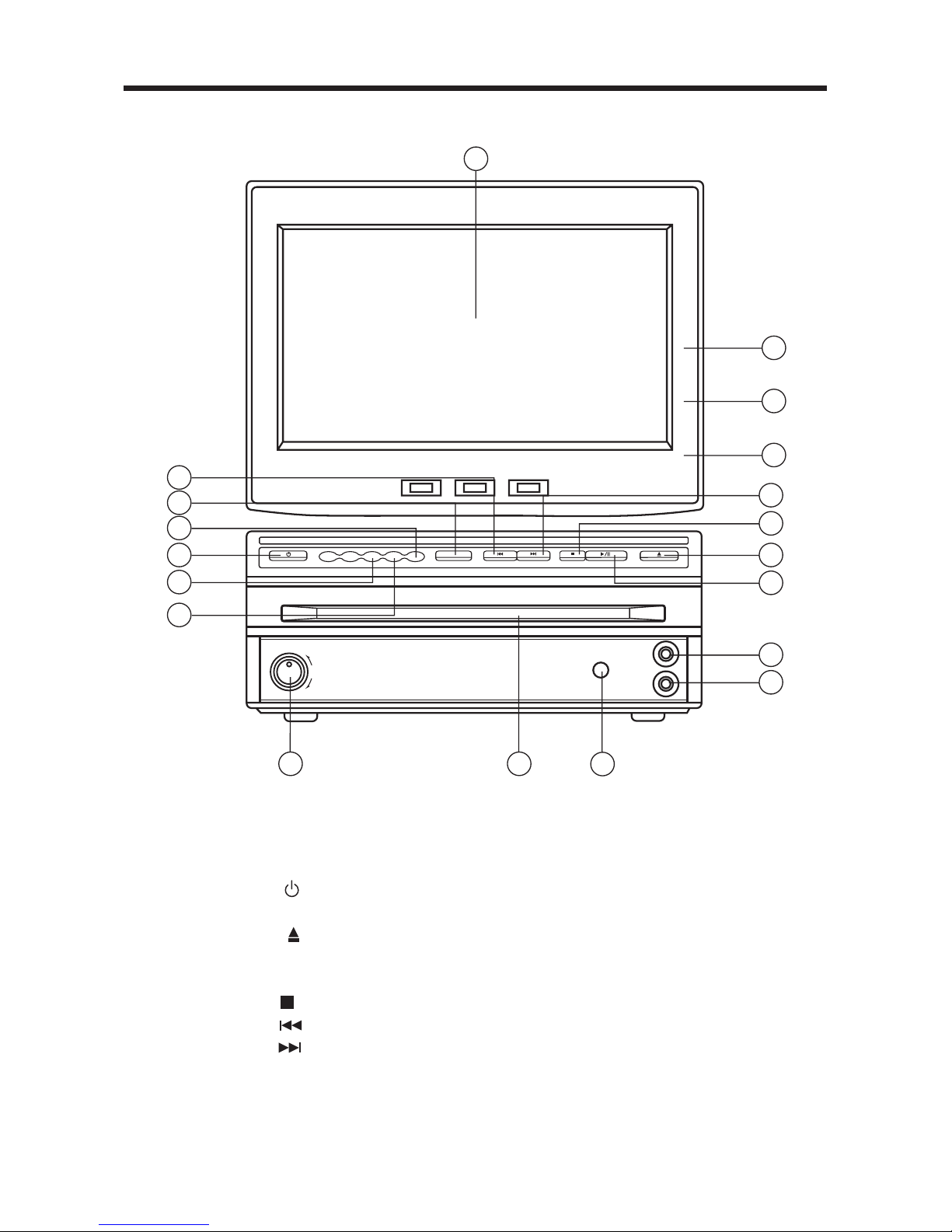

THE PLAYER

1. Power ( )

2 IR (Remote Sensor)

3. EJECT ( )

4. Disc Slot

5. PLAY/PAUSE

6. STOP ( )

7. PREV ( )

8. NEXT ( )

9. VIDEO INPUT

10. AUDIO INPUT

11. MODE

12. Indicator Light for DVD

13. Indicator Light for TV

14. Indicator Light for AV

15. SPEAKER ON/VOLUME

16. MULTI COLOR TFT MONITOR

17. COLOR Adjustment knob

18. BRIGHTNESS Adjustment knob

19. CONTRAST Adjustment knob

FRONT VIEW

5-INCH MULTI COLOR TFT MONITOR

15 2

7-INCH MULTI COLOR TFT MONITOR

THE PLAYER

20.

This jack is for earphone. You can connect an earphone to the jack to receive

sound signal.

21. VOLUME

Slide the knob to change the volume of the earphone.

22. Antenna

This antenna can receive TV signal.

BACK VIEW

23. DC 12V Power Input Socket

24. DC 12V Power Output Socket

25. Remote Control Socket

26. Digital Audio Out - Coaxial

27. AUDIO/VIDEO OUTPUT

28. Diversity Antenna Input

29. OPEN Button (Press to eject the

screen display from the base at a

little angle)

SIDE VIEW

23 24 25 26 27 28

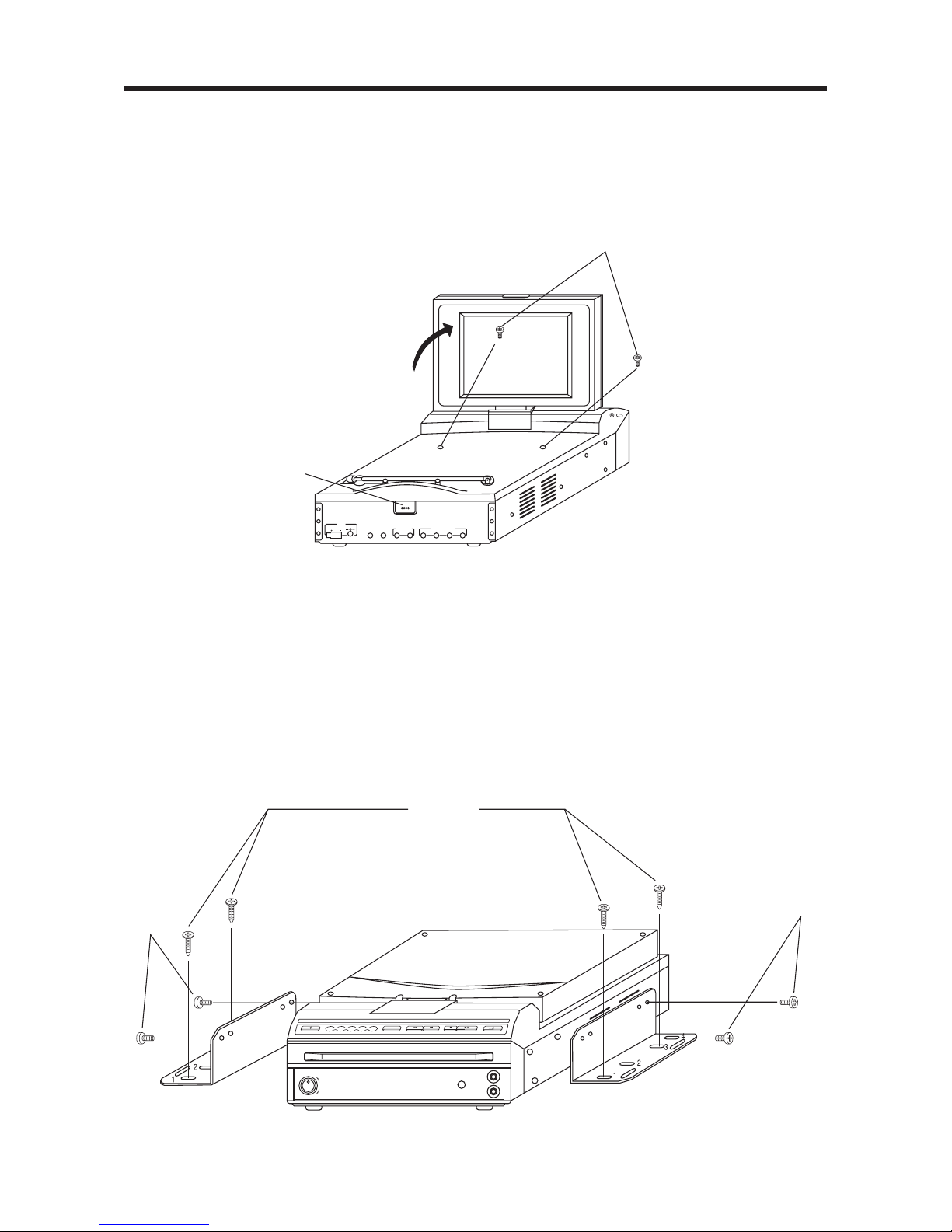

INSTALLATION

1. Remove the two transport screws

Press OPEN button on the back of the unit to eject the screen display from the

base at a little angle then turn the monitor upward to display the two screw. And

then use the screwdriver to remove the two screws.

2. Push the monitor back into the monitor base unit until the screen engages with

OPEN button. Then attach the brackets on both sides of unit with screws (M4x5),

last install the unit with screws (M5x25). When fix the unit, you can slide the

screw (M5x25) to left side or right side to meet your needed position. In the figure

below, select two holes among the positions that marked 1, 2, 3 and 4 to fix the

bracket.

Remove the transport scerws

Open Button

SCREW

M5 x 25

SCREW

M4 x 5

SCREW

M4 x 5

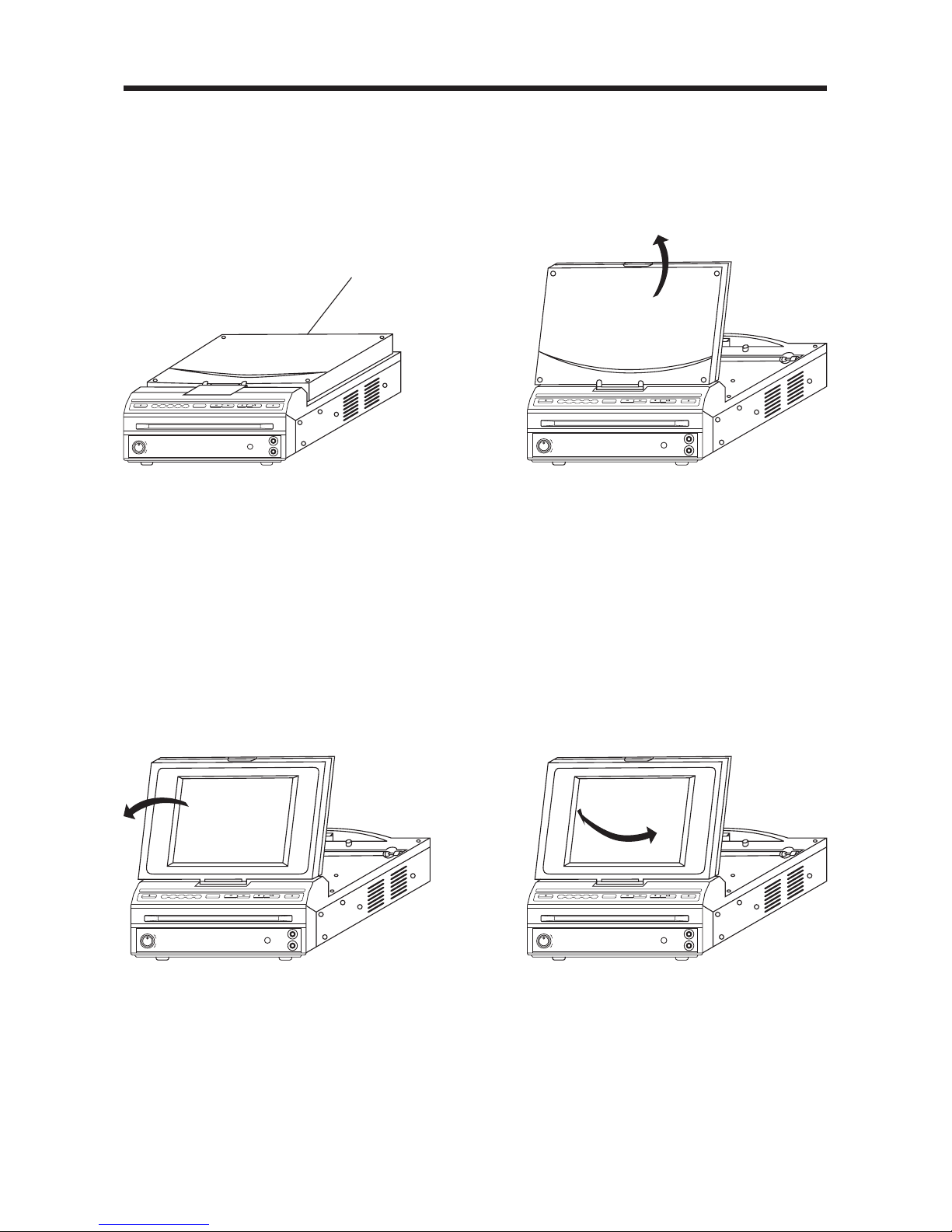

OPEN/CLOSE THE MONITOR AND ANGLE ADJUSTMENT

Opening the monitor

Press the OPEN button on the back of the unit to eject the screen display from the

base at a little angle. Then you can easily turn the monitor upward.

Adjusting the angle of the monitor

Rotate the monitor counter-clockwise to let the front view of the monitor appear. Then

you can also adjust the monitor left and right from the central viewing position at a

certain angle range. Don’t rotate the monitor forcibly to avoid mechanical damage.

Note: When the monitor is in upright position to the base, you can adjust the monitor

left or right. Otherwise, the monitor may scrape the base surface when rotated.

Closing the Monitor

Rotate the monitor left and let the back of the monitor upward, then return the monitor

to the central viewing position. Then push the monitor back into the monitor base unit

until the screen engages with OPEN button.

OPEN BUTTON

ELECTRIC CONNECTION

AC/DC

ADAPTOR

(OPTIONAL)

YELLOW

VIDEO OUT

RED

AUDIO R OUT

WHITE

AUDIO L OUT

DIVERSITY ANTENNA INPUT

CIGARETTE LIGHTER

REMOTE CONTROL RECEIVER

(OPTIONAL)

DC 12V

INPUT OUTPUT

REMOTE

AUDIO/VIDEO

OUTPUT

DIVERSITY ANTENNA

INPUT

DIGITAL AUDIO

Inhaltsverzeichnis

Andere Pyle Auto-Videosystem Handbücher

Pyle

Pyle PL72HBTF Bedienungsanleitung

Pyle

Pyle PLWV104 2R Bedienungsanleitung

Pyle

Pyle PLVIN72 Bedienungsanleitung

Pyle

Pyle PLKITCAP4 Bedienungsanleitung

Pyle

Pyle PLRD143IF Bedienungsanleitung

Pyle

Pyle PLTVRD10 Bedienungsanleitung

Pyle

Pyle PYLE View Series PLVW1345R Bedienungsanleitung

Pyle

Pyle PLDN63BT Bedienungsanleitung

Pyle

Pyle PLDAND110 Bedienungsanleitung

Pyle

Pyle Mobile Video System PLD41MUT Bedienungsanleitung

Pyle

Pyle PLDHR926KT Bedienungsanleitung

Pyle

Pyle PLTV71 Bedienungsanleitung

Pyle

Pyle PLDVSL7 Bedienungsanleitung

Pyle

Pyle PLSD131BT Bedienungsanleitung

Pyle

Pyle PLTV7.5DIN Bedienungsanleitung

Pyle

Pyle PLVWR840 Bedienungsanleitung

Pyle

Pyle View PLRTD155 Bedienungsanleitung

Pyle

Pyle PYLE PLVS7BK Bedienungsanleitung

Pyle

Pyle PLPK65TVD Bedienungsanleitung

Pyle

Pyle PLDVD134F Bedienungsanleitung

Pyle

Pyle PYLE View Series PLVRL6400 Bedienungsanleitung

Pyle

Pyle PLHR78W Bedienungsanleitung

Pyle

Pyle PLVSR10GR Bedienungsanleitung

Pyle

Pyle PLDTVN65 Bedienungsanleitung

Beliebte Auto-Videosystem Handbücher anderer Marken

Stinger

Stinger HEIGH10 RB10RAM13B Bedienungsanleitung

Eonon

Eonon E1057 Bedienungsanleitung

Milion

Milion D2223 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8153 Bedienungsanleitung

Voxx Electronics

Voxx Electronics HR8MA1 Bedienungsanleitung

Axxera

Axxera AV604Bi Bedienungsanleitung

Clarion

Clarion NX706E Bedienungsanleitung

Pyle view

Pyle view PLDN74BTi Bedienungsanleitung

Clarion

Clarion NX602 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5850N Bedienungsanleitung

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Benutzerhandbuch

Lanzar

Lanzar SVDVD5 Bedienungsanleitung

Kia

Kia MTXM100YPPE Bedienungsanleitung

Eonon

Eonon E1060 Bedienungsanleitung

Macrom

Macrom M-AN900 Bedienungsanleitung

Hyundai

Hyundai BAPE-L3000N Bedienungsanleitung

r.LiNK

r.LiNK RL2-UCON8-SM Bedienungsanleitung

Blaupunkt

Blaupunkt DVP 01C Bedienungsanleitung
