PSBV200BT

OWNER’S MANUAL

PLEASE READ BEFORE OPERATING THIS EQUIPMENT

300 Watts Bluetooth Sound Bar

Systems W/ USB SD FM Radio&

Wireless remote

STANDBY INPUT

USBSD

PSBV200BT

1PC Owner’s Manual

PACKAGE CONTENTS

1PC Remote Control

2PCS AAA Batteries

1PC 3.5mm/3.5mm

plug connection cable

IMPORTANT SAFETY INSTRUCTIONS

Warning:

The lighting flash with arrowhead symbol, within an equilateral

triangle, is intended to alert user to the presence of uninsulated

"dangerous voltage" within the product's enclosure, that may be

of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is i

alert the user to the presence of important operating and servicing

instruction in the literature accompanying the appliance.

ntended to

1. Read these instructions

All the safety and operating instructions should be read before the product

is operated.

2. Keep these instructions

The safety and operating instructions should be retained for future reference.

3. Follow all instructions

All operating and use instructions should be followed.

4. Do not use this apparatus near water

Do not use this product near water and moisture, for example: near a

bathtub, washbowl, kitchen sink, or laundry tub; in a wet basement; or

near a swimming pool.

5. Clean only with dry cloth

Unplug this product from the wall outlet before cleaning. Do not use liquid

cleansers or aerosol cleansers. Use a dry cloth for cleaning.

6. Do not block any ventilation openings.

Slots and openings in the cabinet and in the back or bottom are provided

for ventilation, to ensure reliable operation of the product and to protect it

from overheating. These openings must NOT be blocked or covered. The

openings should never be blocked by placing the product on a bed, sofa,

rug or other similar surface.

7. Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus(including amplifiers) that produce heat.

8. Protect the power cord from being walked on or pinched particularly

at plugs, convenience receptacles and the point where they exit from

the apparatus.

To reduce the risk of fire or electric shock, do not expose this

appliance to rain or moisture.

Dangerous high voltages are present inside the enclosure. Do

not open the cabinet, refer to qualified personnel only.

10. Unplug this apparatus during lightning storms or when unused for

long period of time.

11. Power Source

The product should be operated only from the type of power source

indicated on the rear of the unit.

12. Overloading

Do not overload wall outlets and extension cords as this can result in a

risk of fire or electric shock.

13. Object and liquid entry

Never push objects of any kind into this product through as they may

touch dangerous voltage points or short out parts that could result in fire

or electric shock.

Never spill or spray any type of liquid on the product.

14. Service

Do not attempt to service this product yourself as opening or removing

covers may expose you to dangerous voltage or other hazards. Refer

all servicing to qualified service personnel.

Entire wooden case, piano style painted front panel with blue backlight

LCD display.

3D technology for true surround sound.

FM stereo radio with automatic search and can store 30 stations.

USB 2.0 host and SD/MMC connector for external moving HD, flash

drive, SD/MMC card, can play MP3, WMA format music.

INPUT, STANDBY,( )PLAY/PAUSE/PHONE, ( )VOL + and ( )

VOL - buttons.

AUX1, AUX2, PC/MP3/FM ANT inputs.

Bluetooth & handsfree functions.

1x 5.25" woofer, 2x3" full range speaker and 2x1" tweeter.

With remote control

FEATURES

Take advantage of 3D stereo technology, you can listen to surround

sound without extra speakers. Placing your system as follows, and turn

on BASS +/- or TRE +/- effect by pressing these Buttons on the remote

control, you will get the surround sound effects.

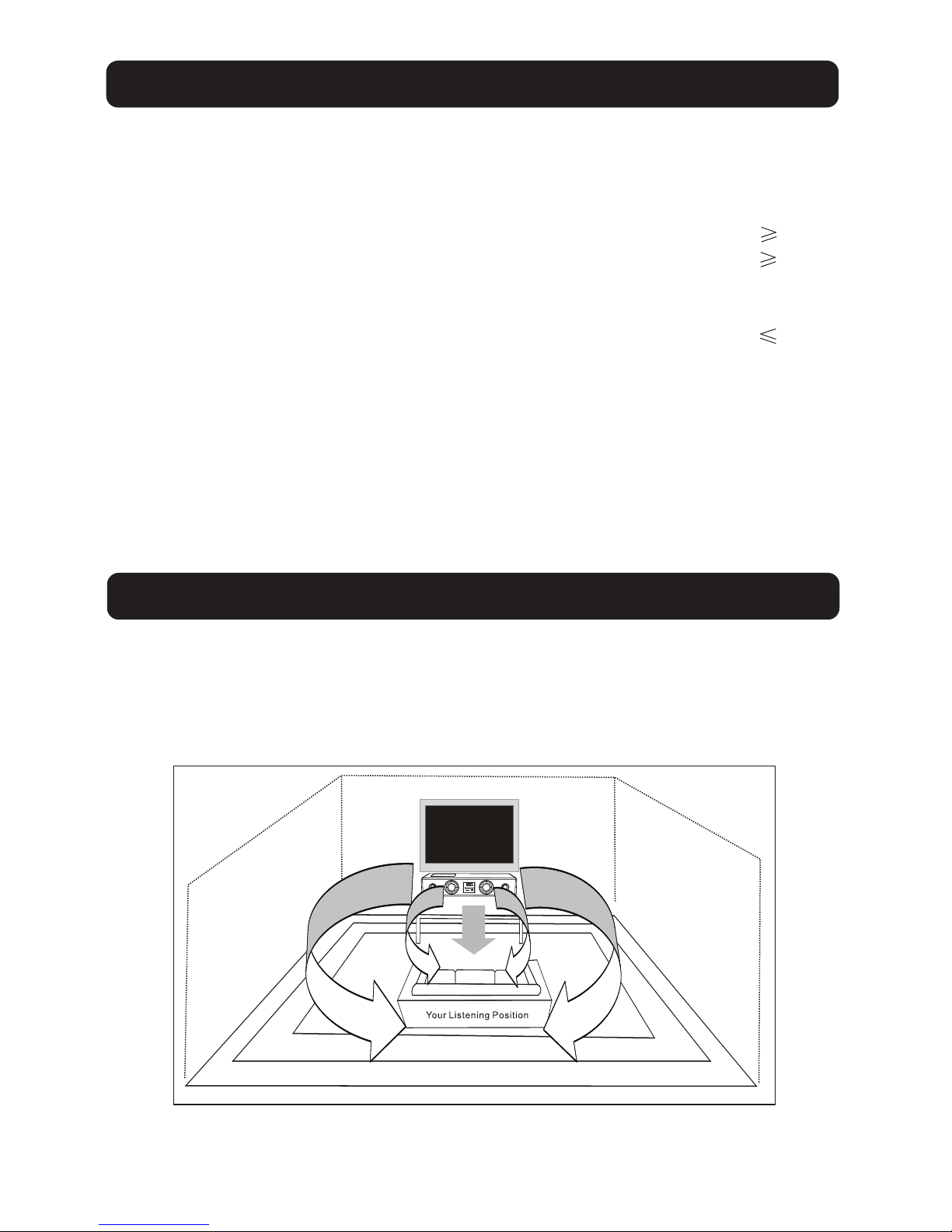

PLACING THE UNIT

Power Supply----------

Peak RMS Output--------------------------------------------------------------------300W

Input Sensitivity---------------------------------------------------------- 400mV±50mV

S/N(A Weight)---------------------------------------------------------------------- 80dB

Channel Separated Rate(1KHz)----------------------------------------------- 40dB

Woofer Impedance----------------------------------------- -----------------------8 Ohm

Tweeter and full range speaker Impedance----------------------------------4 Ohm

THD(1KHz, 1W, 8Ohm)---------------------------------------------------------- 0.5%

Frequency Response------------------------------------------------------ 20Hz-20KHz

Dimensions(WxDxH)------------------------------------------------- 605x250x120MM

Weight---------------------------------------------------------------------------------5.3KGS

-----------------------------------------

AC:100~120V, 50/60Hz

NOTE: Specifications are subject to change for improvement without

prior notice.

SPECIFICATIONS

Insert the power plug into a wall socket. Make sure

the voltage marked at the rear panel is same as

your AC power. Do not operate with wet hands to

avoid electric shock. Socket

Power plug

SYSTEM CONNECTIONS

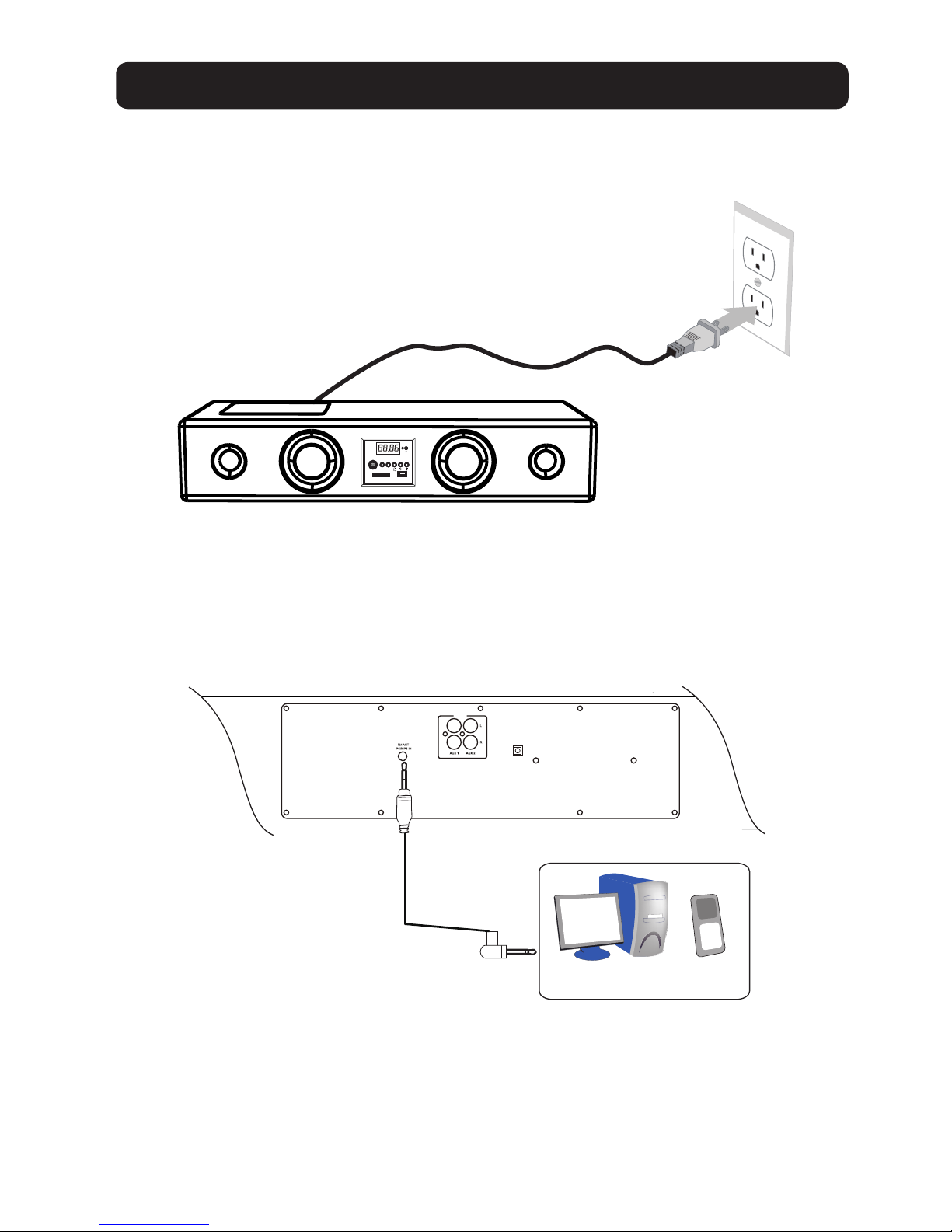

1. CONNECT POWER SUPPLY

2. CONNECT WITH PC/MP3

To listen to the sound source from PC (Computer) or MP3 Players,

connect the unit with the external device as below:

MP3

3.5mm mini plug

connection cable

AUD IO IN

DC:1 8V/2.5A

STANDBY INPUT

USBSD

PSBV 200BT

3. CONNECT WITH TV/DVD

DVD Audio Out

To listen to the sound source from Television and/or CD/VCR/DVD/DVR

players, connect the unit with the external device as below:

Audio In

DVD Video Out

TV Video In

CD/VCR/DVD/DVR Players

L R

TV Audio Out

AUX 1 AUX 2

INPUT

SELECT

P C/MP3

Audio In

1. PC Mp3

2. AUX 1 L+R input jacks.

FM ANT input jack.

BACK PANEL FUNCTIONS

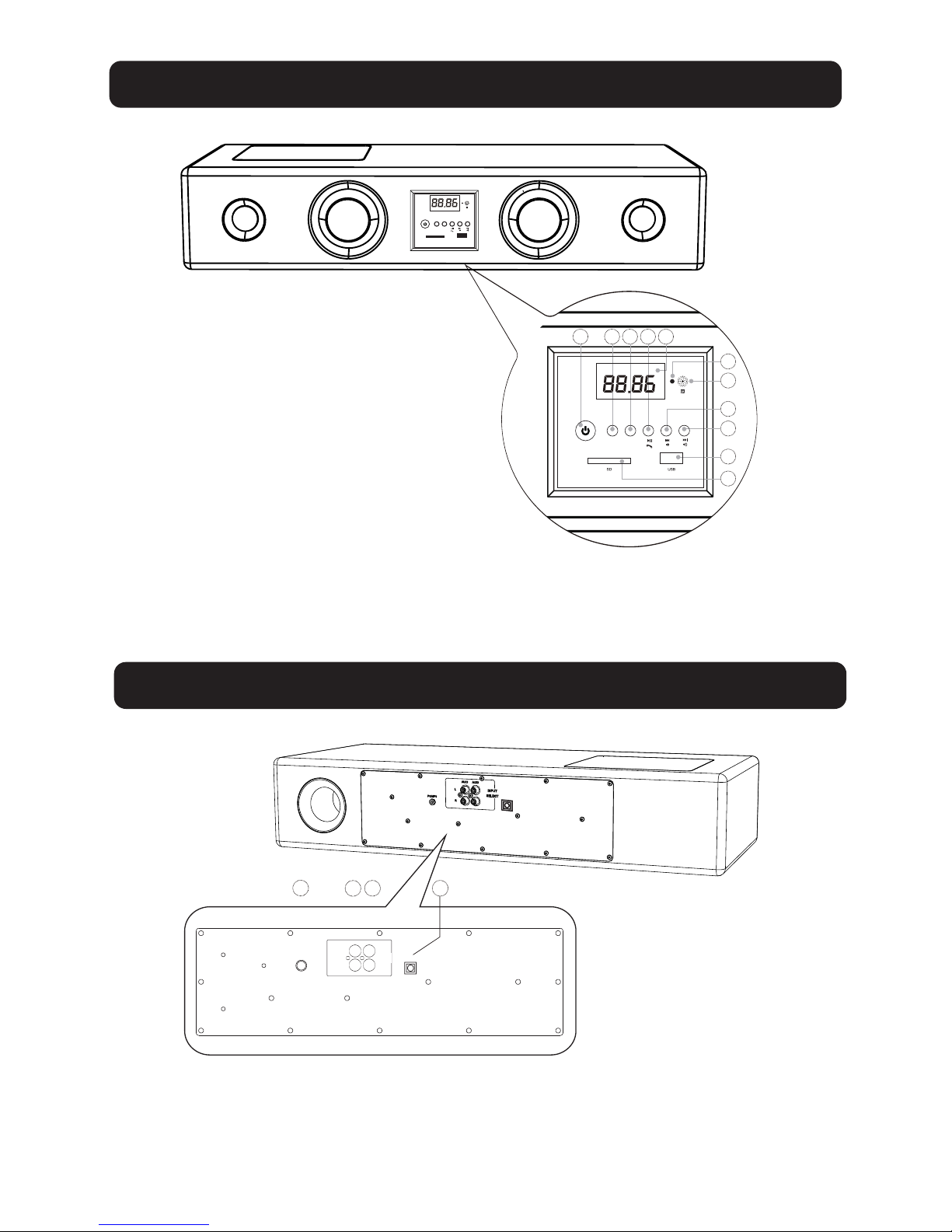

FRONT PANEL FUNCTIONS

AUX 1 AUX 2

FM ANT

PC/MP3

3. AUX 2 L+R input jacks.

4. DC: 18V/ 2.5A .

1. Power switch

2. Standby

3. Input

4. Play/pause/phone

5. LCD display

6. Power indicator

7. Remote sensor

8. Pre / VOL-

9. Next / VOL+

10. USB host

11. SD/MMC slot

1 2 3 4 5

23 4

STANDBY INPUT

USBSD

PSBV200BT

STANDBY INPUT

DC:18V/2.5A

INPUT

SELECT

INPUT

SELECT DC:18V/2.5A

1. STANDY-BY: Press to turn on the unit

from standby model. Press again to turn

the unit off(stand-by).

2. 3D:

MUTE:

CH+: In FM radio mode, press to search

the stored upper channels.

6.EQ: 11 Mode for choose, in FM mode press

choose stereo or mono

Card, USB mode or BLUE mode press to

choose previous file, press and hold to fast rewind;

in FM radio mode press to go to lower

Card, USB mode or BLUE mode press to play/pause; in FM radio

mode press to store

Card, USB mode or BLUE mode press to choose next file, press& hold

to fast forward; in FM radio mode press to go to upper

11. CH-:

Press to turn on the surround

sound effect. Press again to turn it off.

3. Press to turn off the sound

temporary, press again to turn the sound

back.

4. INPUT: Press repeatedly to select the

input source as desired.

7. : In

frequency radio stations.

8. : In

the current radio station into the memory.

9. : In

frequency radio stations.

10. Scan: in FM mode press to auto search and store working stations, in BLUE

mode press enter paired mode then display show” 0000".

In FM radio mode, press to search the stored lower channels.

12. REPEAT: in music model press for choose repeat ONE or ALL

13. VOL -: Press to reduce the sound level..

14. VOL +: Press to increase the sound level.

15. Bass-: Press to reduce the sound level of woofer

16. Bass+: Press to increase the sound level of woofer.

17. TRE-: Press to reduce the Treble

18. RESET: Press to reset the sound level to default setting.

19. TRE+: Press to reduce the Treble

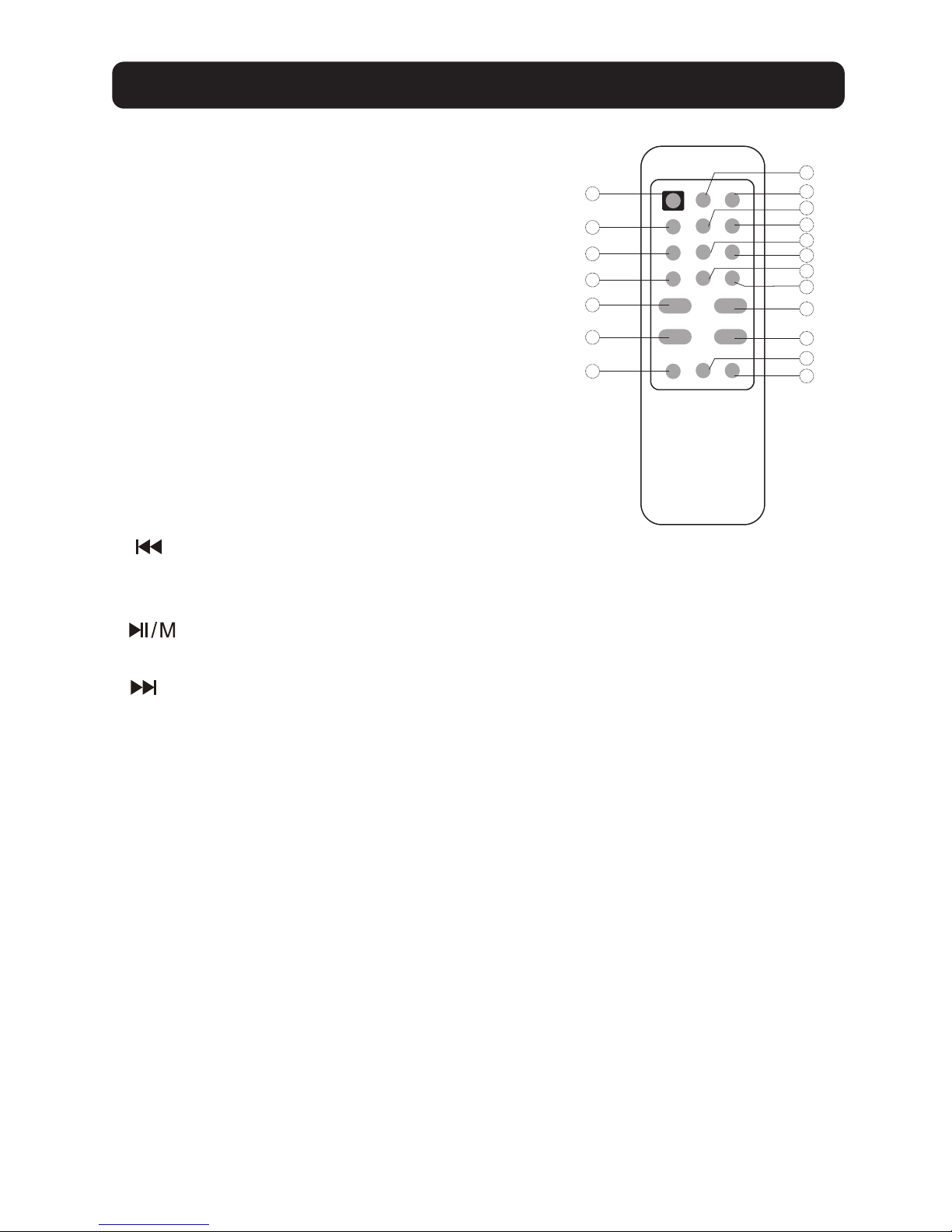

REMOTE CONTROL FUNCTIONS

STAND-BY 3D MUTE

EQCH+INPUT

TUNE- MTUNE+

REPEATSCN CH-

- VOL +

- BASS +

RESET

TRE- TRE+

10 11

13 14

15 16

17 19

HOW TO USE THE REMOTE CONTROL

1. Battery Installation:

a. Slide and lift up the battery door.

b. Install two "AAA' size batteries (included) into the battery compartment

according to the polarity markings inside battery compartment.

c. Replace the battery door.

Follow these precautions when using batteries in this device:

1. Use only the size and type of batteries specified.

2. Be sure to follow the correct polarity when installing the

batteries as indicated next to the battery compartment.

Reversed batteries may cause damage to the device.

3. Do not mix different types of batteries together(e.g. Alkaline,

Rechargeable and Carbon-zinc) or old batteries with fresh

ones.

4. If the device is not to be used for a long period of time, remove

the batteries to prevent damage or injury from possible battery

leakage.

5. Do not try to recharge batteries which are not designed to be

recharged. They can overheat and rupture.

6. Do not dispose of batteries in fire. Batteries may explode or

leak.

BATTERY PRECAUTIONS

2. Effective scope of the remote control

The remote control has an operating range which is less than 16 feet

and at 30 degree angle left or right away from the system.

NOTES:

When there is an obstacle between the unit

and the transmitter, the transmitter may not

operate.

When direct sunlight, an incandescent lamp,

fluorescent lamp or any other strong light

shines on the remote sensor of the unit, the

remote operation may be unstable.

Approx 16 feet

STANDBY INPUT

USBSD

PSBV 200BT
