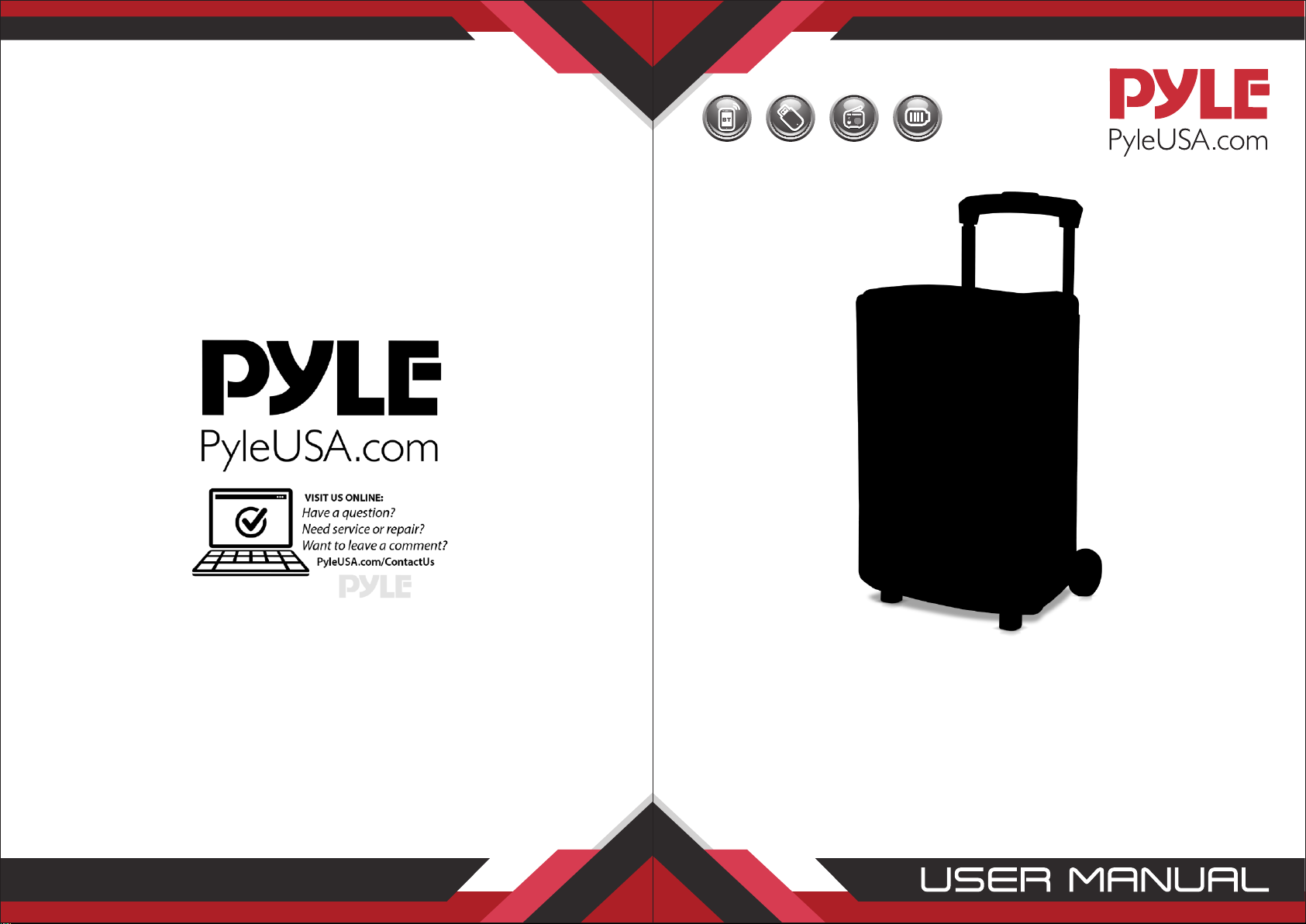

Pyle PPHP1044B Bedienungsanleitung
WirelessBTStreamingPASpeakerSystem
PPHP1044B
Portable Indoor/Outdoor Loudspeaker with
Rechargeable Battery, Flashing Party Lights,
MP3/USB/Micro SD Readers, FM Radio
(10’’Subwoofer, 600 Watt)
www.PyleUSA.com
3
WARNING
Illegal operation may cause personal injury, which could be fatal and may cause
damage to property.
1. DO NOT place objects on top of the device, as objects may
scratch the device.
2. DO NOT expose the device to dirty or dusty environments.
3. DO NOT insert any foreign objects into the device.
4. DO NOT expose the device to strong magnetic or electrical eld.
5. DO NOT use the device in the rain
6. Please check with your Local Authority or retailer for proper
disposaI of electronic products.
7. DO NOT disassemble the device. Only a certied service
technician should perform repair.
8. The device has apertures to disperse heat. DO NOT block the
device ventilation, the device may become hot and malfunction
as a result.
FEATURES
This system can be used with personal computers, mobile phone, DVD, VCD, CD, LD,
TV, MP3, radio, electronic piano and any devices which have audio output. Amplier
circuit are using high-performance, high-delity design, coupled with high-quality
professional speaker, in order to make the sound eld to get positioned so clear,
distinct levels eect. The sound system is outstanding, with deep and powerful bass
and the treble eect is strong, with clear and bright pitch. The professional electronic
frequency division circuit enhances the machine's crossover point eect.
Using professional design and manufacture of high-capacity batteries, and dedicated
audio power capacitors, to make the speaker's power reserve margin larger, more
stable, better dynamics, higher signal to noise ratio.
BUILT-IN BT FUNCTION
Press "STANDBY/INPUT" button to choose the input signal source as BT channel
when starting the machine. Please ensure the BT devices you want to connect is
open. Then scan and connect the speaker with the device. When the connection is
successful, "tick" tone will prompt. If the speaker can't be connected, please restart
the speaker or the device and try again. After the mobile phone and the BT are
successfully connected, you can play music. To ensure continuous stability of the
music signal, try to keep the BT and the mobile phone facing one another.
This unit supports iPad, iPhone, Samsung, HTC, MOTOROLA, Nokia and other BT
mobile devices wirelessly transmitting audio. It supports stereo playing of A2DP.
The BT of the unit can be used up to 10 meters if there are no barriers.
www.PyleUSA.com
2
BACK PANEL FUNCTIONS
1. USB Control board
2. USB and Micro SD Memory Card Slot
3. Master volume control knob
4. 3.5MM AUX input jack
5. Bass volume control knob
6. Treble volume control knob
7. Echo volume control knob
8. Microphone volume control knob
9. Charge LED indicator, red color is
on charge mode, blue color is full
charge mode
10. DC 9V input jack
11 6.5MM microphone input jack
12. Extra DC 12V input
13. Power switch
14. LED light switch
15. FM antenna
REMOTE CONTROL FUNCTIONS
1. Standby button
2. Choose input AUX/FM/BT/USB signal
3. Mute button
4. Play/Stop button on MP3 mode,
scan function on FM mode.
5. Next song on USB/Micro SD card,
next channel on FM mode.
6. Previous song on USB/Micro SD card,
last channel on FM mode
7. EQ eect on MP3 mode
8. Increase speaker volume
9. Choose song number directly
on MP3 mode
10. Stop button
11. Decrease music volume
12. Repeat song on USB/Micro SD memory card
TROUBLESHOOTING
www.PyleUSA.com
5
www.PyleUSA.com
4
10
1
1
4
7
9
6
11
2
3
5
8
12
1
2
3
4
5
6
7
8
12
10 9
11
13
14
15
1. The audio format in the U disc is
incorrect.
2. Improper operation has caused
a process disorder.
3. USB disc is disconnected.
1. Convert audio format into Mp3
format.
2. Reboot the machine.
3. Insert USB disc properly.
MP3
does not
play
Fault Possible Cause Solution
No sound
Distortion
of sound
Karaoke
does not
work
1. No input sound source.
2. Volume is too low.
1. Volume too high.
2. Speaker may be damaged
1. Microphone plug is not fully
inserted.
2. Microphone switch is not on.
3. Microphone volume knob is at
the lowest position.
1. Use a better music signal.
2. Adjust volume.
1. Turn down the volume.
2. If speaker is damaged, repair
or replace it.
1. Plug microphone properly into
the socket.
2. Turn on microphone switch.
3. Adjust microphone volume
properly.
PPHP1044B
Wireless BT Streaming PA Speaker System
Portable Indoor/Outdoor Loudspeaker with Rechargeable Battery, Flashing Party
Lights, MP3/USB/Micro SD Readers, FM Radio (10’’ Subwoofer, 600 Watt)
Features:
• High-Powered PA Speaker
• Indoor/Outdoor Loudspeaker System
• Wireless BT Music Streaming Ability
• Multi-Color LED Flashing DJ Party Lights
• Built-in Rechargeable Battery
• FM Radio with Digital Display
• Audio Recording Function
• Microphone Priority ‘Talk-Over’ Button
• Rugged & Durable Housing Construction
• Connect & Stream Audio from External Devices
• USB Flash & Micro SD Memory Card Readers
• MP3 Digital Audio File Support
• Aux (3.5mm) Input
• 1/4’’-inch Microphone Input
• Rear Panel Button Control Center
• Mic Volume, Treble, Bass, Echo Adjustment
• Full Range Stereo Sound Reproduction
• Vented Enclosure Design for Extended Bass
• Telescoping Handle & Rolling Caster Wheels
• *Optional Power via DC 12V Input
• Used for Backyard Home Karaoke, Stage Performances, Crowd Control
What's in the Box:
• PA Speaker System
• Remote Control
• Power Adapter
Wireless BT Streaming:
• Built-in BT for Wireless Music Streaming
• Simple & Hassle-Free Pairing
• Works with All of Today’s Latest Devices
(Smartphones, Tablets, Laptops, Computers, etc.)
• Wireless BT Version: 5.0
• Wireless BT Network Name: ‘PYLEUSA’
• Wireless Range: Up to 32’ft.
Technical Specs:
• Power Output: 600 Watt MAX
• PA Speaker Type: Molded Cabinet Loudspeaker
• Sound System: 10 '' Subwoofer + 1’’Tweeter
• Impedance: 4 Ohm
• Frequency Response: 55-20kHz
• S/N Ratio: 60dB +/-3dB
• SPL: 94dB (1W/M)
• T.H.D.: <1%
• USB Interface Type: 2.0
• Digital Media File Compatibility: MP3
• Maximum USB Flash Drive Support: Up to 32GB
• LED Lights Switch, Power ON/OFF
• PA Speaker Rechargeable Battery 7.4V Li-ion, 2200mAh - 16.2Wh
• Battery Powered Remote, Requires (1) x‘CR-2025’, Included
• Power Supply: 120/240V (9V Power Adapter)
• Total Speaker Size (L x W x H): 11.8’’ x 9.6’’ x 17.7’’-inches
www.PyleUSA.com
7
www.PyleUSA.com
6
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: suppor[email protected]om
This product can expose you to a chemical or group of checmicals, which may include
“Lead and lead compounds” which is known in the state of California to cause cancer, birth
defects, or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.
