Quick Start Guide

Proximity Time Clock System

PPDLAUBKN

What you will need.

Tape Measure Pencil Phillips Head

Screw Driver

Power Drill

(Optional)

TTEZPROXEK

Terminal

TimeTrax™

Proximity Badges (15)

Part #42454

TIMETRAX™

Software CD

Ethernet

Cable

(CAT5)

Mounting

Hardware

TTPROXEK Quick Start

Guide &

TTEZ Series Software

Reference Guide

Power

Supply Security Bracket

& Key

Contents

Quick Start Guide

pyramidtimesystems.com

MODELS TTEZ, TTEZEK, TTEZPROXEK (PPDLAUBKN)

Software Reference Guide

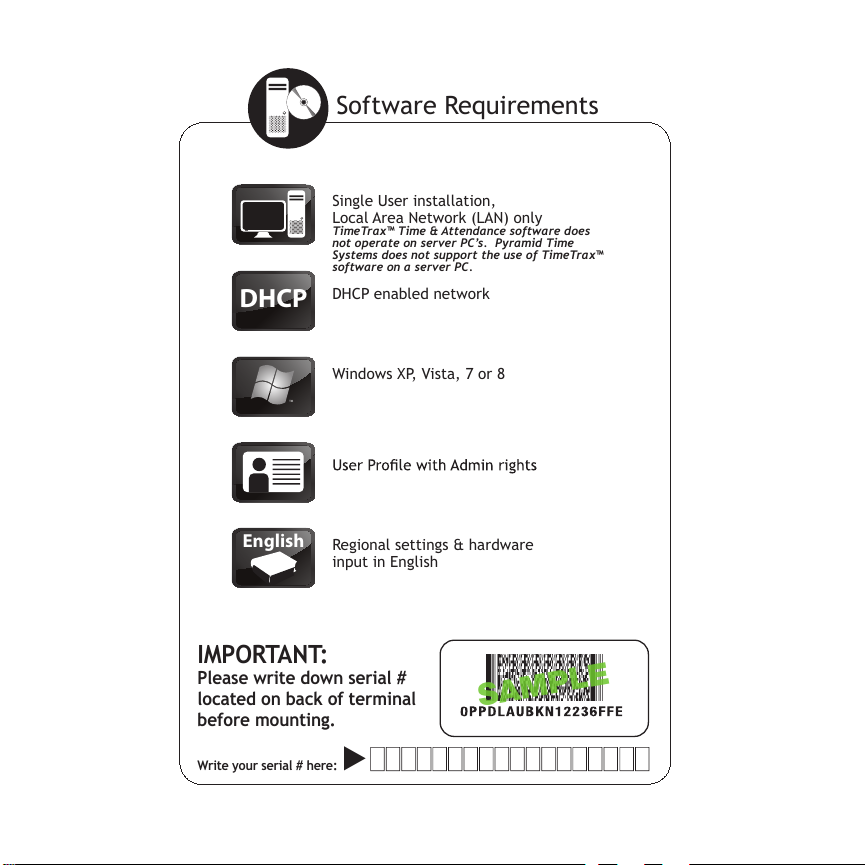

IMPORTANT:

Please write down serial #

located on back of terminal

before mounting.

Write your serial # here:



SAMPLE

Software Requirements

Single User installation,

Local Area Network (LAN) only

TimeTrax™ Time & Attendance software does

not operate on server PC’s. Pyramid Time

Systems does not support the use of TimeTrax™

software on a server PC.

DHCP enabled network

Windows XP, Vista, 7 or 8

Regional settings & hardware

input in English

DHCP

English

Connect & Mount Terminal

Connect Ethernet cable into Ethernet

port located in compartment on back

of terminal.

Connect power supply into power port

located in compartment on back of

terminal.

Route the cables through channel at base

of terminal.

Mount terminal (see instructions below).

Plug free end of Ethernet cable into

network jack, router or switch.

Plug free end of power supply into

outlet.

To mount terminal.



bottom of bracket should be approximately 45

 Level bracket & mark four screw holes close to

corner tabs.

 Drill holes as marked and insert included anchors

if needed.

 Screw mounting bracket to wall with included

screws.

 Drill hole centered in rectangular opening of

bracket for cables. The hole should be large

enough to route cables through wall.

 Push terminal onto mounting bracket aligning

four tabs on bracket with four matching slots on

back of terminal.

 Slide terminal downward until locking tab clicks

into place. When properly mounted, terminal

cannot be slid up and off bracket without using

included wall bracket release key to disengage

locking tab.

To detach terminal.

 Hold included wall bracket release key with

pointed end up & diagonally cut side away from

you.

 Insert key into narrow slot located on bottom of

terminal to right of cable access cutout.

 Push key all the way up into slot. Key will slide

easily until last ½ inch until some resistance from

locking tab is felt.

 With key fully pushed into slot, slide the terminal

up and off mounting bracket.

5 6

Install TimeTrax™ EZ Software

Insert TimeTrax™ CD into CD-ROM drive.

Enter temporary User Name “ADMIN”.

Enter temporary password “PTI”

(case sensitive). Click “Login”.

Click “Finish” when install is complete.

Click on Pyramid TimeTraxTM desktop

icon.

Click “Yes/Unblock” to allow program

to make changes to this computer.

“Recorder Found” message will appear.

Click “OK” to continue. If “No Recorder

Found” message appears, check cable

connections and click “Reconnect”.

TimeTrax™ EZ InstallAware Wizard will

automatically open. Click “Next” to

begin install.

  

Click “Yes” to continue.

Payroll Setup

*Choose Pay Period format, start day, and start

time. Click “Save” then click “Setup Pay

Categories” to continue.



Start time should be one hour after last Out punch of previous pay period and

rt at 12 midnight.

Choose “Yes” to continue to

Payroll SetUp screen.

Click “Edit” to set up pay period.

Click “Edit” to edit any of the

Employee Setup

Click “Edit” to begin. Enter Daily and

Weekly Overtime. 1Choose “Advanced”

for additional Employee Group settings.

Wave prox badge within two inches of target area.

If employee badge number is successfully read,

the time clock terminal will beep and the badge

screen.

Employee records generated from prox badge

punches are stored within the terminal. The ter-

minal stores the last 6,000 punches before down-

load is required. Depending upon usage, punches

can be retrieved on a more or less frequent basis.

Click “Add” to enter a new employee.

Enter prox badge number in the Card 1

Click “Save” after entering each employee

or click “Cancel” to discard changes.



Using Time Clock

Please refer to Software Reference Guide for Advanced Employee Group Setup.

I2231 Rev. C

Call us

888.479.7264

Send us an email

[email protected]

Chat online

pyramidtimesystems.com
