MX-PROX™
INSTRUCTIONS
The MX-PROX is a unique card reader designed to work exclusively with the Pyronix range of Matrix®control panels. Arm
Modes A, B, C and D, or Partitions 1, 2, 3 and 4, may be armed or disarmed depending on how the MX-PCARD™or
MX-TAG™has been programmed:
•A card or tag allocated to one partition will arm or disarm Arm Modes A, B, C and D
•A card or tag allocated to multiple partitions will arm or disarm Partitions 1, 2, 3 and 4
By presenting a card or tag to the MX-PROX reader, the reader will arm or disarm the panel in the same way as entering
an allocated user code at a remote keypad.
(Each card or tag must be allocated a user code which has been programmed into the control panel).
OPERATION
1. Present the card or tag to the MX-PROX. The card or tag must be within 3cm of the MX-PROX for it to be recognised.
3cm
2. Present the card or tag for 1, 2, 3 or 4 seconds. This period of time represents the Arm Mode or Partition that is to be
armed or disarmed.
3. After waiting for the required time, remove the card or tag, and wait for the confirmation tone. The time taken for the
confirmation tone to sound depends on the entry/exit time programmed into the control panel.
Key
Arm Mode A / Partition 1 Arm Mode B / Partition 2
Arm Mode D / Partition 4
RINS539-2
MX-PROX Instructions
Page 2 RINS539-2

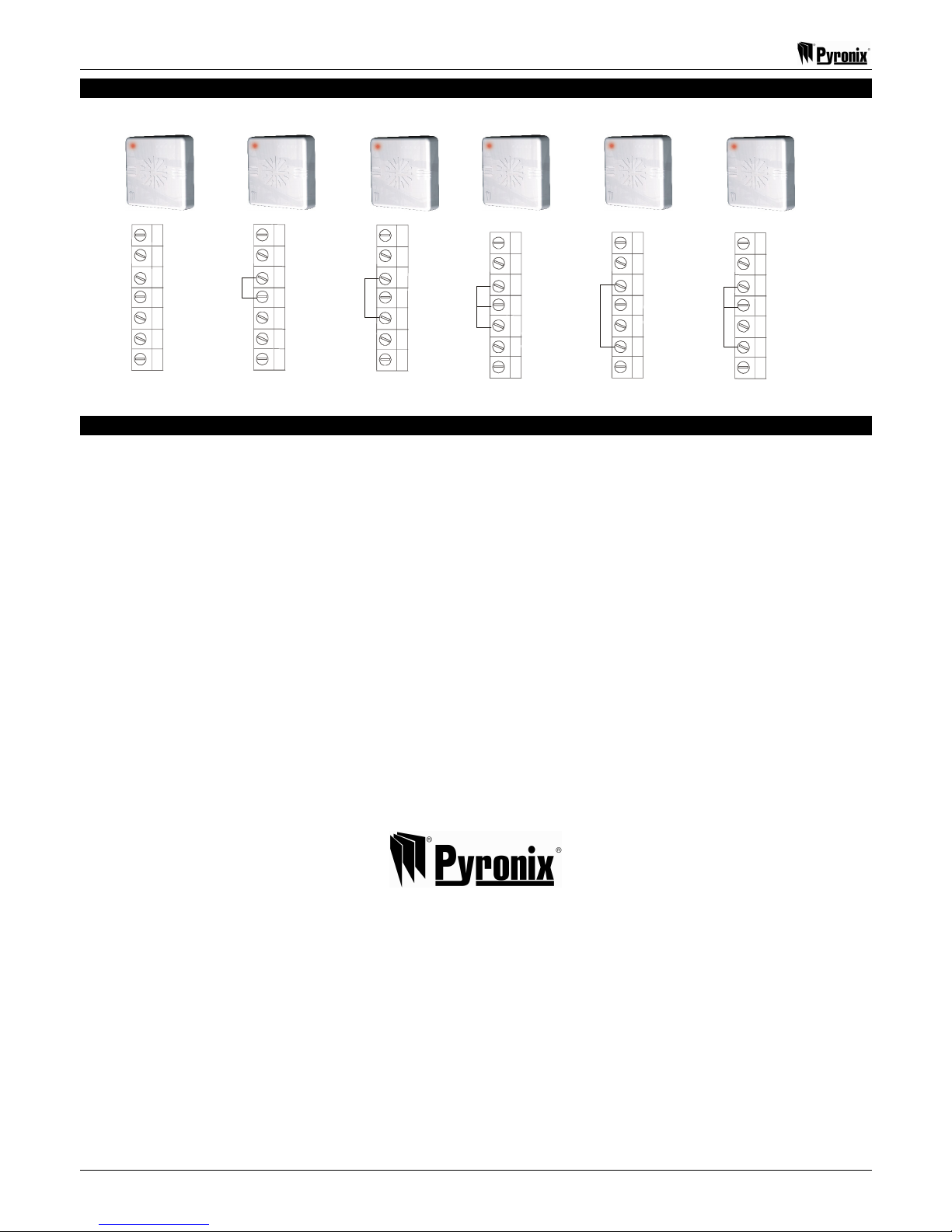

ADDRESSING THE MX-PROX
Individual readers are recognised by the link settings on the PCB on the back of each reader.
I D 4 I D 5 I D 6
K+ K+ K+
KD KD KD
K- K- K-
ID0 ID0 ID0
ID1 ID1 ID1
ID2 ID2 ID2
PC out PC out PC out
K+ K+ K+
KD KD KD
K- K- K-
ID0 ID0 ID0
ID1 ID1 ID1
ID2 ID2 ID2
PC out PC out PC out
I D 1 I D 2 I D 3
NOTE: PC Out – see page 51 in the Full System Manual for more details.
TECHNICAL SPECIFICATIONS
Power Supply
Voltage: 12V DC typical (9 – 15V DC range)
Current: 90mA max @ 13.8V DC
Mechanical
Dimensions: 84mm x 84mm x 21mm
Case Material: Polycarbonate
Environmental
Operating Temperature: -10°C to 50°C (14°F to 122°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Warranty
This product is sold subject to our standard warranty conditions and is warranted against defects in workmanship for a
period of 2 years. In the interests of continuing improvement of quality, customer care and design, Pyronix Ltd. reserves
the right to amend specifications without giving prior notice.
Pyronix Ltd.
Pyronix House
Braithwell Way
Hellaby, Rotherham
S66 8QY, UK
Customer Support (UK only): 0870 122 3360
This is a national rate line.
Opening hours: 08:30 AM – 05:00 PM, Monday to Friday
Website: www.pyronix.com
www.matrixpanel.com
www.dd243.com
