Pyronix Paragon E Montageanleitung

RINS011 ISSUE-1

PYRONIX LIMITED JULY 2000

PARAGON

USER INSTRUCTIONS





$J?>5@B?7B1==9>7CD1DEC<125<

J?>5

B??=

J?>5 J?>5 J?>5

!"#$

5-5>DBI5H9D1-1335CC9-9==5491D5?-?=9DD54

CD1DEC;5I*











)

(







RINS011 ISSUE-1

3\URQL[/LPLWHG

3\URQL[+RXVH

%UDLWKZHOO:D\

+HOODE\5RWKHUKDP

64<(1*/$1'

7HO

)D[

7HFKQLFDOKHOSOLQH8.RQO\

HPDLO

H[SRUWVDOHV#S\URQL[FRP

PDUNHWLQJ#S\URQL[FRP

WHFKQLFDOVXSSRUW#S\URQL[FRP

ZHEVLWHZZZS\URQL[FRP

7KLVLVDSUHPLXPUDWHOLQHZKHUHFDOOVDUHFKDUJHGDWSSHUPLQXWH

XNVDOHV#S\URQL[FRP

CONTENTS

1. INTRODUCTION 4.

2 FEATURES 4.

3. FUNCTIONALDESCRIPTION 5.

3.1 OPERATINGMODES 5.

3.2 ENTRY/ EXIT MODE 5.

4. ZONES 6.

4.1 ENGINEERPROGRAMMABLEZONES 6.

4.2 24 HOURZONES 6.

5. CONTROLS ANDFUNCTIONS 7.

6. USERFACILITIES 8.

6.1 FULLSETTING THE PANEL 8.

6.2 PART SETTING THE PANEL 8.

6.3 UNSETTINGTHEPANEL 8.

6.4 ACTIVATINGTHE PERSONAL 8.

ATTACK ALARM

6.5 ACTIVATINGTHE FIRE ALARM 8.

6.6 TURNINGCHIME ON AND OFF. 8.

6.7 RECALLINGEVENT LOG 9.

6.8 OMITTING ONE OR MORE ZONES 9.

6.9 CLEARINGTHE EVENT LOG 9.

6.10 CLEARINGTHEDISPLAY AFTER

AN ACTIVATION 9.

6.9 CHANGING THE USERCODE 10.

6.10 SYSTEM TESTMODE 10.

6.11 WALK TEST MODE 10.

7. LEDFUNCTIONS 10.

8. TROUBLESHOOTING 11.

9. USERQUICKREFERENCEGUIDES 13.

RINS 011 ISSUE-1 3

1 INTRODUCTION

The Paragon E is a full featured intruder alarm control panel, based around a micro-

processor with 4 fully programmable zones and 2 dedicated '24-hour' zones (Personal

Attack alarm and a System-Tamper alarm.). It is operated via a 16-key onboard keypad

RINS 011 ISSUE-1

and has an arrangement of 8 LEDs to show the status of the system.

All features are fully programmable and there are two levels of access to the system.

These are:

User & Engineer.

The User level gives access to all setting and unsetting facilities, and also allows the

changing of code numbers and testing of the system.

The Engineer level gives total access to the system including the ability to reconfigure

the system . The Engineer cannot, however, unset the system.

2 FEATURES

- 2 Access-Level Codes, both programmable

- Easy-set facility

- 4 Programmable alarm zones

- 3 Set / Part Set modes

- Configurable fire zone with unique alarm sound.

- Personal Attack alarm zone

- Tamper zone

- 16 key backlit keypad

- Dedicated Personal Attack key on keypad

- Dedicated Fire alarm key on keypad

- 8 LEDs for immediate indication of panel status

- Walk Test facility

- System Test Function

- Built in sounder with volume control and software override

- Separate Bell and Strobe lamp outputs

- Zone omit facility on exit

- Silent part set.

NB your installation engineer will have programmed all the system features to ensure

easy and convenient day to day use of your system. (see section "Engineer Program-

mable Zones".)

1.Unsetting. Enter

Re enter to clear LEDs.

2. Full set. Enter or

3. Part set.

a. Part set 1 (Downstairs) or

b. Part set 2 (Upstairs) or

NOTE. Part sets are silent on exit.

Tones will be heard on entry.

4. To activate the Personal Attack alarm enter

5. To activate the Fire alarm enter

User code

Enter to exit

(Full volume)

(Silent on exit)

10.Walk test All zones chime when activated.

LEDs light when zones open.

Enter to exit

9 USER QUICK REFERENCE GUIDE

New User code

Old User code

New User code

Press any

number key

to select next test

6. Zone omit in exit mode.

7. Chime facility Toggles chime on and off

8. Changing

User code

9. Test mode. All LEDs are switched on

The strobe is switched on.

The bell is switched on.

The internal sounder is

switched on

12 RINS 011 ISSUE-1

3 FUNCTIONAL DESCRIPTION

3.1 Operating Modes

Day Mode This is the state of the panel when unset (not armed). Fire, Personal

Attack and Tamper inputs, however remain active 24hours aday.(These

are referred to as 24 hour zones). Day mode is identified by the green

day LED on the front of the panel.

Set Modes When the panel is set (armed) an activation of any Access, Immediate

24 hour zone will cause an alarm condition. When an alarm is generated

the internal and external sounders will operate for the length of time

programmed and the tone of the internal sounder will be two notes

repeated rapidly. The strobe lamp will also be activated and will

continue to operate until the panel is reset.

Fullset / Partset

At the time of setting the control panel, any one of three set modes

can be selected. i.e

Full set : Whole system armed; nobody on premises.

Part set 1: Upstairs off, Downstairs armed.

Part set 2: Upstairs armed, Downstairs off.

The above are purely examples. The Engineer has the ability at

the programming stage to configure all the circuits to the

customer's exact requirements.

3.2 Entry / Exit Mode

Entry When the panel is set and an Entry / Exit zone is triggered the

Entry / Exit timer will begin to count down. During this period

an Entry / Exit tone (single repeated bleep) will be produced by

the internal sounder and any zones which are programmed as

Access zones will be ignored. If the user code is entered before

the end of the count down period the panel will return to day

mode. If the timer is allowed to elapse before the user code is

entered the panel will go into an alarm state. In this case the

system needs to be 'Unset'

Exit With the panel in day mode, if either the user code or an Easy-set

key sequence is entered the Entry / Exit timer will begin. If all the

Immediate zones are clear, then the Entry / Exit tone will be

heard. Leave the protected area by the predetermined Entry / Exitroute.

As you trigger Access zones the tone will change

temporarily to a repeated low tone. When all the zones are clear,

the Entry / Exit tone will continue again until the end of the

time-out period. The panel will then be set.

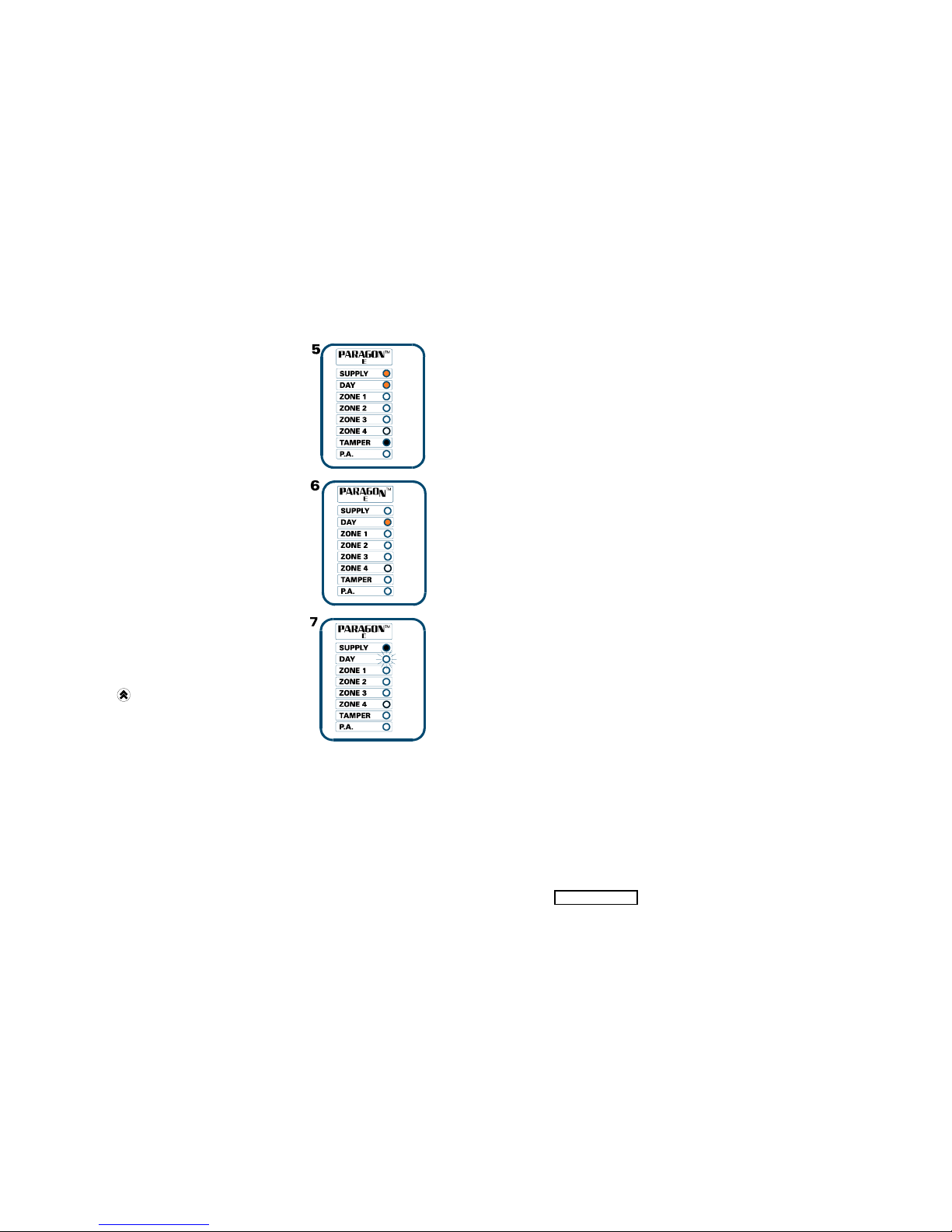

5. Tamper Alarm activated sounding internal audible

alarm. Panel unset / Day mode.

Enter user code to clear internal audible alarm.

Re-enter user code to clear TAMPER LED.

Now try setting the system. If the system

goes straight into an alarm condition contact

the engineer.

6. Mains Failure. Panel unset / Day mode.

Supply LED off indicating no mains supply to

panel.

Check that there is mains supply else where on

the premises. If no supply in premises wait

for mains power to return.If there is mains

supply to the system contact the engineer.

7. Panel Waiting for Further Commands.

Day LED will flash if you have started a

function but not finished the sequence.

Enter to terminate.

611

RINS 011 ISSUE-1

4 ZONES

4.1 Engineer Programmable Zones

Entry / Exit This is a zone which allows limited-time access to the

premises in order to set or unset the system.

Access This is a zone which, on setting the panel, allows access

to the Entry / Exit zone. However, if the panel is set and

an Access zone is triggered before an Entry / Exit zone

then an alarm will be generated immediately.

Immediate This is a zone which will, when entered create an alarm

when the panel is set.

Omitted If a zone is programmed as an Omitted zone by the

Engineer, then it is ignored by the panel. Primarily used

for Part set options. It also allows the user to continue to

use the alarm system even if a fault has been discovered

on one or more zones.

4.2 24 hour zones

Personal Triggering of the Personal Attack (P.A) zone will always be cause a

Attack full alarm activation regardless of whether or not

the panel is set.

Tamper A tamper zone activation will only generate an internal

alarm, if the panel is in Day mode. If a tamper fault is

present and the panel is then set, the system will give a

second internal alarm. Triggering of a tamper zone when

the panel is set will always give an external as well as

internal alarm

Fire Triggering the fire zone will only operate the internal

sounder. A fire alarm is identified by a three note rising

sound which is easily distinguished from all other tones.

Zone 4 may be configured as a fire zone.

**The Fire Zone is intended as an extra feature to the Intruder Alarm system and must

not be regarded as a total fire protection system**

1. Panel set / on

2. Panel unset / off.

8.TROUBLESHOOTING

3. Panel unset . Zone1, Zone 2, Zone 3 ,

Zone 4 LEDs on.

This shows an alarm has occured

on Zones 1 to 4.To clear alarm lights

enter User code. If the LEDs do not

clear call engineer.

If the LED does not clear call the engineer.

4. Personal attack activated.

Enter User code to clear P.A light.

Reset Personal Attack buttons if necessary.

KEY:

=LED OFF

=LEDON

=LED FLASHING

RINS 011 ISSUE-1

5 CONTROLS AND FUNCTIONS

Volume Control

This is only accessible when the front cover has been removed and will only affect

the volume of the internal sounder together with any extension speakers. The volume

control is overridden when the panel is in an alarm state, and also if the the panel has

been set by the User code.

Chime

Chime function applies to day mode only and if selected will cause the panel to

generate a three-note sound when an entry/exit zone is triggered. This feature is to

inform the occupants of the building that someone has entered.

Latch

The latch facility is designed to be used with intruder detectors fitted with a latch

memory. This feature is very useful when more than one detector has to be wired to a

particularzone as it will show which detectors were triggered if an alarm occured. If

there has beenan alarm and latch memory was used, then when the panel is reset an

LED indication will be given at the relevant detector(s). Resetting of latch memory

requires the panel to be set again for not less than 5 seconds, and then unset.

Auto Rearm

After an alarm the panel will automatically reset itself when the bell timer has expired.

Any zones which still remain triggered at that time will be ommited automatically.

Walk test

The walk test function verifys that all the intruder detectors on the alarm system are

functioning correctly. When the walk test mode is enabled any activated zone will

cause a chime and the LED display to indicate

6.11 Changing User Code

Enter

then User code - 3 Bleeps

then New user code - 3 Bleeps

then New user code again - 3 Bleeps

The DAY led will flash when this function is entered and an acknowledge tone will be

sounded after each code has been entered. If an incorrect key is entered an error

tone will be given and the function ended.

6.12 System Test Mode

Enter

This function performs a number of tests which are listed below.

The next test is selected by pressing any numeric key.

To exit system test mode press the key again.

Test 1) All LEDs are switched on

2) The strobe is switched on.

3) The bell is switched on

4) The internal sounder is switched on

6.13 Walk Test Mode

Enter

When the walk test mode is enabled any activated zone will cause a chime and the

LED display to indicate.

To exit walk test mode press the Key again

7 LED FUNCTIONS

Supply light on : Indicates there is mains on the system

Day light on : Indicates the system is unset. (Day

mode)

Zone light on : Indicates an Alarm activation

Tamper light on : Indicates a Tamper alarm

P.A light on : Indicates a Personal Attack activation

Tamper light flashing : Engineer mode

6.7 Recalling the event log

The event log can now be displayed at any time, when the Paragon E is unset. The

event log is displayed by pressing.

The day led will flash and event information from the latest alarm activation is displayed

pressing any key will then show the previous event information. When all the four

have been displayed the day Led will stop flashing and another function can be

selected.

6.8 Omitting one or more zones

If one or more immediate zones are triggered whilst in exit mode a low pitched error

tone will be produced. If any zones remain triggered at the end of the exit timer, the

error tone will continue. Key in the User code. The display will show the zones which

remain triggered. Make a note of any triggered zones. Key in the user code which will

clear the display.

Check for any obvious reason for these zones to have been activated. This may

simply be due to a monitored door or window being left open or a pet being left in a

protected area. If the fault cannot be rectified it is possible to omit faulty zones, but this

should only be used as a last resort if the building is to be left unoccupied.

Example

Set panel (error tone will be heard).

Wait for the end of the exit timer.

Error tone is still being produced.

Key in the user code.

Triggered zones will be displayed.

Note triggered zones.

Key in user code to clear display and error tone then investigate fault(s) if

possible.

Set panel again.

then: Check the display If the zones are not being triggered exit via normal

route.

or: If displays shows zones are as still being triggered

then enter:

now enter: the number of the zone to be omitted (1 to 4)

then: - Entry / Exit timer will start again.

then: exit building by normal route.

6.9 The user if allowed by the engineer can clear the log. This is achieved by

pressing:

6.10 Clearing the display after an activation

After an alarm condition enter the User code :

This unsets the panel.The LEDs will display any activated zones.

Enter User code again. This clears the display.

RINS 011 ISSUE-1

6 USER FACILITIES

SHIFT PA (PERSONAL ATTACK)

EASY-SET UP ARROW

FIRE DOWN ARROW

6.1 Full Setting the panel

Enter either of the following:

User Code

By using this method, maximum volume of the entry / exit tone will be heard.

By using this method, no sounds will be emitted except for an acknowledge

tone at the beginning and the end of the entry / exit time.

6.2 Part setting the panel

Part set 1 (eg downstairs only armed):

or both will give a silent setting

Part set 2 (eg upstairs only armed):

Enter or both will give a silent setting

6.3 Unsetting the panel

The panel can be unset by entering the building via the entry / exit route and then

keying the user code.

6.4 Activating the Personal Attack Alarm (PA).

To activate the personal attack alarm enter

6.5 Activating the Fire Alarm.

To activate the Fire Alarm enter

6.6 Turning Chime On and Off (Panel must be in day mode)

Enter

When the chime mode is selected a three note chime will be produced by the internal

sounder and any extension speakers when an Entry / Exit zone is activated. The same

key sequence can be used to turn off the chime facility.

Inhaltsverzeichnis

Andere Pyronix Sicherheitssystem Handbücher

Pyronix

Pyronix Enforcer 32WE Bedienungsanleitung

Pyronix

Pyronix OCTAGON II Bedienungsanleitung

Pyronix

Pyronix Wireless Alarm system Bedienungsanleitung

Pyronix

Pyronix EURO 46 V10 Bedienungsanleitung

Pyronix

Pyronix Matrix 6/816 Bedienungsanleitung

Pyronix

Pyronix EURO 46 V10 Bedienungsanleitung

Pyronix

Pyronix ENFORCER V11 Service-Handbuch

Pyronix

Pyronix STERLING 10 Bedienungsanleitung

Pyronix

Pyronix RINS1902-2 Bedienungsanleitung

Pyronix

Pyronix Matrix 424 Bedienungsanleitung

Pyronix

Pyronix Deltabell E Bedienungsanleitung

Pyronix

Pyronix Enforcer Einrichtungshandbuch

Pyronix

Pyronix Vocaliser Bedienungsanleitung

Pyronix

Pyronix Enforcer Bedienungsanleitung

Pyronix

Pyronix XD15TT Bedienungsanleitung

Pyronix

Pyronix Enforcer 32WE Bedienungsanleitung

Pyronix

Pyronix Enforcer V10 Bedienungsanleitung

Pyronix

Pyronix XDL12TT-AM Bedienungsanleitung

Pyronix

Pyronix PCX 46 Bedienungsanleitung

Pyronix

Pyronix HOMECONTROLHUB Bedienungsanleitung

Pyronix

Pyronix PCX 256 Betriebsanleitung

Pyronix

Pyronix PCX 256 Bedienungsanleitung

Pyronix

Pyronix PARAGON E Bedienungsanleitung

Pyronix

Pyronix PCX 78 Bedienungsanleitung

Beliebte Sicherheitssystem Handbücher anderer Marken

Inner Range

Inner Range Concept 2000 Bedienungsanleitung

Climax

Climax Mobile Lite R32 Montageanleitung

CADDX

CADDX NX-6 Bedienungsanleitung

FBII

FBII XL-31 Series Bedienungsanleitung

Johnson Controls

Johnson Controls PENN Connected PC10 Bedienungsanleitung

Aeotec

Aeotec Siren Gen5 Bedienungsanleitung

Blaupunkt

Blaupunkt SA 2700 Bedienungsanleitung

IDEAL

IDEAL Accenta Betriebsanleitung

AJAX

AJAX DoubleButton Bedienungsanleitung

Swann

Swann SW-P-MC2 Bedienungsanleitung

Ecolink

Ecolink Siren+Chime Bedienungsanleitung

Digital Monitoring Products

Digital Monitoring Products XR150 Bedienungsanleitung

EDM

EDM Solution 6+6 Wireless-AE Bedienungsanleitung

Highway Safety Group

Highway Safety Group EA401 Bedienungsanleitung

Siren

Siren LED GSM Bedienungsanleitung

Detection Systems

Detection Systems 7090i Montageanleitung

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Bedienungsanleitung

Siemens

Siemens FDM273 Bedienungsanleitung
